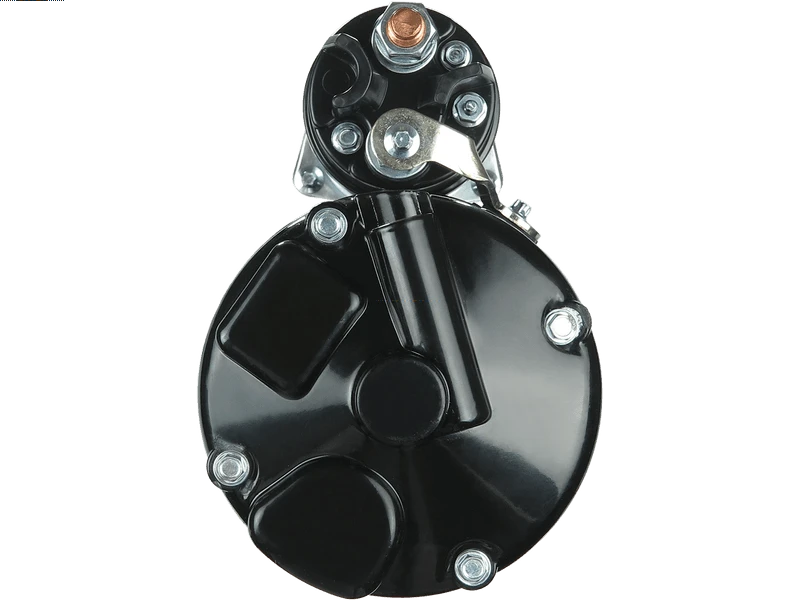

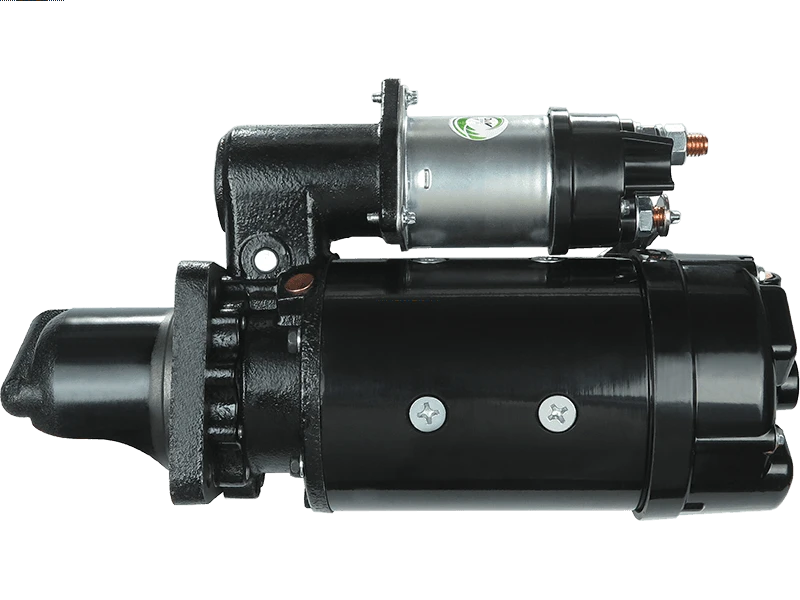

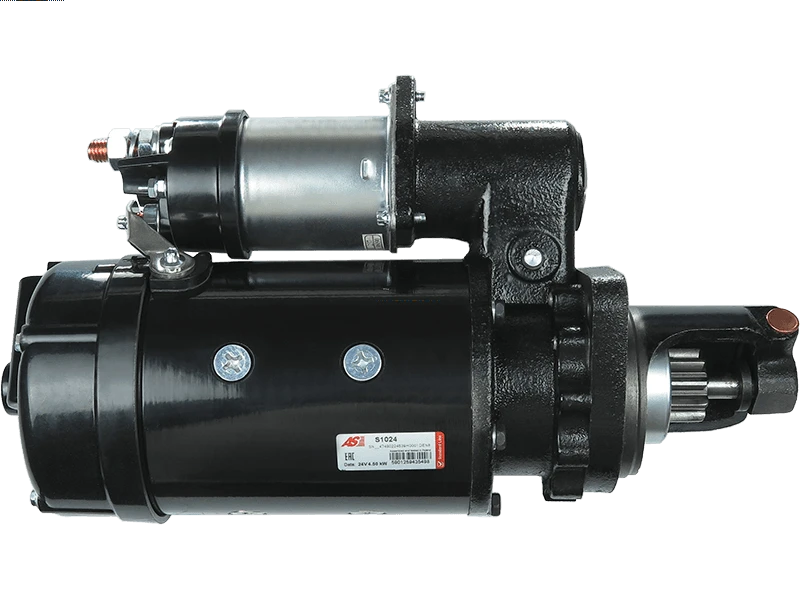

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 933.94 including GST
NZ$ 812.12 excluding GST
or four payments of $233.49
with
Learn More
each
S1024
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
1993903Associated Numbers
10479108 112169 112187 1993903 1993954 20409516OE 254389 254389P 3908594 6060615 6269N-PT 8524 A169694 CST60615GS M105R3510SE S1024 STR20016Specifications
| Kilowatt | 4.50 kW |
| Length (L.1) | 402 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 128 mm |
| Mount Hole Diameter (C.1) | 10 mm |
| Mount Hole Diameter (C.2) | 10 mm |
| Mount Hole Diameter (C.3) | 10 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 46 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DELCO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CASE | 880 | 01.1986- | |
| CASE | Various Models | 01.1990-01.1998 | |
| CASE | W14 |
Reference Information
| 10479108 | DELCO |
| 112169 | CARGO |
| 112187 | CARGO |
| 1993903 | DELCO |
| 1993914 | DELCO |
| 1993954 | DELCO |
| 254389 | KUHNER |
| 254389P | KUHNER |
| 3908594 | CUMMINS |
| 6269N-PT | WAI / TRANSPO |
| 6269R | WAI / TRANSPO |
| 8524 | CEVAM |
| A169694 | CASE |
| F032112169 | CARGO |
| F032112187 | CARGO |
| M105R3510SE | PRESTOLITE |
| S1024 | AS-PL |
| STR20016 | WOODAUTO |
| STR2638 | ELECTROLOG |
| STRS627 | 3EFFE |
Video/Publications
