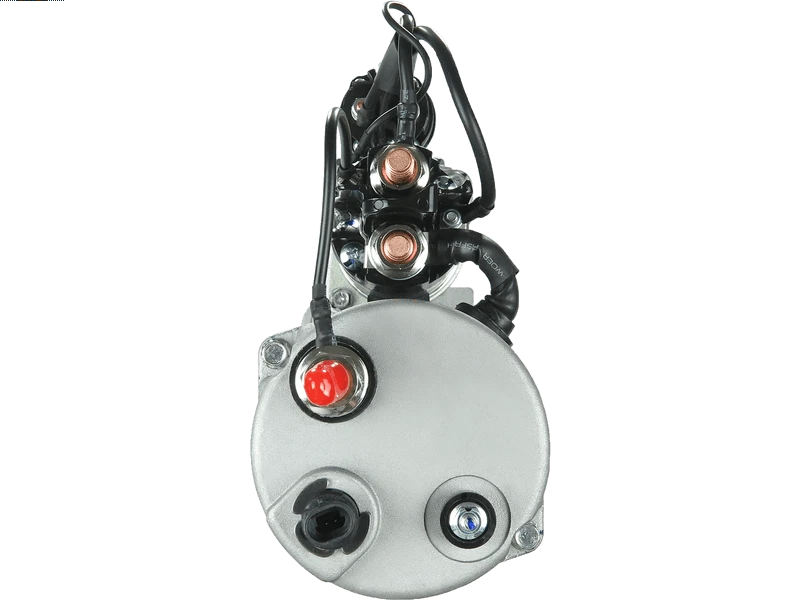

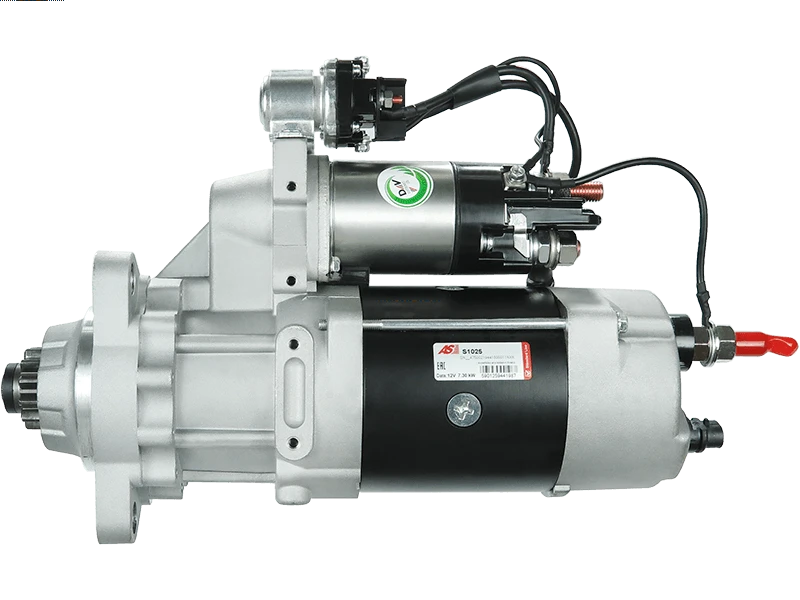

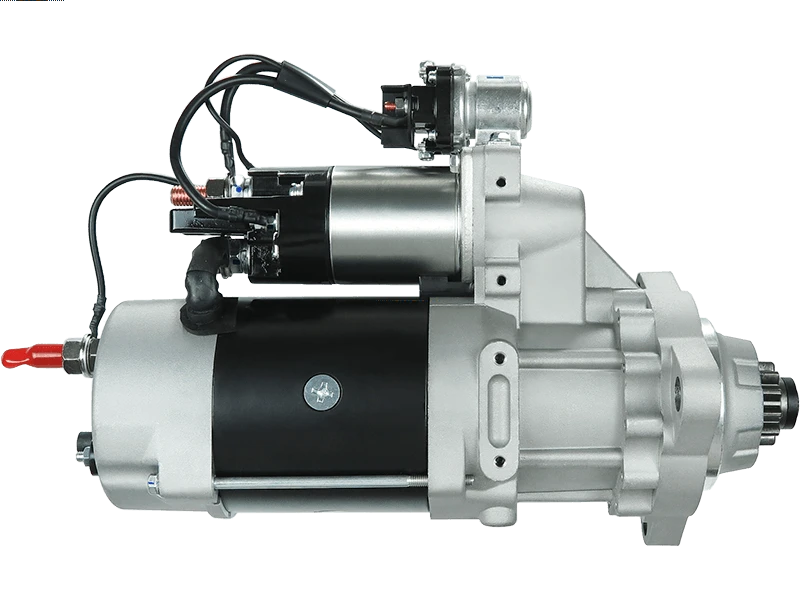

S1025 - Brand new AS-PL Starter motor

Specifications

Insulated Earth	Yes
Kilowatt	7.3 kW
Length (L.1)	420 mm
Mount Hole Center - Center (O.1)	127 mm
Mount Hole Center - Center (O.2)	127 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Diameter (C.1)	16.5 mm
Mount Hole Diameter (C.2)	16.5 mm
Mount Hole Diameter (C.3)	16.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	12 qty
No./Teeth (Replaces)	12 qty
Pinion at Rest (B)	47 mm
Rotation	CW
Spigot Diameter (A)	92 mm
Unit Type	DELCO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
CUMMINS	Various Models	[ISC]
CUMMINS	Various Models	[ISL]
MACK	Various Models	[MP10]
NAVISTAR	Various Models	[DT466]
NAVISTAR	Various Models	[DT570]
NAVISTAR	Various Models	[HT570]
NAVISTAR	Various Models	[MaxForce 11/13]
NAVISTAR	Various Models	[MaxForce11/13]
NAVISTAR	Various Models	[MaxForce DT]
NAVISTAR	Various Models	[MaxForceDT]
VOLVO	Various Models	[D12]

Reference Information

M110R2615SE2D STRF755 255884P 8200081 8200219 8200417 M110R2610SE 254665 254665P M125R2634SE 255057 6907N 8200360 8200182 STRL868 S1025 M105R2502SE 8200087 8200186 19011526 M110R2605SE M110R2606SE M9T70279 M110R2604SE 85103338 M110R2602SE 8200433 8200058 8200218 STR2671 255057P M105R2515SE 8200210 19011517 M105R2513SE STRF674 19011515

Video/Publications

19011515 19011517 19011526 254665 254665P 255057 255057P 255884P 6907N 8200058 8200081 8200087 8200182 8200186 8200210 8200218 8200219 8200360 8200417 8200433 85103338 M105R2502SE M105R2513SE M105R2515SE M110R2602SE M110R2604SE M110R2605SE M110R2606SE M110R2610SE M110R2615SE2D M125R2634SE M9T70279 S1025 STRF674 STRF755 STRL868
