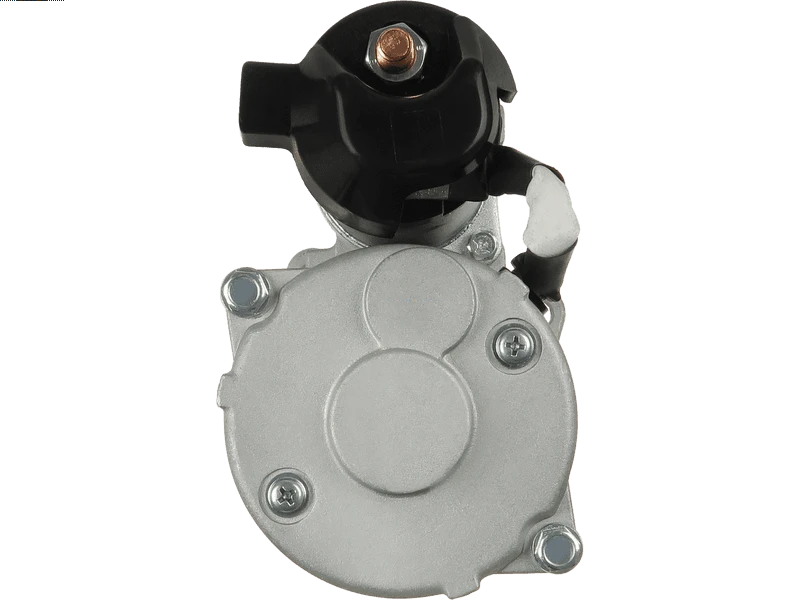

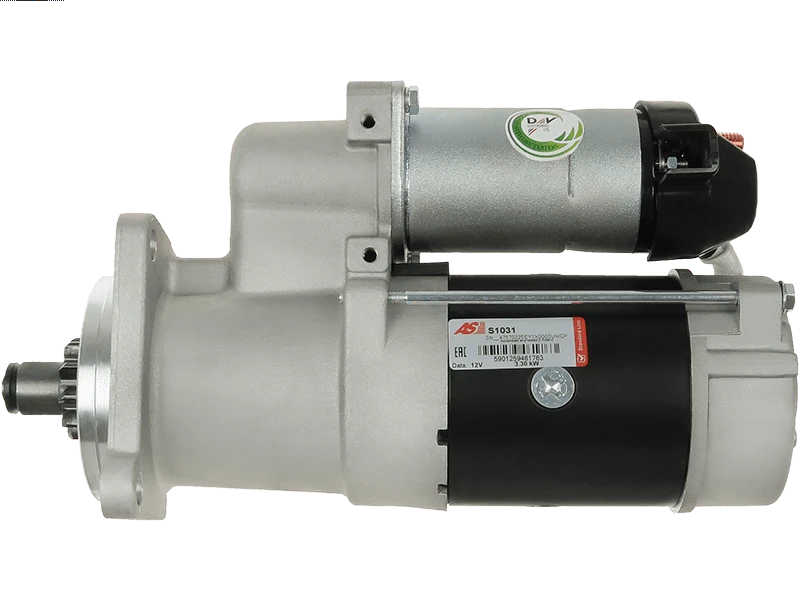

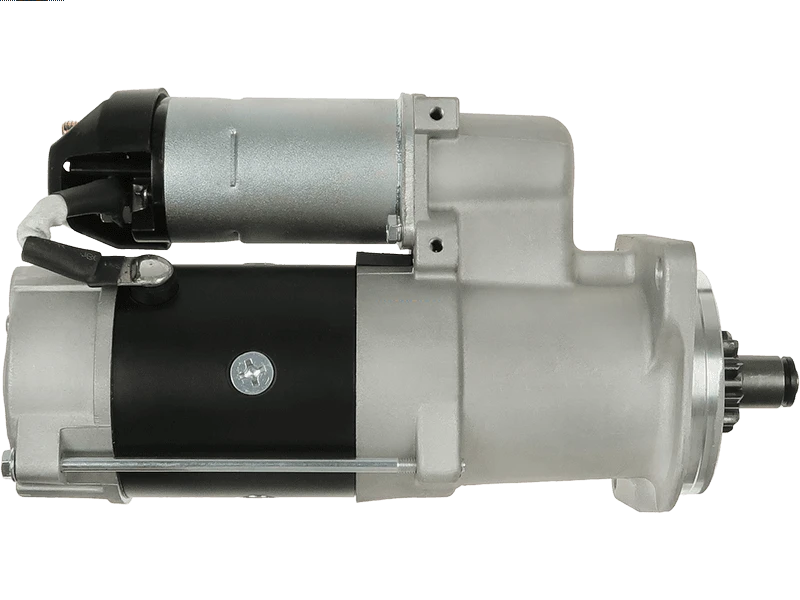

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 620.05 including GST
NZ$ 539.17 excluding GST
or four payments of $155.01
with
Learn More
each
S1031
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
8200014Associated Numbers
20409151OE 254930 254930D 6060151 8200014 87366159 CST60151GS M105R2510SESpecifications
| Kilowatt | 3.30 kW |
| Length (L.1) | 306 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 28 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CUMMINS | Engine 3.9 |
Reference Information
| 183225KA | CASE |
| 20409151OE | REAL |
| 254930 | KUHNER |
| 254930D | KUHNER |
| 39575597 | CUMMINS |
| 6060151 | SANDO |
| 6847N | WAI / TRANSPO |
| 8200014 | DELCO |
| 87366159 | CASE |
| CST60151GS | CASCO |
| M105R2510SE | PRESTOLITE |
| STR2727 | ELECTROLOG |
| STRE236 | 3EFFE |
Video/Publications
