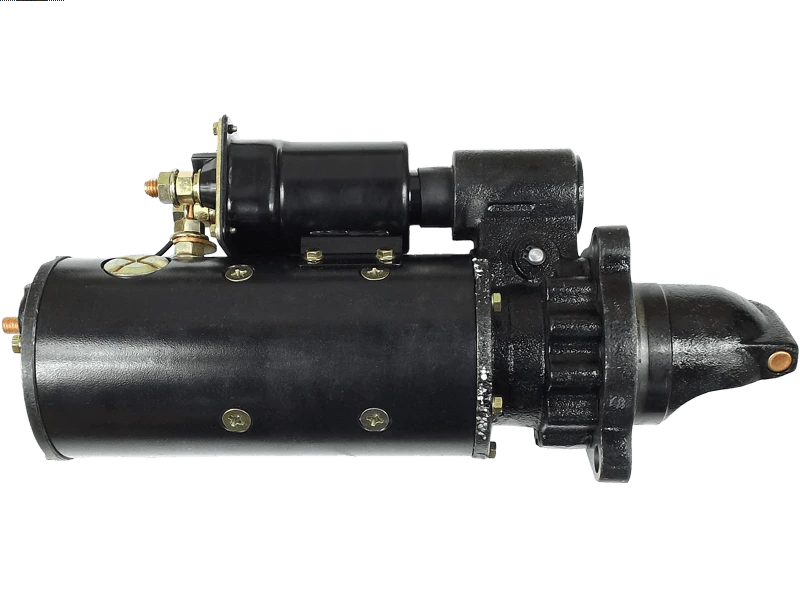

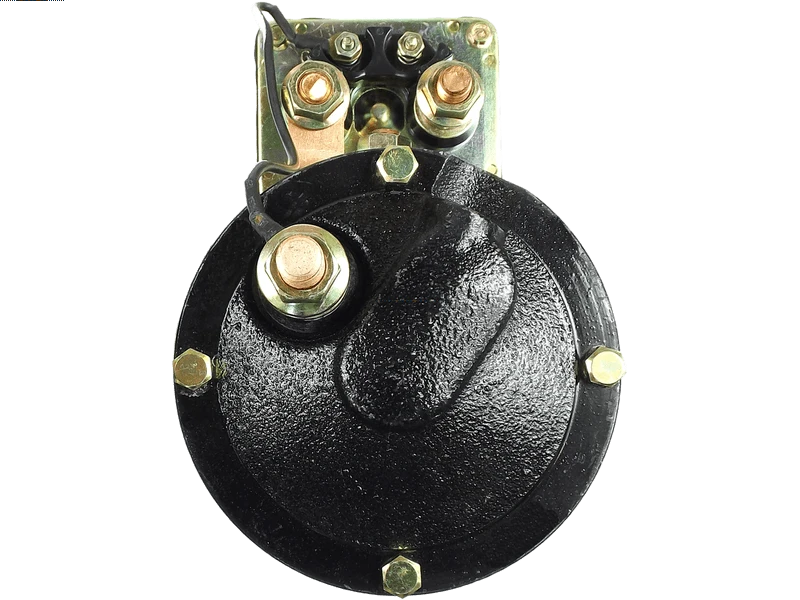

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 990.98 including GST
NZ$ 861.72 excluding GST
or four payments of $247.75
with
Learn More
each
S1049
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
1114848Associated Numbers
10478998 111000 1114848 1990456 50-104 60811 60811D 60811K 60811M 60864 60864D 60864K 60864M 60864P 60864W M105R3502SE M125R3001SEP MS1-401A MS1-453 UD02183SSpecifications
| Kilowatt | 6.50 kW |
| Length (L.1) | 510 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 16.50 mm |
| Mount Hole Diameter (C.2) | 16.50 mm |
| Mount Hole Diameter (C.3) | 16.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | DELCO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | Various Models | [3204] | |
| CATERPILLAR | Various Models | 01.1983- | |
| CLARK | Various Models | 01.1968- | |
| CUMMINS | Various Models | 01.1987- |
Reference Information
| 0R2187 | CATERPILLAR |
| 0R2190 | CATERPILLAR |
| 0R4259 | CATERPILLAR |
| 0R5209 | CATERPILLAR |
| 104-7041 | CATERPILLAR |
| 106-8554 | CATERPILLAR |
| 10R0400 | CATERPILLAR |
| 111000 | CARGO |
| 1114848 | DELCO |
| 121555C91 | CASE |
| 135161 | CUMMINS |
| 1443674 | DAF |
| 1990456 | DELCO |
| 1L8174 | CATERPILLAR |
| 207-1548 | CATERPILLAR |
| 207-1556 | CATERPILLAR |
| 207-1564 | CATERPILLAR |
| 2871253 | CUMMINS |
| 3021036 | CUMMINS |
| 3103952 | CUMMINS |
| 3603862RX | CUMMINS |
| 3604321RX | CUMMINS |
| 3T2646 | CATERPILLAR |
| 3T2649 | CATERPILLAR |
| 3T2650 | CATERPILLAR |
| 3T2654 | CATERPILLAR |
| 3T3152 | CATERPILLAR |
| 3T3153 | CATERPILLAR |
| 4N0957 | CATERPILLAR |
| 4N1062 | CATERPILLAR |
| 4N8118 | CATERPILLAR |
| 4N957 | CATERPILLAR |
| 50-104 | WAI / TRANSPO |
| 5L2537 | CATERPILLAR |
| 5L2637 | CATERPILLAR |
| 5L537 | CATERPILLAR |
| 5L637 | CATERPILLAR |
| 60864 | KUHNER |
| 60864D | KUHNER |
| 60864K | KUHNER |
| 60864M | KUHNER |
| 60864P | KUHNER |
| 60864W | KUHNER |
| 6N1889 | CATERPILLAR |
| 6N3122 | CATERPILLAR |
| 6N3160 | CATERPILLAR |
| 6V5539 | CATERPILLAR |
| 7L8797 | CATERPILLAR |
| 7T0794 | CATERPILLAR |
| 7T0800 | CATERPILLAR |
| 7T0801 | CATERPILLAR |
| 7T0806 | CATERPILLAR |
| 8C3644 | CATERPILLAR |
| 8C3645 | CATERPILLAR |
| 8C3649 | CATERPILLAR |
| 8H1813 | CATERPILLAR |
| 9G5584 | CATERPILLAR |
| 9G5585 | CATERPILLAR |
| 9L6691 | CATERPILLAR |
| 9N0435 | CATERPILLAR |
| 9N0453 | CATERPILLAR |
| CGB-1083 | AINDE |
| CH12807 | PERKINS |
| F032111000 | CARGO |
| M004T95481 | MITSUBISHI |
| M125R3001SEP | PRESTOLITE |
| M4T95481 | MITSUBISHI |
| MAV626040 | SIOM |
| MS1-401A | PRESTOLITE |
| MS1-453 | PRESTOLITE |
| STR2642 | ELECTROLOG |
| STR2642A | ELECTROLOG |
| STX201301 | STARDAX |
| UD02183S | AS-PL |
| US864 | HC PARTS |
