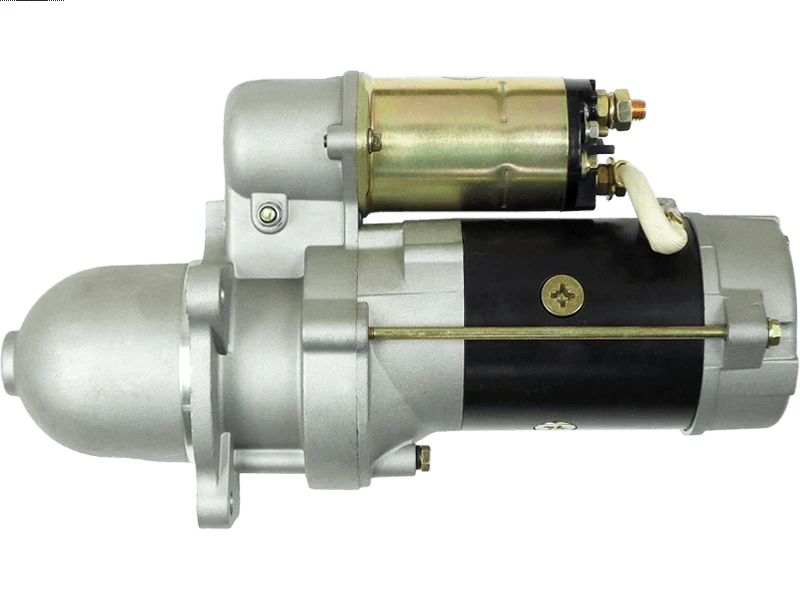

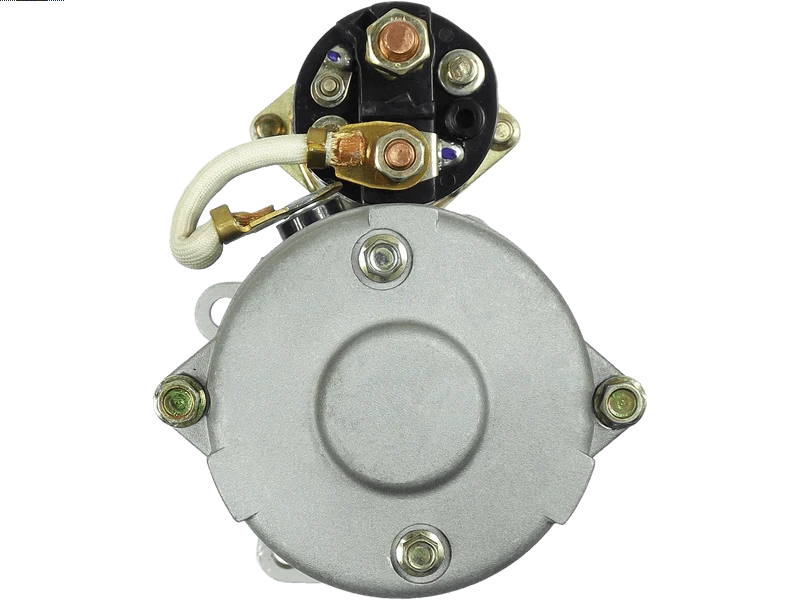

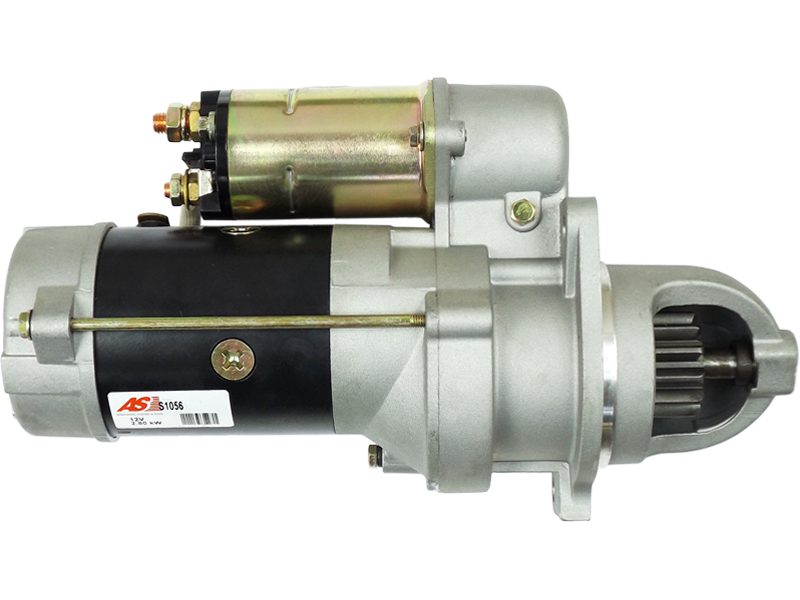

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 444.20 including GST
NZ$ 386.26 excluding GST
or four payments of $111.05
with
Learn More
each
S1056
1
Associated Numbers
10465058 10465348 10465420 10479613 110602 1107588 1108692 1113273 140-28111 1998339 201-28104 20409401 20409621BN 25-2255 50-8403 50-8426 6060126 60824 60844 60860 6571 6571N 6586 8729 CST60126 CST60126AS CST60126ES CST60126GS CST60126OS CST60126RS EAA-121351 LRS01384 UD02194S UD02199S IMI Hi Torque IMI25002-016 Leece Neville 35259670S Nikko 0-23000-1848 References: Arrowhead SNK0003 J&N 410-12038 JANNCO 410-12110R Atlantic Quality Parts 1100-0102 Delco 10461445 323-451 35259670 Lester 0-23000-1840 02-23-1004 PIC Picture ID 140-921 Wilson 91-01-4309 410-12110 1113598 1998347 1998455 1998465 35259000 35259000S 4280 Substitutes: NK0-23000-1848 Bobcat 6649676 6660797 Clark 906442 10465350 323-694 Hyster 170241 3004013 3042513 359246 6172 6540 Massey Ferguson 1095632M91 140-836 140-836A Yale 2200058-38 91-01-4257 dxs9110 70-0262 snd273 0230001840 0230001848 0610000090 Remy Cargo 140921 252255 Elstock 28MT 323451 33842 EAI 42992588 42992824 5084031 830006123 PSH 91014257 91014309 911327 EDR A90120 ATL DRZ5133 DS47 LNG3512D Lucas SDR1019 ST6571 RCP STR2680sa Electrolog US844 HCSpecifications
| Kilowatt | 2.80 kW |
| Length (L.1) | 338 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| No./Teeth (Replaces) | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 46 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BOBCAT | 1600 | 01.1989- | |
| BOBCAT | 611 | [Deutz] | |
| BOBCAT | 621 | [Deutz] | |
| BOBCAT | 643 | 01.1982-01.1989 | |
| BOBCAT | 733 | [Deutz] | |
| BOBCAT | 743 | 01.1982- | |
| BOBCAT | 753 | 01.1990-01.1993 | |
| BOBCAT | 825 | [Perkins] | |
| BOBCAT | 833 | [Perkins] | |
| BOBCAT | 843 | [Perkins] | |
| CLARK | Various Models | 01.1968- | |
| PERKINS | 4-108 | 01.1989- | |
| PERKINS | 4-154 | 01.1989- |
Reference Information
| 10465058 | DELCO |
| 10465348 | DELCO |
| 10465420 | DELCO |
| 10479613 | DELCO |
| 110602 | CARGO |
| 1107588 | DELCO |
| 1108692 | DELCO |
| 1113273 | DELCO |
| 140-28111 | ROBERT'S |
| 1998339 | DELCO |
| 201-28104 | DIXIE |
| 20409401 | REAL |
| 20409621BN | REAL |
| 25-2255 | ELSTOCK |
| 50-8403 | WAI / TRANSPO |
| 50-8426 | WAI / TRANSPO |
| 6060126 | SANDO |
| 60824 | KUHNER |
| 60844 | KUHNER |
| 60860 | KUHNER |
| 6571 | LESTER |
| 6571N | WAI / TRANSPO |
| 6586 | LESTER |
| 6630182 | BOBCAT |
| 6649676 | BOBCAT |
| 6660797 | BOBCAT |
| 6714082 | BOBCAT |
| 8729 | CEVAM |
| ALT131110 | SIOM |
| CGB-1575 | AINDE |
| CST60126 | CASCO |
| CST60126AS | CASCO |
| CST60126ES | CASCO |
| CST60126GS | CASCO |
| CST60126OS | CASCO |
| CST60126RS | CASCO |
| F032110602 | CARGO |
| LRS01384 | LUCAS |
| LRS1384 | LUCAS |
| MAV621040 | SIOM |
| S1056 | AS-PL |
| STR2680 | ELECTROLOG |
| STR2684 | ELECTROLOG |
| STRL635 | 3EFFE |
| STRL734 | 3EFFE |
| UD02194S | AS-PL |
| UD02199S | AS-PL |
| US844 | HC PARTS |
