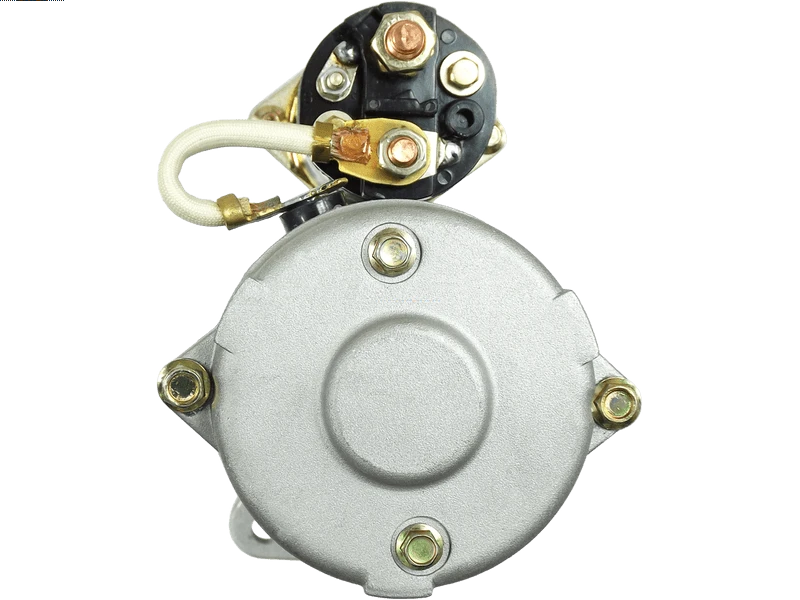

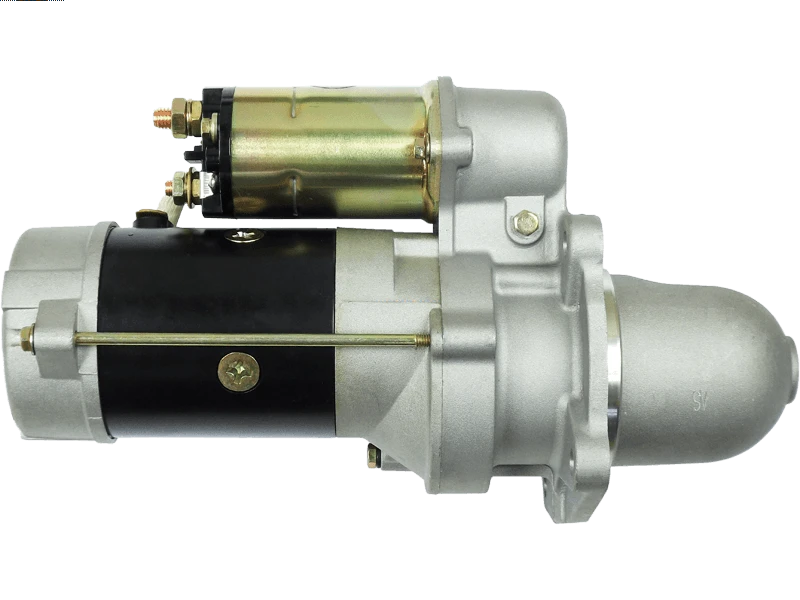

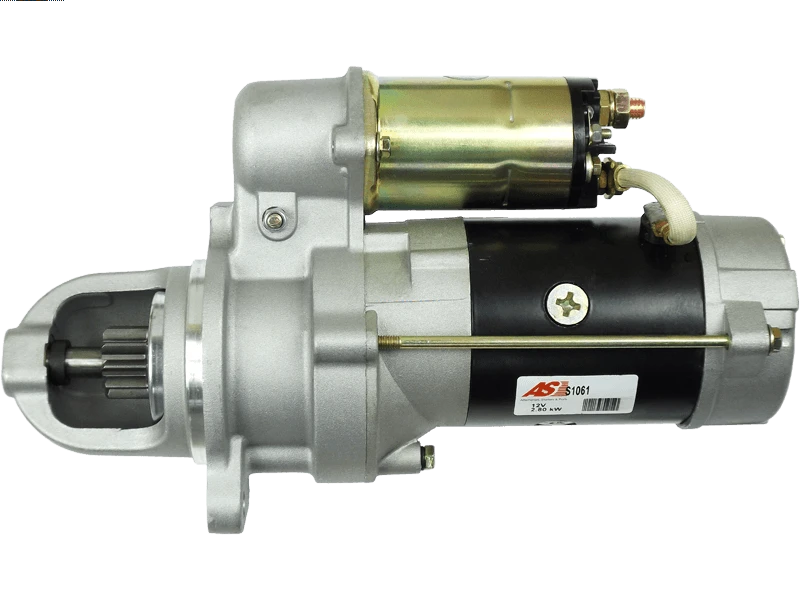

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 522.24 including GST
NZ$ 454.12 excluding GST
or four payments of $130.56
with
Learn More
each
S1061
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
10479614Associated Numbers
10465402 10479614 112667 140-28118 20409811BN 20409811OE 254241 323-1188 35259620 50-8428 6060118 6595 6595N 6595R CST60118AS CST60118GS F3HT11001AB F3HT11001AC F4HT11001AA SA802 STR80070 UD02206SSpecifications
| Kilowatt | 2.80 kW |
| Length (L.1) | 338 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BLUE BIRD | Engine 5.9 | [6B] | 01.1994-12.1996 |
| FORD | F 600 5.9 | [Cummins] | 01.1992- |
| FORD | F 600 5.9 | [FD1060] | 01.1992-12.1999 |
| FORD | F 650 5.9 | [Cummins] | |
| FORD | F 650 5.9 | [FD1060] | 01.1992-12.1999 |
| FORD | F 700 5.9 | [Cummins] | 01.1992- |
| FORD | F 700 5.9 | [FD1060] | 01.1992-12.1999 |
| FORD | F 750 5.9 | [Cummins] | |
| FORD | F 750 5.9 | [FD1060] | 01.1992-12.1999 |
| FORD | F 800 5.9 | [Cummins] | 01.1992- |
| FORD | F 800 5.9 | [FD1060] | 01.1992-12.1999 |
| FORD | F 900 5.9 | [Cummins] | 01.1992- |
| FORD | F 900 5.9 | [FD1060] | 01.1992-12.1999 |
| FORD | L 6000 5.9 | [Cummins] | 01.1992- |
| FORD | L 6000 5.9 | [FD1060] | 01.1992-12.1999 |
| FORD | L 7000 5.9 | [Cummins] | 01.1992- |
| FORD | L 7000 5.9 | [FD1060] | 01.1992-12.1999 |
| FORD | L 8000 5.9 | [Cummins] | 01.1992- |
| FORD | L 8000 5.9 | [FD1060] | 01.1992-12.1999 |
| FORD | L 9000 5.9 | [Cummins] | 01.1992- |
| FORD | L 9000 5.9 | [FD1060] | 01.1992-12.1999 |
Reference Information
| 10465150 | DELCO |
| 10465402 | DELCO |
| 10479614 | DELCO |
| 112667 | CARGO |
| 140-28118 | DELCO |
| 20409811BN | REAL |
| 20409811OE | REAL |
| 20446411OE | REAL |
| 254241 | KUHNER |
| 323-1188 | DELCO |
| 339806 | LOGISTIK |
| 35259620 | PRESTOLITE |
| 3675173RX | CUMMINS |
| 50-8428 | WAI / TRANSPO |
| 6050114.1 | SANDO |
| 6060118 | SANDO |
| 6060118.0 | SANDO |
| 6060118.1 | SANDO |
| 6595 | LESTER |
| 6595N | WAI / TRANSPO |
| 6595R | WAI / TRANSPO |
| 880.543.103.030 | PSH |
| CST50114GS | CASCO |
| CST60118AS | CASCO |
| CST60118GS | CASCO |
| F032112667 | CARGO |
| F3HT11001AB | FORD |
| F3HT11001AC | FORD |
| F3HZ11002A | FORD |
| F3MZ11002A | FORD |
| F4HT11001AA | FORD |
| MAV621180 | SIOM |
| S1061 | AS-PL |
| S143.729 | PSH |
| SA802 | FORD |
| STD2667 | KRAUF |
| STR2054 | ELECTROLOG |
| STR80070 | WOODAUTO |
| UD02206S | AS-PL |
Video/Publications
