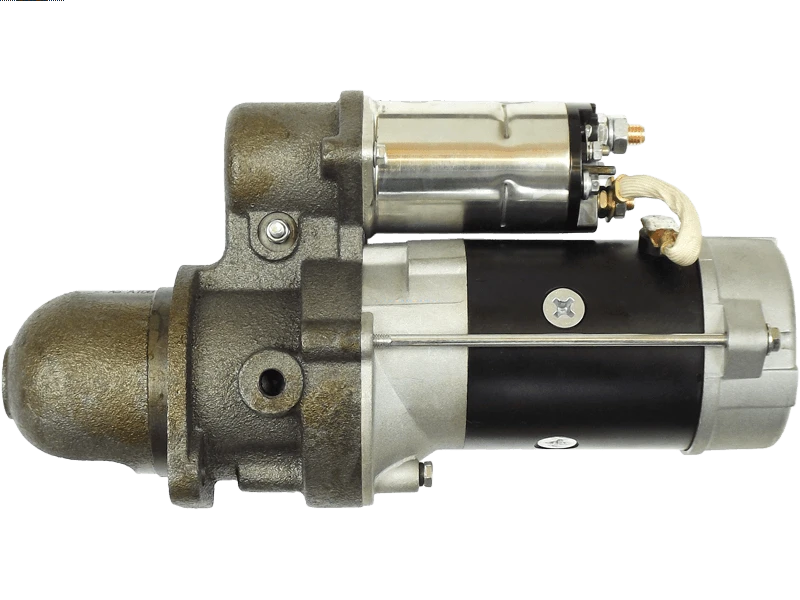

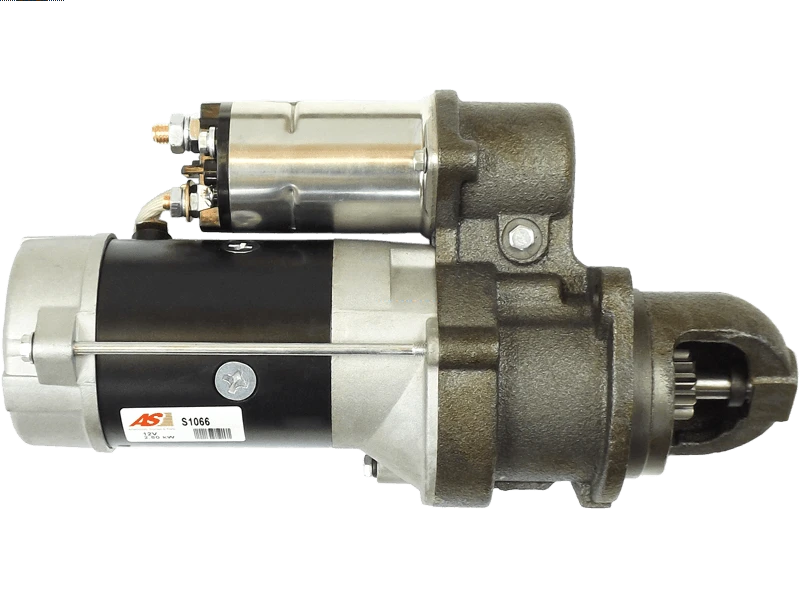

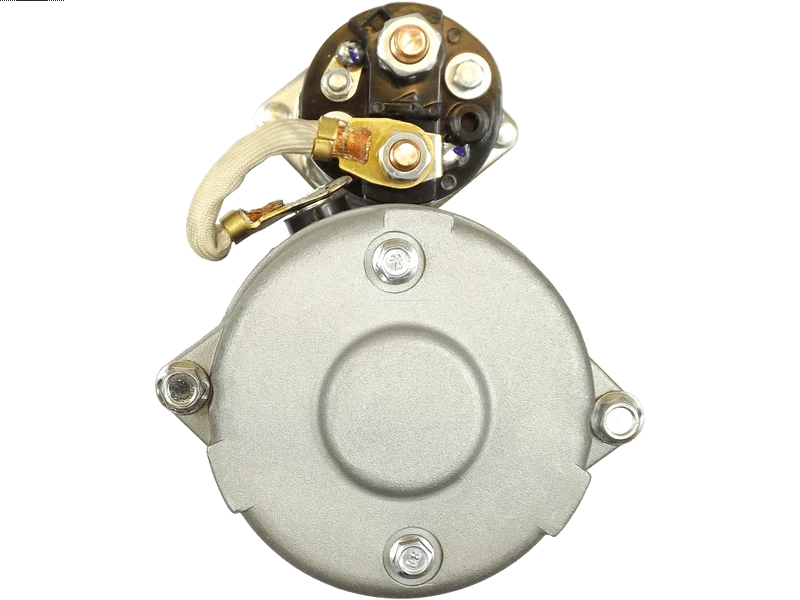

S1066 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.5 kW
Length (L.1)	339 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	12.5 mm
Mount Hole Diameter (C.2)	12.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
Pinion at Rest (B)	34 mm
Rotation	CW
Spigot Diameter (A)	82 mm
Unit Type	DELCO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
BOBCAT	975		01.1989-
BOBCAT	Various Models
CLARK	Various Models		01.1968-
JOHN DEERE	2630		01.1974-
JOHN DEERE	2640		01.1976-
JOHN DEERE	350C Crawlers		01.1975-
JOHN DEERE	450C Crawlers		01.1974-
JOHN DEERE	482 Cotton Pickers		01.1980-
JOHN DEERE	484 Cotton Pickers		01.1980-
JOHN DEERE	6329D
JOHN DEERE	9910 Cotton Pickers		01.1979-
JOHN DEERE	9920 Cotton Pickers		01.1983-

Reference Information

220856 6570 RE62916 1107863 93512 50-8422 STR80116 RE509658 254203 254203N MAV3400 6577N STR2677 1107577 1107599 111221 1107871 35259580 6570N UD02207S 1109251 0-23000-2060 CGB-1574 SE501400 1113271 M100R2017SE 8537

Video/Publications

0-23000-2060 1107577 1107599 1107863 1107871 1109251 111221 1113271 254203 254203N 35259580 50-8422 60835 6570 6570N 6577N 8537 93512 CGB-1574 M100R2017SE MAV3400 RE509658 STR80116 UD02207S 220856
