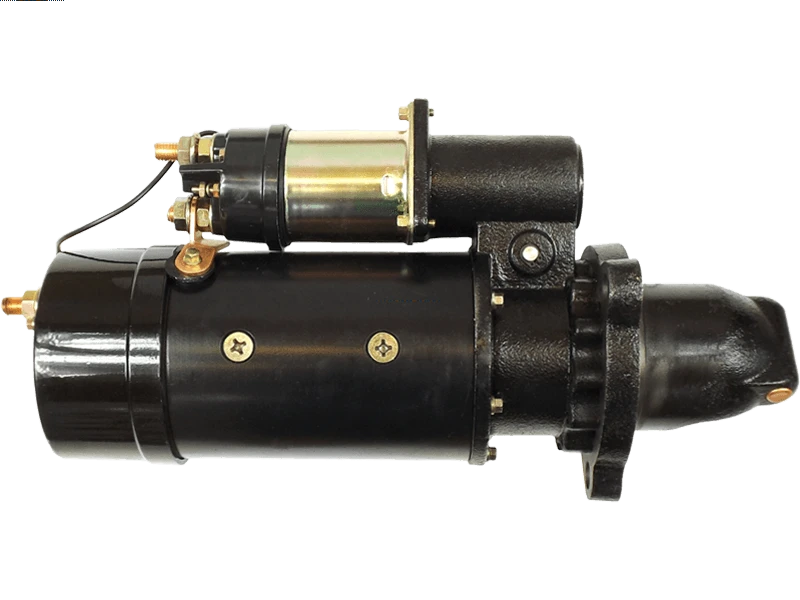

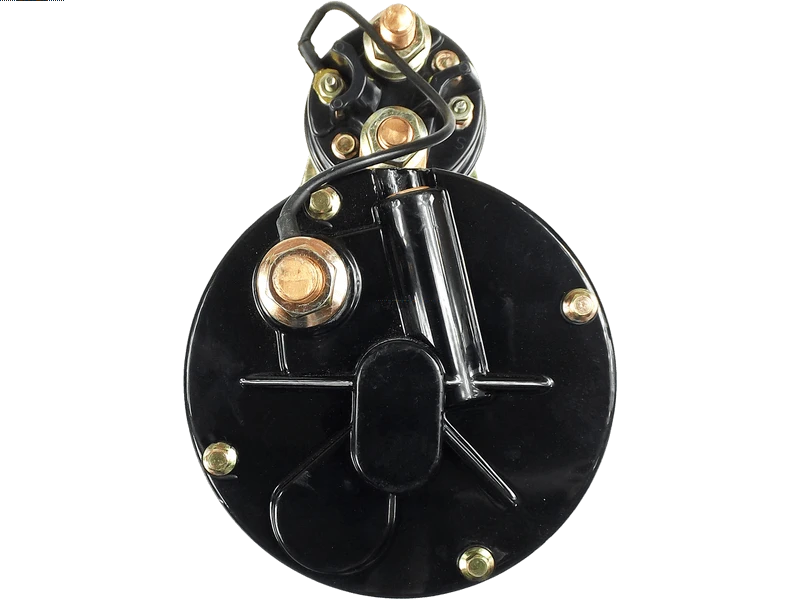

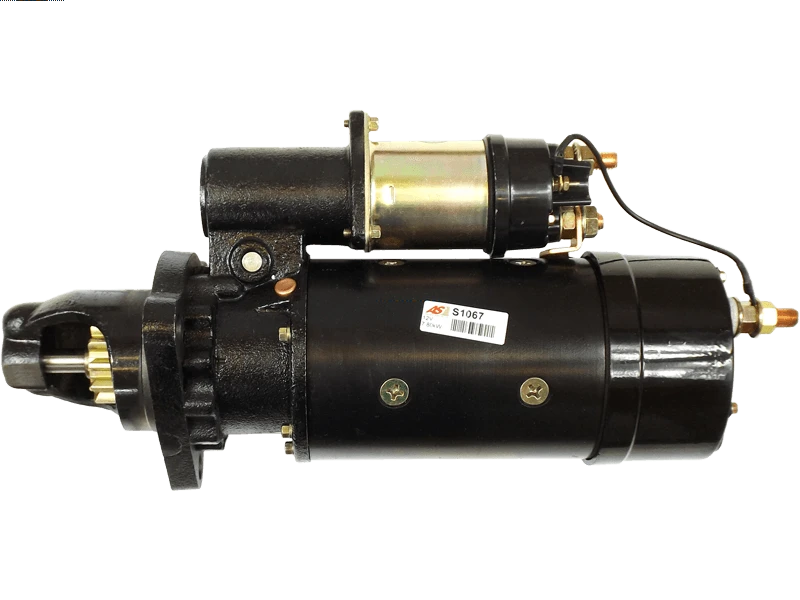

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 964.60 including GST
NZ$ 838.78 excluding GST
or four payments of $241.15
with
Learn More
each
S1067
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
112089 140-42150 1990483 201-42101 254725 254725K 50-153-1 91-01-4166 M105R2515SE M110R2615SE2D M110R2616SE-A M125R2001SEP M125R2632SE S1067 TS-1501 UD02184SSpecifications
| Kilowatt | 7.80 kW |
| Length (L.1) | 499 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Center - Center (O.2) | 126 mm |
| Mount Hole Center - Center (O.3) | 126 mm |
| Mount Hole Diameter (C.1) | 16.50 mm |
| Mount Hole Diameter (C.2) | 16.50 mm |
| Mount Hole Diameter (C.3) | 16.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 45.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | L 6000 | [Caterpillar 3176] | 01.1990- |
| FORD | L 6000 | [Caterpillar3176] | 01.1990- |
| FORD | L 6000 | [Caterpillar 3406] | 01.1986- |
| FORD | L 6000 | [Caterpillar3406] | 01.1986- |
| FORD | L 6000 | [Cummins] | 01.1984- |
| FORD | L 7000 | [Caterpillar 3176] | 01.1990- |
| FORD | L 7000 | [Caterpillar3176] | 01.1990- |
| FORD | L 7000 | [Caterpillar 3406] | 01.1986- |
| FORD | L 7000 | [Caterpillar3406] | 01.1986- |
| FORD | L 7000 | [Cummins] | 01.1984- |
| FORD | L 8000 | [Caterpillar 3176] | 01.1990- |
| FORD | L 8000 | [Caterpillar3176] | 01.1990- |
| FORD | L 8000 | [Caterpillar 3406] | 01.1986- |
| FORD | L 8000 | [Caterpillar3406] | 01.1986- |
| FORD | L 8000 | [Cummins] | 01.1984- |
| FORD | L 9000 | [Caterpillar 3176] | 01.1990- |
| FORD | L 9000 | [Caterpillar3176] | 01.1990- |
| FORD | L 9000 | [Caterpillar 3406] | 01.1986- |
| FORD | L 9000 | [Caterpillar3406] | 01.1986- |
Reference Information
| 0R5347 | CATERPILLAR |
| 107717A1 | CASE |
| 112089 | CARGO |
| 140-42150 | ROBERT'S |
| 1463503 | CATERPILLAR |
| 195827 | CUMMINS |
| 195828 | CUMMINS |
| 195829 | CUMMINS |
| 195830 | CUMMINS |
| 195833 | CUMMINS |
| 195834 | CUMMINS |
| 195835 | CUMMINS |
| 1990483 | DELCO |
| 201-42101 | DIXIE |
| 20851006 | VOLVO |
| 254725 | KUHNER |
| 254725K | KUHNER |
| 3603863RX | CUMMINS |
| 3610942 | CUMMINS |
| 3E7863 | CATERPILLAR |
| 3T2879 | CATERPILLAR |
| 3T3154 | CATERPILLAR |
| 4L9547 | CATERPILLAR |
| 4N0956 | CATERPILLAR |
| 4N956 | CATERPILLAR |
| 50-153-1 | WAI / TRANSPO |
| 5L4160 | CATERPILLAR |
| 5L4168 | CATERPILLAR |
| 5L4169 | CATERPILLAR |
| 5L5667 | CATERPILLAR |
| 5L5867 | CATERPILLAR |
| 8C3592 | CATERPILLAR |
| 8C3593 | CATERPILLAR |
| 8L8206 | CATERPILLAR |
| 9L6200 | CATERPILLAR |
| 9N0716 | CATERPILLAR |
| 9N0721 | CATERPILLAR |
| 9N716 | CATERPILLAR |
| C5TZ11002C | FORD |
| C6TF11000A | FORD |
| C6TF11000C | FORD |
| C6TZ11002E | FORD |
| E6HT11001CA | FORD |
| E6HZ11002C | FORD |
| E6HZ11002D | FORD |
| E8HT11001AA | FORD |
| E8HZ11002A | FORD |
| E8HZ11002HA | FORD |
| F032112089 | CARGO |
| M105R2515SE | PRESTOLITE |
| M110R2615SE2D | PRESTOLITE |
| M110R2616SE-A | PRESTOLITE |
| M125R2001SEP | PRESTOLITE |
| M125R2632SE | PRESTOLITE |
| MAV621240 | SIOM |
| S1067 | AS-PL |
| SA768A | FORD |
| SL8206 | CATERPILLAR |
| STR2617 | ELECTROLOG |
| STR2617A | ELECTROLOG |
| TS-1501 | DIXIE |
| UD02184S | AS-PL |
Video/Publications
