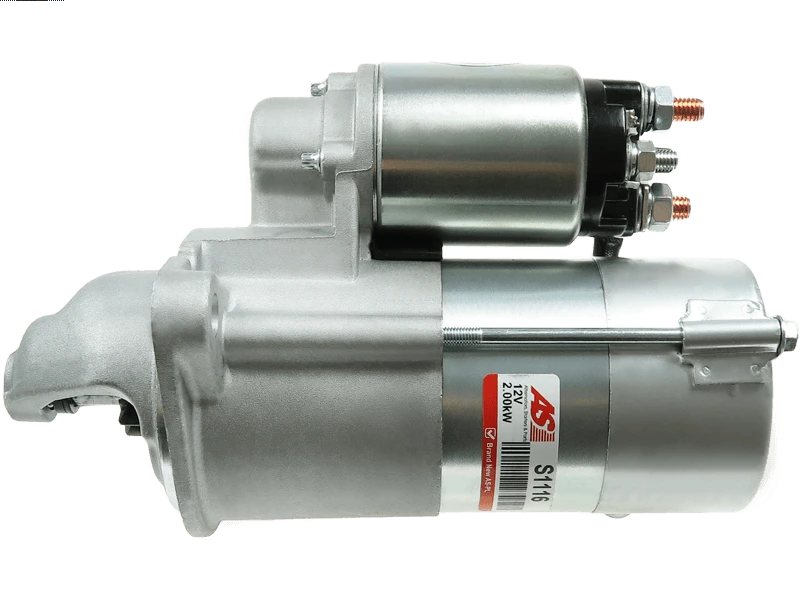

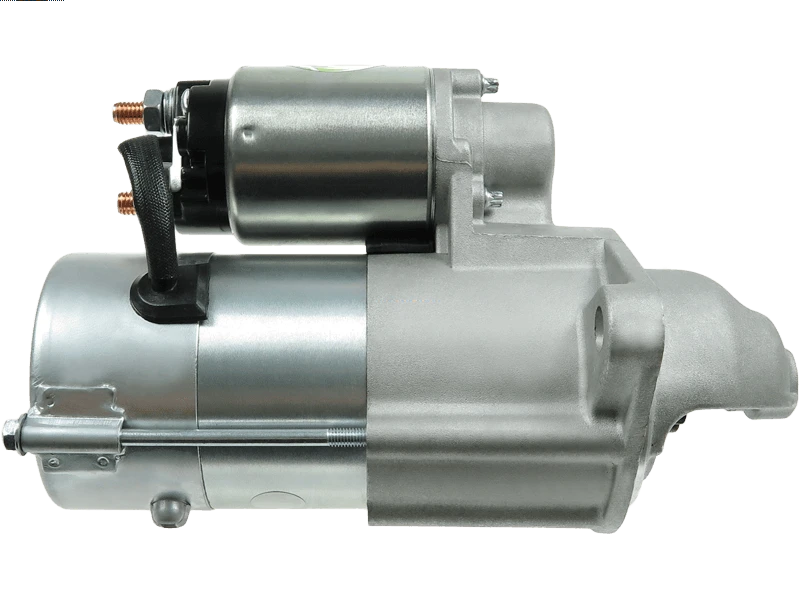

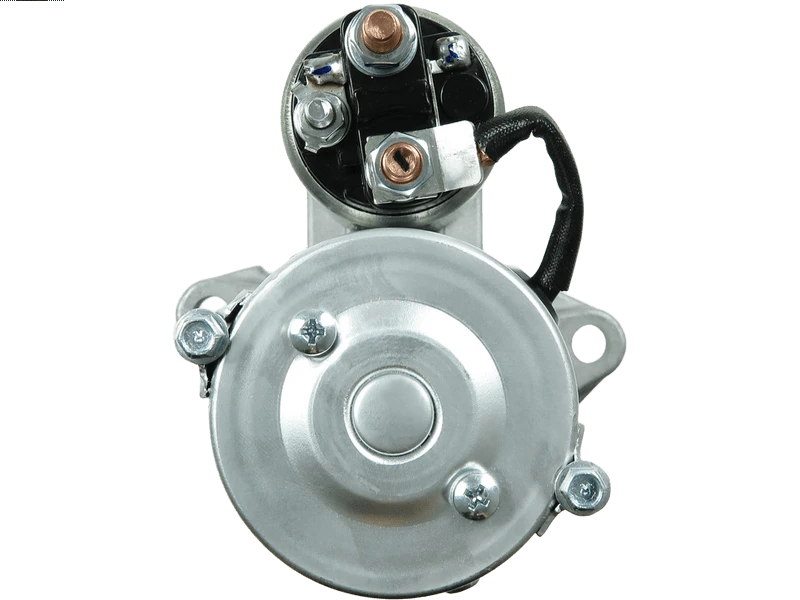

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 408.48 including GST
NZ$ 355.20 excluding GST
or four payments of $102.12
with
Learn More
UOM:
each
Product Code:
S1116
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
8000227Associated Numbers
0001109035 112534 1850866 185086600 18949N 19960488 19960489 20401882BN 20401882OE 20513016 25-3085 254001 254001B 50027532 6010288 700.501.092 714-35600 8000227 8064 8213425 AZE2155 BOS0001109035 CS1471 CST10288AS CST10288GS DRS3938 DRS3938N EAA-121089 EAA-152192 MAHMS86 RNL109035 S1065B STB1471 STR22059 UD12018SSpecifications
| Kilowatt | 2 kW |
| Length (L.1) | 213 mm |
| Mount Hole Center - Center (O.1) | 111 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 20 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ASV | PT-30 1.5 | 3013 | 01.2008-12.2009 |
| ASV | PT-30 1.5 | 403C-15 | 01.2008-12.2009 |
| ASV | PT-30 1.5 | 403D-15 | 01.2008-12.2009 |
| ASV | PT-50 2.2 | 404C-22 | 01.2008-12.2009 |
| ASV | PT-60 2.2 | 404C-22T | 01.2008-12.2009 |
| ASV | RC-30 1.5 | 3013 | 01.2000-12.2009 |
| ASV | RC-30 1.5 | 403C-15 | 01.2000-12.2009 |
| ASV | RC-30 1.5 | 403D-15 | 01.2000-12.2009 |
| ASV | RC 50 | 404C | - |
| ASV | RC-50 2.2 | 404C-22 | 01.2002-12.2009 |
| ASV | RC-60 2.2 | 404C-22T | 01.2004-12.2009 |
| ASV | RT-30 1.5 | 403D-15 | 01.2015-12.2021 |
| ASV | RT-50 2.2 | 404D-22 | 01.2015-12.2021 |
| ASV | RT-60 2.2 | 404D-22T | 01.2015-12.2021 |
| CATERPILLAR | 216 | 3034 | 01.1999-12.2004 |
| CATERPILLAR | 216 2.2 | 3024C | 01.2002-12.2004 |
| CATERPILLAR | 216B | 3024C | 01.2004-12.2008 |
| CATERPILLAR | 216B 2.2 | 3024C | 01.2004-12.2008 |
| CATERPILLAR | 216B2 2.2 | C2.2 | 01.2007-12.2010 |
| CATERPILLAR | 226 | 3034 | 01.1999-12.2004 |
| CATERPILLAR | 226B | 3024C | 01.2004-12.2008 |
| CATERPILLAR | 226B 2.2 | 3024C | 01.2004-12.2008 |
| CATERPILLAR | 226B2 2.2 | C2.2 | 01.2007-12.2010 |
| CATERPILLAR | 228 | 3034 | 01.1999-12.2004 |
| CATERPILLAR | 232 | 3024C | 01.1999-12.2004 |
| CATERPILLAR | 232 2.2 | 3024C | 01.2002-12.2004 |
| CATERPILLAR | 232B | 3024C | 01.2004-12.2008 |
| CATERPILLAR | 232B 2.2 | 3024C | 01.2004-12.2008 |
| CATERPILLAR | 232B2 2.2 | C2.2 | 01.2007-12.2010 |
| CATERPILLAR | 242B | 3024C | 01.2004-12.2008 |
| CATERPILLAR | 242B 2.2 | 3024C | 01.2004-12.2008 |
| CATERPILLAR | 242B2 2.2 | C2.2 | 01.2007-12.2010 |
| CATERPILLAR | 247B | 3024C | - |
| CATERPILLAR | 247B 2.2 | 3024C | 01.2003-12.2008 |
| CATERPILLAR | 247B2 2.2 | C2.2 | 01.2007-12.2010 |
| CATERPILLAR | 257B | 3024C | 01.2004-12.2008 |
| CATERPILLAR | 257B 2.2 | 3024C | 01.2004-12.2007 |
| CATERPILLAR | 257B2 2.2 | C2.2 | 01.2007-12.2010 |
| CATERPILLAR | 334D | 3013 | 01.1998-12.2004 |
| CATERPILLAR | 334D | 3014 | 01.2002-12.2005 |
| CATERPILLAR | 335D | 3013 | 01.1998-12.2004 |
| CATERPILLAR | 335D | 3014 | 01.2000-12.2005 |
| CATERPILLAR | BB621C 2.2 | C2.2 | 01.2005-12.2010 |
| CATERPILLAR | CB214D 1.5 | 3013 | 01.1999-12.2005 |
| CATERPILLAR | CB214E 1.5 | 3013C | 01.2003-12.2009 |
| CATERPILLAR | CB22 1.5 | 3013C | 01.2008-12.2013 |
| CATERPILLAR | CB224D 1.5 | 3013 | 01.1999-12.2005 |
| CATERPILLAR | CB224E 1.5 | 3013C | 01.2003-12.2009 |
| CATERPILLAR | CB225D 1.5 | 3013 | 01.1999-12.2005 |
| CATERPILLAR | CB225E 1.5 | 3013C | 01.2003-12.2009 |
| CATERPILLAR | CB22B 1.5 | C1.5 | 01.2014-12.2020 |
| CATERPILLAR | CB24 1.5 | 3013C | 01.2008-12.2013 |
| CATERPILLAR | CB24B 1.5 | C1.5 | 01.2014-12.2020 |
| CATERPILLAR | CB24B XT 1.5 | C1.5 | 01.2014-12.2020 |
| CATERPILLAR | CB32 1.5 | 3013C | 01.2008-12.2013 |
| CATERPILLAR | CB32B 1.5 | C1.5 | 01.2014-12.2020 |
| CATERPILLAR | CB334D | 3013 | 01.1998-12.2004 |
| CATERPILLAR | CB334D | 3014 | 01.2002-12.2005 |
| CATERPILLAR | CB-334D 1.5 | 3013 | 01.1998-12.2004 |
| CATERPILLAR | CB334D 1.5 | 3013 | 01.1998-12.2004 |
| CATERPILLAR | CB-334D 2.0 | 3014 | 01.2002-12.2005 |
| CATERPILLAR | CB334D 2.0 | 3014 | 01.2002-12.2006 |
| CATERPILLAR | CB334E 1.5 | 3013C | 01.2004-12.2008 |
| CATERPILLAR | CB334E 2.2 | 3024C | 01.2004-12.2009 |
| CATERPILLAR | CB334E XW 2.2 | 3024C | 01.2004-12.2009 |
| CATERPILLAR | CB335D | 3013 | 01.1998-12.2004 |
| CATERPILLAR | CB335D | 3014 | 01.2000-12.2005 |
| CATERPILLAR | CB-335D 1.5 | 3013 | 01.1998-12.2004 |
| CATERPILLAR | CB335D 1.5 | 3013 | 01.1998-12.2004 |
| CATERPILLAR | CB-335D 2.0 | 3014 | 01.2000-12.2005 |
| CATERPILLAR | CB335D 2.0 | 3014 | 01.2000-12.2005 |
| CATERPILLAR | CB335E 1.5 | 3013C | 01.2004-12.2008 |
| CATERPILLAR | CB335E 2.2 | 3024C | 01.2004-12.2009 |
| CATERPILLAR | CB34 | C2.2 | 01.2007-12.2013 |
| CATERPILLAR | CB-34 2.2 | C2.2 | 01.2007-12.2013 |
| CATERPILLAR | CB34XW | C2.2 | 01.2007-12.2013 |
| CATERPILLAR | CB-34 XW 2.2 | C2.2 | 01.2007-12.2013 |
| CATERPILLAR | CC24 1.5 | 3013 | 01.2007-12.2013 |
| CATERPILLAR | CC24B 1.5 | C1.5 | 01.2013-12.2020 |
| CATERPILLAR | CC34 | C2.2 | 01.2007-12.2013 |
| CATERPILLAR | CC34 2.2 | C2.2 | 01.2007-12.2013 |
| GENIE | TML-4000 | 403D-11G | 01.2010-12.2012 |
| HUMMER | H2 Closed Off-Road Vehicle 6.0 AWD | LQ4(364CUV8) | 09.2003-12.2004 |
| JCB | 135 2.2 | 404D-22 | 01.2012-12.2019 |
| JCB | 150 2.2 | 104-22 | 01.1997-12.1999 |
| JCB | 150 2.2 | 404D-22 | 01.2012-12.2016 |
| JCB | 155 2.2 | 404D-22 | 01.2011-12.2019 |
| JCB | 160 2.2 | 104-22 | 01.2000-12.2001 |
| JCB | 160 2.2 | 404C-22 | 01.2000-12.2012 |
| JCB | 160 2.2 | 404C-22T | 01.2007-12.2012 |
| JCB | 160 2.2 | 404D-22 | 01.2007-12.2012 |
| JCB | 160 2.2 | 404D-22T | 01.2007-12.2012 |
| JCB | 165 2.2 | 104-22 | 01.1996-12.2000 |
| JCB | 170 2.2 | 104-22 | 01.1999-12.2001 |
| JCB | 170 2.2 | 404C-22 | 01.1999-12.2012 |
| JCB | 170 2.2 | 404C-22T | 01.2006-12.2012 |
| JCB | 170 2.2 | 404D-22 | 01.2006-12.2012 |
| JCB | 170 2.2 | 404D-22T | 01.2006-12.2012 |
| JCB | 175 2.2 | 404D-22 | 01.2012-12.2015 |
| JCB | 175 2.2 | 404D-22T | 01.2012-12.2015 |
| JCB | 180 2.2 | 404C-22 | 01.2006-12.2012 |
| JCB | 180 2.2 | 404C-22T | 01.2005-12.2012 |
| JCB | 180 2.2 | 404D-22 | 01.2006-12.2012 |
| JCB | 180 2.2 | 404D-22T | 01.2006-12.2012 |
| JCB | 190 2.2 | 404D-22 | 01.2012-12.2015 |
| JCB | 190 2.2 | 404D-22T | 01.2012-12.2015 |
| JCB | 1CX 2.2 | 404C-22 | 01.1996-12.2001 |
| JCB | 1CX 2.2 | 404D-22 | 01.1996-12.2019 |
| JCB | 205 2.2 | 404D-22 | 01.2012-12.2016 |
| JCB | 208S 2.2 | 104-22 | 01.1997-12.2007 |
| JCB | 208S 2.2 | 404C-22 | 01.1997-12.2007 |
| JCB | 208S 2.2 | 404D-22 | 01.1997-12.2007 |
| JCB | 354 2.2 | 404C-22T | 01.2006-12.2009 |
| JCB | 360 2.2 | 404C-22T | 01.2008-12.2009 |
| JCB | 3DX 2.2 | 404D-22 | 01.2011-12.2012 |
| JCB | 48Z-1 2.2 | 404D-22 | 01.2016-12.2020 |
| JCB | 515-40 2.2 | 404C-22 | 01.2002-12.2006 |
| JCB | 51R-1 2.2 | 404D-22 | 01.2016-12.2020 |
| JCB | 520-40 2.2 | 404C-22 | 01.2003-12.2011 |
| JCB | 520-40 2.2 | 404D-22 | 01.2008-12.2019 |
| JCB | 520-50 2.2 | 404D-22 | 01.2012-12.2014 |
| JCB | 55Z-1 2.2 | 404D-22 | 01.2016-12.2020 |
| JCB | 57C-1 2.2 | 404D-22 | 01.2016-12.2020 |
| JCB | 65R-1 2.2 | 404D-22 | 01.2014-12.2020 |
| JCB | 802 1.3 | 103-13 | 01.1985-12.1997 |
| JCB | 802 1.5 | 103-15 | 01.1985-12.1997 |
| JCB | 802.4 1.5 | 103-15 | 01.1997-12.2000 |
| JCB | 802.4 Super 1.5 | 103-15 | 01.2000-12.2003 |
| JCB | 8025 CTS | 403C-15 | 01.2006-12.2013 |
| JCB | 8025 CTS 1.5 | 403D-15 | 01.2006-12.2020 |
| JCB | 8025 ZTS 1.5 | 403C-15 | 01.2006-12.2010 |
| JCB | 8025 ZTS 1.5 | 403D-15 | 01.2006-12.2020 |
| JCB | 802.7 Plus 1.5 | 103-15 | 01.1997-12.2000 |
| JCB | 802.7 Super 1.5 | 103-15 | 01.2000-12.2003 |
| JCB | 802.7 Super 1.5 | 403C-15 | 01.2003-12.2006 |
| JCB | 8027 Z 1.5 | 403C-15 | 01.2002-12.2006 |
| JCB | 802 Super 1.5 | 403C-15 | 01.2003-12.2006 |
| JCB | 8030 ZTS 1.5 | 403C-15 | 01.2006-12.2010 |
| JCB | 8030 ZTS 1.5 | 403D-15 | 01.2010-12.2020 |
| JCB | 8032 Z 1.5 | 403C-15 | 01.2002-12.2006 |
| JCB | 8035 ZTS 1.5 | 403C-15 | 01.2006-12.2010 |
| JCB | 8035 ZTS 1.5 | 403D-15 | 01.2006-12.2010 |
| JCB | 8035 ZTS 1.7 | 403D-17 | 01.2006-12.2020 |
| JCB | 803 Magnum 1.5 | 403C-15 | 01.2003-12.2006 |
| JCB | 803 Plus 1.5 | 103-15 | 01.1997-12.2003 |
| JCB | 803 Plus 1.5 | 403C-15 | 01.2003-12.2006 |
| JCB | 803 Super 1.5 | 103-15 | 01.1999-12.2003 |
| JCB | 803 Super 1.5 | 403C-15 | 01.2003-12.2006 |
| JCB | 8040 ZTS 2.2 | 404C-22 | 01.2006-12.2012 |
| JCB | 8040 ZTS 2.2 | 404D-22 | 01.2006-12.2017 |
| JCB | 8045 ZTS 2.2 | 404C-22 | 01.2006-12.2013 |
| JCB | 8045 ZTS 2.2 | 404D-22 | 01.2006-12.2017 |
| JCB | 804 Plus 1.5 | 103-15 | 01.1997-12.1999 |
| JCB | 804 Super 1.5 | 103-15 | 01.1998-12.2003 |
| JCB | 804 Super 1.5 | 403C-15 | 01.2003-12.2006 |
| JCB | 8050 RTS 2.2 | 404D-22 | 01.2010-12.2017 |
| JCB | 8050 ZTS 2.2 | 404D-22 | 01.2010-12.2017 |
| JCB | 8052 | 01.2001- | |
| JCB | 8052 | 01.2001- | |
| JCB | 8052 2.2 | 104-22 | 01.1999-12.2003 |
| JCB | 8052 2.2 | 404C-22 | 01.2003-12.2008 |
| JCB | 8055 RTS 2.2 | 404D-22 | 01.2011-12.2016 |
| JCB | 8055 ZTS 2.2 | 404D-22 | 01.2011-12.2016 |
| JCB | Midi CX 2.2 | 404C-22 | 01.2006-12.2015 |
| JCB | Midi CX 2.2 | 404D-22 | 01.2006-12.2015 |
| JCB | TLT20D 2.2 | 104-22 | 01.1998-12.2000 |
| JCB | TLT20D 2.2 | 404C-22 | 01.1998-12.2000 |
| JCB | TLT25D 2.2 | 104-22 | 01.1997-12.2008 |
| JCB | TLT25D 2.2 | 404C-22 | 01.1997-12.2008 |
| JCB | TLT25D 2.2 | 404D-22 | 01.2008-12.2012 |
| JCB | TLT30D 2.2 | 404C-22 | 01.1999-12.2008 |
| JCB | TLT30D 2.2 | 404C-22T | 01.2006-12.2008 |
| JCB | TLT30D 2.2 | 404D-22 | 01.2008-12.2012 |
| JCB | TLT35D 2.2 | 404C-22T | 01.2004-12.2008 |
| KHD | Various Models | ||
| KHD | Various Models | - | |
| LINCOLN | K1643-11 Classic 300D | 404D-22 | - |
| LINCOLN | K1643-3 Classic 300D | 404C-22 | - |
| LINCOLN | K1643-4 Classic 300D | 404C-22 | - |
| LINCOLN | K1643-7 Classic 300D | 404D-22 | - |
| LINCOLN | K1643-8 Classic 300D | 404D-22 | - |
| PERKINS | Engine | [404C-22] | |
| PERKINS | Engine | 404C-22 | - |
| PERKINS | Engine 0.7 | 403C-07 | 01.2004-12.2014 |
| PERKINS | Engine 1.1 | 403C-11G | 01.2004-12.2014 |
| PERKINS | Engine 1.3 | 103-13 | - |
| PERKINS | Engine 1.5 | 103-15 | - |
| PERKINS | Engine 2.0 | 104-19 | - |
| PERKINS | Engine 2.2 | 104-22 | - |
| PERKINS | Engine 2.2 | 134ci | 01.2002-12.2014 |
| PERKINS | Engine 2.2 | 404C-22 | 01.2000-12.2010 |
| PERKINS | Engine 2.2 | 404C-22G | - |
| PERKINS | Engine 2.2 | 404C-22T | 01.2002-01.0001 |
| TEREX | PT-30 1.5 | 403D-15 | 01.2009-12.2017 |
| TEREX | PT-50 2.2 | 404C-22 | 01.2009-12.2017 |
| TEREX | PT-60 2.2 | 404D-22T | 01.2009-12.2017 |
| TEREX | R070T 2.2 | 404C-22 | 01.2014-12.2017 |
| TEREX | R190T 2.2 | 404C-22 | 01.2014-12.2017 |
Reference Information
| 0001109035 | BOSCH |
| 011-001-000042R | REMANTE |
| 063521090350 | MAGNETI MARELLI |
| 0986022440 | BOSCH |
| 10010288AV | ITAB AUTOMOTIVE |
| 10010288OV | ITAB AUTOMOTIVE |
| 10439530 | ALANKO |
| 105058 | FARCOM |
| 106717 | FARCOM |
| 11010108 | KRAFTVOLL GERMANY |
| 11022440 | EUROTEC |
| 11.131.267 | ISKRA / LETRIKA |
| 112534 | CARGO |
| 120-10112NOE | ROBERT'S |
| 121425 | AUGER |
| 163-3361 | CATERPILLAR |
| 1850866 | PERKINS |
| 18508660 | PERKINS |
| 185086600 | PERKINS |
| 18949N | WAI |
| 1986S00722 | BOSCH |
| 19960488 | YALE |
| 19960489 | YALE |
| 20401882BN | REAL |
| 20401882OE | REAL |
| 20401882RC | REAL |
| 20513016 | PRESTOLITE |
| 220888 | ERA |
| 220888A | ERA |
| 25-3085 | ELSTOCK |
| 254001 | KUHNER |
| 254001B | KUHNER |
| 254001S | KUHNER |
| 3124938 | HENKEL PARTS |
| 3124939 | HENKEL PARTS |
| 3124940 | HENKEL PARTS |
| 3124942 | HENKEL PARTS |
| 331851 | LOGISTIK |
| 333/C5935 | JCB |
| 3583555 | VOLVO |
| 378C112534 | MISCELLANEOUS |
| 379IS1101 | MISCELLANEOUS |
| 3801351 | VOLVO |
| 3803929 | VOLVO |
| 461-8764 | JCB |
| 50027532 | YALE |
| 5010188 | MEAT & DORIA |
| 6010288.0 | SANDO |
| 6010288.1 | SANDO |
| 6010288.2 | SANDO |
| 6352109035 | MAGNETI MARELLI |
| 668008092 | DRI |
| 70001414 | PERKINS |
| 700.501.092.010 | WAI |
| 700.501.092.018 | WAI |
| 700.501.092.038 | WAI |
| 700.501.092.210 | WAI |
| 700.501.092.215 | WAI |
| 700.501.092.280 | WAI |
| 700.501.092.310 | WAI |
| 700.501.092.311 | WAI |
| 714-35600 | JCB |
| 714/35600 | JCB |
| 714-35600R | JCB |
| 714/35600R | JCB |
| 714-40482 | JCB |
| 714/40482 | JCB |
| 71440482 | JCB |
| 72735714 | MAHLE |
| 8000227 | DELCO |
| 8064 | CEVAM |
| 88213425 | POWERMAX |
| 8EA015642-081 | HELLA |
| 8EA738259-001 | HELLA |
| 91-15-7143 | WILSON |
| 91-15-7143N | WILSON |
| A77940 | ATL AUTOTECHNIK |
| AC-CBS1471 | ACAUTO |
| ANM16158X | ANDEL |
| AZE2155 | ISKRA / LETRIKA |
| BOS0001109035 | WOODAUTO |
| CGB-23938 | AINDE |
| CMA-621089 | COMLINE |
| CS1471 | HC PARTS |
| CST10288AS | CASCO |
| CST10288GS | CASCO |
| CST10288RS | CASCO |
| DRS3938 | DELCO |
| DRS3938N | DELCO |
| F032112534 | CARGO |
| IS1101 | ISKRA / LETRIKA |
| LRS01580 | LUCAS |
| LRS1580 | LUCAS |
| MAHMS86 | WOODAUTO |
| MAV122880 | SIOM |
| MS86 | MAHLE |
| PRSS024 | 3EFFE |
| QRS2642 | QUINTON HAZELL |
| RNL109035 | RNL |
| S1065B | PRESTOLITE |
| S12BH0196 | SIDAT |
| S12BH0196A2 | SIDAT |
| S134.832 | WAI |
| S145.477 | WAI |
| S-22059 | DTS |
| SBO288 | AUTOTEAM |
| SBO288A | AUTOTEAM |
| SG2001 | GHIBAUDI |
| ST01174 | TMI |
| STB1471 | KRAUF |
| STM742 | ROLLCO |
| STR1218 | ELECTROLOG |
| STR2151 | ELECTROLOG |
| STR22059 | WOODAUTO |
| STRS024 | 3EFFE |
| STX210178 | STARDAX |
| TT15080 | TESLA |
| U5MK8261 | PERKINS |
| U85086790 | PERKINS |
| U85086800 | PERKINS |
| UD12018S | AS-PL |
| WG2013459 | WILMINK GROUP |
| WG2045420 | WILMINK GROUP |
| WG2196607 | WILMINK GROUP |
Video/Publications
S1116View your shopping basket or Browse other items in Starter Motors.
