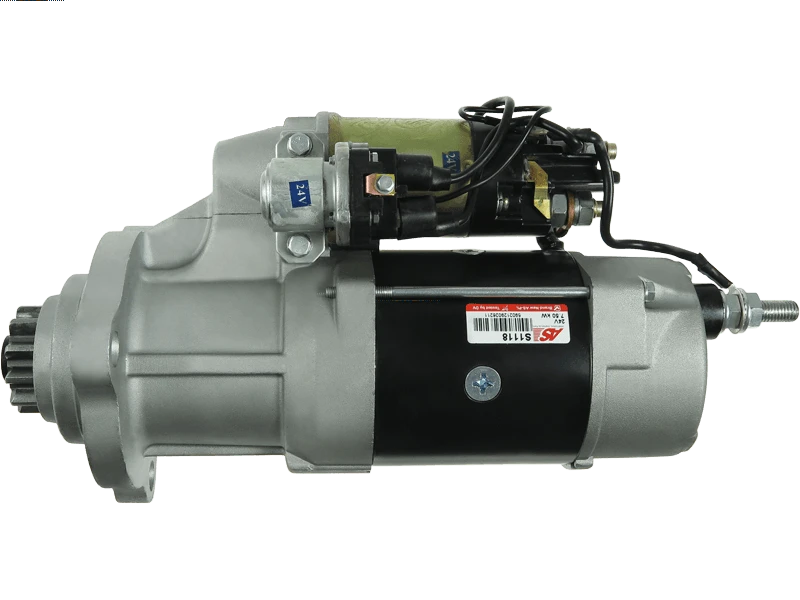

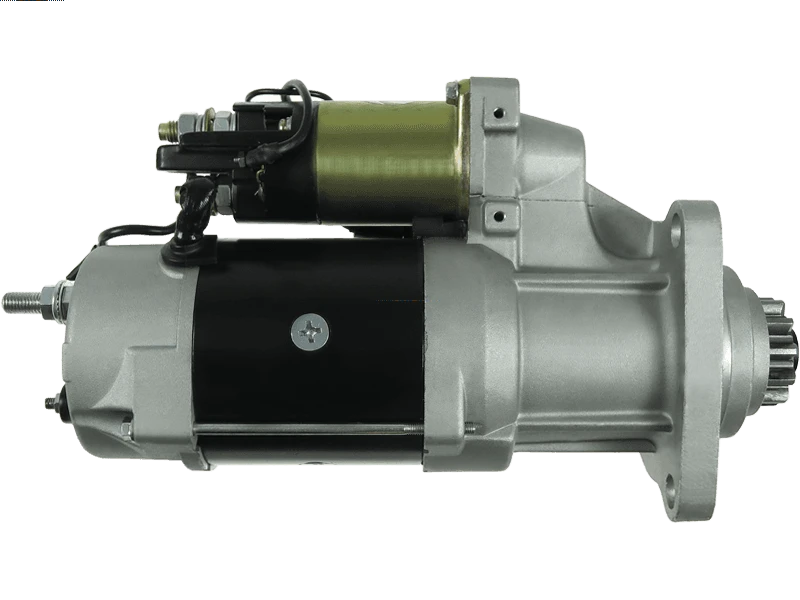

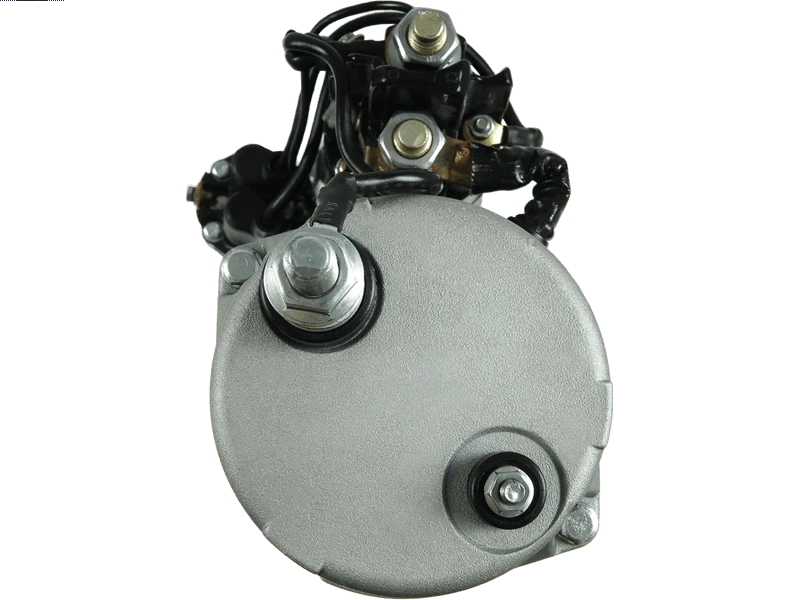

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 850.11 including GST
NZ$ 739.23 excluding GST
or four payments of $212.53
with
Learn More
each
S1118
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
10461143 10461360 10478937 10478938 10478943 10478946 10478952 10478988 10478990 10479100 10479119 10479149 10479168 10479286 19011509 19011523 1990411 1990416 1993933 1993941 2-2348-DR-1 200-39203 207-1548 254589 254589P 254759 254759D 254759P 254887D 254887P 255385 255385D 255385M 255385P 2871253 3103914 60864 60864D 60864K 60864M 60864P 60864W 6853N 6853R 6V5539 8200032 8200039 8200430 8200431 8200712 M0017407ME M105R3502SE M105R3503SE M105R3508SE MS1-401A MS1-410A MS1-453 SG0195 STR80166 UD12364SSpecifications
| Kilowatt | 7.50 kW |
| Length (L.1) | 411.50 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Center - Center (O.2) | 126 mm |
| Mount Hole Center - Center (O.3) | 126 mm |
| Mount Hole Diameter (C.1) | 16.50 mm |
| Mount Hole Diameter (C.2) | 16.50 mm |
| Mount Hole Diameter (C.3) | 16.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | DELCO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | Various Models | ||
| CUMMINS | Various Models |
Reference Information
| 10461143 | DELCO |
| 10461360 | DELCO |
| 10478937 | DELCO |
| 10478938 | DELCO |
| 10478943 | DELCO |
| 10478946 | DELCO |
| 10478952 | DELCO |
| 10478988 | DELCO |
| 10478990 | DELCO |
| 10479100 | DELCO |
| 10479119 | DELCO |
| 10479149 | DELCO |
| 10479168 | DELCO |
| 10479286 | DELCO |
| 19011509 | DELCO |
| 19011523 | DELCO |
| 1990411 | DELCO |
| 1990416 | DELCO |
| 1993933 | DELCO |
| 1993941 | DELCO |
| 200-39203 | DIXIE |
| 207-1548 | CATERPILLAR |
| 2-2348-DR-1 | WAI / TRANSPO |
| 254589 | KUHNER |
| 254589P | KUHNER |
| 254759 | KUHNER |
| 254759D | KUHNER |
| 254759P | KUHNER |
| 254887D | KUHNER |
| 254887P | KUHNER |
| 3103914 | CUMMINS |
| 60864 | KUHNER |
| 60864D | KUHNER |
| 60864K | KUHNER |
| 60864M | KUHNER |
| 60864P | KUHNER |
| 60864W | KUHNER |
| 6853N | WAI / TRANSPO |
| 6853R | WAI / TRANSPO |
| 6V5539 | CATERPILLAR |
| 8200032 | DELCO |
| 8200039 | DELCO |
| 8200430 | DELCO |
| 8200431 | DELCO |
| 8200712 | DELCO |
| M0017407ME | PRESTOLITE |
| M105R3503SE | PRESTOLITE |
| M105R3508SE | PRESTOLITE |
| MAV626040 | SIOM |
| MAV626120 | SIOM |
| MS1-401A | PRESTOLITE |
| MS1-410A | PRESTOLITE |
| MS1-453 | PRESTOLITE |
| S1118 | AS-PL |
| STR2675 | ELECTROLOG |
| STR80166 | WOODAUTO |
| STRF146 | 3EFFE |
| STX201301 | STARDAX |
| UD12364S | AS-PL |
