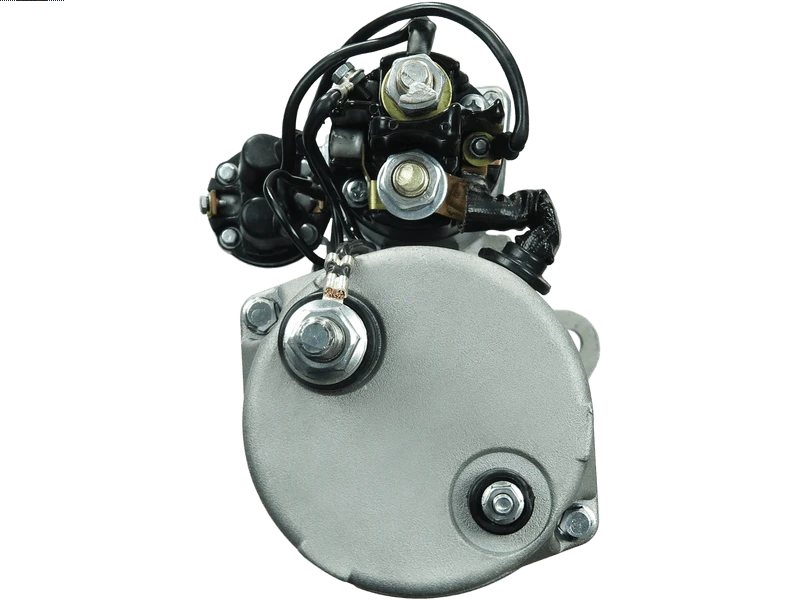

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 860.89 including GST
NZ$ 748.60 excluding GST
or four payments of $215.22
with
Learn More
each
S1124
No stock in NZ currently
No stock in NZ currently
Associated Numbers
10461758 10461759 114013 19011511 19011524 2-2349-DR-1 201-39223 254297D 254297P 254484 254484D 254484P 3102767 3938502 6060609 641.010.123 6803N 6803R 8200029 8200086 8200447 CST60609 CST60609AS CST60609ES CST60609GS CST60609OS CST60609RS M105R2515SE M105R3503SE M105R3505SE M105R3509SE M110R2615SE2D M110R2616SE-A M125R2001SEP STR80007 TS-1841 UD12365SSpecifications
| Insulated Earth | Yes |
| Kilowatt | 8.30 kW |
| Length (L.1) | 413 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Center - Center (O.2) | 126 mm |
| Mount Hole Center - Center (O.3) | 126 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| Mount Hole Diameter (C.3) | 13.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | DELCO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | Various Models | ||
| CUMMINS | Engine 8.3 | [ISC] |
Reference Information
| 10461758 | DELCO |
| 10479276 | DELCO |
| 10479291 | DELCO |
| 114013 | CARGO |
| 140-39118 | ROBERT'S |
| 19011524 | DELCO |
| 201-39202 | DIXIE |
| 20409906BN | REAL |
| 20409906OE | REAL |
| 2-2349-DR-1 | WAI / TRANSPO |
| 3102767 | CUMMINS |
| 6060609.0 | SANDO |
| 6060609.1 | SANDO |
| 6803N | WAI / TRANSPO |
| 6803R | WAI / TRANSPO |
| 7T0800 | CATERPILLAR |
| 8200029 | DELCO |
| 8300014 | DELCO |
| 91-01-4572 | WILSON |
| 91-01-4572N | WILSON |
| CGB-1748 | AINDE |
| CST60609AS | CASCO |
| CST60609GS | CASCO |
| F032114013 | CARGO |
| MAV626090 | SIOM |
| STD4013 | KRAUF |
| STD6913 | KRAUF |
| STD8913 | KRAUF |
| STP4013 | KRAUF |
| STR0274 | 3EFFE |
| STR2689 | ELECTROLOG |
| STR80007 | WOODAUTO |
| STX201301 | STARDAX |
| TS-1748 | DIXIE |
| UD12365S | AS-PL |
