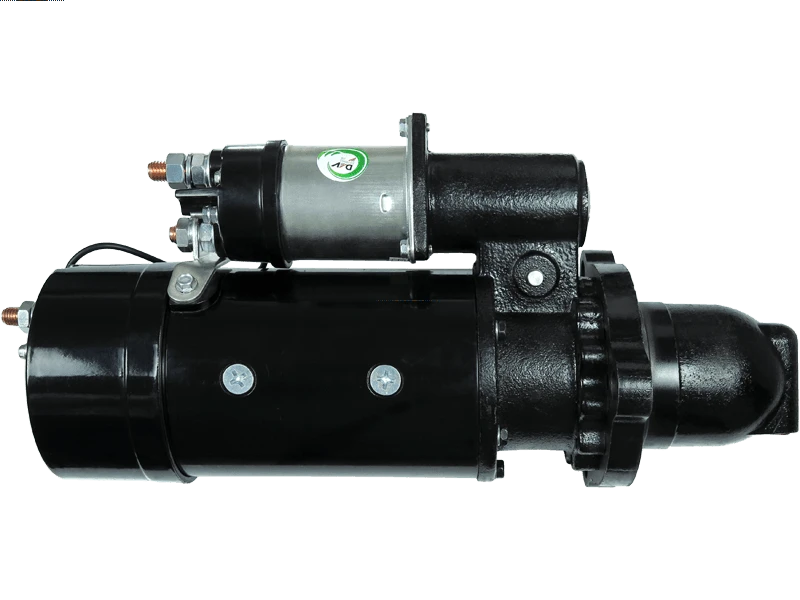

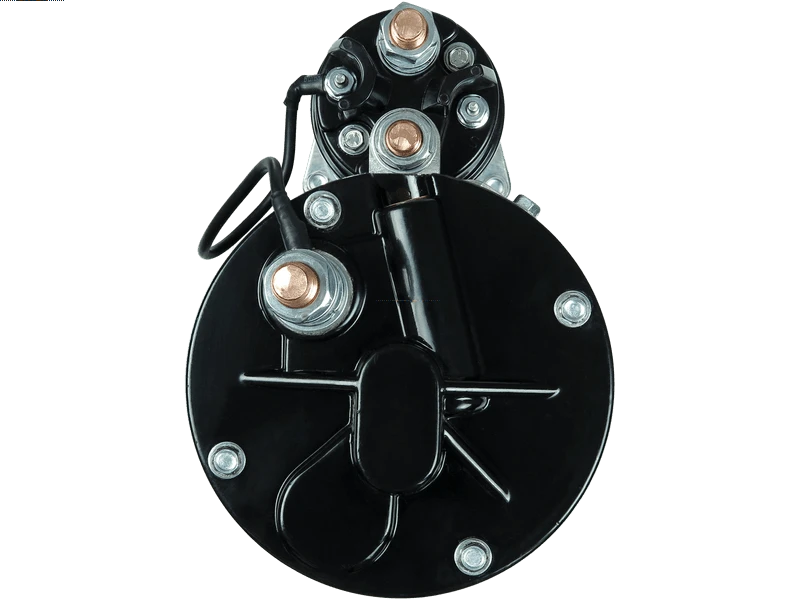

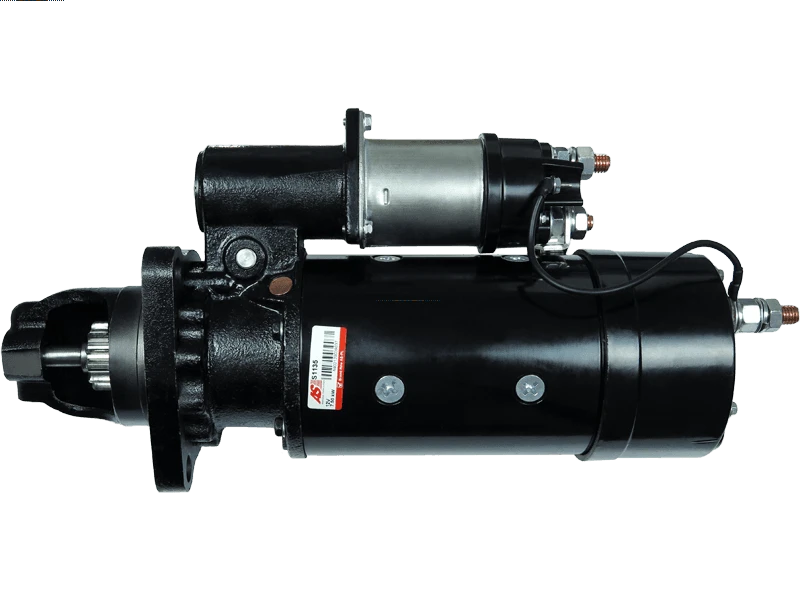

S1135 - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S1135
Price: 920.99 NZD
Availability: BackOrder

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

DELCO

Price:

NZ$ 920.99 including GST

NZ$ 800.86 excluding GST

or four payments of $230.25 with
Learn More

UOM:

each

Product Code:

S1135

Quantity In Stock Nationally:

No stock in NZ - Call us for possible procurement options

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications

0R2189 0R4260 0R4265 0R5216 0R5218 0r5208 10461021 10461032 10461034 10461046 10461050 10461051 10461414 10478803 10478962 10478997 10479052 110436 1113488 1114109 1114110 1114114 1114127 1114129 1114136 1114138 1114139 1114141 1114144 1114151 1114152 1114153 1114156 1114158 1114162 1114167 1114169 1114174 1114175 1114190 1114199 1114703 1114704 1114705 1114708 1114714 1114724 1114748 1114754 1114802 1114823 1114824 1114825 1114826 1114827 1114828 1114832 1114833 1114834 1114835 1114882 1114883 1114885 1114888 1114911 1114967 1114977 140-42855 1430540 157579 185617 197125 1990205 1990219 1990220 1990221 1990281 1990290 1990300 1990304 1990325 1990353 1990356 1990362 1990369 1990370 1990374 1990379 1990385 1990387 1990394 1990399 1990403 1990425 1990429 1990441 1990443 1990452 1990466 1990469 1990471 1990476 1990480 1990487 1990492 1990496 1990703 1993703 1993772 1993775 1993783 1993795 1993806 1993811 1993820 1993935 1993937 1993938 1993939 1993942 1993943 1993961 1993983 201-42102 201-42102R 202386T91 255057 255057P 2N3538 323-829 323-830 323-855 3279496 3603864rx 3604323RX 3907622 3910645 3E7864 3R2657 3T2655 3T2657 3T2659 4N8253 554560 601025 601025K 6060133 640.0005.123 7N6503 7T1081 7T2265 7T9254 8C356 8C3596 8C3648 8C5580 8L5881 91-01-4161 91-01-4161N 9L3597 9W0058 A145324 A162578 A186224 A34442 A47464 A75864 CST60133 CST60133AS CST60133ES CST60133GS CST60133OS CST60133RS M0017268ME M0017276ME M0017280ME M105R2502SE M105R2511SE M110R2602SE M110R2606SE M125R2001SEP M125R2005SEP M125R2600SE STR80002 TS-1500 UD12391S

Kilowatt	7.50 kW
Length (L.1)	502 mm
Mount Hole Center - Center (O.1)	127 mm
Mount Hole Center - Center (O.2)	127 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Diameter (C.1)	16.50 mm
Mount Hole Diameter (C.2)	16.50 mm
Mount Hole Diameter (C.3)	16.50 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	12 qty
OEM Product	No
Oil Sealed	Yes
Pinion at Rest (B)	47.50 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	92 mm
Unit Type	DELCO
Voltage	12 V

Make	Model	Type	Year
CASE	2000	[504]	01.1979-12.1982
CASE	2000	[504BD]
CASE	2094	[6504]	01.1983-12.1984
CASE	250	[504BD]
CASE	2500	[504]	01.1981-12.1982
CASE	4694	[6504]	01.1985-12.1990
CASE	4890	[6673]
CASE	4894	[6674]	01.1985-12.1987
CASE	4994	[8866]	01.1985-12.1987
CASE	5500	[504]
CASE	5500	[504BD]
CASE	9110	[6504]	01.1986-12.1990
CASE	9110 8.3		01.1986-12.1990
CASE	9130 8.3		01.1986-12.1990
CASE	9150	[3306TA]	01.1986-12.1990
CASE	9150	[6611]	01.1986-12.1990
CATERPILLAR	65	[3306]	01.1986-12.1990
CATERPILLAR	65B	[3306]	01.1991-12.1993
CATERPILLAR	65C	[3306]	01.1993-12.1997
CATERPILLAR	65D	[3306]	01.1995-12.1997
CATERPILLAR	70C	[3306]	01.1993-12.1997
CATERPILLAR	AH40	[3208]	01.1986-12.1993
CATERPILLAR	AH46	[3208]	01.1986-12.1990
CATERPILLAR	AH52	[3208]	01.1986-12.1990
CATERPILLAR	AH60	[3208]	01.1986-12.1990
CATERPILLAR	AM36	[3208]	01.1986-12.1990
CATERPILLAR	AM40	[3208]	01.1986-12.1990
CATERPILLAR	V160	[3208]	01.1986-12.1990
CATERPILLAR	V160B	[3208]	01.1986-12.1990
CATERPILLAR	V180	[3208]	01.1986-12.1990
CATERPILLAR	V180B	[3208]	01.1986-12.1990
CATERPILLAR	V200	[3208]	01.1986-12.1990
CATERPILLAR	V200B	[3208]	01.1986-12.1990
CATERPILLAR	V225	[3208]	01.1986-12.1990
CATERPILLAR	V225B	[3208]	01.1986-12.1990
CATERPILLAR	V250	[3208]	01.1986-12.1990
CATERPILLAR	V250B	[3208]	01.1986-12.1990
CATERPILLAR	V300	[3208]	01.1986-12.1990
CATERPILLAR	V300B	[3208]	01.1986-12.1990
CATERPILLAR	V330B	[3208]	01.1986-12.1990
CHALLENGER	660		01.2004-12.2008
CHALLENGER	670		01.2004-12.2008
CLARK	55C	[V378C155]	01.1985-12.1986
CUMMINS	Engine	[V903]	01.1994-12.1994
CUMMINS	Engine 8.3		01.1985-12.1988
CUMMINS	Engine 9.1		01.1985-12.1985
FORD	B600	[3306]	01.1990-12.1994
FORD	B700	[3306]	01.1990-12.1994
FORD	B800	[3208]	01.1995-12.1989
FORD	B800	[3306]	01.1990-12.1994
FORD	F600	[3208]	01.1985-12.1989
FORD	F700	[3208]	01.1985-12.1989
FORD	F800	[3208]	01.1985-12.1989
FORD	F900	[3208]	01.1985-12.1989
FORD	L6000	[3208]	01.1986-12.1999
FORD	L6000	[3306]	01.1988-12.1999
FORD	L7000	[3208]	01.1986-12.1999
FORD	L7000	[3306]	01.1988-12.1999
FORD	L8000	[3208]	01.1986-12.1999
FORD	L8000	[3306]	01.1988-12.1999
FORD	L9000	[3208]	01.1986-12.1999
FORD	L9000	[3306]	01.1988-12.1999
FREIGHTLINER	6C 8.3		01.1986-12.1993
FREIGHTLINER	FC80 8.3	[ISC]	01.1998-12.2003
FREIGHTLINER	FL120 8.3		01.1986-12.1993
FREIGHTLINER	FL50 8.3	[ISC]	01.1994-12.2001
FREIGHTLINER	FL60 8.3	[ISC]	01.1994-12.2004
FREIGHTLINER	FL70 8.3	[ISC]	01.1994-12.2005
FREIGHTLINER	FL80 8.3	[ISC]	01.1994-12.2005
FREIGHTLINER	FLC112 8.3		01.1986-12.1993
FREIGHTLINER	FLD112 8.3	[ISC]	01.1990-12.1992
FREIGHTLINER	FLD120 8.3	[ISC]	01.1990-12.1992
FREIGHTLINER	M2 8.3	[ISC]	01.2003-12.2007
INTERNATIONAL	1754	[DT-408]	01.1993-12.1997
INTERNATIONAL	1754 9.0		01.1985-12.1987
INTERNATIONAL	1954	[DT-408]	01.1993-12.1997
INTERNATIONAL	1954	[DT-466]	01.1984-12.1987
INTERNATIONAL	2200	[DT-466]	01.1984-12.1987
INTERNATIONAL	2275	[DT-466]	01.1984-12.1987
INTERNATIONAL	2300	[DT-408]	01.1993-12.1997
INTERNATIONAL	2300		01.1999-12.2003
INTERNATIONAL	2375	[DT-408]	01.1993-12.1997
INTERNATIONAL	2375		01.1999-12.2003
INTERNATIONAL	2554	[DT-408]	01.1993-12.1997
INTERNATIONAL	2554	[DT-466]	01.1984-12.1987
INTERNATIONAL	2554		01.1999-12.2003
INTERNATIONAL	2564	[DT-408]	01.1993-12.1997
INTERNATIONAL	2564	[DT-466]	01.1984-12.1987
INTERNATIONAL	2564		01.1999-12.2003
INTERNATIONAL	2654		01.1999-12.2003
INTERNATIONAL	2674	[DT-466]	01.1985-12.1987
INTERNATIONAL	2674	[DT-466]	01.1993-12.1994
INTERNATIONAL	2675	[DT-466]	01.1985-12.1987
INTERNATIONAL	2675	[DT-466]	01.1993-12.1994
INTERNATIONAL	3000	[DT-466]	01.1993-12.2007
INTERNATIONAL	3900	[DT-466]	01.1993-12.2007
INTERNATIONAL	4000	[DT-466]	01.1984-12.1992
INTERNATIONAL	4000	[DT-466]	01.1993-12.2007
INTERNATIONAL	4900	[DT-466]	01.1984-12.1992
INTERNATIONAL	4900	[DT-466]	01.1993-12.2007
INTERNATIONAL	7100	[DT-466]	01.1990-12.1992
INTERNATIONAL	7100	[DT-466]	01.1993-12.2006
INTERNATIONAL	7100	[DT-466]	01.2007-12.2007
INTERNATIONAL	7100	[DT-530]	01.2003-12.2007
INTERNATIONAL	7100	[DT-570]	01.2003-12.2007
INTERNATIONAL	7700	[DT-466]	01.1990-12.1992
INTERNATIONAL	7700	[DT-466]	01.1993-12.2006
INTERNATIONAL	7700	[DT-530]	01.2003-12.2007
INTERNATIONAL	7700	[DT-570]	01.2003-12.2007
INTERNATIONAL	8100	[DT-466]	01.1990-12.1992
INTERNATIONAL	8100	[DT-466]	01.1993-12.2007
INTERNATIONAL	8100	[DT-530]	01.2003-12.2007
INTERNATIONAL	8100	[DT-570]	01.2003-12.2007
INTERNATIONAL	8600	[DT-466]	01.1990-12.1992
INTERNATIONAL	8600	[DT-466]	01.1993-12.2007
INTERNATIONAL	8600	[DT-530]	01.2003-12.2007
INTERNATIONAL	8600	[DT-570]	01.2003-12.2007
INTERNATIONAL	Cargostar	[DT-408]	01.1993-12.1997
INTERNATIONAL	Cargostar	[DT-466]	01.1984-12.1987
INTERNATIONAL	Cargostar 9.0		01.1984-12.1984
INTERNATIONAL	Paystar	[DT-466]	01.1984-12.1989
INTERNATIONAL	Paystar	[V-800]	01.1984-12.1984
INTERNATIONAL	Paystar 8.3		01.1987-12.1987
INTERNATIONAL	S Series 9.0		01.1984-12.1987
INTERNATIONAL	Transtar	[V-800]	01.1984-12.1987
JOHN DEERE	5730	[619]	01.1986-12.1992
JOHN DEERE	5820	[619]	01.1982-12.1986
JOHN DEERE	5830		01.1986-12.1992
JOHN DEERE	6101
JOHN DEERE	6619
JOHN DEERE	6650
JOHN DEERE	6710		01.1993-12.2003
JOHN DEERE	6750
JOHN DEERE	6850
JOHN DEERE	740G		01.1993-12.2003
JOHN DEERE	8450	[6-619]	01.1985-12.1988
JOHN DEERE	8650	[6-619]	01.1985-12.1989
JOHN DEERE	8760	[6-619]	01.1988-12.1992
JOHN DEERE	8770	[6-619]	01.1993-12.1996
JOHN DEERE	8870	[6-619]	01.1993-12.1996
JOHN DEERE	9200	[6-643]	01.1997-12.2007
JOHN DEERE	9220	[6-765]	01.2004-12.2007
JOHN DEERE	9300	[6-360]	01.1997-12.2007
JOHN DEERE	9300	[6-765]	01.1997-12.2007
JOHN DEERE	9300T	[6-360]	01.1997-12.2007
JOHN DEERE	9300T	[6-765]	01.1999-12.2009
JOHN DEERE	9320	[6-765]	01.2001-12.2007
JOHN DEERE	9320T	[6-765]	01.2001-12.2007
JOHN DEERE	9400	[6-765]	01.1997-12.2007
JOHN DEERE	9400T	[6-765]	01.1997-12.2007
JOHN DEERE	9420	[6-765]	01.2002-12.2007
JOHN DEERE	9420T	[6-765]	01.2002-12.2007
JOHN DEERE	9520	[6-765]	01.2002-12.2007
JOHN DEERE	9520T	[6-765]	01.2002-12.2007
JOHN DEERE	9880 STS
KENWORTH	C500	[3306]	01.1985-12.1985
KENWORTH	K100	[3306]	01.1985-12.1985
KENWORTH	K300 8.3		01.1994-12.1997
KENWORTH	L7000	[3306]	01.1985-12.1985
KENWORTH	T300 8.3	[ISC]	01.1998-12.2008
KENWORTH	T450	[3306]	01.1985-12.1985
KENWORTH	T600	[3306]	01.1985-12.1985
KENWORTH	T800 8.9	[3306]	01.1985-12.1985
KENWORTH	T800 8.9	[ISL]	01.2002-12.2007
KENWORTH	W900	[3306]	01.1985-12.1985
LISTER PETTER	Engine	[JA6]	01.1986-12.1988
LISTER PETTER	Engine	[JAS6]	01.1986-12.1988
LISTER PETTER	Engine	[JAT6]	01.1986-12.1988
MACK	CM Series	[RVI]	01.1984-12.1990
MACK	CM Series 8.3		01.1984-12.1990
MACK	Midliner CS 5.6	[E3]	01.1984-12.1990
MACK	Midliner CS 8.8	[E5]	01.1984-12.1990
MACK	Midliner CS 9.8	[E5]	01.1984-12.1990
MACK	Midliner CS E3 5.6		01.1984-12.1990
MACK	Midliner CS E5 8.8		01.1984-12.1990
MACK	Midliner CS E5 9.8		01.1984-12.1990
MASSEY FERGUSON	MF 8560	[AT6-360]	01.1986-12.1987
MASSEY FERGUSON	MF 8590		01.1985-12.1992
MASSEY FERGUSON	MF 860	[AV8-540]	01.1986-12.1990
MASSEY FERGUSON	MF 865	[AV8-540]	01.1986-12.1990
MASSEY FERGUSON	MF 9720	[DD8-640]	01.1987-12.1993
NEW HOLLAND	1900	[3306]	01.1986-12.1989
NEW HOLLAND	1915	[3306]	01.1989-12.1986
NEW HOLLAND	TR86	[3208]	01.1985-12.1993
NEW HOLLAND	TR96	[3208]	01.1986-12.1993
PERKINS	Engine	[504]	01.1986-12.1986
PERKINS	Engine	[TV8-540L]	01.1986-12.1986
PERKINS	Engine	[V8-540L]	01.1986-12.1986
PETERBILT	320 8.3	[ISC]	01.1998-12.2003
PETERBILT	320 C 8.3		01.1991-12.1997
PETERBILT	330 8.3	[ISC]	01.1998-12.2007
PETERBILT	3330 C 8.3		01.1996-12.1997
PETERBILT	335 8.3	[ISC]	01.2005-12.2009
PETERBILT	340 8.3	[ISC]	01.2006-12.2008
PETERBILT	357 8.3	[ISC]	01.1998-12.2003
PETERBILT	357 C 8.3		01.1991-12.1997
PETERBILT	375 8.3	[ISC]	01.1998-12.2003
PETERBILT	375 C 8.3		01.1991-12.1997
PETERBILT	379		01.1999-12.2003
PETERBILT	379 8.3	[ISC]	01.1998-12.2003
PETERBILT	379 8.9	[ISL]	01.1998-12.2003
PETERBILT	379 C 8.3		01.1995-12.1997
PETERBILT	6C 8.3		01.1986-12.1997
STERLING	Acterra M5500 8.3	[ISC]	01.1998-12.2007
STERLING	Acterra M6500 8.3	[ISC]	01.1998-12.2007
STERLING	Acterra M7500 8.3	[ISC]	01.1998-12.2007
STERLING	Acterra M8500 8.3	[ISC]	01.1998-12.2007
STERLING	L-Line 7500 8.3	[ISC]	01.1998-12.2007
STERLING	L-Line 7500 8.3	[ISC]	01.1998-12.2007
STERLING	L-Line 8000 8.3	[ISC]	01.1998-12.2007
STERLING	L-Line 8000 8.3	[ISC]	01.1998-12.2007
STERLING	L-Line 8500 8.3	[ISC]	01.1998-12.2007
STERLING	L-Line 8500 8.3	[ISC]	01.1998-12.2007
STERLING	L-Line 9500 8.3	[ISC]	01.1998-12.2007
STERLING	L-Line 9500 8.3	[ISC]	01.1998-12.2007
VOLVO	6C .83		01.1989-12.2000
VOLVO	ACL42	[VED12]	01.1994-12.2002
VOLVO	ACL64	[VED12]	01.1994-12.2002
VOLVO	Engine	[3208]	01.1985-12.1992
VOLVO	Engine	[VED7]	01.1990-12.2003
VOLVO	VHD Series	[VED12]	01.2001-12.2007
VOLVO	VNL Series	[VED12]	01.1997-12.2007
VOLVO	VNM Series	[VED12]	01.1997-12.2007
VOLVO	WA	[VED12]	01.1994-12.2001
VOLVO	WC	[VED12]	01.1994-12.2001
VOLVO	WG	[VED12]	01.1994-12.2001
VOLVO	WH	[VED12]	01.1994-12.2001
VOLVO	WI	[VED12]	01.1994-12.2001
VOLVO	WX	[VED12]	01.1994-12.2001
WHITE	160	[6-505]	01.1988-12.1990
WHITE	170	[6-505]	01.1991-12.1992
WHITE	185	[6-505]	01.1988-12.1990
WHITE	195	[6-505]	01.1991-12.1992
WHITE	2-135	[6-478]	01.1987-12.1988
WHITE	2-155	[6-478]	01.1987-12.1988
WHITE	2-180	[3208]	01.1987-12.1991
WHITE	2600	[6-505]	01.1992-12.1992
WHITE	4-225	[3208]	01.1987-12.1991

0R2189	CATERPILLAR
0R4260	CATERPILLAR
0R4265	CATERPILLAR
0R5208	CATERPILLAR
0R5216	CATERPILLAR
0R5218	CATERPILLAR
10461021	DELCO
10461032	DELCO
10461034	DELCO
10461046	DELCO
10461050	DELCO
10461051	DELCO
10461414	DELCO
10478803	DELCO
10478962	DELCO
10478997	DELCO
10479052	DELCO
1114802	DELCO
1114823	DELCO
1114825	DELCO
1114833	DELCO
1114835	DELCO
1114882	DELCO
1114885	DELCO
1114888	DELCO
140-42855	ROBERT'S
157579	CUMMINS
185617	CUMMINS
197125	CUMMINS
1990205	DELCO
1990219	DELCO
1990220	DELCO
1990221	DELCO
1990281	DELCO
1990290	DELCO
1990300	DELCO
1990353	DELCO
1990356	DELCO
1990362	DELCO
1990369	DELCO
1990370	DELCO
1990374	DELCO
1990379	DELCO
1990385	DELCO
1990387	DELCO
1990394	DELCO
1990403	DELCO
1990425	DELCO
1990429	DELCO
1990441	DELCO
1990443	DELCO
1990452	DELCO
1990466	DELCO
1990469	DELCO
1990471	DELCO
1990480	DELCO
1990487	DELCO
1990492	DELCO
1990496	DELCO
1990703	DELCO
1993772	DELCO
1993775	DELCO
1993783	DELCO
1993795	DELCO
1993806	DELCO
1993811	DELCO
1993820	DELCO
1993935	DELCO
1993937	DELCO
1993938	DELCO
1993939	DELCO
1993942	DELCO
1993943	DELCO
1993961	DELCO
1993983	DELCO
20409321BN	REAL
20409321OE	REAL
25-3300	ELSTOCK
2N3538	CATERPILLAR
360432312X	CUMMINS
3604323RX	CUMMINS
3907622	CUMMINS
3910645	CUMMINS
3938501	CUMMINS
3T2655	CATERPILLAR
3T2657	CATERPILLAR
3T2659	CATERPILLAR
6060123.0	SANDO
6060123.1	SANDO
640.005.123.030	PSH
640.005.123.038	PSH
640.005.123.395	PSH
640.005.123.710	PSH
6V4215	CATERPILLAR
7N6503	CATERPILLAR
7T1081	CATERPILLAR
7T2265	CATERPILLAR
7T9254	CATERPILLAR
8C356	CATERPILLAR
8C3580	CATERPILLAR
8C3596	CATERPILLAR
8C3648	CATERPILLAR
8L5881	CATERPILLAR
91-01-4161	WILSON
9L3597	CATERPILLAR
9W0058	CATERPILLAR
CST60123AS	CASCO
CST60123GS	CASCO
LRS01741	LUCAS
LRS1741	LUCAS
M0017276ME	PRESTOLITE
OR2189	CATERPILLAR
OR5208	CATERPILLAR
RE41756	JOHN DEERE
S1135	AS-PL
STD2436	KRAUF
STR2604	ELECTROLOG
STR2630	ELECTROLOG
STR80002	WOODAUTO
STRW001	3EFFE
UD12391S	AS-PL

S1135

View your shopping basket or Browse other items in Starter Motors.

AS GROUP NZ

Note: We have moved to a private property and no longer allow pick ups to non account holders -, Paraparaumu, Wellington

5032, New Zealand

0800 727 000 (Domestic Calls)

Shipping Policy: All paid orders are shipped within 24 hours (Monday - Friday)

Returns: Items returned for refund must be unopen/unused in original packaging and within 30 days of date of sale. All Returns must have a Return Form accompanying the goods.

PLEASE NOTE: PRODUCT BOXES ARE NOT SHIPPING BOXES, ANY PRODUCT RETURNED WITH TAPE/LABELS OVER THE PRODUCT BOX WILL BE CHARGED A RESTOCKING FEE

[Terms and Conditions]

[Warranty procedure]

Warranty Form Parts Return Form

[Privacy Policy] [Disclaimer]
