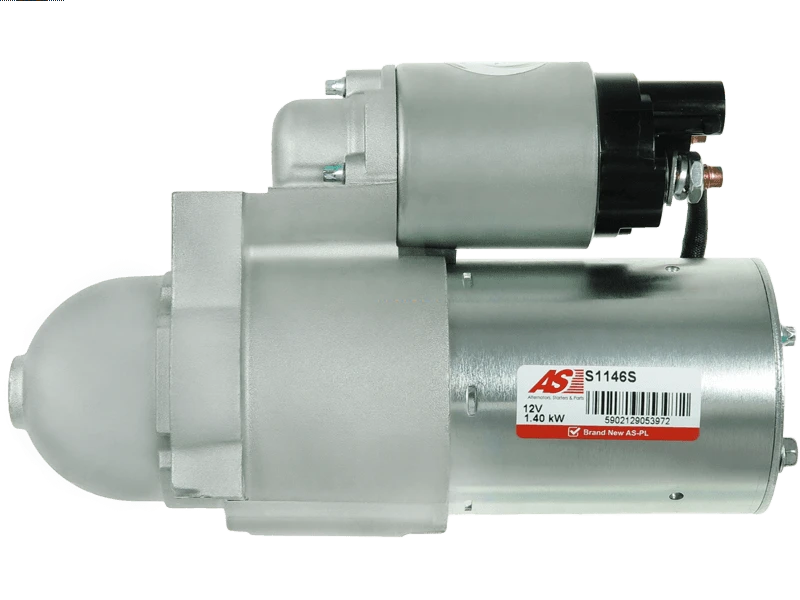

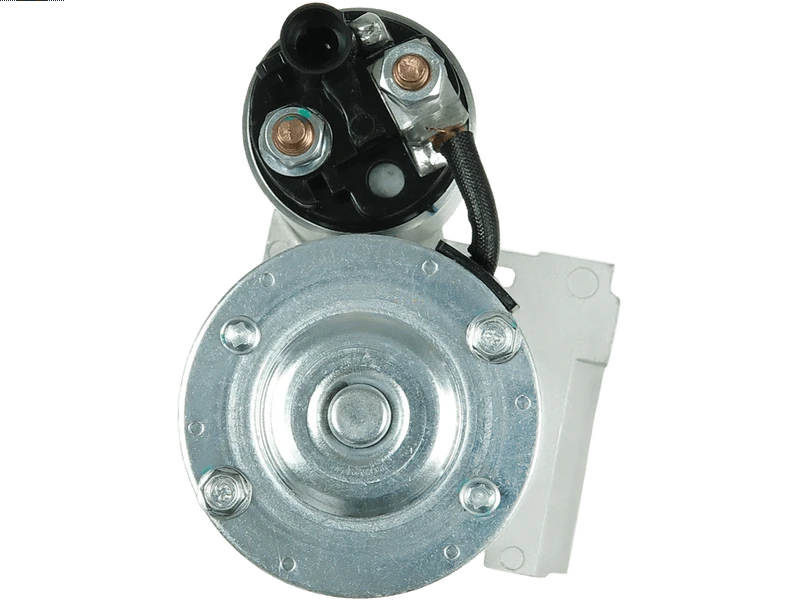

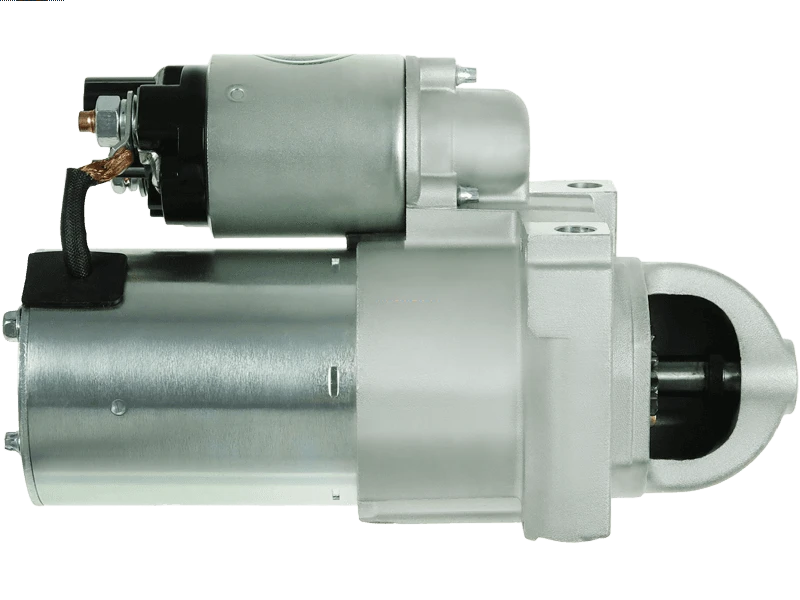

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 244.79 including GST
NZ$ 212.86 excluding GST
or four payments of $61.20
with
Learn More
each
S1146S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
8000040Associated Numbers
12611103 19180528 438000-0160 6942N 6942R 8000040 8000211 8000295 89017848 91-01-4696 91-01-4696N S-1507 S1107R UD13947SSpecifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 220 mm |
| Mount Hole Center - Center (O.1) | 74 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 19 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 68 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CADILLAC | CTS 6.0 | 01.2006-12.2007 | |
| CADILLAC | Escalade 6.2 | 01.2009-12.2014 | |
| CADILLAC | Escalade ESV 6.2 | 01.2009-12.2014 | |
| CADILLAC | Escalade EXT 6.2 | 01.2010-12.2013 | |
| CHEVROLET | Avalanche 6.0 | 01.2009-12.2009 | |
| CHEVROLET | Corvette 6.0 | 01.2005-12.2005 | |
| CHEVROLET | Express 2500 6.0 | 01.2011-12.2014 | |
| CHEVROLET | Express 3500 6.0 | 01.2009-12.2014 | |
| CHEVROLET | Express 4500 6.0 | 01.2009-12.2014 | |
| CHEVROLET | Silverado 1500 6.2 | 01.2009-12.2013 | |
| CHEVROLET | Silverado 2500 HD 6.0 | 01.2009-12.2015 | |
| CHEVROLET | Silverado 3500 6.0 | 01.2011-12.2013 | |
| CHEVROLET | Silverado 3500 HD 6.0 | 01.2009-12.2015 | |
| CHEVROLET | Suburban 1500 6.0 | 01.2009-12.2013 | |
| CHEVROLET | Suburban 2500 6.0 | 01.2009-12.2010 | |
| CHEVROLET | Tahoe 6.2 | 01.2008-12.2009 | |
| CHEVROLET | Trailblazer 6.0 | 01.2009- | |
| GMC | Savana 2500 6.0 | 01.2009-12.2014 | |
| GMC | Savana 3500 6.0 | 01.2009-12.2014 | |
| GMC | Savana 4500 6.0 | 01.2009-12.2014 | |
| GMC | Sierra 1500 6.0 | 01.2009- | |
| GMC | Sierra 2500 HD 6.0 | 01.2009-12.2015 | |
| GMC | Sierra 3500 HD 6.0 | 01.2010-12.2015 | |
| GMC | Sierra 6.2 | 01.2010-12.2014 | |
| GMC | Yukon 6.2 | 01.2009-12.2014 | |
| GMC | Yukon XL 1500 6.0 | 01.2009- | |
| GMC | Yukon XL 1500 6.2 | 01.2009-12.2014 | |
| GMC | Yukon XL 2500 6.0 | 01.2009-12.2013 | |
| HUMMER | H2 6.2 | 01.2009-12.2009 | |
| ISUZU | NPR 6.0 | 01.2009-12.2017 | |
| ISUZU | NPR-HD 6.0 | 01.2009-12.2017 |
Reference Information
| 12611103 | DELCO |
| 19180528 | DELCO |
| 438000-0160 | DENSO |
| 6942N | WAI / TRANSPO |
| 6942R | WAI / TRANSPO |
| 8000040 | DELCO |
| 8000211 | DELCO |
| 8000295 | DELCO |
| 89017848 | DELCO |
| 91-01-4696 | WILSON |
| 91-01-4696N | WILSON |
| S1107R | PRESTOLITE |
| S-1507 | DIXIE |
| UD13947S | AS-PL |
Video/Publications
