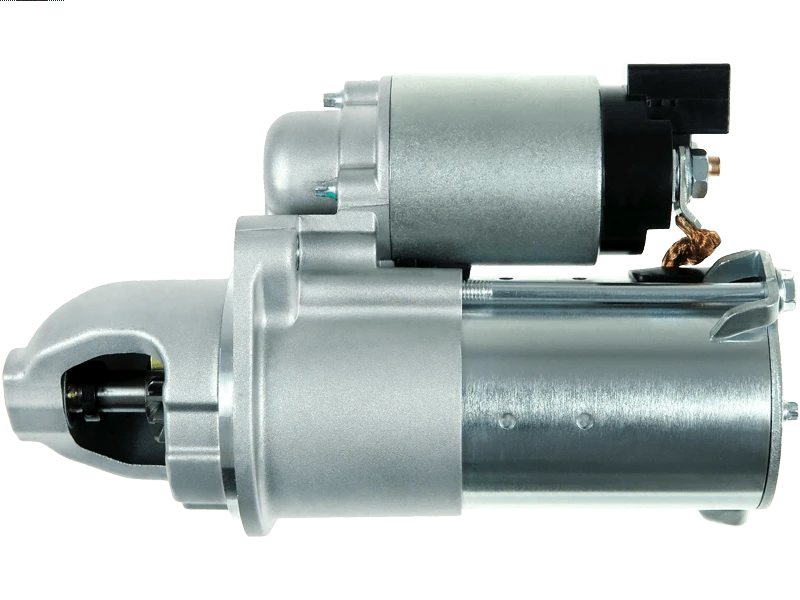

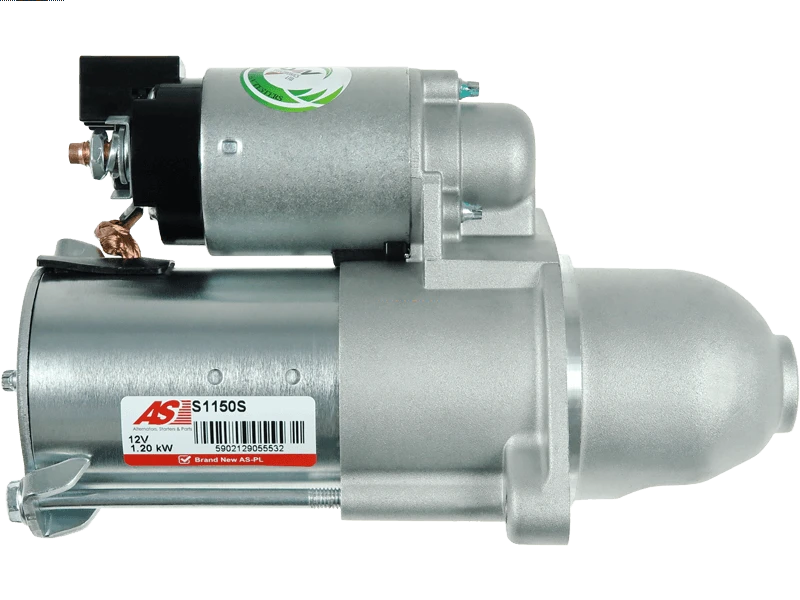

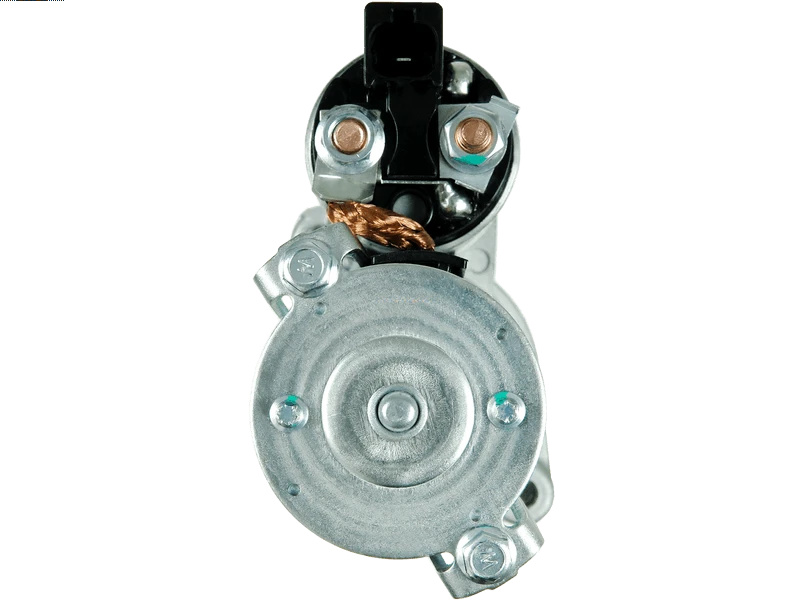

S1150S - Brand new AS-PL Starter motor

Associated Numbers

115569 17989N 17989R 201-12109 220477 25-3492 254849 36100-25020 6032123 8000169 91-01-4686 91-01-4686N 9797 AEY2320 CST32123 CST32123AS CST32123ES CST32123GS CST32123OS CST32123RS DRS0618 LRS02320 LRS2320 S-1513 S1077R STD3521 STD9521 UD13937S

Specifications

Kilowatt	1.20 kW
Length (L.1)	209 mm
Mount Hole Center - Center (O.1)	94 mm
Mount Hole Diameter (C.1)	M10x1.75 mm
Mount Hole Diameter (C.2)	M10x1.75 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	8 qty
OEM Product	No
Pinion at Rest (B)	27 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	70 mm
Unit Type	DELCO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
HYUNDAI	Genesis 2.0 CVVT	[G4KF]	06.2008-
HYUNDAI	Genesis 2.0 T	[G4KF]	01.2008-
HYUNDAI	Genesis 2.0 T	[G4KF]	11.2011-
HYUNDAI	GENESIS Coupe 2.0 CVVT	G4KF	06.2008-02.2014
HYUNDAI	Genesis Coupe 2.0 T	[G4KF]	04.2012-
HYUNDAI	GENESIS Coupe 2.0 T	G4KF	01.2008-12.2012
HYUNDAI	GENESIS Coupe 2.0 T	G4KF	04.2012-02.2014
HYUNDAI	GENESIS Coupe 2.0 T	G4KF	11.2011-12.2014
HYUNDAI	GENESIS Coupe 3.8 V6	G6DJ	04.2012-
HYUNDAI	GRANDEUR (HG) 2.4 16V	G4KE	01.2011-10.2016
HYUNDAI	GRANDEUR (TG) 2.4	G4KC	09.2006-12.2008
HYUNDAI	H-1 / STAREX Bus (A1) 2.4	G4JS	02.2003-04.2004
HYUNDAI	H-1 Travel 2.4		02.2008-
HYUNDAI	ix35 (LM, EL, ELH) 2.0	G4KD	01.2010-07.2013
HYUNDAI	ix35 (LM, EL, ELH) 2.0	G4KD	01.2010-12.2015
HYUNDAI	ix35 (LM, EL, ELH) 2.0 4WD	G4KD	01.2010-12.2015
HYUNDAI	ix35 (LM, EL, ELH) 2.0 CVVT	G4KD	08.2009-07.2013
HYUNDAI	ix35 (LM, EL, ELH) 2.0 CVVT AWD	G4KD	08.2009-07.2013
HYUNDAI	ix35 (LM, EL, ELH) 2.0 GDi	G4NC	08.2013-12.2015
HYUNDAI	ix35 (LM, EL, ELH) 2.0 GDi 4WD	G4NC	08.2013-12.2015
HYUNDAI	ix35 (LM, EL, ELH) 2.4 4WD	G4KE	09.2012-12.2013
HYUNDAI	ix35 (LM, EL, ELH) 2.4 DCVVT-I 4WD	G4KE	07.2010-12.2013
HYUNDAI	SANTA FÉ II (CM) 2.4	G4KE	11.2010-12.2012
HYUNDAI	SANTA FÉ II (CM) 2.4 4x4	G4KE	07.2010-12.2012
HYUNDAI	SANTA FÉ II (CM) 2.7 V6 GLS 4x4	G6EA	03.2006-12.2009
HYUNDAI	SANTA FÉ III (DM, DMA) 2.4	G4KJ	09.2012-10.2015
HYUNDAI	SANTA FÉ III (DM, DMA) 2.4 4WD	G4KJ	09.2012-10.2015
HYUNDAI	SANTA FÉ III (DM, DMA) 2.4 CCVT	G4KE	09.2012-12.2018
HYUNDAI	SANTA FÉ III (DM, DMA) 2.4 CCVT AWD	G4KE	09.2012-02.2018
HYUNDAI	SANTA FÉ III (DM, DMA) 2.4 GDI	G4KJ	05.2015-08.2018
HYUNDAI	SANTA FÉ III (DM, DMA) 2.4 GDI 4WD	G4KJ	05.2015-08.2018
HYUNDAI	SANTA FE IV (TM, TMA) 2.4 GDI AWD	G4KJ	07.2018-07.2020
HYUNDAI	SANTA FE IV (TM, TMA) 2.4 GDI AWD	G4KJ	07.2018-07.2020
HYUNDAI	Sonata 2.0 GLSi	[G4KD]	07.2008-12.2010
HYUNDAI	Sonata 2.0 VVTi GLS	[G4KA]	05.2005-
HYUNDAI	Sonata 2.0 VVTi GLS	[G4KD]	01.2008-
HYUNDAI	Sonata 2.4	[G4KC]	01.2005-
HYUNDAI	Sonata 2.4	[G4KC]	06.2008-12.2009
HYUNDAI	SONATA VII (LF) 2.4	G4KJ	09.2014-12.2019
HYUNDAI	SONATA VI (YF) 2.0 i	G4KD	09.2012-06.2014
HYUNDAI	SONATA VI (YF) 2.4	G4KC	06.2009-11.2010
HYUNDAI	SONATA VI (YF) 2.4	G4KC	11.2010-12.2015
HYUNDAI	SONATA V (NF) 2.0 GLSI	G4KD	07.2008-12.2010
HYUNDAI	SONATA V (NF) 2.0 VVTi GLS	G4KA	05.2005-12.2010
HYUNDAI	SONATA V (NF) 2.0 VVTi GLS	G4KD	01.2008-12.2010
HYUNDAI	SONATA V (NF) 2.4	G4KC	01.2005-12.2010
HYUNDAI	SONATA V (NF) 2.4	G4KC	06.2008-12.2010
HYUNDAI	TUCSON (TL, TLE) 2.4 GDI All-wheel Drive	G4KJ	07.2019-09.2020
KIA	Carens 2.0 CWT	[G4KA]	09.2006-
KIA	CARENS III MPV (UN) 2.0 CVVT	G4KA	09.2006-06.2013
KIA	Cerato 2.0	[G4KD]	01.2009-
KIA	Cerato 2.0 MPi		06.2013-
KIA	CERATO II Saloon (TD) 2.0	G4KD	01.2009-06.2013
KIA	Magentis 2.0	[G4KA]	11.2005-
KIA	Magentis 2.0	[G4KD]	07.2009-
KIA	MAGENTIS II (MG) 2.0	G4KA	11.2005-12.2010
KIA	MAGENTIS II (MG) 2.0	G4KD	09.2009-12.2010
KIA	OPTIMA (FSGDS6B) 2.0	G4KD	03.2012-12.2015
KIA	OPTIMA (FSGDS6B) 2.0 CVVL	G4KD	03.2012-12.2015
KIA	OPTIMA (FSGDS6B) 2.4	G4KC	06.2010-12.2015
KIA	OPTIMA (FSGDS6B) 2.4	G4KJ	03.2012-12.2015
KIA	OPTIMA (FSGDS6B) 2.4 CVVT	G4KE	01.2012-12.2015
KIA	OPTIMA (JF) 2.0 GDI Hybrid	G4NG	09.2016-12.2019
KIA	OPTIMA (JF) 2.0 T-GDi	G4KH	06.2018-12.2019
KIA	OPTIMA (JF) 2.0 T-GDi	G4KH	09.2015-12.2019
KIA	OPTIMA (JF) 2.4 GDI	G4KJ	09.2015-12.2019
KIA	OPTIMA (JF) 2.4 MPi	G4KE	09.2015-12.2019
KIA	OPTIMA Sportswagon (JF) 2.0 GDI Hybrid	G4NG	04.2017-12.2019
KIA	OPTIMA Sportswagon (JF) 2.0 T-GDi	G4KH	09.2016-12.2019
KIA	OPTIMA Sportswagon (JF) 2.0 T-GDi GT	G4KH	01.2018-12.2019
KIA	SORENTO III (UM) 2.4	G4KE	01.2015-12.2020
KIA	SORENTO III (UM) 2.4 4WD	G4KE	01.2015-12.2020
KIA	SORENTO III (UM) 2.4 GDI	G4KJ	01.2015-10.2018
KIA	SORENTO III (UM) 2.4 GDI 4WD	G4KJ	01.2015-10.2018
KIA	SORENTO II SUV Van (XM) CVVT	G4KE	06.2009-12.2015
KIA	SORENTO II SUV Van (XM) CVVT 4WD	G4KE	06.2009-12.2015
KIA	SORENTO II (XM) 2.4 CVVT	G4KE	11.2009-12.2015
KIA	SORENTO II (XM) 2.4 CVVT	G4KJ	10.2012-12.2015
KIA	SORENTO II (XM) 2.4 CVVT 4WD	G4KE	11.2009-12.2015
KIA	SORENTO II (XM) 2.4 CVVT 4WD	G4KJ	10.2012-12.2015
KIA	SORENTO II (XM) 2.4 GDI	G4KJ	10.2012-12.2015
KIA	SORENTO II (XM) 2.4 GDI 4WD	G4KJ	10.2012-12.2015
KIA	SPORTAGE III (SL) 2.0 CVVT	G4KD	06.2010-12.2013
KIA	SPORTAGE III (SL) 2.0 CVVT	G4KD	07.2010-12.2015
KIA	SPORTAGE III (SL) 2.0 CVVT	G4KD	07.2010-12.2015
KIA	SPORTAGE III (SL) 2.0 CVVT AWD	G4KD	06.2010-12.2013
KIA	SPORTAGE III (SL) 2.0 CVVT AWD	G4KD	07.2010-12.2015
KIA	SPORTAGE III (SL) 2.0 CVVT AWD	G4KD	07.2010-12.2015
KIA	SPORTAGE IV (QL, QLE) 2.4 GDI	G4KJ	05.2016-09.2022
KIA	SPORTAGE IV (QL, QLE) 2.4 GDI AWD	G4KJ	09.2015-09.2022

Reference Information

115569	CARGO
17989N	WAI
17989R	WAI
201-12109	DIXIE
220477	ERA
25-3492	DIXIE
254849	KUHNER
36100-25020	HYUNDAI / KIA
361002G000	HYUNDAI / KIA
361002G200	HYUNDAI / KIA
36100-2G250	HYUNDAI / KIA
361002G300	HYUNDAI / KIA
6032123	SANDO
8000169	DELCO
91-01-4686	WILSON
91-01-4686N	WILSON
9797	CEVAM
AEY2320	AUTOELECTRO
ANM12838X	ANDEL
CST32123	CASCO
CST32123AS	CASCO
CST32123ES	CASCO
CST32123GS	CASCO
CST32123OS	CASCO
CST32123RS	CASCO
DRS0618	DELCO
F032115569	CARGO
J5210527	HERTH+BUSS
LRS02320	LUCAS
LRS2320	LUCAS
S1077R	PRESTOLITE
S1150S	AS-PL
S-1513	DIXIE
STD3521	KRAUF
STD9521	KRAUF
STM2027	ROLLCO
STR2189	ELECTROLOG
STX210279	STARDAX
STX210279R	STARDAX
UD13937S	AS-PL
