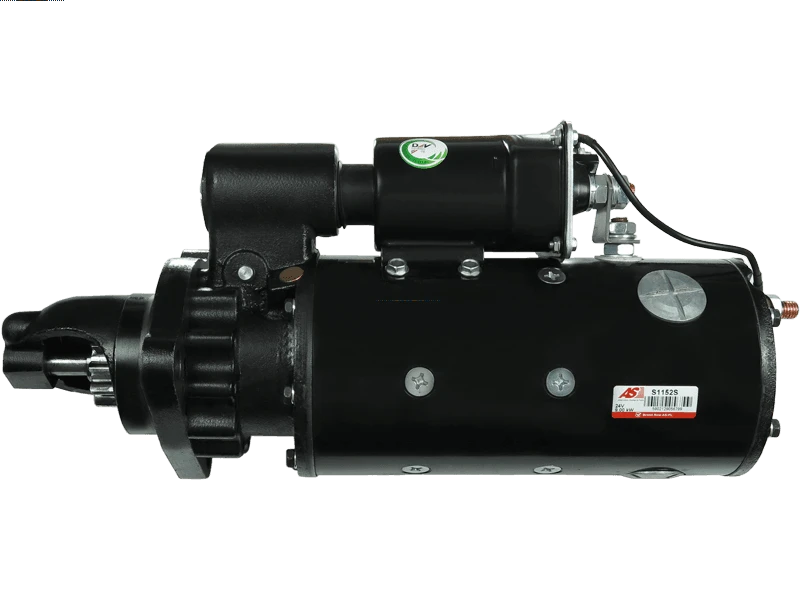

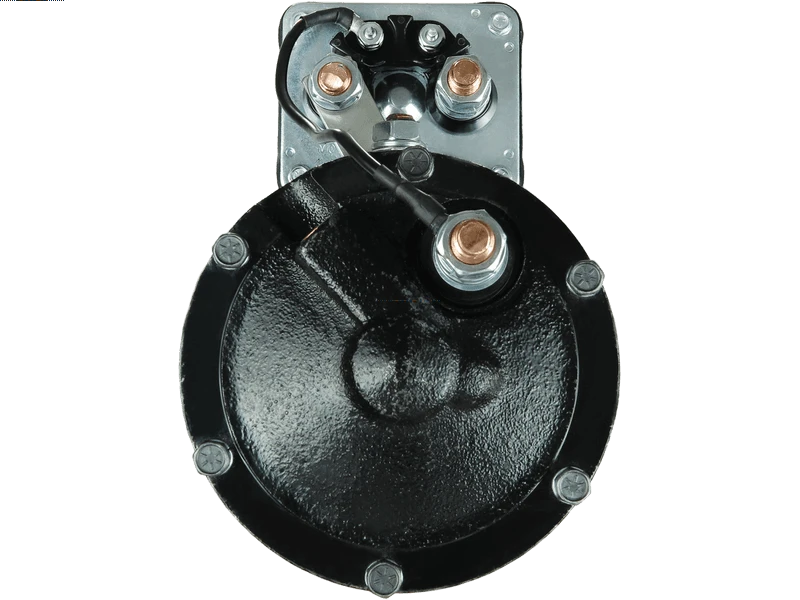

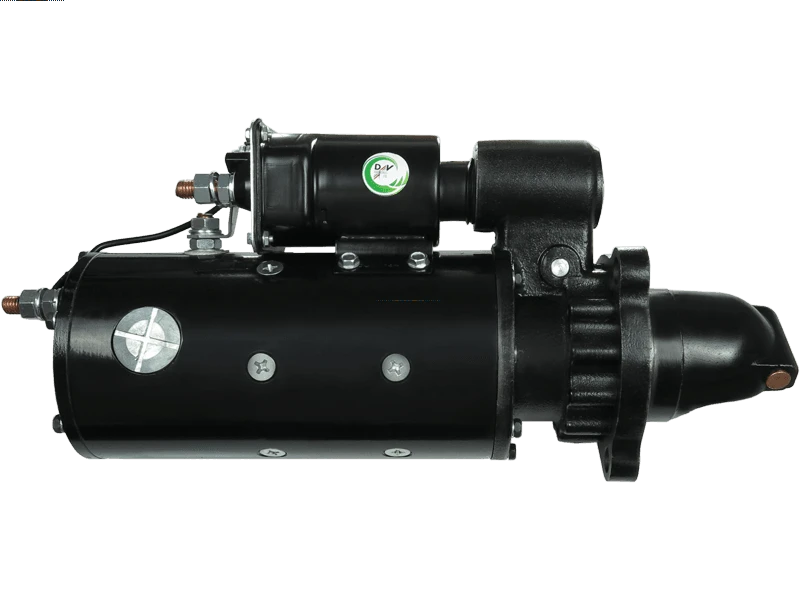

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 1,498.71 including GST
NZ$ 1,303.23 excluding GST
or four payments of $374.68
with
Learn More
each
S1152S
No stock in NZ currently
No stock in NZ currently
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
10479327Associated Numbers
10478874 10479327 1109648 1109799 1109830 1109962 140-50769 1990236 1990265 255494 255494D 6060616 CST60616 CST60616AS CST60616ES CST60616GS CST60616OS CST60616RS REM10479327 STD8874 STD8874NB TS-1388 UD13996SSpecifications
| Kilowatt | 9 kW |
| Length (L.1) | 522 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 16.50 mm |
| Mount Hole Diameter (C.2) | 16.50 mm |
| Mount Hole Diameter (C.3) | 16.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 46 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | DELCO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | 3508 34.5 | 01.1985-12.1993 | |
| CATERPILLAR | 3512 51.8 | 01.1985-12.1993 | |
| CATERPILLAR | 3516 69.0 | 01.1985-12.1993 |
Reference Information
| 10478874 | DELCO |
| 10479327 | DELCO |
| 1109648 | DELCO |
| 1109799 | DELCO |
| 1109830 | DELCO |
| 1109962 | DELCO |
| 140-50769 | ROBERT'S |
| 1990236 | DELCO |
| 1990265 | DELCO |
| 255494 | KUHNER |
| 255494D | KUHNER |
| 3702N | WAI / TRANSPO |
| 5L2537 | CATERPILLAR |
| 6060616 | SANDO |
| CST60616 | CASCO |
| CST60616AS | CASCO |
| CST60616ES | CASCO |
| CST60616GS | CASCO |
| CST60616OS | CASCO |
| CST60616RS | CASCO |
| REM10479327 | WOODAUTO |
| STD8874 | KRAUF |
| STD8874NB | KRAUF |
| STRF847 | 3EFFE |
| STX201301 | STARDAX |
| TS-1388 | DIXIE |
| UD13996S | AS-PL |
Video/Publications
