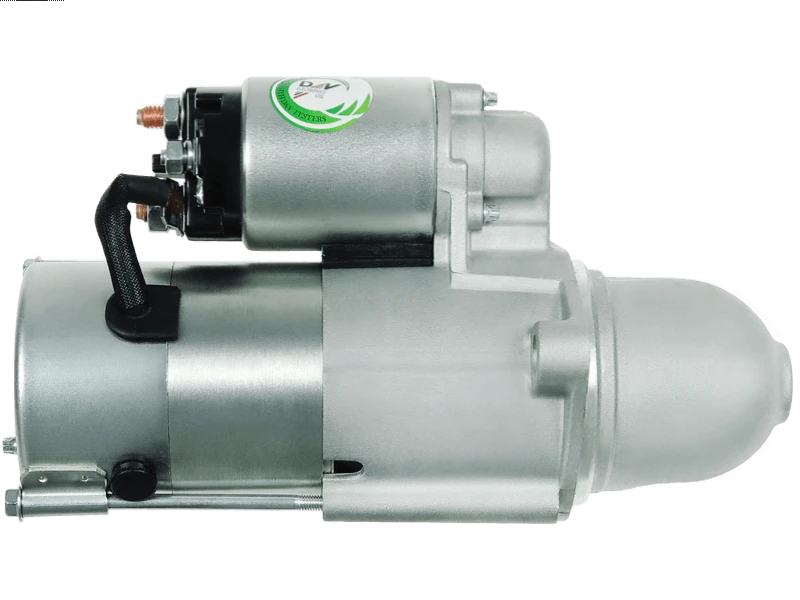

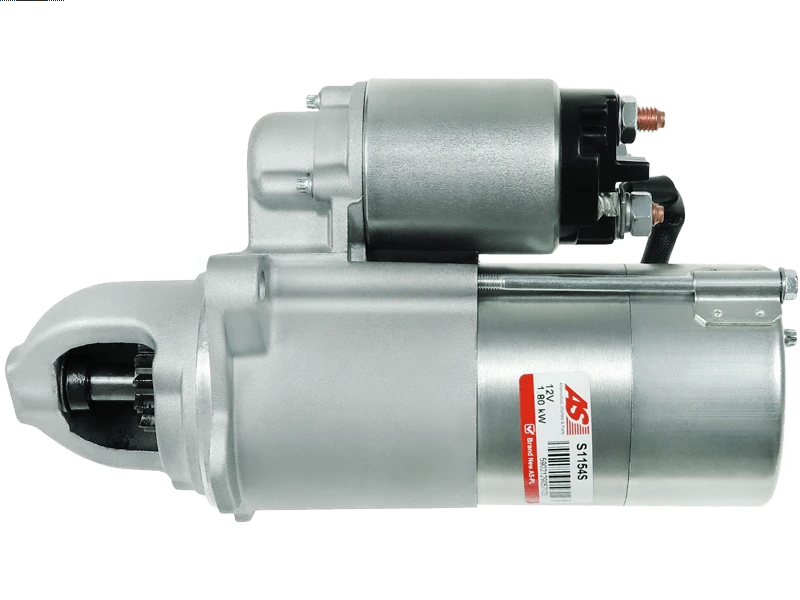

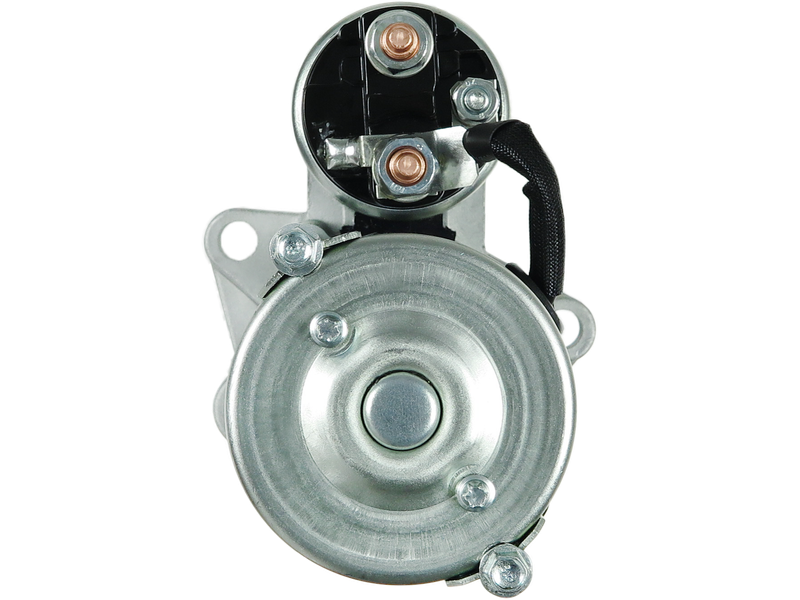

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 417.42 including GST
NZ$ 362.97 excluding GST
or four payments of $104.36
with
Learn More
each
S1154S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
8000321Associated Numbers
063523803010 0986023250 101291 1202088 12564088 12568931 130.528.112 21019219 24454144 55350543 55352105 55353996 6202004 6202022 6202044 6202090 6755N 6755R 8000321 88212458 9000835 9000889 9000936 9000952 9000965 CS1291 DRS3803 DRS3803N EAA-122138 S1087R STD1291 STD9291 UD13770SSpecifications
| Kilowatt | 1.80 kW |
| Length (L.1) | 235 mm |
| Mount Hole Center - Center (O.1) | 94 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 29.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 75 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Astra G 2.2 16V | [Z22SE] | 01.2000-12.2005 |
| OPEL | Signum 2.0 | [Z22YH] | 01.2003- |
| OPEL | Signum 2.0 T | [Z20NET] | 01.1998-12.2003 |
| OPEL | Speedster 2.2 i 16V | [Z22SE] | 01.2000-12.2006 |
| OPEL | Vectra B 2.2 16V | [Z22SE] | 01.2000-12.2003 |
| OPEL | Vectra C 2.0 GTS | [Z20NET] | 01.2003-12.2008 |
| OPEL | Vectra C 2.2 | [Z22SE] | 01.2001-12.2005 |
| OPEL | Vectra C 2.2 | [Z22YH] | 01.2001-12.2005 |
| OPEL | Zafira A 2.2 16V | [Z22SE] | 01.2001-12.2005 |
| OPEL | Zafira B 2.2 | [Z22YH] | 01.2005- |
| SAAB | 9-3 2.0 T | [B207L] | 01.1998-12.2002 |
| SAAB | 9-3 2.0 T | [B207L] | 01.2002-12.2006 |
| SAAB | 9-3 2.0 T | [B207R] | 01.1998-12.2002 |
Reference Information
| 063523803010 | MAGNETI MARELLI |
| 0986023250 | BOSCH |
| 101291 | KUHNER |
| 1202088 | OPEL |
| 1202222 | OPEL |
| 12564088 | OPEL |
| 12568931 | OPEL |
| 12637159 | GM |
| 12637159 | OPEL |
| 130.528.112 | PSH |
| 20460811BN | REAL |
| 20460811OE | REAL |
| 21019219 | DELCO |
| 220438 | ERA |
| 24454144 | OPEL |
| 25-3232 | ELSTOCK |
| 328072092 | DRI |
| 328072092 | DRI |
| 328072092 | DRI |
| 331416 | LOGISTIK |
| 53350543 | OPEL |
| 53350543 | VAUXHALL |
| 55350543 | OPEL |
| 55352105 | OPEL |
| 55353966 | SAAB |
| 55353996 | OPEL |
| 6046118.0 | SANDO |
| 6046118.1 | SANDO |
| 6202004 | OPEL |
| 6202022 | OPEL |
| 6202044 | OPEL |
| 6202090 | OPEL |
| 6755N | WAI / TRANSPO |
| 6755R | WAI / TRANSPO |
| 8000321 | DELCO |
| 88212458 | POWERMAX |
| 9000835 | DELCO |
| 9000889 | DELCO |
| 9000936 | DELCO |
| 9000952 | DELCO |
| 9000965 | DELCO |
| ANM16023X | ANDEL |
| CS1291 | HC PARTS |
| CST46118AS | CASCO |
| CST46118GS | CASCO |
| DRS3803 | DELCO |
| DRS3803N | DELCO |
| LRS01686 | LUCAS |
| LRS1686 | LUCAS |
| MAV621010 | SIOM |
| S1154S | AS-PL |
| STD1291 | KRAUF |
| STD9291 | KRAUF |
| STR2038 | ELECTROLOG |
| STRL200 | 3EFFE |
| STX200286 | STARDAX |
| STX200286R | STARDAX |
| STX201050 | STARDAX |
| STX201050R | STARDAX |
| UD13770S | AS-PL |
Video/Publications
