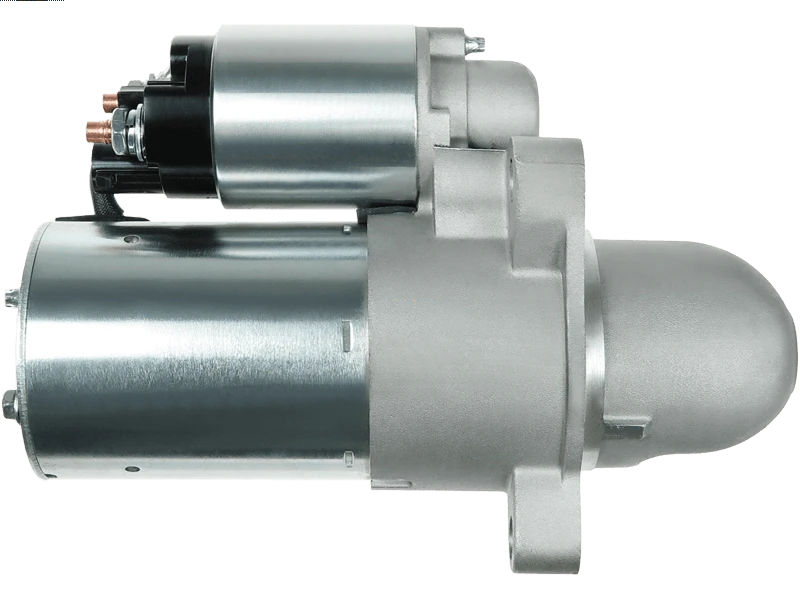

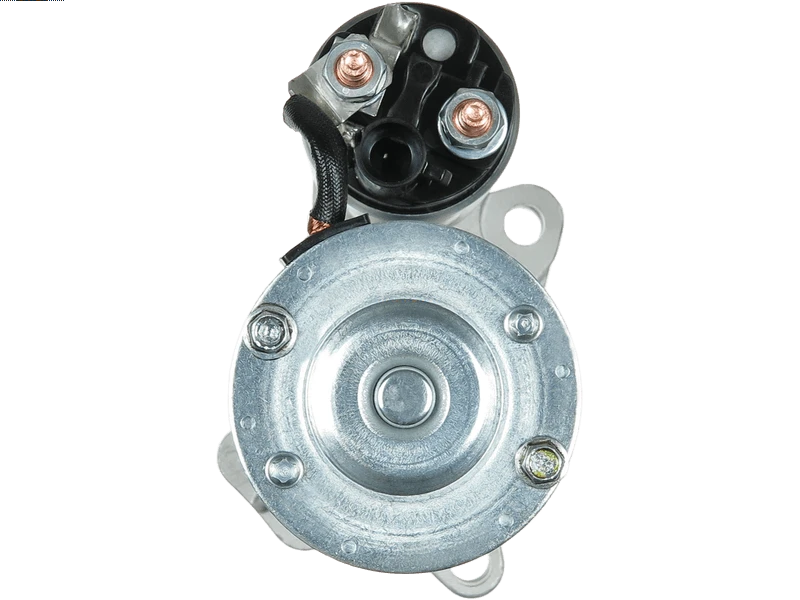

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 278.61 including GST
NZ$ 242.27 excluding GST
or four payments of $69.65
with
Learn More
UOM:
each
Product Code:
S1158S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
8000039Associated Numbers
10465587 12574623 12574623DA 12588493 12595605 12597349 254692 255794 6497N 6497R 8000039 8000073 830.911.112 9000941 91-01-4665 91-01-4665N S-1491 S1108R S1158S STD6497Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 215 mm |
| Mount Hole Center - Center (O.1) | 98 mm |
| Mount Hole Diameter (C.1) | 11.50 mm |
| Mount Hole Diameter (C.2) | 11.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 28 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 68.50 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BUICK | Allure 3.6 | 01.2005-12.2006 | |
| BUICK | Allure 3.6 | 01.2005-12.2010 | |
| BUICK | LaCrosse 3.6 | 01.2005-12.2006 | |
| BUICK | LaCrosse 3.6 | 01.2005-12.2016 | |
| BUICK | Rendezvous 3.6 | 01.2004-12.2005 | |
| BUICK | Rendezvous 3.6 | 01.2004-12.2006 | |
| CADILLAC | CTS 3.6 | LLT | 01.2008-09.2013 |
| CADILLAC | CTS 3.6 | LLT | 09.2011-09.2013 |
| CADILLAC | CTS 3.6 | 01.2004-12.2005 | |
| CADILLAC | CTS 3.6 AWD | LLT | 01.2008-09.2013 |
| CADILLAC | CTS 3.6 AWD | LLT | 01.2010-09.2013 |
| CADILLAC | CTS 3.6 AWD | LLT | 09.2011-09.2013 |
| CADILLAC | CTS 3.6 VVTi | LLT | 01.2008- |
| CADILLAC | CTS 3.6 VVTi | LLT | 03.2008-12.2012 |
| CADILLAC | CTS 3.6 VVTi AWD | LLT | 03.2008-12.2011 |
| CADILLAC | CTS Coupe 3.6 | LLT | 01.2008- |
| CADILLAC | CTS Coupe 3.6 | LLT | 01.2011-12.2011 |
| CADILLAC | CTS Coupe 3.6 | LLT | 09.2011- |
| CADILLAC | CTS Coupe 3.6 AWD | LLT | 01.2008-12.2012 |
| CADILLAC | CTS Coupe 3.6 AWD | LLT | 09.2011-07.2014 |
| CADILLAC | CTS Sport Wagon 3.6 | LLT | 01.2008-12.2011 |
| CADILLAC | CTS Sport Wagon 3.6 | LLT | 09.2011-07.2014 |
| CADILLAC | CTS Sport Wagon 3.6 AWD | LLT | 01.2008-12.2011 |
| CADILLAC | CTS Sport Wagon 3.6 AWD | LLT | 09.2011-07.2014 |
| CADILLAC | SRX 3.6 | LFX | 01.2012-04.2016 |
| CADILLAC | SRX 3.6 | 01.2004-12.2005 | |
| CADILLAC | SRX 3.6 AWD | LFX | 01.2012-04.2016 |
| CADILLAC | SRX 3.6 AWD | LFX | 10.2012-04.2016 |
| CADILLAC | STS 3.6 | 01.2005-12.2005 | |
| OPEL | ANTARA A (L07) 3.0 | A30XF | 11.2010-12.2015 |
| OPEL | ANTARA A (L07) 3.0 | A30XH | 11.2010-12.2015 |
Reference Information
| 10465587 | DELCO |
| 12574623 | DELCO |
| 12574623DA | DELCO |
| 12588493 | DELCO |
| 12595605 | DELCO |
| 12597349 | DELCO |
| 254692 | KUHNER |
| 255794 | KUHNER |
| 6497N | WAI |
| 6497R | WAI |
| 8000039 | DELCO |
| 8000073 | DELCO |
| 830.911.112 | WAI |
| 830.911.112.460 | WAI |
| 9000941 | DELCO |
| 91-01-4665 | WILSON |
| 91-01-4665N | WILSON |
| S1108R | PRESTOLITE |
| S1158S | AS-PL |
| S135.937 | WAI |
| S-1491 | DIXIE |
| STD6497 | KRAUF |
| STR2195 | ELECTROLOG |
| UD13946S | AS-PL |
Video/Publications
