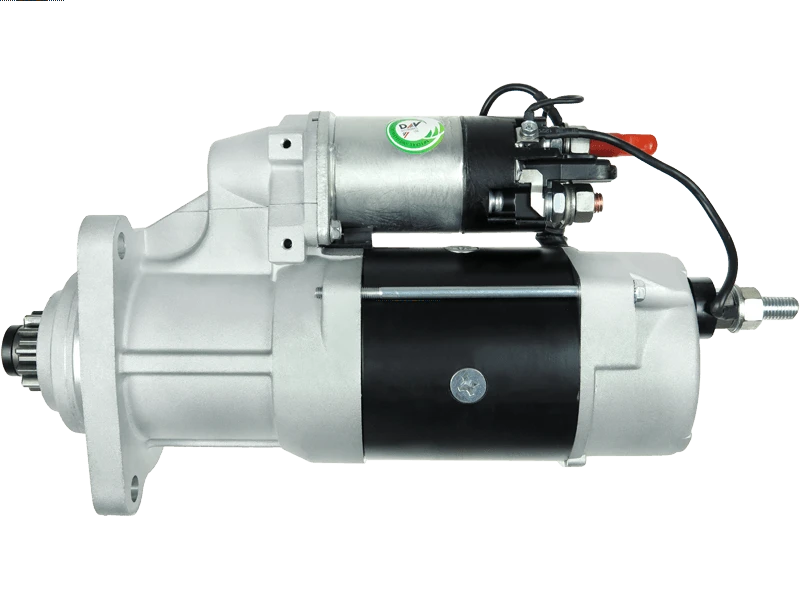

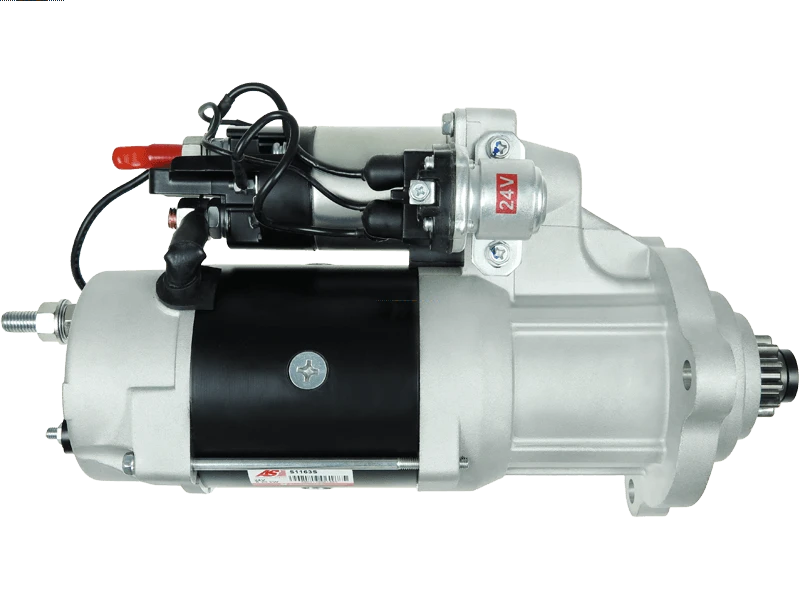

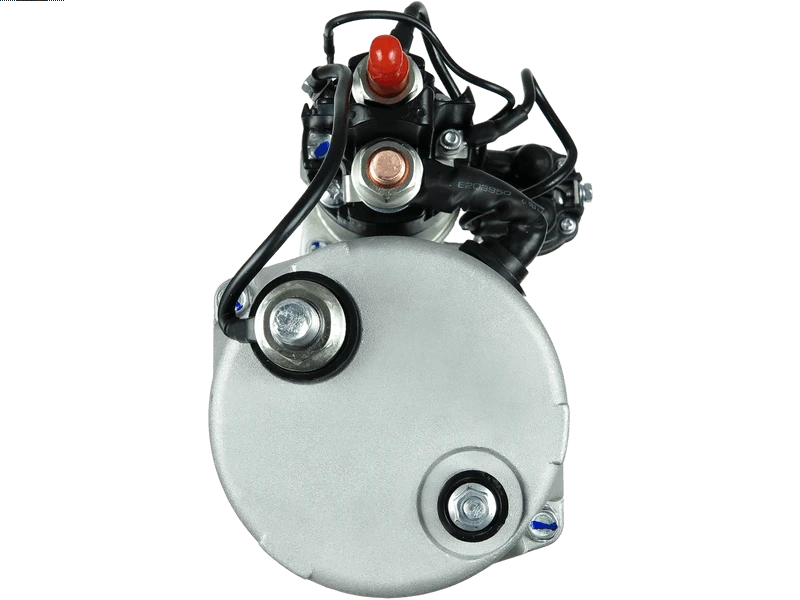

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 936.38 including GST
NZ$ 814.24 excluding GST
or four payments of $234.10
with
Learn More
each
S1163S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
8200519Associated Numbers
101463 101463B 101463M 101463P 201-39222 6857N 8200436 8200519 91-01-4803 M105R3031SE M105R3524SE REM8200519 TS-1842 UD14277SSpecifications
| Kilowatt | 6.20 kW |
| Length (L.1) | 419 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| Mount Hole Diameter (C.3) | 13.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 47.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | DELCO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ TRUCKS & BUSES | 2035 12.0 | [OM457LA] | 01.2005-12.2013 |
| MERCEDES BENZ TRUCKS & BUSES | 2040 12.0 | [OM457LA] | 01.2005-12.2013 |
| MERCEDES BENZ TRUCKS & BUSES | 2044 12.0 | [OM457LA] | 01.2005-12.2013 |
| MERCEDES BENZ TRUCKS & BUSES | 2540 12.0 | [OM457LA] | 01.2005-12.2013 |
| MERCEDES BENZ TRUCKS & BUSES | 2544 12.0 | [OM457LA] | 01.2005-12.2013 |
| MERCEDES BENZ TRUCKS & BUSES | 2640 12.0 | [OM457LA] | 01.2005-12.2013 |
| MERCEDES BENZ TRUCKS & BUSES | 2644 12.0 | [OM457LA] | 01.2005-12.2013 |
| MERCEDES BENZ TRUCKS & BUSES | 3340 12.0 | [OM457LA] | 01.2005-12.2013 |
| MERCEDES BENZ TRUCKS & BUSES | 3344 12.0 | [OM457LA] | 01.2005-12.2013 |
| MERCEDES BENZ TRUCKS & BUSES | Actros 12.0 | [OM541] | 01.2005-12.2013 |
| MERCEDES BENZ TRUCKS & BUSES | Actros 16.0 | [OM542] | 01.2003-12.2008 |
| MERCEDES BENZ TRUCKS & BUSES | LS1634 12.0 | [OM457LA] | 01.2006-12.2013 |
| MERCEDES BENZ TRUCKS & BUSES | O 345G 12.0 | [OM457LA] | 01.2001-12.2013 |
| MERCEDES BENZ TRUCKS & BUSES | O 500MA 12.0 | [OM457LA] | 01.2006-12.2013 |
| MERCEDES BENZ TRUCKS & BUSES | O 500RS12.0 | [OM457LA] | 01.2001-12.2005 |
| MERCEDES BENZ TRUCKS & BUSES | O 530 GN3 12.0 | [OM457LA] | 01.1999-12.2005 |
| MERCEDES BENZ TRUCKS & BUSES | O 530 GNUE3 12.0 | [OM457LA] | 01.1999-12.2004 |
| MERCEDES BENZ TRUCKS & BUSES | O 530N3 12.0 | [OM457LA] | 01.1998-12.2004 |
| MERCEDES BENZ TRUCKS & BUSES | O 580 RHD-15 12.0 | [OM457LA] | 01.1999-12.2006 |
| MERCEDES BENZ TRUCKS & BUSES | O 580 RHD-17 12.0 | [OM457LA] | 01.1999-12.2006 |
| MERCEDES BENZ TRUCKS & BUSES | Tourismo 12.0 | [OM457LA] | 01.1999-12.2006 |
Reference Information
| 10011613OV | ITAB AUTOMOTIVE |
| 10035634AV | ITAB AUTOMOTIVE |
| 10035634OV | ITAB AUTOMOTIVE |
| 10438440 | ALANKO |
| 10439681 | ALANKO |
| 106175 | FARCOM |
| 11022980 | EUROTEC |
| 201-39222 | DIXIE |
| 256154B | KUHNER |
| 3120535 | HENKEL PARTS |
| 4.63026 | DT SPARE PARTS |
| 48992 | FEBI BILSTEIN |
| 551.563.123.030 | PSH |
| 8200436 | DELCO |
| 8200436-12B1 | DELCO |
| 8200519 | DELCO |
| 8200519-12B1 | DELCO |
| 8822980 | FRIESEN |
| 91-01-4803 | WILSON |
| A22980 | ATL AUTOTECHNIK |
| A22981 | ATL AUTOTECHNIK |
| CST60617GS | CASCO |
| LES0545 | LE PART |
| M105R3031SE | PRESTOLITE |
| M105R3524SE | PRESTOLITE |
| REM8200519 | WOODAUTO |
| S102554 | BTS TURBO |
| S102555 | BTS TURBO |
| S105622 | BTS TURBO |
| S-80024 | DTS |
| SBO676A | AUTOTEAM |
| SG0343 | GHIBAUDI |
| SMI634 | AUTOTEAM |
| SMI634A | AUTOTEAM |
| SPR613 | AUTOTEAM |
| STR2172 | ELECTROLOG |
| TS-1842 | DIXIE |
| TT16420 | TESLA TECHNICS |
| UD14277S | AS-PL |
