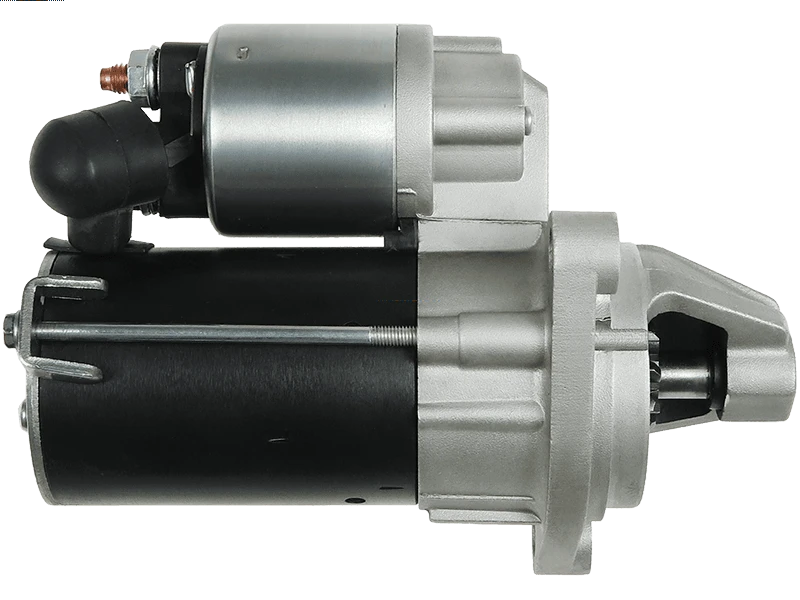

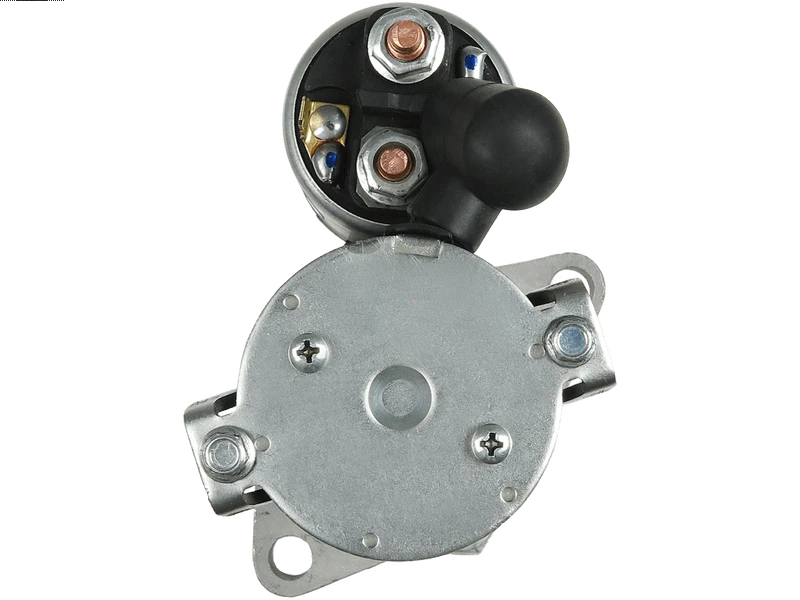

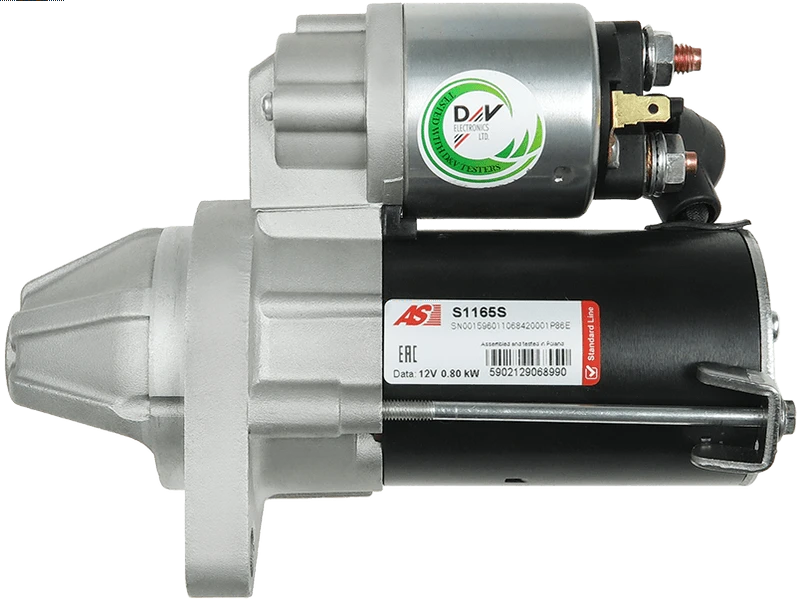

S1165S - Brand new AS-PL Starter motor

Specifications

Kilowatt	0.8 kW
Length (L.1)	187 mm
Mount Hole Center - Center (O.1)	103 mm
Mount Hole Diameter (C.1)	11.5 mm
Mount Hole Diameter (C.2)	11.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	8 qty
Pinion at Rest (B)	14 mm
Rotation	ACW
Spigot Diameter (A)	66 mm
Unit Type	DELCO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
YANMAR	L 60 AE-DEJN		01.1984-
YANMAR	L 60 RE-DEJN		01.1984-

Reference Information

114399-77010 LRS1164 AZE1230 114362-77010 S114414B S1165S 114362-77011 CST20117GS 11620 S114-414A STH2478 8782 AEY1164 112478 HST114651A MS STM778 18203N CST20117OS 254036M S114-651A 114361-77011 114361-77010 MAV221170 254036H 136954 CST20117RS S114-651 CGB-23087 S12HT0818A2 S114-414 2506954 6020117 CST20117AS 20513064 LRS01164 116115 CST20117ES 414 RS41146 STR7905 EAA-121163 11436177011 STR72116 IS1066 254036 CST20117 11.131.186 25-1152

Video/Publications

11.131.186 112478 114362-77010 114362-77011 114399-77010 116115 11620 18203N 20513064 25-1152 254036 254036H 254036M 6020117 8782 AEY1164 AZE1230 CGB-23087 CST20117 CST20117AS CST20117ES CST20117GS CST20117OS CST20117RS EAA-121163 IS1066 LRS01164 LRS1164 MAV221170 MS 414 RS41146 S114-414 S114-414A S114-651 S114-651A S1165S STH2478 STR72116
