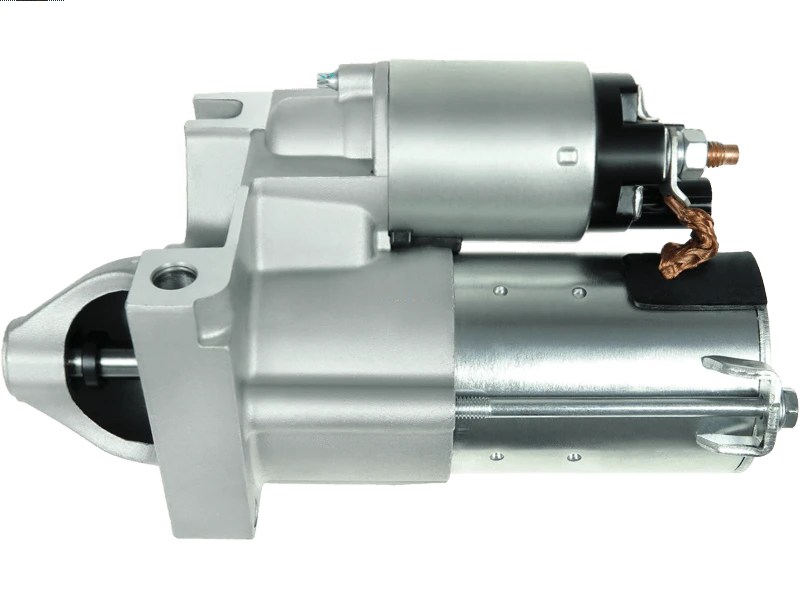

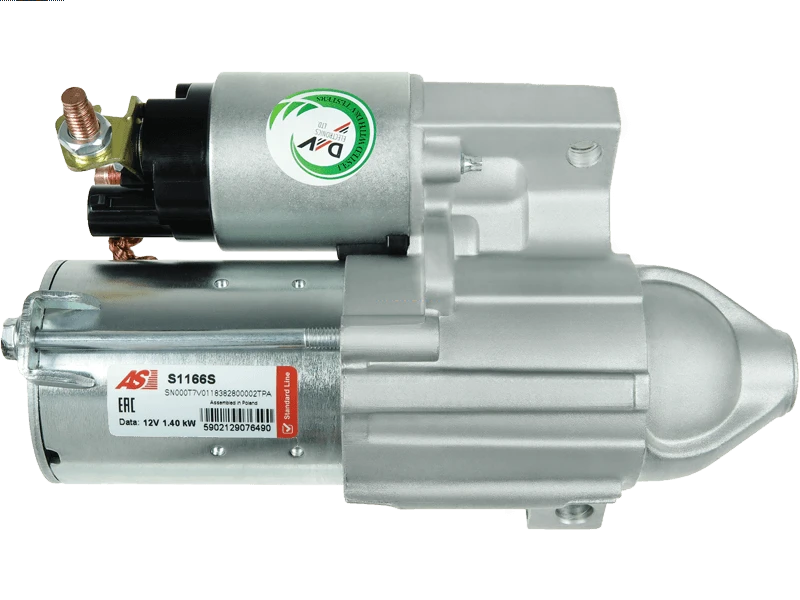

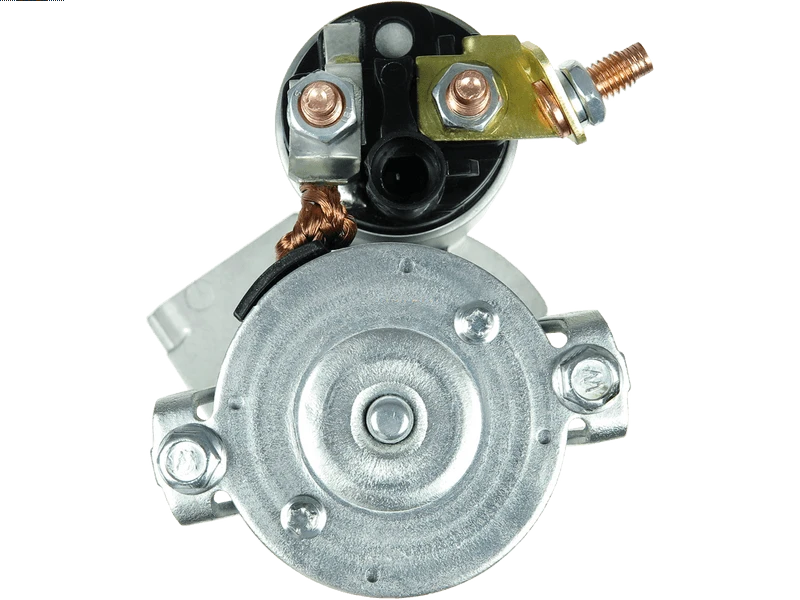

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 234.78 including GST
NZ$ 204.16 excluding GST
or four payments of $58.70
with
Learn More
each
S1166S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
8000063Associated Numbers
12594441 12610636 201-12106 8000063 8000216 89017761 89017845 91-01-4694 91-01-4694N S-1498 UD13948SSpecifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 211 mm |
| Mount Hole Center - Center (O.1) | 81 mm |
| Mount Hole Diameter (C.1) | 10 mm |
| Mount Hole Diameter (C.2) | 10 mm |
| Mount Hole Diameter (C.3) | 10 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 8.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BUICK | Lucerne 3.9 V6 | 01.2009-12.2011 | |
| BUICK | Terraza 3.9 V6 | 01.2006-12.2007 | |
| CHEVROLET | Equinox 3.4 V6 | 01.2006-12.2006 | |
| CHEVROLET | Impala 3.5 V6 | 01.2006-12.2011 | |
| CHEVROLET | Impala 3.9 V6 | 01.2006-12.2011 | |
| CHEVROLET | Monte Carlo 3.5 V6 | 01.2006-12.2007 | |
| CHEVROLET | Monte Carlo 3.9 V6 | 01.2006-12.2007 | |
| CHEVROLET | Uplander 3.9 V6 | 01.2006-12.2009 | |
| PONTIAC | Montana 3.9 V6 | 01.2006-12.2009 | |
| PONTIAC | Torrent 3.4 V6 | 01.2006-12.2006 | |
| SATURN | Relay 3.9 V6 | 01.2006-12.2007 |
Reference Information
| 12594441 | DELCO |
| 12610636 | DELCO |
| 201-12106 | DIXIE |
| 6784N | WAI / TRANSPO |
| 8000063 | DELCO |
| 8000216 | DELCO |
| 89017761 | DELCO |
| 89017845 | DELCO |
| 91-01-4694 | WILSON |
| 91-01-4694N | WILSON |
| S-1498 | DIXIE |
| UD13948S | AS-PL |
Video/Publications
