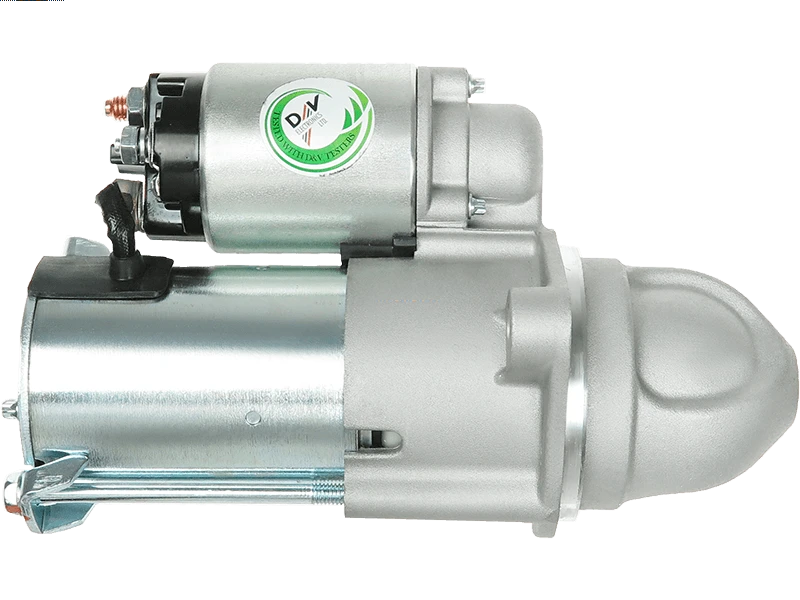

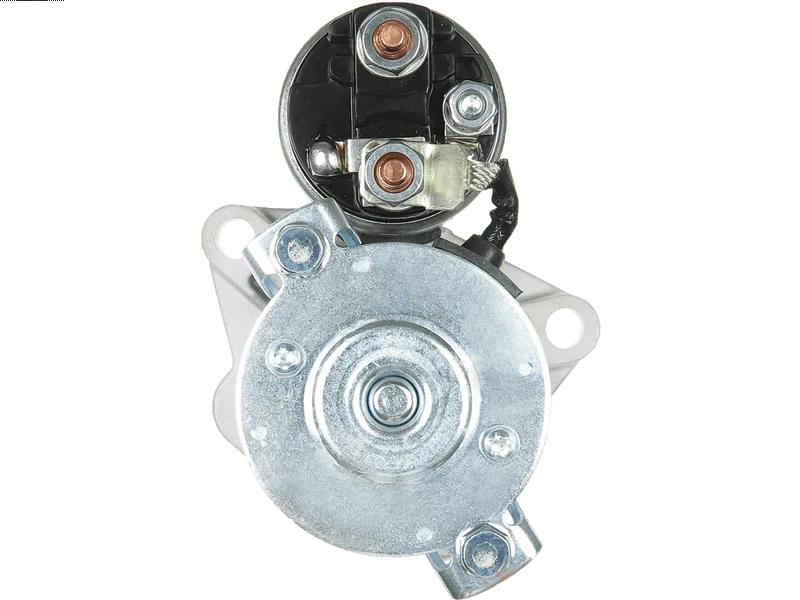

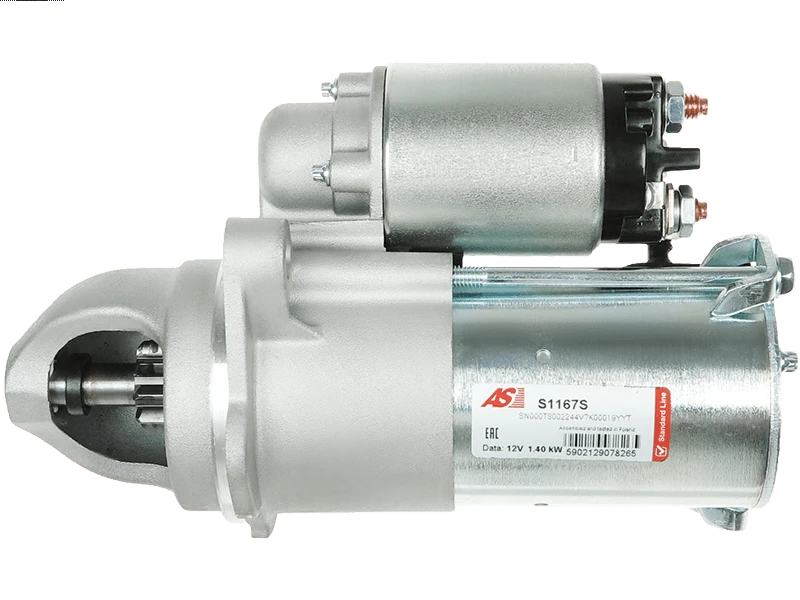

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 275.28 including GST
NZ$ 239.37 excluding GST
or four payments of $68.82
with
Learn More
UOM:
each
Alternative Item:
S1221S,S1226S,S5086
Product Code:
S1167S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
8000338Associated Numbers
0001108236 101395 101395D 12575626 130.553.092 220657 25-4012 55556245 6060128 6202037 6202055 6202056 6202125 8000180 8000338 9000967 93175890 AEU1291 CST60128 CST60128AS CST60128ES CST60128GS CST60128OS CST60128RS DRS9840 DRS9840N DS0950 DS0950N LRS02340 LRS2340 S1205V UD13953SSpecifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 204 mm |
| Mount Hole Center - Center (O.1) | 94 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 30.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 75 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CADILLAC | BLS 2.0 T | [B207L] | 04.2006- |
| CADILLAC | BLS 2.0 T | B207L | 04.2006-12.2010 |
| CADILLAC | BLS 2.0 T | B207R | 04.2006- |
| CADILLAC | BLS 2.0 T | [LK9] | 04.2006- |
| CADILLAC | BLS 2.0 T | LK9(122CUL4) | 04.2006- |
| CADILLAC | BLS 2.0 T | LK9(122CUL4) | 04.2006-12.2010 |
| CADILLAC | BLS 2.0 T | [Z20NET] | 04.2006- |
| CADILLAC | BLS 2.0 T | Z20NET | 04.2006-12.2010 |
| CADILLAC | BLS 2.0 T AWD | B207R | 04.2006-12.2010 |
| CADILLAC | BLS 2.0 T AWD | LK9(122CUL4) | 04.2006-12.2010 |
| CADILLAC | BLS 2.0 T Flexpower | Z20LER | 12.2007- |
| CADILLAC | BLS Wagon 2.0 T | Z20NER | 12.2007- |
| CADILLAC | BLS Wagon 2.0 T | Z20NET | 12.2007-12.2010 |
| CADILLAC | BLS Wagon 2.0 T AWD | B207R | 12.2007-12.2010 |
| CADILLAC | BLS Wagon 2.0 T Flexpower | Z20LER | 12.2007- |
| OPEL | Astra G 2.2 16V | [Z22SE] | 03.2001-01.2005 |
| OPEL | Astra G 2.2 16V | [Z22SE] | 03.2001-01.2005 |
| OPEL | Astra G 2.2 16V | [Z22SE] | 03.2001-07.2004 |
| OPEL | Astra G 2.2 16V | [Z22SE] | 03.2001-10.2005 |
| OPEL | Astra G 2.2 16V | [Z22SE] | 06.2000-01.2005 |
| OPEL | Astra G 2.2 16V | [Z22SE] | 09.2000-05.2005 |
| OPEL | ASTRA G Convertible (T98) 2.2 16V (F67) | Z22SE | 03.2001-10.2005 |
| OPEL | ASTRA G Coupe (T98) 2.2 16V (F07) | Z22SE | 09.2000-05.2005 |
| OPEL | ASTRA G Estate (T98) 2.2 16V (F35) | Z22SE | 03.2001-07.2004 |
| OPEL | ASTRA G Hatchback (T98) 2.2 16V (F08, F48) | Z22SE | 06.2000-01.2005 |
| OPEL | ASTRA G Saloon (T98) 2.2 16V (F69) | Z22SE | 03.2001-01.2005 |
| OPEL | GT Convertible (M07) 2.0 (G67) | Z20NHH | 06.2007-12.2011 |
| OPEL | Signum 2.0 T | [Z20NET] | 05.2003-12.2008 |
| OPEL | SIGNUM Hatchback (Z03) 2.0 Turbo (F48) | Z20NET | 05.2003-12.2008 |
| OPEL | SIGNUM Hatchback (Z03) 2.2 direct (F48) | Z22YH | 05.2003-09.2008 |
| OPEL | Speedster 2.2 | [Z22SE] | 06.2000-08.2005 |
| OPEL | SPEEDSTER (E01) 2.2 (R97) | Z22SE | 06.2000-08.2005 |
| OPEL | Vectra B 2.2 i 16V | [Z22SE] | 09.2000-04.2002 |
| OPEL | Vectra B 2.2 i 16V | [Z22SE] | 09.2000-07.2003 |
| OPEL | VECTRA B Estate (J96) 2.2 i 16V (F35) | Z22SE | 09.2000-07.2003 |
| OPEL | VECTRA B Hatchback (J96) 2.2 i 16V (F68) | Z22SE | 09.2000-07.2003 |
| OPEL | VECTRA B (J96) 2.2 i 16V (F19) | Z22SE | 09.2000-04.2002 |
| OPEL | Vectra C 2.0 16V T | [Z20NET] | 03.2003-08.2008 |
| OPEL | Vectra C 2.0 16V T GTS | [Z20NET] | 03.2000-08.2008 |
| OPEL | Vectra C 2.0 T | [Z20NET] | 10.2003-08.2008 |
| OPEL | Vectra C 2.2 16V | [Z22SE] | 04.2002-12.2008 |
| OPEL | Vectra C 2.2 16V GTS | [Z22SE] | 08.2002-08.2008 |
| OPEL | VECTRA C Estate (Z02) 2.0 Turbo (F35) | Z20NET | 10.2003-08.2008 |
| OPEL | VECTRA C Estate (Z02) 2.2 direct (F35) | Z22YH | 10.2003-08.2008 |
| OPEL | VECTRA C GTS (Z02) 2.0 16V Turbo (F68) | Z20NET | 03.2003-08.2008 |
| OPEL | VECTRA C GTS (Z02) 2.2 16V (F68) | Z22SE | 08.2002-08.2008 |
| OPEL | VECTRA C GTS (Z02) 2.2 DGi (F68) | Z22YH | 10.2003-08.2008 |
| OPEL | VECTRA C (Z02) 2.0 16V Turbo (F69) | Z20NET | 03.2003-08.2008 |
| OPEL | VECTRA C (Z02) 2.2 16V (F69) | Z22SE | 04.2002-12.2008 |
| OPEL | VECTRA C (Z02) 2.2 DGi (F69) | Z22YH | 10.2003-08.2008 |
| OPEL | Zafira A 2.2 16V MPV | [Z22SE] | 09.2000-06.2005 |
| OPEL | ZAFIRA A MPV (T98) 2.2 16V (F75) | Z22SE | 09.2000-06.2005 |
| OPEL | ZAFIRA B Box Body/MPV (A05) 2.2 DGi VAN (M75) | Z22YH | 07.2005-12.2011 |
| OPEL | ZAFIRA / ZAFIRA FAMILY B (A05) 2.2 (M75) | Z22YH | 07.2005-12.2012 |
| SAAB | 9-3 1.8 i | [Z18XE] | 03.2005-02.2015 |
| SAAB | 9-3 Convertible (YS3F) 2.0 | B207L | 04.2006-09.2007 |
| SAAB | 9-3 Convertible (YS3F) 2.0 Turbo Performance | B207R | 04.2004-02.2015 |
| SAAB | 9-3 Estate (E50) 2.0 t BioPower | B207L | 01.2007-02.2015 |
| SAAB | 9-3X (YS3) 2.0 t XWD | B207R | 02.2009-02.2015 |
| SAAB | 9-3 (YS3F, E79, D79, D75) 2.0 Turbo Performance | B207R | 04.2004-02.2015 |
| VAUXHALL | Astra MK IV 2.2 16V | [Z22SE] | 03.2000-08.2005 |
| VAUXHALL | Astra MK IV 2.2 16V | [Z22SE] | 03.2001-05.2005 |
| VAUXHALL | Astra MK IV 2.2 16V | [Z22SE] | 03.2001-10.2005 |
| VAUXHALL | Astra MK IV 2.2 16V | Z22SE | 03.2000-10.2005 |
| VAUXHALL | Vectra B 2.2 i 16V | [Z22SE] | 08.1995-10.2001 |
| VAUXHALL | Vectra B 2.2 i 16V | [Z22SE] | 09.2000-07.2003 |
| VAUXHALL | Vectra B 2.2 i 16V | Z22SE | 08.1995-07.2003 |
| VAUXHALL | Vectra MK II 2.0 16V T | [Z20NET] | 01.2000-10.2008 |
| VAUXHALL | Vectra MK II 2.0 16V T | [Z20NET] | 10.2003-07.2008 |
| VAUXHALL | Vectra MK II 2.0 16V T | Z20NET | 01.2000-10.2008 |
| VAUXHALL | Vectra MK II 2.0 16V T GTS | [Z20NET] | 03.2003-07.2008 |
| VAUXHALL | Vectra MK II 2.0 16V T GTS | Z20NET | 03.2003-07.2008 |
| VAUXHALL | Vectra MK II 2.0 16V T GTS | [Z22SE] | 08.2002-07.2008 |
| VAUXHALL | Vectra MK II 2.0 16V T GTS | Z22SE | 08.2002-07.2008 |
| VAUXHALL | Vectra MK II 2.2 16V | [Z22SE] | 01.2002-10.2008 |
| VAUXHALL | VECTRA Mk II (C) (Z02) 2.2 16V | Z22SE | 01.2002-10.2008 |
| VAUXHALL | VX220 2.2 i | [Z22SE] | 09.2000-07.2005 |
| VAUXHALL | VX220 Convertible (E01) 2.2 i | Z22SE | 09.2000-07.2005 |
| VAUXHALL | ZAFIRA A (T98) 2.2 16V | Z22SE | 11.1998-08.2004 |
| VAUXHALL | Zafira MK I 2.2 16V | [Z22SE] | 11.1998-08.2004 |
Reference Information
| 0001108236 | BOSCH |
| 0986019840 | BOSCH |
| 101395 | KUHNER |
| 101395D | KUHNER |
| 1202494 | OPEL |
| 12133 | EAI |
| 12564088 | OPEL |
| 12567585 | OPEL |
| 12568931 | OPEL |
| 12575626 | OPEL |
| 12596233 | GM |
| 130.553.092.390 | WAI |
| 20409821OE | REAL |
| 20460811OE | REAL |
| 220657 | ERA |
| 25-4012 | ELSTOCK |
| 3140 | CEVAM |
| 331234 | LOGISTIK |
| 42019840 | HERTH+BUSS |
| 4805103 | OPEL |
| 5073666 | MEAT & DORIA |
| 55350543 | OPEL |
| 55353996 | OPEL |
| 55556245 | OPEL |
| 6046118.1 | SANDO |
| 6060128.1 | SANDO |
| 6202015 | OPEL |
| 6202037 | OPEL |
| 6202055 | OPEL |
| 6202056 | OPEL |
| 6202125 | OPEL |
| 8000180 | DELCO |
| 8000338 | DELCO |
| 89018113 | GM |
| 9000934 | DELCO |
| 9000967 | DELCO |
| 93175890 | OPEL |
| 93175908 | OPEL |
| 9512772 | OPEL |
| 95520326 | GM |
| AEU1291 | AUTOELECTRO |
| AM-2338 | AUTO MAGNETO |
| ANM12060X | ANDEL |
| CST60128GS | CASCO |
| DRS9840 | DELCO |
| DRS9840N | DELCO |
| DS0950 | DELCO |
| DS0950N | DELCO |
| LRS02340 | LUCAS |
| LRS2340 | LUCAS |
| PRSF168 | 3EFFE |
| R1540016 | VAUXHALL |
| S1167S | AS-PL |
| S1205V | PRESTOLITE |
| S12BH0538A2 | SIDAT |
| STR2199 | ELECTROLOG |
| STR2706 | ELECTROLOG |
| STRF168 | 3EFFE |
| STX200286 | STARDAX |
| STX200286R | STARDAX |
| STX201050 | STARDAX |
| STX201050R | STARDAX |
| UD13953S | AS-PL |
| UD19442S | AS-PL |
Video/Publications
