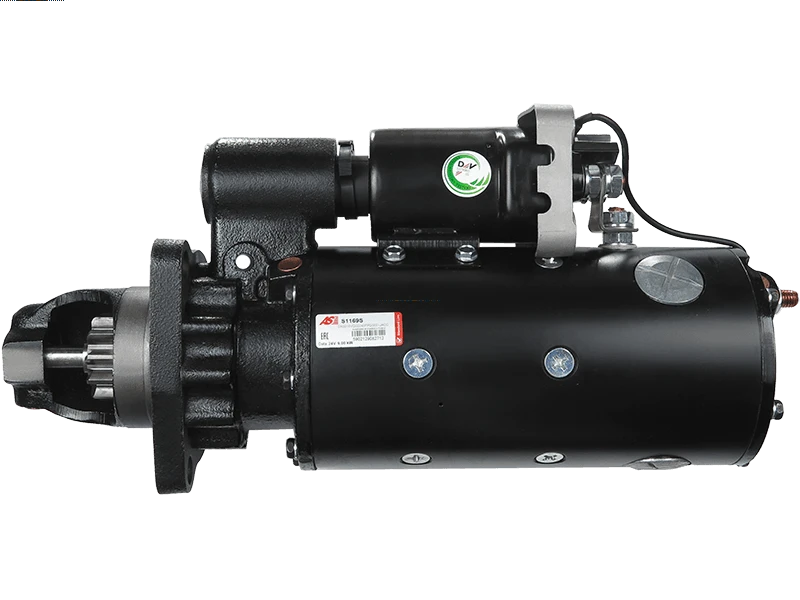

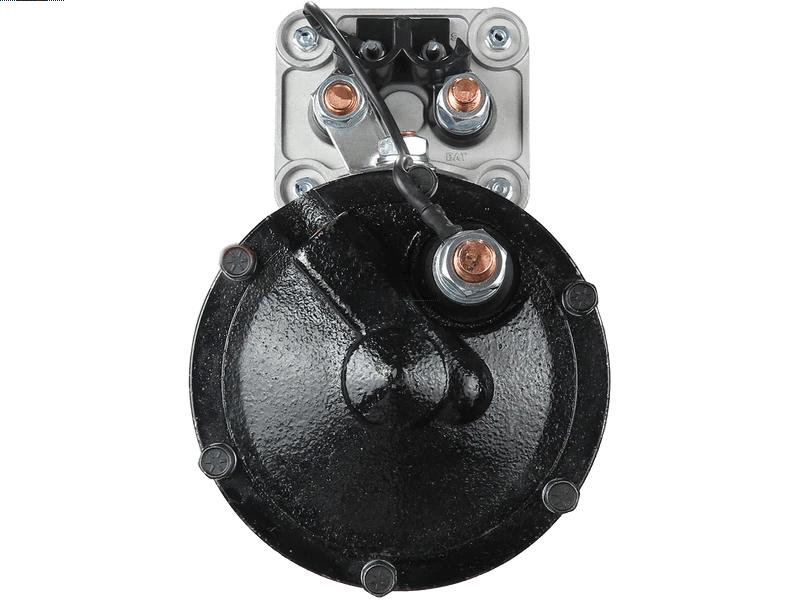

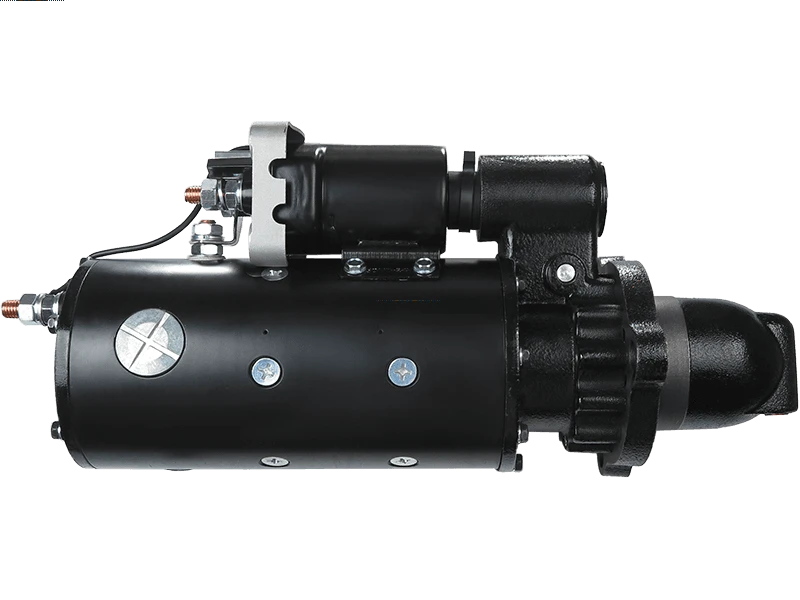

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 1,654.36 including GST
NZ$ 1,438.57 excluding GST
or four payments of $413.59
with
Learn More
UOM:
each
Product Code:
S1169S
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
8200528Associated Numbers
20R3250 2692757 348-7651 8200528 8201093 STR80200 UD14975S UNIT BOM 141-806Specifications
| Kilowatt | 9 kW |
| Length (L.1) | 520 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 16 mm |
| Mount Hole Diameter (C.2) | 16 mm |
| Mount Hole Diameter (C.3) | 16 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | DELCO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | Various Models | ||
| CATERPILLAR | Various Models | 01.1983-01.0001 | |
| RENAULT TRUCKS | MAGNUM 560.22 | Mack-EE9-560 | 04.1996-04.2000 |
| RENAULT TRUCKS | MAGNUM 560.22 | Mack-EE9-560 | 04.1996-12.1999 |
| RENAULT TRUCKS | MAGNUM 560.24 | Mack-EE9-560 | 04.1996-04.2000 |
| RENAULT TRUCKS | MAGNUM 560.24 | Mack-EE9-560 | 04.1996-04.2000 |
| RENAULT TRUCKS | MAGNUM 560.24 | Mack-EE9-560 | 04.1996-12.1999 |
| RENAULT TRUCKS | MAGNUM AE 560.18 | Mack-EE9-560 | 04.1996- |
| RENAULT TRUCKS | MAGNUM AE 560.18T | Mack-EE9-560 | 04.1996- |
| RENAULT TRUCKS | MAGNUM AE 560.19 | Mack-EE9-560 | 04.1996- |
| RENAULT TRUCKS | MAGNUM AE 560.19T | Mack-EE9-560 | 04.1996- |
| RENAULT TRUCKS | MAGNUM AE 560.26 | Mack-EE9-560 | 04.1996- |
| RENAULT TRUCKS | MAGNUM AE 560.26T | Mack-EE9-560 | 01.1997- |
| RENAULT TRUCKS | MAGNUM AE 560.26T | Mack-EE9-560 | 01.1998- |
Reference Information
| 140-50761 | ROBERT'S |
| 20R3250 | CATERPILLAR |
| 2692757 | CATERPILLAR |
| 3487651 | CATERPILLAR |
| 641.004.113.030 | WAI |
| 641.004.113.390 | WAI |
| 641.004.113.392 | WAI |
| 641.004.113.510 | WAI |
| 641.004.113.519 | WAI |
| 8200098 | DELCO |
| 8200528 | DELCO |
| 8201093 | DELCO |
| 91-01-3948 | WILSON |
| 91-01-3948N | WILSON |
| S1169S | AS-PL |
| S134.815 | WAI |
| S144.308 | WAI |
| STD2757 | KRAUF |
| STR2177 | ELECTROLOG |
| STR80200 | WOODAUTO |
| UD14975S | AS-PL |
| UD19711S | AS-PL |
