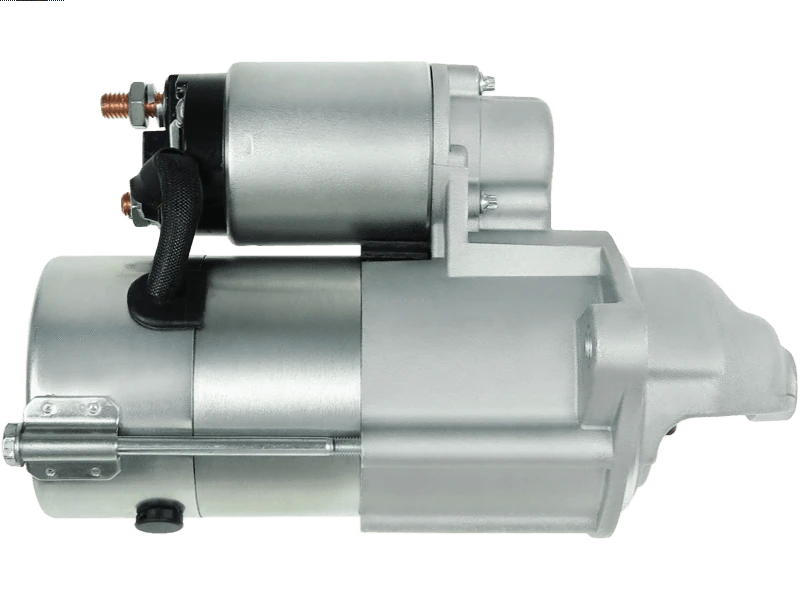

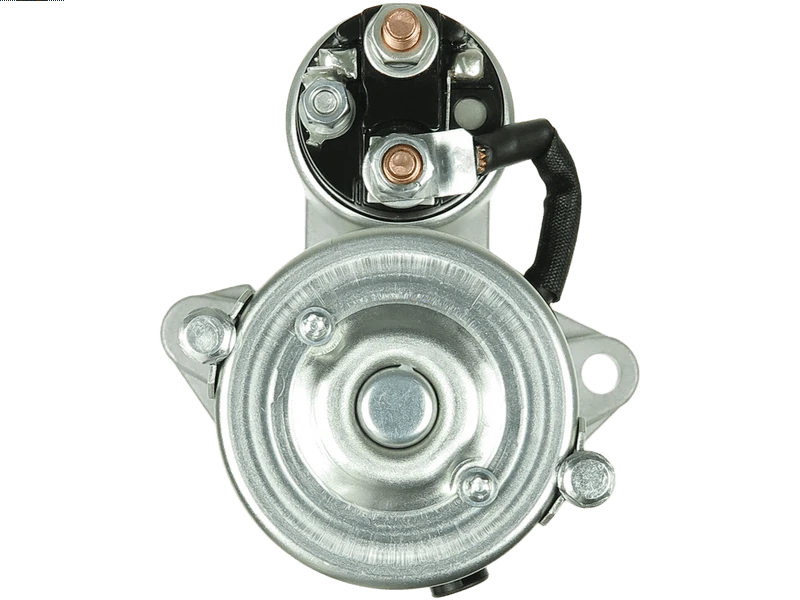

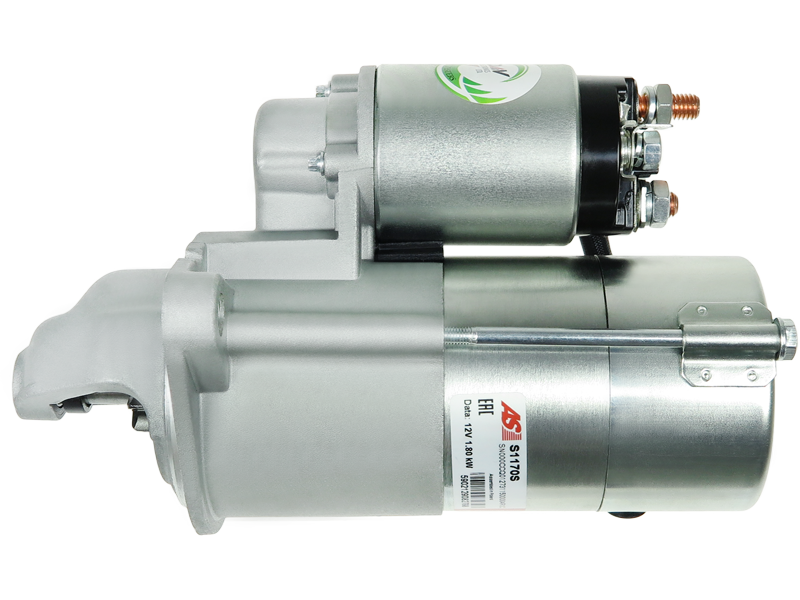

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 413.25 including GST
NZ$ 359.35 excluding GST
or four payments of $103.31
with
Learn More
each
S1170S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
8000277Associated Numbers
114476 201-17116 25-4373 254001 254001B 254637 254637B 333-5930 6060129 700.512.092 8000111 8000277 8000344 8000417 8000531 CST60129 CST60129AS CST60129ES CST60129GS CST60129OS CST60129RS DRS0012 LRS02701 P30DC03A S-1543 U85086720 U85086770 U85086771 U85086800 UD12685SSpecifications
| Kilowatt | 1.80 kW |
| Length (L.1) | 214 mm |
| Mount Hole Center - Center (O.1) | 110 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 20 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | Engine 2.2 | [3024C] | 01.2009- |
| JCB | 8030 Excavator 2.2 | [404C-22] | 01.2009- |
| JCB | 8052 Excavator 2.2 | [404C-22] | 01.2009- |
| JCB | 8052 Midi Excavator 2.2 | [404C-22] | 01.2009- |
| JOB MANN | 303-50 WL 2.2 | [404D-22] | 01.2009- |
| JOB MANN | 355-50 CWL 2.2 | [404D-22] | 01.2009- |
| PERKINS | Engine 2.2 | [404D-22] | 01.2009- |
| SAUERBURGER | SH555 2.2 | [404D-22] | 01.2012- |
| VOLVO PENTA | Engine 2.2 | [D2-55] | 01.2009- |
Reference Information
| 114476 | CARGO |
| 201-17116 | DIXIE |
| 254001 | KUHNER |
| 254001B | KUHNER |
| 25-4373 | ELSTOCK |
| 254637 | KUHNER |
| 254637B | KUHNER |
| 333-5930 | CATERPILLAR |
| 6060129 | SANDO |
| 700.512.092 | PSH |
| 8000111 | DELCO |
| 8000277 | DELCO |
| 8000344 | DELCO |
| 8000417 | DELCO |
| 8000531 | DELCO |
| CST60129 | CASCO |
| CST60129AS | CASCO |
| CST60129ES | CASCO |
| CST60129GS | CASCO |
| CST60129OS | CASCO |
| CST60129RS | CASCO |
| DRS0012 | DELCO |
| F032114476 | CARGO |
| LRS02701 | LUCAS |
| LRS2701 | LUCAS |
| P30DC03A | PERKINS |
| S1170S | AS-PL |
| S-1543 | DIXIE |
| STRE256 | 3EFFE |
| STX210178 | STARDAX |
| U5MK8260 | PERKINS |
| U85086720 | PERKINS |
| U85086770 | PERKINS |
| U85086771 | PERKINS |
| U85086800 | PERKINS |
| UD12685S | AS-PL |
Video/Publications
