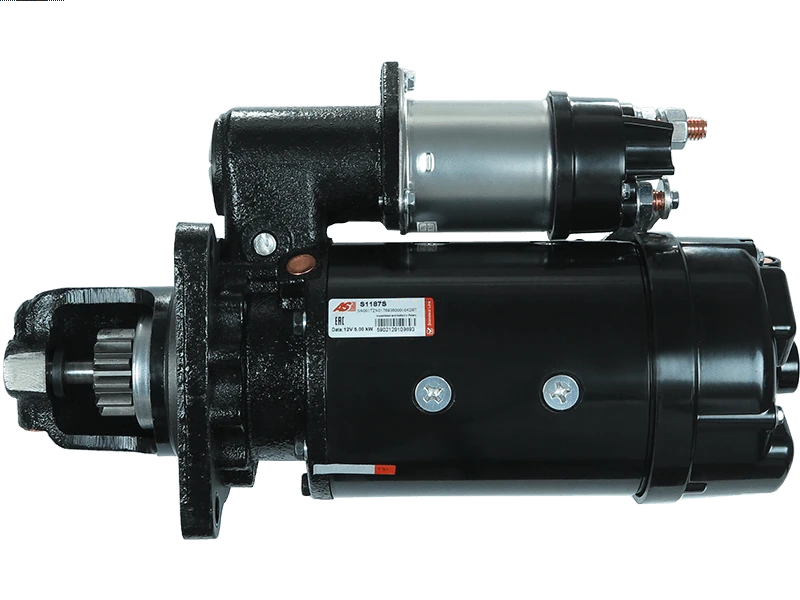

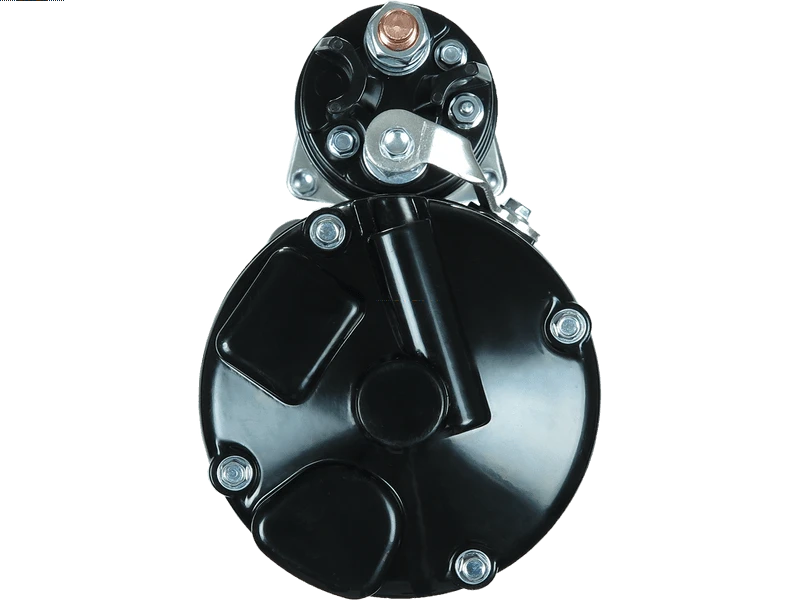

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 958.48 including GST
NZ$ 833.46 excluding GST
or four payments of $239.62
with
Learn More
each
S1187S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
10461008 6380N UD16483S 112255 CST60137AS 3043007RX 3675121RX 10461089 10461229 10479034 10479106 1993794 1993869 1993871 1993874 1993931 1993958 201-37149 TS-1539 25-3381 STD2255 255206P LRS02210 M105R2502SE M105602 M105R2022SE M105R2002SE 35260870 20409731BN 140-37142 140-37842 6060137.0 3915544 23565A 23587A 6380N-PT 6380R 6380R-PT 91-01-4167N 91-01-4167 STR80160Specifications
| Kilowatt | 5 kW |
| Length (L.1) | 403 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Center - Center (O.2) | 126 mm |
| Mount Hole Center - Center (O.3) | 126 mm |
| Mount Hole Diameter (C.1) | 13 mm |
| Mount Hole Diameter (C.2) | 13 mm |
| Mount Hole Diameter (C.3) | 13 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CLARK | Various Models | ||
| CUMMINS | Engine 0.8 | [6C8.3] | 01.1998- |
Reference Information
| 10461008 | DELCO |
| 10461089 | DELCO |
| 10461229 | DELCO |
| 10479034 | DELCO |
| 10479106 | DELCO |
| 112255 | CARGO |
| 140-37142 | ROBERT'S |
| 140-37842 | ROBERT'S |
| 1993794 | DELCO |
| 1993869 | DELCO |
| 1993871 | DELCO |
| 1993874 | DELCO |
| 1993931 | DELCO |
| 1993958 | DELCO |
| 201-37149 | DIXIE |
| 20409731BN | REAL |
| 23565A | WAI / TRANSPO |
| 23587A | WAI / TRANSPO |
| 25-3381 | ELSTOCK |
| 255206P | KUHNER |
| 3043007 | CUMMINS |
| 3043007RX | CUMMINS |
| 3043008 | CUMMINS |
| 35260870 | PRESTOLITE |
| 3604483RX | CUMMINS |
| 3675121RX | CUMMINS |
| 3910643 | CUMMINS |
| 3915544 | VOLVO |
| 6060137.0 | SANDO |
| 6380N | WAI / TRANSPO |
| 6380N-PT | WAI / TRANSPO |
| 6380R | WAI / TRANSPO |
| 6380R-PT | WAI / TRANSPO |
| 91-01-4167 | WILSON |
| 91-01-4167N | WILSON |
| CGB-1568 | AINDE |
| CST60137AS | CASCO |
| F032112255 | CARGO |
| LRS02210 | LUCAS |
| LRS2210 | LUCAS |
| M105602 | PRESTOLITE |
| M105R2002SE | PRESTOLITE |
| M105R2022SE | PRESTOLITE |
| M105R2502SE | PRESTOLITE |
| STD2255 | KRAUF |
| STR80160 | WOODAUTO |
| STRF759 | 3EFFE |
| STRL868 | 3EFFE |
| STRS816 | 3EFFE |
| TS-1539 | DIXIE |
| UD16483S | AS-PL |
