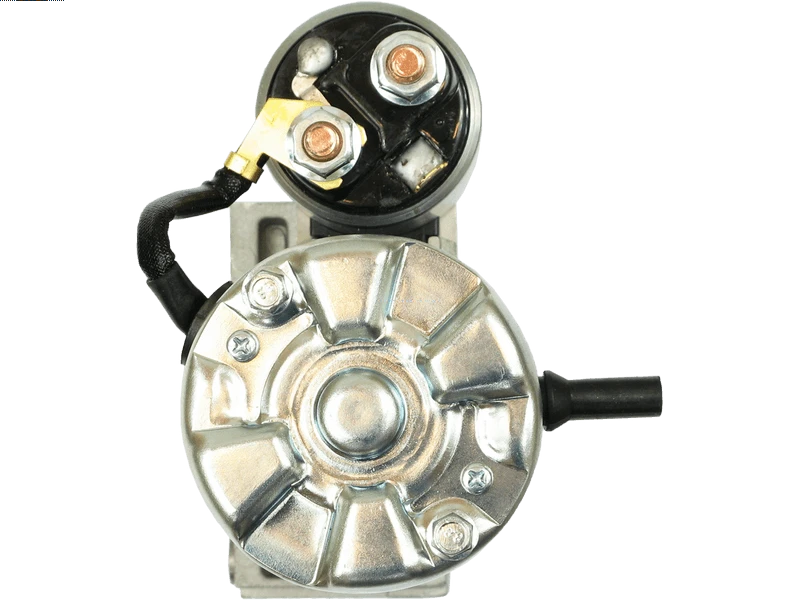

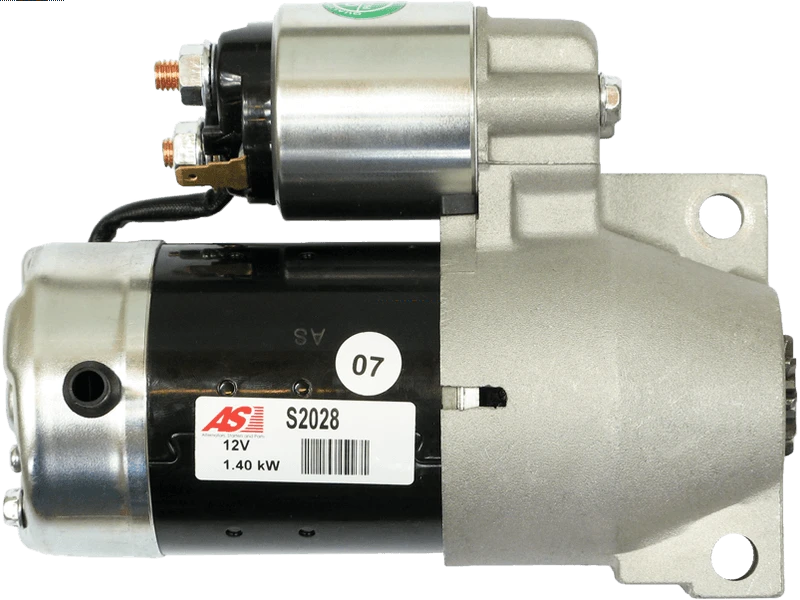

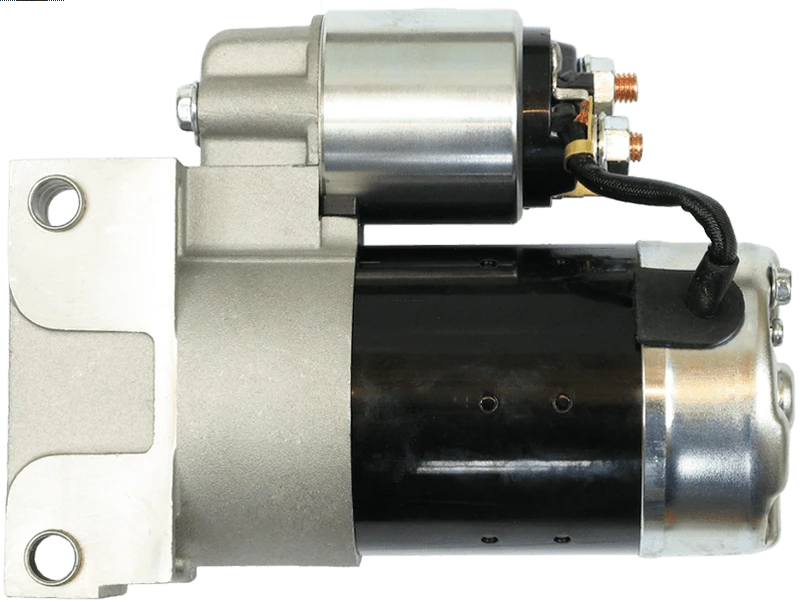

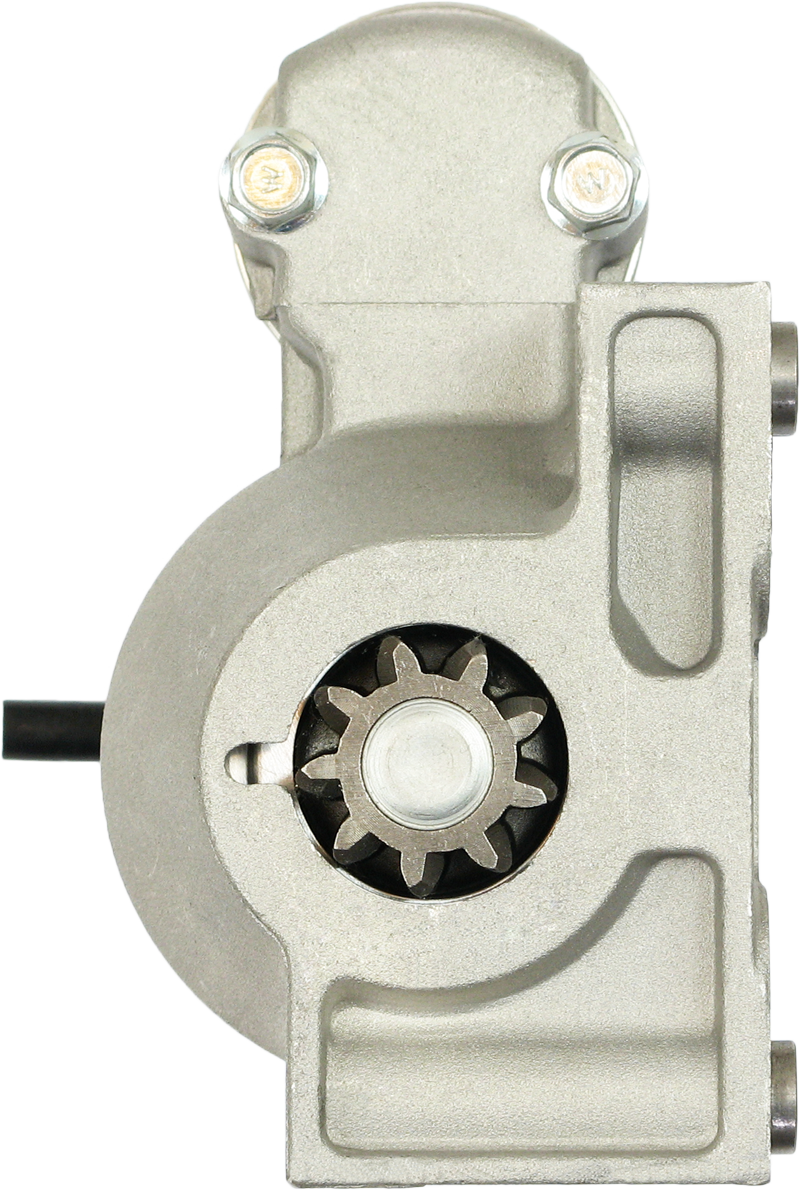

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 260.00 including GST
NZ$ 226.09 excluding GST
or four payments of $65.00
with
Learn More
each
S2028
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
S114-753Associated Numbers
112986 113402 128000-9700 128000-9701 128000-9702 17509N 190-386 2-1561-ND 20432871BN 228000-0810 228000-0811 25-2272 254190 2911233280 2912762340 6040178 8912762340 8943647220 8943647221 8943843140 89438431401 8943843141 8970645530 8971239230 AEY1391 CST40178AS LRS01391 S114-753 S114-753A S114-753B S114-753C STR3059 STR72096Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 186 mm |
| Mount Hole Center - Center (O.1) | 81 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 14.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ACURA | Legend 3.2 | [C32A] | 08.1991-08.1996 |
| ACURA | Legend 3.2 | [C32A2] | 08.1991-08.1996 |
| ACURA | SLX 3.2 | [6VD1] | 01.1996-01.1997 |
| ACURA | SLX 3.5 | [6VE1] | 01.1998-01.1999 |
| ISUZU | Trooper 3.2 LS | 01.1992-01.1995 | |
| ISUZU | Trooper 3.2 LS | 01.1997-01.1997 | |
| ISUZU | Trooper 3.2 LTD | 01.1997-01.1997 | |
| ISUZU | Trooper 3.2 RS | 01.1993-01.1995 | |
| ISUZU | Trooper 3.2 S | 01.1992-01.1997 | |
| ISUZU | Trooper 3.5 | [6VE1] | 01.1998-01.2000 |
| ISUZU | Trooper 3.5 | [6VE1] | 01.2001-01.2002 |
| ISUZU | Vehicross 3.5 | [6VE1] | 01.1999-01.2000 |
| ISUZU | Vehicross 3.5 | [6VE1] | 01.2001-01.2001 |
Reference Information
| 112986 | CARGO |
| 113402 | CARGO |
| 1202046 | OPEL |
| 1202101 | OPEL |
| 1202153 | OPEL |
| 128000-9700 | DENSO |
| 128000-9701 | DENSO |
| 128000-9702 | DENSO |
| 17509N | WAI / TRANSPO |
| 17546R | WAI / TRANSPO |
| 190-386 | PIC |
| 20432871BN | REAL |
| 2-1561-ND | WAI / TRANSPO |
| 228000-0810 | DENSO |
| 228000-0811 | DENSO |
| 25-2272 | ELSTOCK |
| 254190 | KUHNER |
| 2911233280 | ISUZU |
| 2912762340 | ISUZU |
| 6040178 | SANDO |
| 6202058 | OPEL |
| 8912762340 | ISUZU |
| 8943647220 | ISUZU |
| 8943647221 | ISUZU |
| 8943843140 | ISUZU |
| 89438431401 | ISUZU |
| 8943843141 | ISUZU |
| 8970645530 | ISUZU |
| 8971239230 | ISUZU |
| 9120557 | OPEL |
| 93175893 | OPEL |
| 94384314 | OPEL |
| 97064553 | OPEL |
| AEY1391 | AUTOELECTRO |
| CGB-23874 | AINDE |
| CST40178AS | CASCO |
| F032112986 | CARGO |
| F032113402 | CARGO |
| LRS01391 | LUCAS |
| LRS1391 | LUCAS |
| MAV421780 | SIOM |
| R1040027 | VAUXHALL |
| R1540019 | VAUXHALL |
| S114-753 | HITACHI |
| S114-753A | HITACHI |
| S114-753B | HITACHI |
| S114-753C | HITACHI |
| S2028 | AS-PL |
| STR3059 | WOODAUTO |
| STR6043 | ELECTROLOG |
| STR72096 | WOODAUTO |
| STX200396 | STARDAX |
| STX201206 | STARDAX |
Video/Publications
