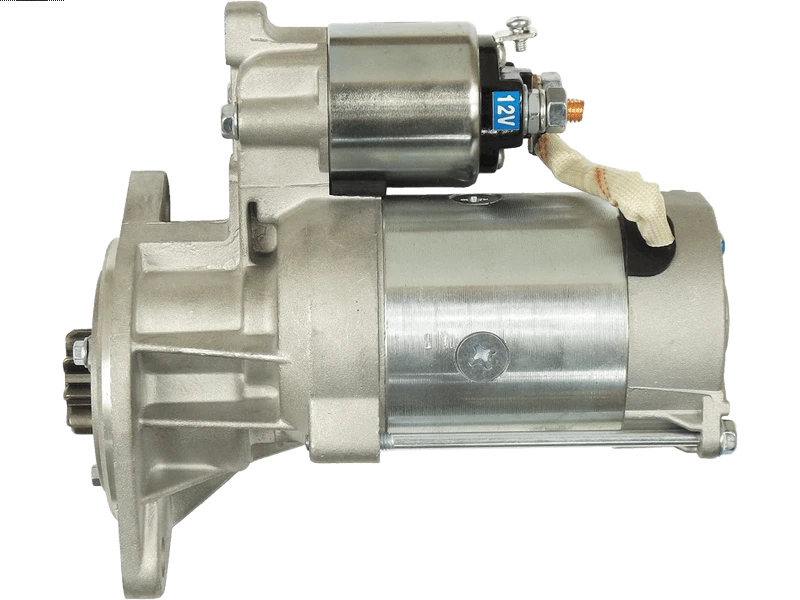

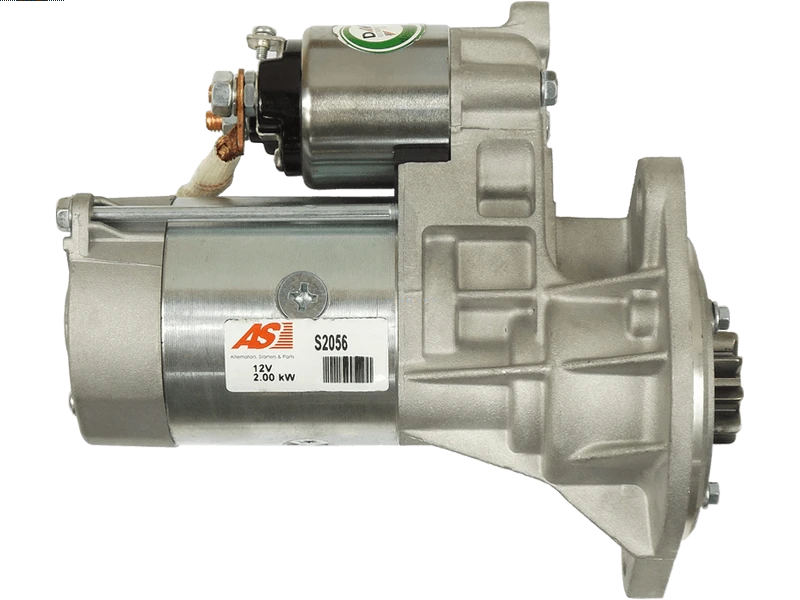

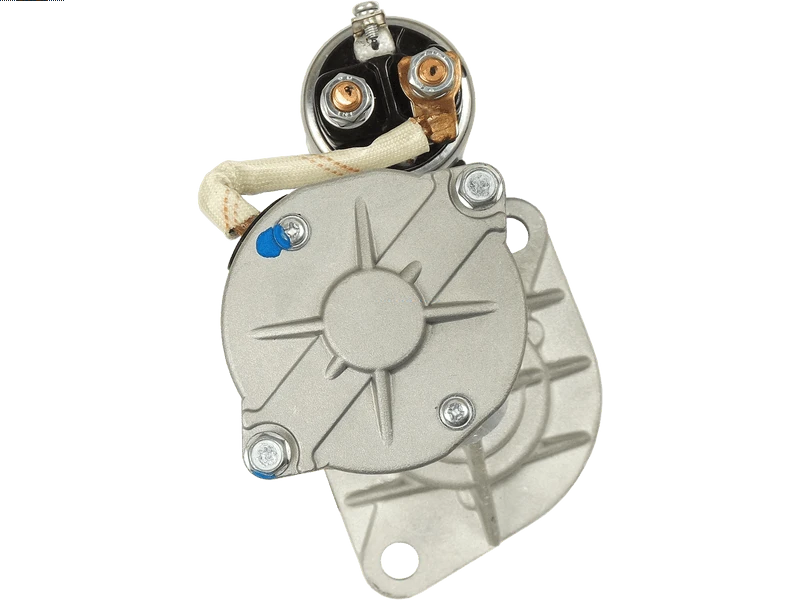

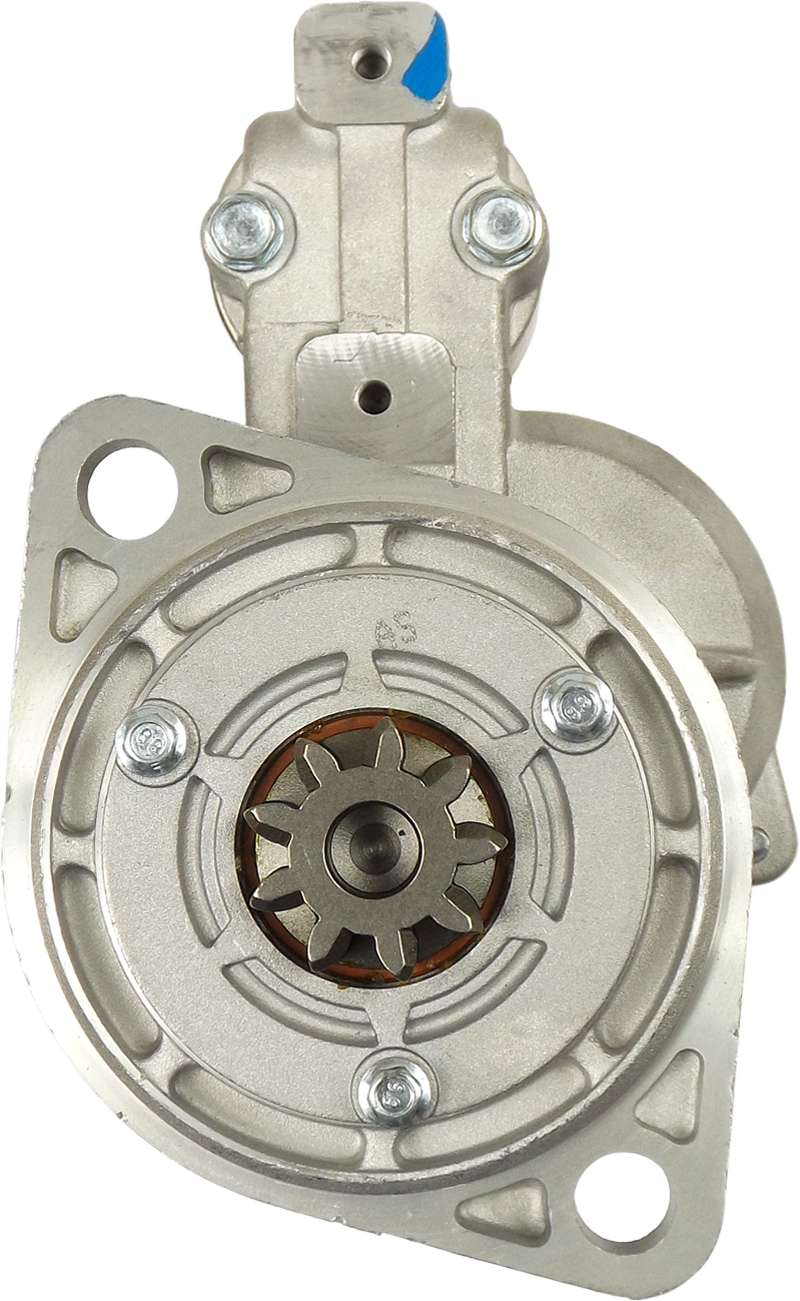

S2056 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2 kW
Length (L.1)	213 mm
Mount Hole Center - Center (O.1)	120 mm
Mount Hole Diameter (C.1)	14 mm
Mount Hole Diameter (C.2)	14 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	20 mm
Rotation	CW
Spigot Diameter (A)	95 mm
Unit Type	HITACHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
THERMO KING	SL-TCi30		01.1998-
YANMAR	Various Models

Reference Information

18490N STR3115 LRS01609 S13-207 6020154 126486-77011 CGB-93207 20776 20445451BN LRS1609 STR72009 STR9777 CST20154AS 104-10138 CST20154RS 20445451OE S2056 112371 S12HT0768 MAV221540 S12HT0768A2 136945 CST20154OS MAV5020 S13-207C CST20154ES S13-207B S13-207A CST20154 CST20154GS 8EA732661-001 336017 126486-77010 129486-77011 254279 S13207B 45-1688 2506945 20513057 DRS3376 25-3130

Video/Publications

S2056 104-10138 112371 126486-77010 126486-77011 129486-77011 18067N 18490N 20445451BN 20445451OE 20513052 20513057 20776 25-3130 254279 45-1688 6020154 8EA732661-001 CGB-93207 CST20154 CST20154AS CST20154ES CST20154GS CST20154OS CST20154RS DRS3376 LRS01609 LRS1609 MAV221540 MAV5020 S13-207 S13-207A S13-207C STR72009
