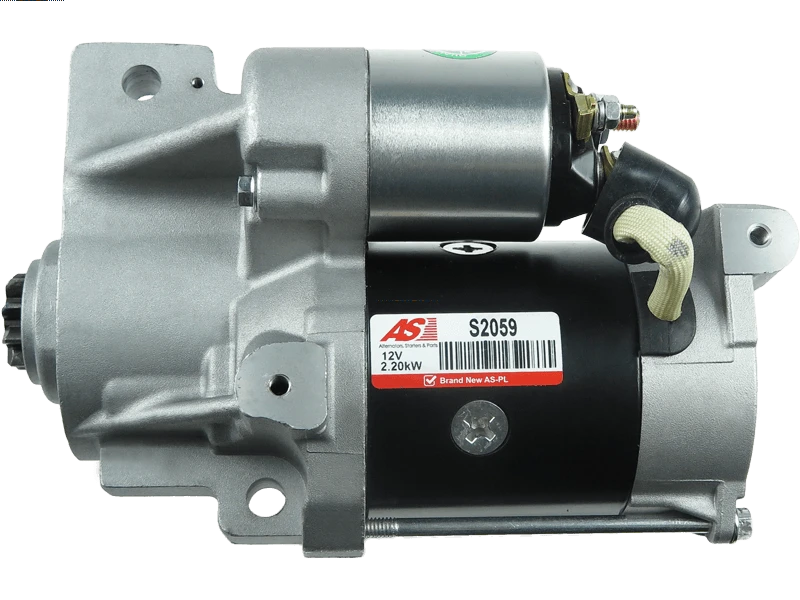

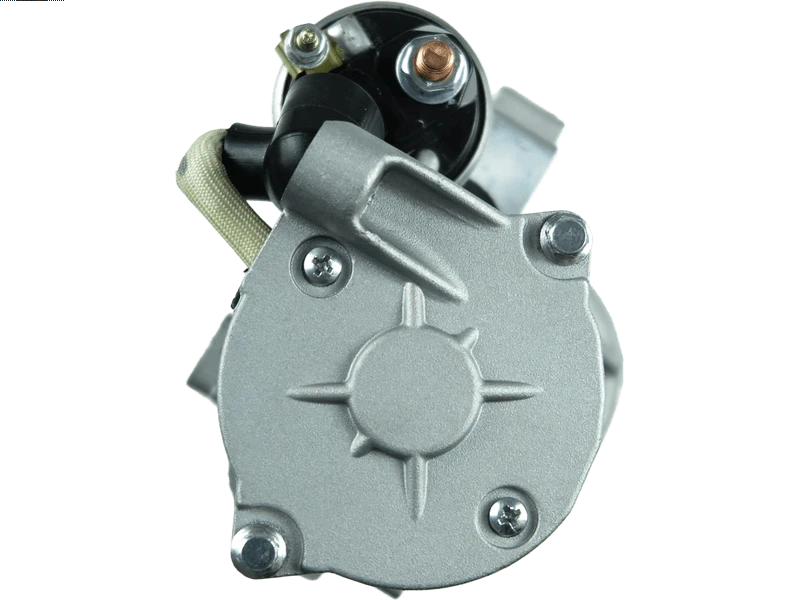

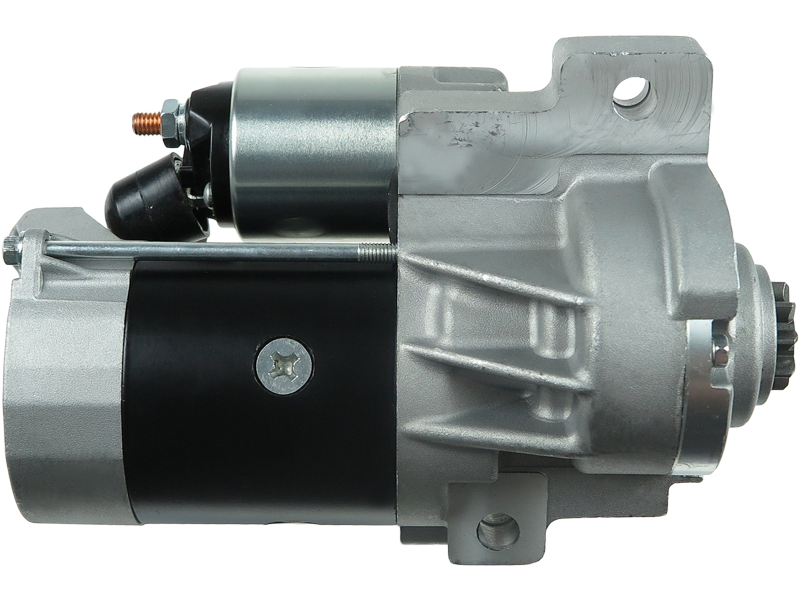

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 467.91 including GST
NZ$ 406.88 excluding GST
or four payments of $116.98
with
Learn More
UOM:
each
Product Code:
S2059
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
S14-412Associated Numbers
114482 130.536.092 20445142BN 25-3284 254520 3155 32730R 6020241 6202085 8972542200 8972542202 8973756132 97375613 AEY1727 CST20241 CST20241AS CST20241ES CST20241GS CST20241OS CST20241RS DRS0238 EAA-121977 EAA-153568 LRS01727 S14-412 S14-412C S14-412D S14-412E S14-412F S2059 SS297 STR72014 UD12440SSpecifications
| Kilowatt | 2.20 kW |
| Length (L.1) | 223 mm |
| Mount Hole Center - Center (O.1) | 124 mm |
| Mount Hole Diameter (C.1) | 12 mm |
| Mount Hole Diameter (C.2) | 12 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 41 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Signum 3.0 V6 CDTi | [Y30DT] | 01.2003- |
| OPEL | Signum 3.0 V6 CDTi | [Z30DT] | 01.2003- |
| OPEL | SIGNUM Hatchback (Z03) 3.0 V6 CDTI (F48) | Y30DT | 05.2003-07.2005 |
| OPEL | Vectra C 3.0 V6 CDTi | [Y30DT] | 01.2003-12.2005 |
| OPEL | Vectra C 3.0 V6 CDTi | [Z30DT] | 01.2003-12.2005 |
| OPEL | VECTRA C Estate (Z02) 3.0 V6 CDTI (F35) | Y30DT | 10.2003-07.2005 |
| OPEL | VECTRA C Estate (Z02) 3.0 V6 CDTI (F35) | Z30DT | 08.2005-08.2008 |
| OPEL | VECTRA C GTS (Z02) 3.0 CDTI (F68) | Y30DT | 06.2003-07.2005 |
| OPEL | VECTRA C (Z02) 3.0 CDTi (F69) | Z30DT | 08.2005-08.2008 |
| OPEL | VECTRA C (Z02) 3.0 CDTI (F69) | Y30DT | 02.2003-07.2005 |
| RENAULT | Espace 3.0 dCi | [P9X701] | 01.2002- |
| RENAULT | Espace 3.0 dCi | [P9X716] | 01.2002- |
| RENAULT | ESPACE IV (JK0/1_) 3.0 dCi (JK0J, JK0V) | P9X701 | 11.2002-08.2006 |
| RENAULT | Vel Satis 3.0 dCi | [P9X701] | 01.2006-12.2006 |
| RENAULT | VEL SATIS (BJ0_) 3.0 dCi (BJ0J, BJ0N) | P9X701 | 06.2002-06.2006 |
| VAUXHALL | Signum 3.0 CDTi | [Y30DT] | 01.2003- |
| VAUXHALL | Signum 3.0 CDTi | Y30DT | 01.2003- |
| VAUXHALL | Signum 3.0 CDTi | [Z30DT] | 01.2003- |
| VAUXHALL | Signum 3.0 CDTi | Z30DT | 01.2003- |
| VAUXHALL | Vectra C 3.0 V6 CDTi | [Y30DT] | 01.2003-12.2005 |
| VAUXHALL | Vectra C 3.0 V6 CDTi | Y30DT | 01.2003-12.2005 |
Reference Information
| 114482 | CARGO |
| 130.536.092 | WAI |
| 130.536.092.461 | WAI |
| 20445142BN | REAL |
| 25-3284 | ELSTOCK |
| 254520 | KUHNER |
| 3155 | CEVAM |
| 32730R | WAI |
| 336561 | LOGISTIK |
| 42114412 | HERTH+BUSS |
| 6020241 | SANDO |
| 6202045 | OPEL |
| 6202085 | OPEL |
| 6202096 | OPEL |
| 8972542200 | ISUZU |
| 8972542202 | ISUZU |
| 8973756132 | ISUZU |
| 93189493 | OPEL |
| 97254220 | GM |
| 97375613 | OPEL |
| AEY1727 | AUTOELECTRO |
| ANM12458X | ANDEL |
| CST20241 | CASCO |
| CST20241AS | CASCO |
| CST20241ES | CASCO |
| CST20241GS | CASCO |
| CST20241OS | CASCO |
| CST20241RS | CASCO |
| DRS0238 | DELCO |
| F032114482 | CARGO |
| LRS01727 | LUCAS |
| LRS1727 | LUCAS |
| R1540026 | VAUXHALL |
| RNLS14-412 | RNL |
| S129.832 | WAI |
| S14-412 | HITACHI |
| S14-412C | HITACHI |
| S14-412D | HITACHI |
| S14-412E | HITACHI |
| S14-412F | HITACHI |
| S14421D | HITACHI |
| S2059 | AS-PL |
| SS297 | SOVEREIGN |
| STR3060 | ELECTROLOG |
| STR72014 | WOODAUTO |
| UD12440S | AS-PL |
Video/Publications
S2059View your shopping basket or Browse other items in Starter Motors.
