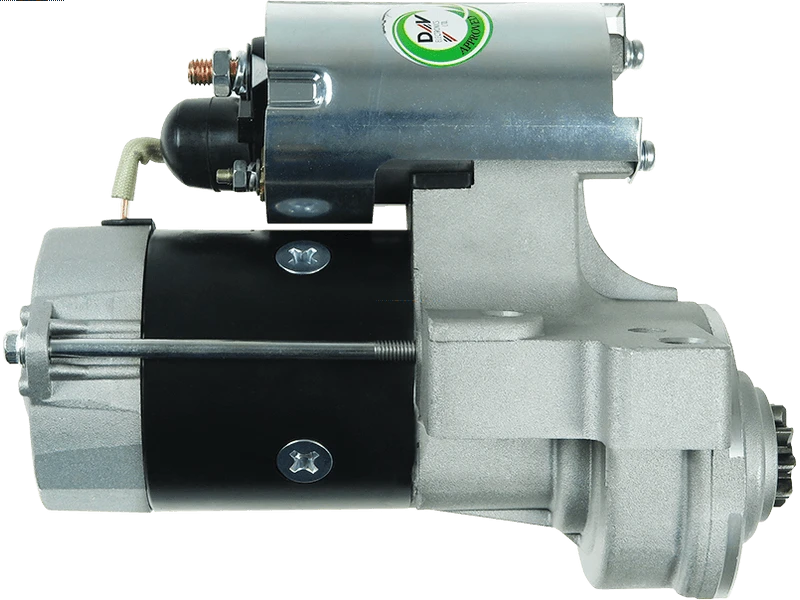

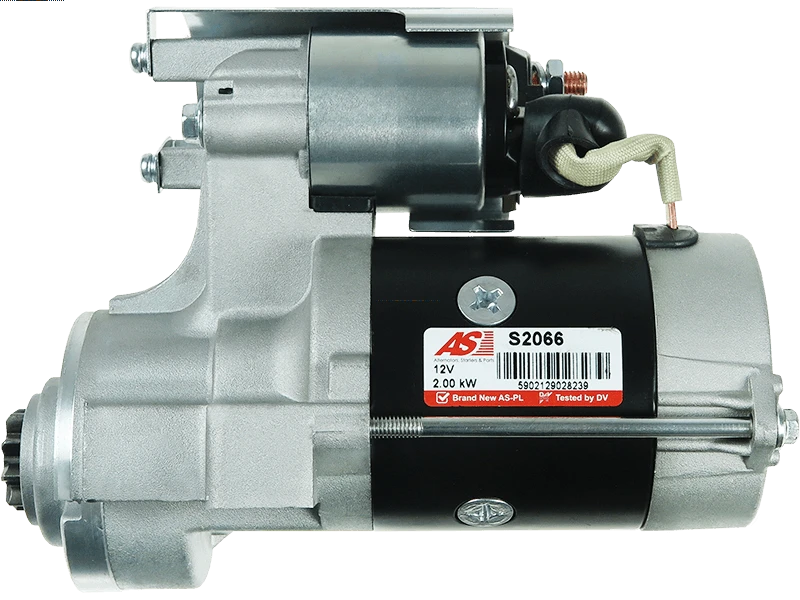

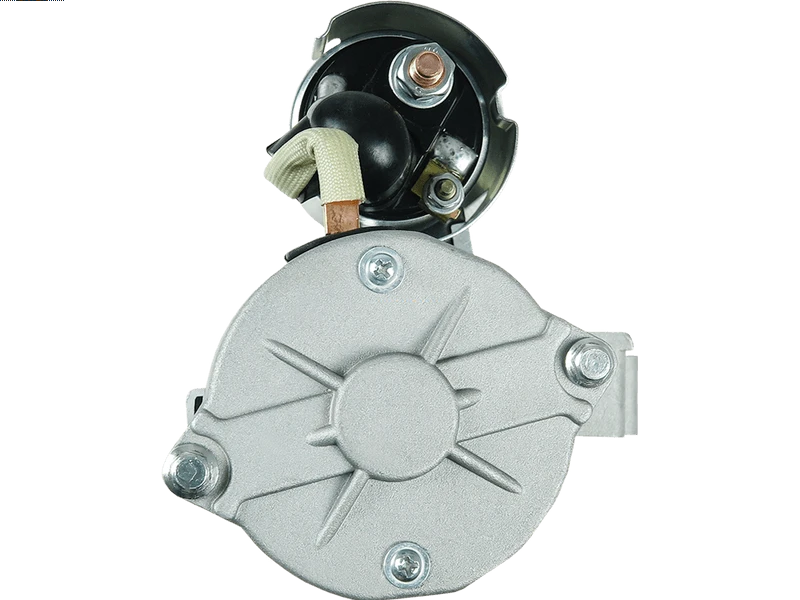

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 488.07 including GST
NZ$ 424.41 excluding GST
or four payments of $122.02
with
Learn More
each
S2066
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
S14-410Associated Numbers
114526 11927 20445971BN 25-3487 254277 254338 3150 33315R 5340419 570.529.093 570.537.093 6020179 8200084114 8200084114B 8200084114C 8200317008 8200444783 8200444783A 820084114C 8972155541 8972155542 8972155543 8973647720 8973647721 8973737761 AEY2315 CST20179 CST20179AS CST20179ES CST20179GS CST20179OS CST20179RS DRS0142 LRS02315 S114-410 S13-470C S14-410 S14-410A S14-410B S14-410C S14-410E S14-410F S14-410G S14-410J SS733 STR72110 UD12439SSpecifications
| Kilowatt | 2 kW |
| Length (L.1) | 213 mm |
| Mount Hole Center - Center (O.1) | 103.50 mm |
| Mount Hole Center - Center (O.2) | 47.50 mm |
| Mount Hole Center - Center (O.3) | 121.50 mm |
| Mount Hole Diameter (C.1) | 12 mm |
| Mount Hole Diameter (C.2) | 12 mm |
| Mount Hole Diameter (C.3) | 12 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 41.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 83.60 mm |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMW | 530 3.0 i | (E60)[N52B30] | 07.2005- |
| OPEL | Signum 3.0 CDTi V6 | [Z30DT] | 09.2005- |
| OPEL | Vectra C 3.0 CDTi | [Z30DT] | 08.2005- |
| OPEL | Vectra C 3.0 CDTi GTS | [Z30DT] | 08.2005- |
| RENAULT | Espace 3.0 DCi | [P9X701] | 11.2002- |
| RENAULT | Espace 3.0 DCi | [P9X715] | 01.2006- |
| RENAULT | Vel Satis 3.0 DCi | [P9X715] | 06.2006- |
| SAAB | 9-5 3.0 TiD | [D308L] | 07.2001- |
Reference Information
| 114526 | CARGO |
| 11927 | EAI |
| 20445971BN | REAL |
| 25-3487 | ELSTOCK |
| 254277 | KUHNER |
| 254338 | KUHNER |
| 3150 | CEVAM |
| 33315R | WAI / TRANSPO |
| 5340419 | SAAB |
| 570.529.093 | PSH |
| 570.529.093.415 | PSH |
| 570.537.093 | PSH |
| 570.537.093.415 | PSH |
| 570.537.093.461 | PSH |
| 6020179 | SANDO |
| 7711135033 | RENAULT |
| 8200084114 | RENAULT |
| 8200084114B | RENAULT |
| 8200084114C | RENAULT |
| 8200317008 | RENAULT |
| 8200444783 | RENAULT |
| 8200444783A | RENAULT |
| 820084114C | RENAULT |
| 8972155541 | ISUZU |
| 8972155542 | ISUZU |
| 8972155543 | ISUZU |
| 8973647720 | ISUZU |
| 8973647721 | ISUZU |
| 8973737761 | ISUZU |
| AEY2315 | AUTOELECTRO |
| ANM12362X | ANDEL |
| CGB-23080 | AINDE |
| CST20179 | CASCO |
| CST20179AS | CASCO |
| CST20179ES | CASCO |
| CST20179GS | CASCO |
| CST20179OS | CASCO |
| CST20179RS | CASCO |
| DRS0142 | DELCO |
| F032114526 | CARGO |
| LRS02315 | LUCAS |
| LRS2315 | LUCAS |
| RNLS14-410J | RNL |
| S114-410 | HITACHI |
| S13470 | HITACHI |
| S13-470C | HITACHI |
| S13470D | HITACHI |
| S14-410 | HITACHI |
| S14-410A | HITACHI |
| S14-410B | HITACHI |
| S14-410C | HITACHI |
| S14410D | HITACHI |
| S14-410E | HITACHI |
| S14-410F | HITACHI |
| S14-410G | HITACHI |
| S14-410J | HITACHI |
| S14410R | HITACHI |
| S149.011 | PSH |
| S149.075 | PSH |
| S2066 | AS-PL |
| SS733 | SOVEREIGN |
| STR3131 | ELECTROLOG |
| STR3133 | ELECTROLOG |
| STR72110 | WOODAUTO |
| STX201284 | STARDAX |
| STX201284R | STARDAX |
| UD12439S | AS-PL |
Video/Publications
