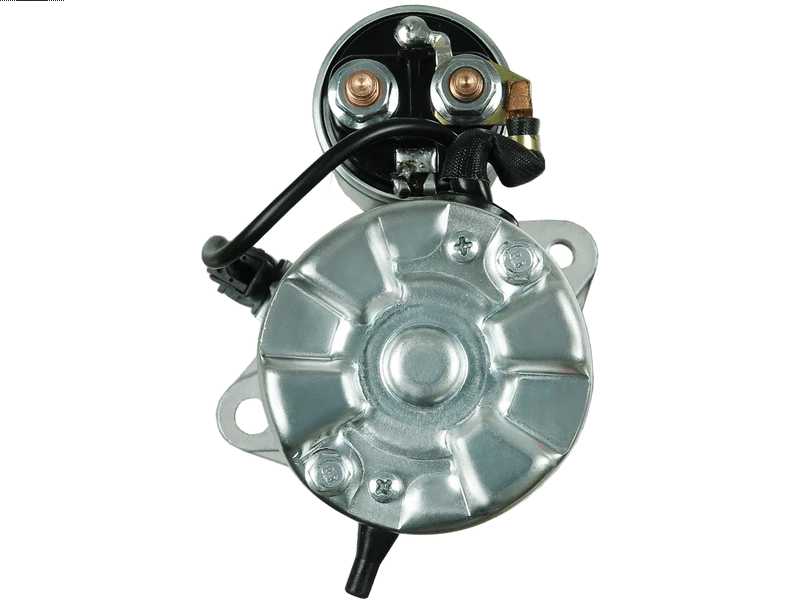

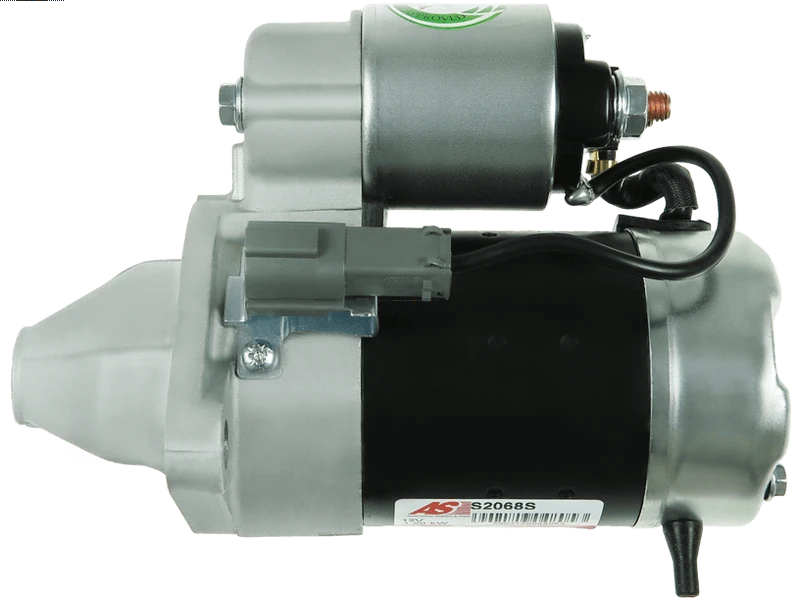

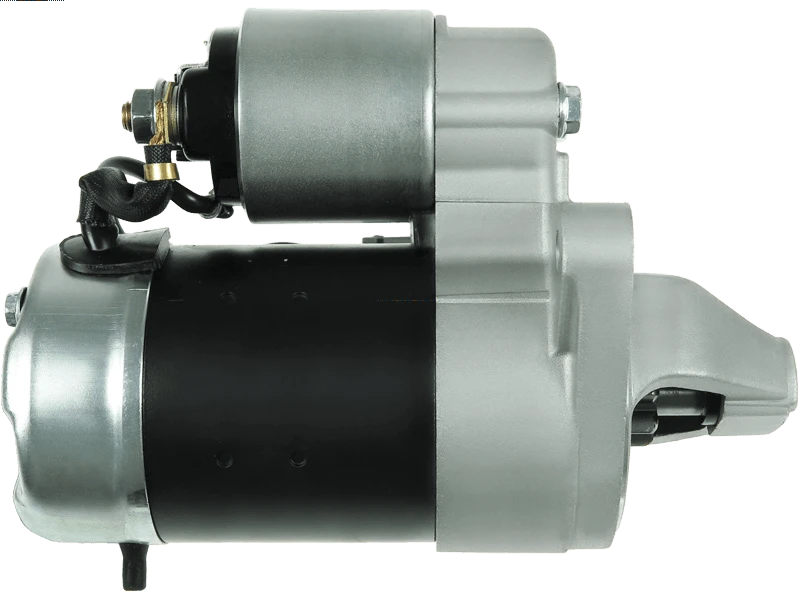

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 256.51 including GST
NZ$ 223.05 excluding GST
or four payments of $64.13
with
Learn More
each
S2068S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
S114-517Associated Numbers
0986020701 11814 160.516.082 17146N 20763 23300-77A00 23300-77A01 23300-77A11 25-1397 6020191 66925126 88212834 944280521510 9635 AET1100 CST20191 CST20191AS CST20191ES CST20191GS CST20191OS CST20191RS DENDSN951 DRS3356 EAA-111750 F042001018 HITS114-800 J5211051 LRS02043 M001T72081 M1T72081 S114-517 S114-517C STM1100 STR72040 UD13780SSpecifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 193 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | 12 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 70 mm |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| NISSAN | Sunny 1.4 LX | [GA14S] | 01.1989-08.1991 |
| NISSAN | Sunny 1.4 LX | [GA14S] | 10.1988-08.1991 |
Reference Information
| 003-D170 | ASHIKA |
| 0986020701 | BOSCH |
| 11814 | EAI |
| 160.516.082 | PSH |
| 17146N | WAI / TRANSPO |
| 20763 | KUHNER |
| 220197 | ERA |
| 23300-77A00 | NISSAN |
| 23300-77A01 | NISSAN |
| 23300-77A11 | NISSAN |
| 25-1397 | ELSTOCK |
| 335613 | LOGISTIK |
| 3D170 | JAPKO |
| 6020191 | SANDO |
| 66925126 | PRESTOLITE |
| 88212834 | POWERMAX |
| 944280521510 | MAGNETI MARELLI |
| 9635 | CEVAM |
| AET1100 | AUTOELECTRO |
| ANM15576X | ANDEL |
| CST20191 | CASCO |
| CST20191AS | CASCO |
| CST20191ES | CASCO |
| CST20191GS | CASCO |
| CST20191OS | CASCO |
| CST20191RS | CASCO |
| DENDSN951 | WOODAUTO |
| DRS3356 | DELCO |
| DSN951 | DENSO |
| F042001018 | BOSCH |
| HITS114-800 | WOODAUTO |
| J5211051 | HERTH+BUSS |
| LRS02043 | LUCAS |
| LRS2043 | LUCAS |
| M001T72081 | MITSUBISHI |
| M1T72081 | MITSUBISHI |
| MTD170 | JAPANPARTS |
| S114-517 | HITACHI |
| S114-517C | HITACHI |
| STM1100 | KRAUF |
| STM696 | ROLLCO |
| STM753 | ROLLCO |
| STR3008 | ELECTROLOG |
| STR72040 | WOODAUTO |
| STRF717 | 3EFFE |
| UD13780S | AS-PL |
Video/Publications
