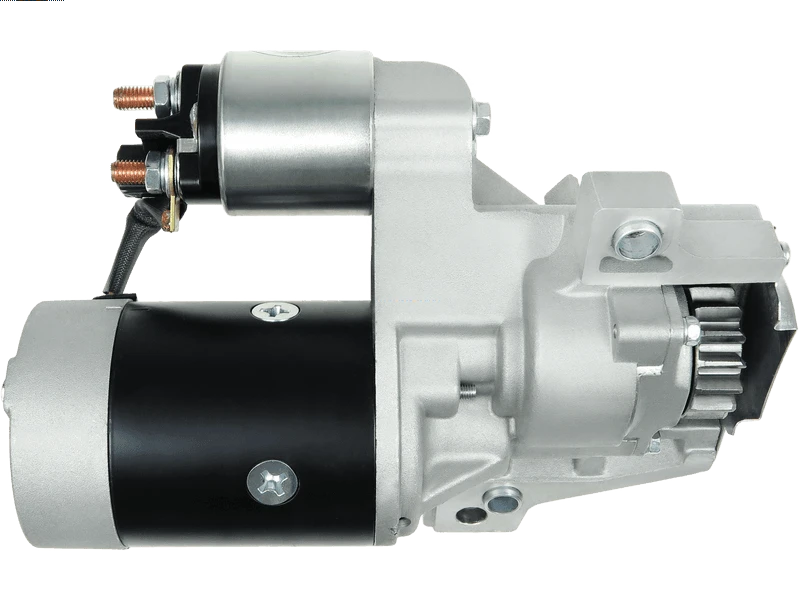

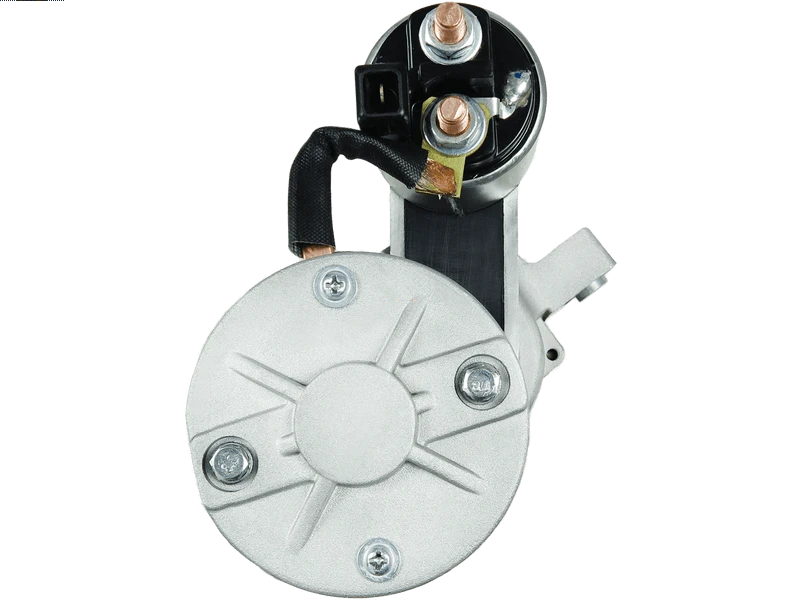

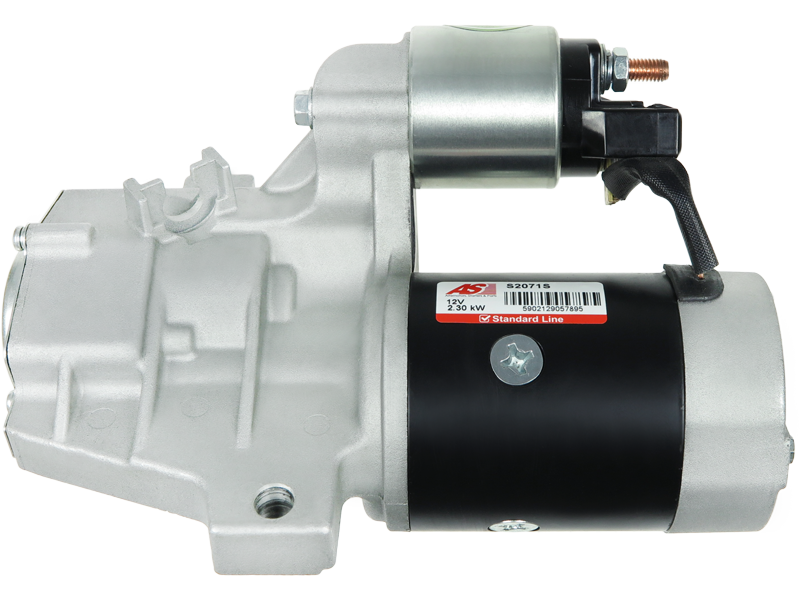

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 507.24 including GST
NZ$ 441.08 excluding GST
or four payments of $126.81
with
Learn More
each
S2071S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
S13-250Associated Numbers
0986025950 09A911023A 09A911023B 101390 101390H 1118212 12233 136907 220340 25-2400 2506907 300.540.152 3093 32465N 32465R 6020168 88212714 8EA738258-161 944280800900 AEY1465 CS1390 CST20168 CST20168AS CST20168ES CST20168GS CST20168OS CST20168RS DENDSN958 DRS0463 DSN958 EAA-141002 HITS13-250 LRS01465 S-80296 S13-250 S13-550 STH1390 STR72109 UD13985S YM21-11000-GASpecifications
| Kilowatt | 2.30 kW |
| Length (L.1) | 239 mm |
| Mount Hole Center - Center (O.1) | 15 mm |
| Mount Hole Center - Center (O.2) | 143 mm |
| Mount Hole Center - Center (O.3) | 130 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| Mount Hole Diameter (C.3) | 10.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 15 qty |
| OEM Product | No |
| Pinion at Rest (B) | 37 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A3 1.9 TDi | [ASZ] | 01.2000-12.2003 |
| AUDI | A3 1.9 TDi Quattro | [ASZ] | 01.2000-12.2003 |
| FORD | Galaxy 1.9 TDi | [AUY] | 01.2000-12.2006 |
| SEAT | Alhambra 1.9 TDi | [AUY] | 01.2000-12.2010 |
| SEAT | Alhambra 1.9 TDi | [BVK] | 01.2000-12.2010 |
| SEAT | Alhambra 1.9 TDi 4-Motion | [AUY] | 01.2000-12.2010 |
| SEAT | Alhambra 1.9 TDi 4-Motion | [BVK] | 01.2000-12.2010 |
| VW | Golf IV 1.9 TDi | [ASZ] | 01.2001-12.2004 |
| VW | Golf IV 1.9 TDi | [ATD] | 01.2000-12.2005 |
| VW | Golf IV 1.9 TDi | [AXR] | 01.2000-12.2005 |
| VW | Sharan 1.9 TDi | [AUY] | 01.2000- |
Reference Information
| 0986025950 | BOSCH |
| 09A911023A | VW |
| 09A911023B | VW |
| 09A911023BX | VW |
| 101390 | KUHNER |
| 101390H | KUHNER |
| 1118212 | FORD |
| 12233 | EAI |
| 136907 | HITACHI |
| 220340 | ERA |
| 2506907 | HITACHI |
| 25-2400 | ELSTOCK |
| 300.540.152 | PSH |
| 3093 | CEVAM |
| 32465N | WAI / TRANSPO |
| 32465R | WAI / TRANSPO |
| 335534 | LOGISTIK |
| 42025950 | HERTH+BUSS |
| 6020168 | SANDO |
| 8080090 | FRIESEN |
| 88212714 | POWERMAX |
| 8EA738258-161 | HELLA |
| 944280800900 | MAGNETI MARELLI |
| AEY1465 | AUTOELECTRO |
| ANM12683X | ANDEL |
| CS1390 | HC PARTS |
| CST20168 | CASCO |
| CST20168AS | CASCO |
| CST20168ES | CASCO |
| CST20168GS | CASCO |
| CST20168OS | CASCO |
| CST20168RS | CASCO |
| DENDSN958 | WOODAUTO |
| DRS0463 | DELCO |
| DSN958 | DENSO |
| HITS13-250 | WOODAUTO |
| LRS01465 | LUCAS |
| LRS1465 | LUCAS |
| MAV221680 | SIOM |
| RNLS13-250 | RNL |
| S132.271 | PSH |
| S13-250 | HITACHI |
| S13-550 | HITACHI |
| S145.241 | PSH |
| S2071S | AS-PL |
| S-80296 | DIXIE |
| STH1390 | KRAUF |
| STR3210 | ELECTROLOG |
| STR72109 | WOODAUTO |
| STRF032 | 3EFFE |
| STX200420 | STARDAX |
| UD13985S | AS-PL |
| YM21-11000-GA | FORD |
Video/Publications
