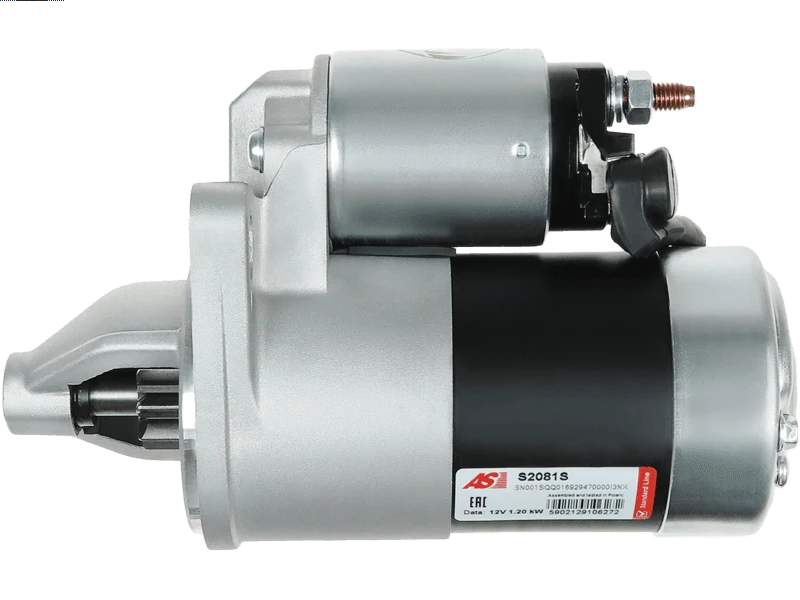

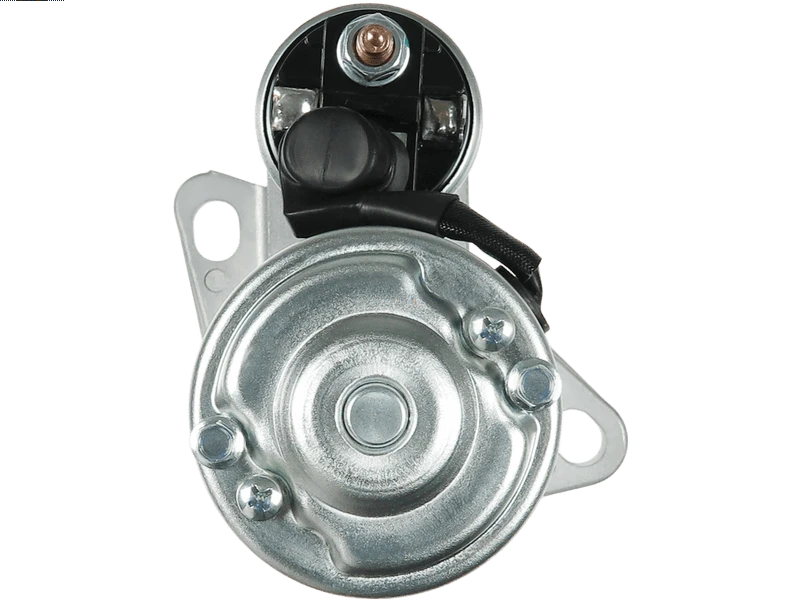

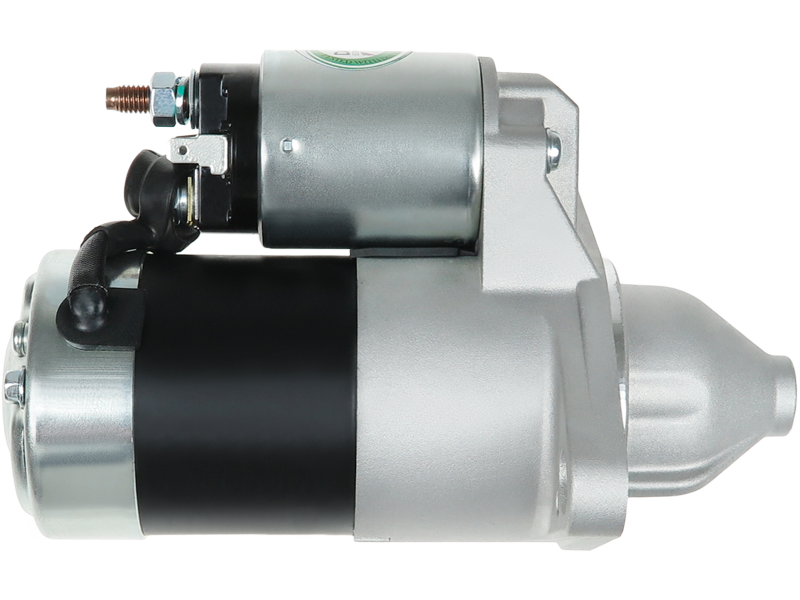

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 257.39 including GST
NZ$ 223.82 excluding GST
or four payments of $64.35
with
Learn More
each
S0716S
S2081S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
S114-381Associated Numbers
0001107078 063521070780 0986022480 104-10197 110552 112293 17300N 17300R 185086321 185086610 20445511 20513015 20737 20737B 220090 243-12120 25-2094 6020115 700.502.092 8746 88213145 8EA730278-001 91-25-1077 91-25-1077N AEY1321 CST20115 CST20115AS CST20115ES CST20115GS CST20115OS CST20115RS DRS3703 DS4813 JS737 LRS01321 MSN2016 S-8328 S114-381 SG0366 STB0737 STH0737 STM557 STN0737 STR23007 UD20467S
U85086711
Specifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 207.50 mm |
| Mount Hole Center - Center (O.1) | 107 mm |
| Mount Hole Diameter (C.1) | 12.50 mm |
| Mount Hole Diameter (C.2) | 12.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 19 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | 1310 | [3-58] | 01.1983-12.1986 |
| FORD | 1510 | [3-68] | 01.1983-12.1986 |
| FORD | 1510 | [3-85] | 01.1983-12.1986 |
| FORD | CL25 | 01.1983-12.1986 | |
| JCB | 8014 | [103-10] | 01.1995-12.1998 |
| JCB | 8014 | [103-10] | 01.1998-12.2007 |
| JCB | 8015 | [103-10] | 01.1995-12.1998 |
| JCB | 8015 | [103-10] | 01.1998-12.2007 |
| JCB | 8016 | [103-10] | 01.1995-12.1998 |
| JCB | 8016 | [103-10] | 01.1998-12.2007 |
| JCB | 8017 | [103-10] | 01.1998-12.2007 |
| JCB | 8018 | [103-10] | 01.1998-12.2007 |
| NEW HOLLAND | 1310 | [3-58] | 01.1983-12.1986 |
| NEW HOLLAND | 1510 | [3-68] | 01.1983-12.1986 |
| NEW HOLLAND | CL25 | 01.1983-12.1986 | |
| PERKINS | Engine | [103-10] | |
| PERKINS | Engine | [403D-11] |
Reference Information
| 0001107078 | BOSCH |
| 02630500 | JCB |
| 063521070780 | MAGNETI MARELLI |
| 0986022480 | BOSCH |
| 104-10197 | ROBERT'S |
| 110552 | CARGO |
| 112293 | CARGO |
| 1387454 | CATERPILLAR |
| 17300N | WAI / TRANSPO |
| 17300R | WAI / TRANSPO |
| 185086321 | FORD |
| 18508661 | PERKINS |
| 185086610 | FORD |
| 18508662 | PERKINS |
| 185-2166 | ONAN |
| 20445511 | REAL |
| 20513015 | PRESTOLITE |
| 20737 | KUHNER |
| 20737B | KUHNER |
| 220090 | ERA |
| 243-12120 | DIXIE |
| 25-2094 | ELSTOCK |
| 3582514 | VOLVO |
| 6020115 | SANDO |
| 700.502.092 | PSH |
| 71436700 | JCB |
| 714/36700 | JCB |
| 8746 | CEVAM |
| 88213145 | POWERMAX |
| 8EA730278-001 | HELLA |
| 91-25-1077 | WILSON |
| 91-25-1077N | WILSON |
| AEY1321 | AUTOELECTRO |
| CGB-43810 | AINDE |
| CST20115 | CASCO |
| CST20115AS | CASCO |
| CST20115ES | CASCO |
| CST20115GS | CASCO |
| CST20115OS | CASCO |
| CST20115RS | CASCO |
| DRS3703 | DELCO |
| DS4813 | DELCO |
| F032110552 | CARGO |
| F032112293 | CARGO |
| JS737 | HC PARTS |
| LRS01321 | LUCAS |
| LRS1321 | LUCAS |
| MAV122630 | SIOM |
| MAV221150 | SIOM |
| MSN2016 | MAGNETI MARELLI |
| PRSS031 | 3EFFE |
| S114-381 | HITACHI |
| S12BH0794A2 | SIDAT |
| S134.940 | PSH |
| S145.628 | PSH |
| S2081S | AS-PL |
| S-8328 | DIXIE |
| SG0366 | GHIBAUDI |
| STB0737 | KRAUF |
| STH0737 | KRAUF |
| STM557 | ROLLCO |
| STN0737 | KRAUF |
| STR23007 | WOODAUTO |
| STR3262 | ELECTROLOG |
| STRS031 | 3EFFE |
| U5MK8259 | PERKINS |
| UD20467S | AS-PL |
