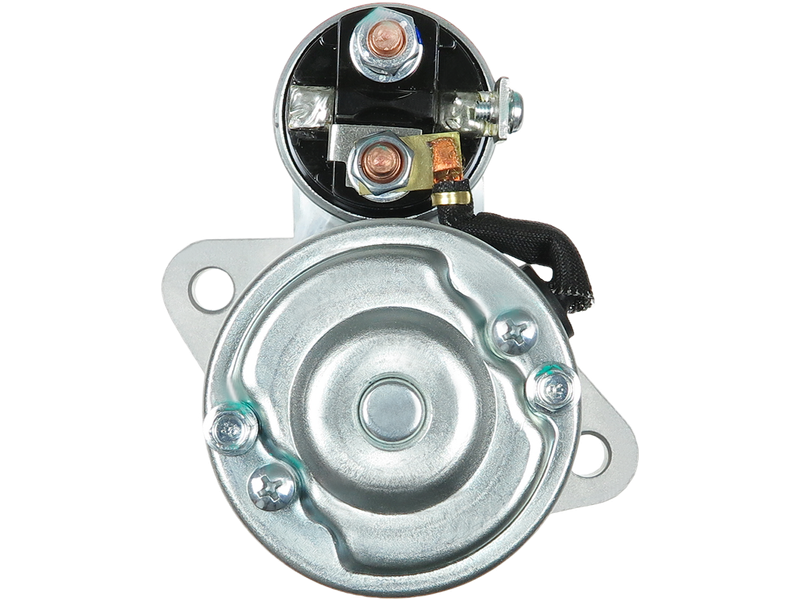

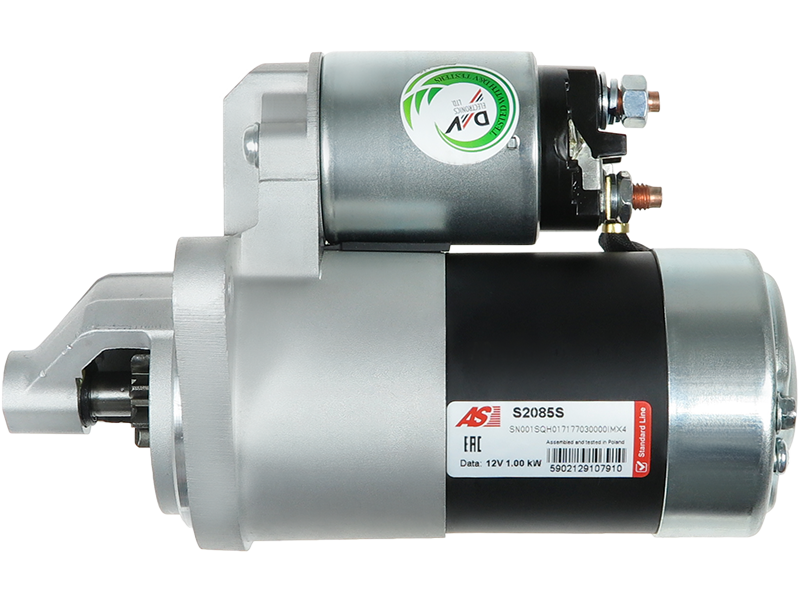

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 251.07 including GST
NZ$ 218.32 excluding GST
or four payments of $62.77
with
Learn More
each
S2085S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
S114-303Associated Numbers
104-10211 111706 128170-77010 128170-77010D 18209N 18209R 201145 201145V 20445831 243-12124 25-1081 71-25-18209 8531 88212343 8EA737-681-001 91-25-1103 980.520.092 JS1145 LRS01128 S114-303A STH1145 STR23018 UD20458SSpecifications
| Kilowatt | 1 kW |
| Length (L.1) | 207 mm |
| Mount Hole Center - Center (O.1) | 109.50 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 17 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 70 mm |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| YANMAR | 1GM 0.3 | 01.1980-12.1984 | |
| YANMAR | 1GM10 0.3 | 01.1984- | |
| YANMAR | 2GM | 01.1980-12.1984 | |
| YANMAR | 2GM20 | 01.1984- | |
| YANMAR | 2GM20-F | 01.1984- | |
| YANMAR | 2GM-F | 01.1980-12.1984 | |
| YANMAR | 3GM | 01.1980-12.1984 | |
| YANMAR | 3GM30 | 01.1984- | |
| YANMAR | 3GM30-F | 01.1984- | |
| YANMAR | 3GM-F | 01.1980-12.1984 |
Reference Information
| 104-10211 | ROBERT'S |
| 111706 | CARGO |
| 128170-77010 | YANMAR |
| 128170-77010D | YANMAR |
| 18209N | WAI / TRANSPO |
| 18209R | WAI / TRANSPO |
| 201145 | KUHNER |
| 201145V | KUHNER |
| 20445831 | REAL |
| 243-12124 | DIXIE |
| 25-1081 | ELSTOCK |
| 71-25-18209 | WILSON |
| 8531 | CEVAM |
| 88212343 | POWERMAX |
| 8EA737-681-001 | HELLA |
| 91-25-1103 | WILSON |
| 980.520.092 | PSH |
| 980.520.092.461 | PSH |
| CGB-23203 | AINDE |
| F032111706 | CARGO |
| JS1145 | HC PARTS |
| LRS01128 | LUCAS |
| LRS1128 | LUCAS |
| MAV221380 | SIOM |
| S114-303 | HITACHI |
| S114-303A | HITACHI |
| S136.289 | PSH |
| S145.746 | PSH |
| S2085S | AS-PL |
| STH1145 | KRAUF |
| STR23018 | WOODAUTO |
| STR3240 | ELECTROLOG |
| STRL195 | 3EFFE |
| UD20458S | AS-PL |
