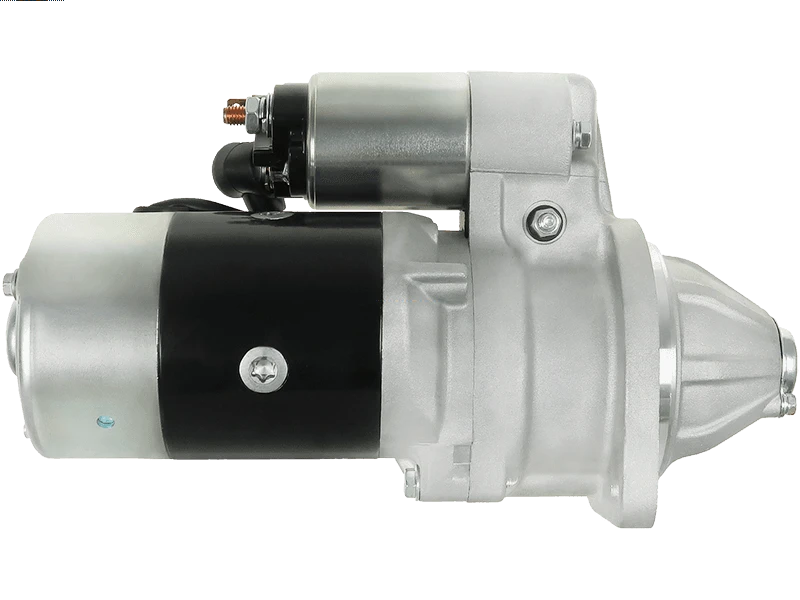

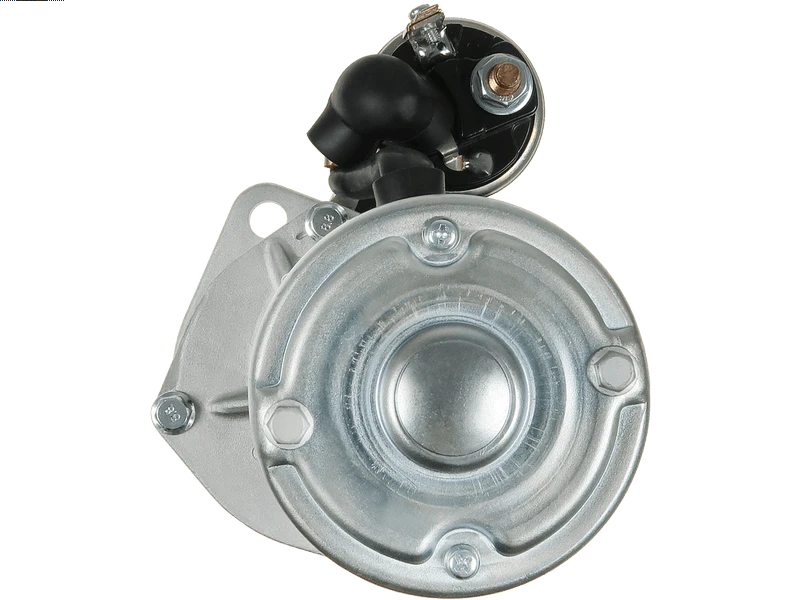

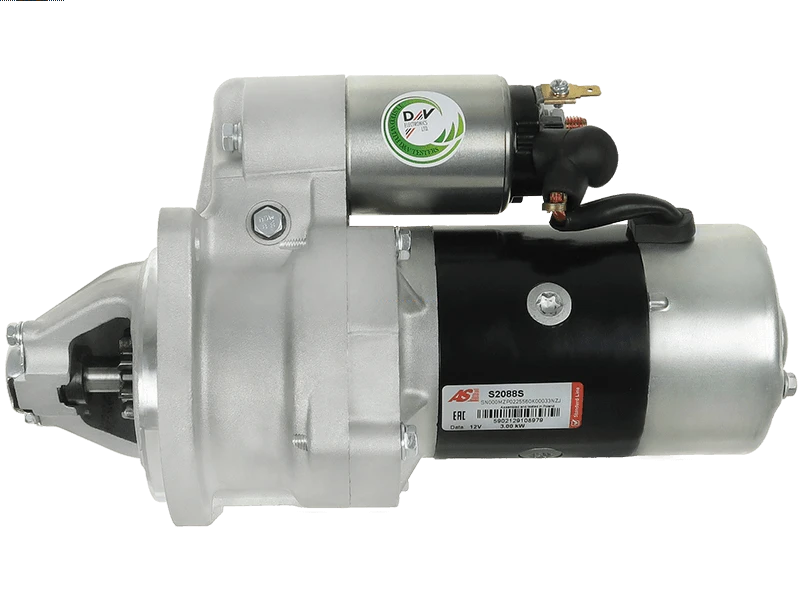

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 509.62 including GST
NZ$ 443.15 excluding GST
or four payments of $127.41
with
Learn More
each
S2088S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
S13-138Associated Numbers
112672 129953-77010 129953-77019 19694N 20445551BN 20445551OE 220701 240-30101 25-3177 6020155.0 6020155.1 8141 91-25-1180 980.517.092 CST20155AS CST20155GS DRS0795 HITS13-138 LRS01643 S-80174 S13-138 STH2672 UD13635SSpecifications
| Kilowatt | 3 kW |
| Length (L.1) | 292 mm |
| Mount Hole Center - Center (O.1) | 119.50 mm |
| Mount Hole Diameter (C.1) | 13 mm |
| Mount Hole Diameter (C.2) | 13 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 20 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 95 mm |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| YANMAR | Engine | [3TG66] | |
| YANMAR | Engine | [4TNE98] | 01.1996- |
Reference Information
| 112672 | CARGO |
| 116144 | CARGO |
| 129953-77010 | YANMAR |
| 129953-77019 | YANMAR |
| 136944 | HITACHI |
| 19694N | WAI / TRANSPO |
| 20445551BN | REAL |
| 20445551OE | REAL |
| 220701 | ERA |
| 240-30101 | DIXIE |
| 2506944 | HITACHI |
| 25-3177 | ELSTOCK |
| 336246 | LOGISTIK |
| 5020691 | MEAT & DORIA |
| 6020155.0 | SANDO |
| 6020155.1 | SANDO |
| 8141 | CEVAM |
| 91-25-1180 | WILSON |
| 980.517.092 | PSH |
| CGB-23068 | AINDE |
| CST20155AS | CASCO |
| CST20155GS | CASCO |
| DRS0795 | DELCO |
| F032112672 | CARGO |
| F032116144 | CARGO |
| HITS13-138 | WOODAUTO |
| HST13138A | HITACHI |
| LRS01643 | LUCAS |
| LRS1643 | LUCAS |
| MAV221550 | SIOM |
| S12HT0508A2 | SIDAT |
| S13-138 | HITACHI |
| S13138A | HITACHI |
| S13-138A | HITACHI |
| S2088S | AS-PL |
| S-80174 | DIXIE |
| STH2672 | KRAUF |
| STR3046 | ELECTROLOG |
| UD13635S | AS-PL |
Video/Publications
