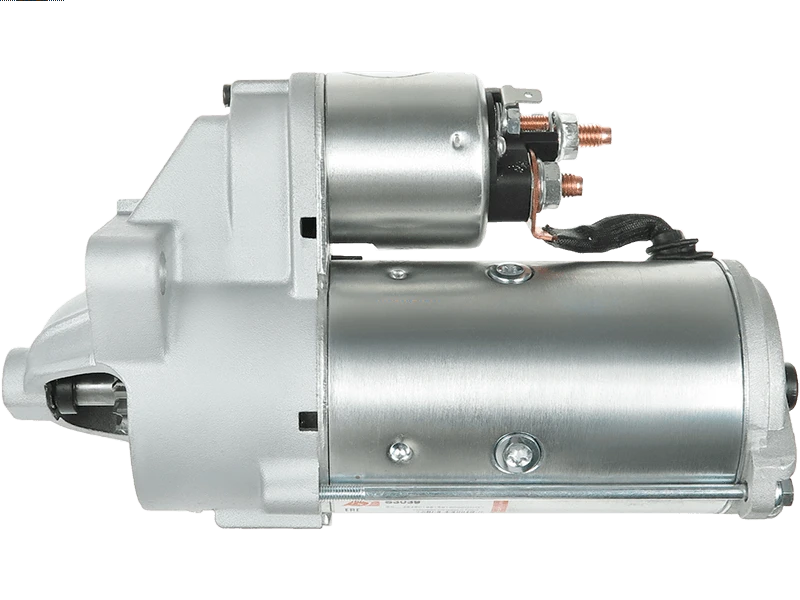

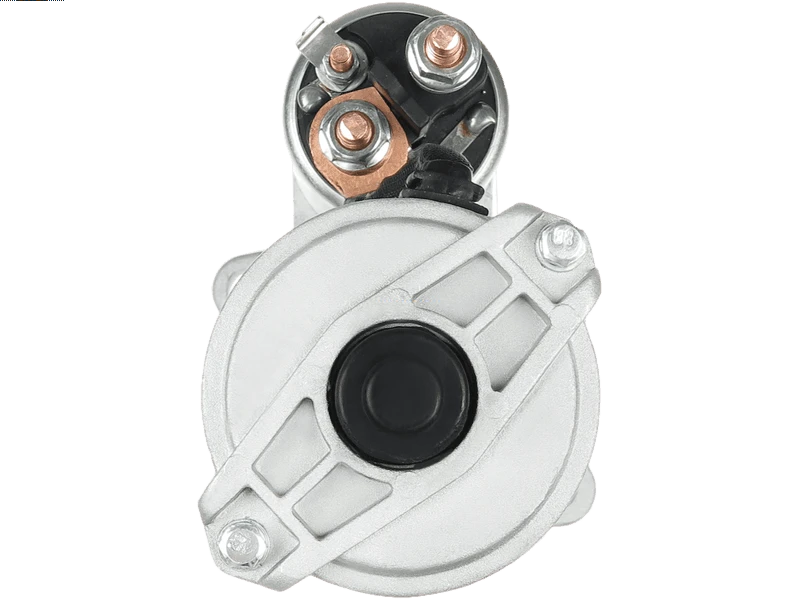

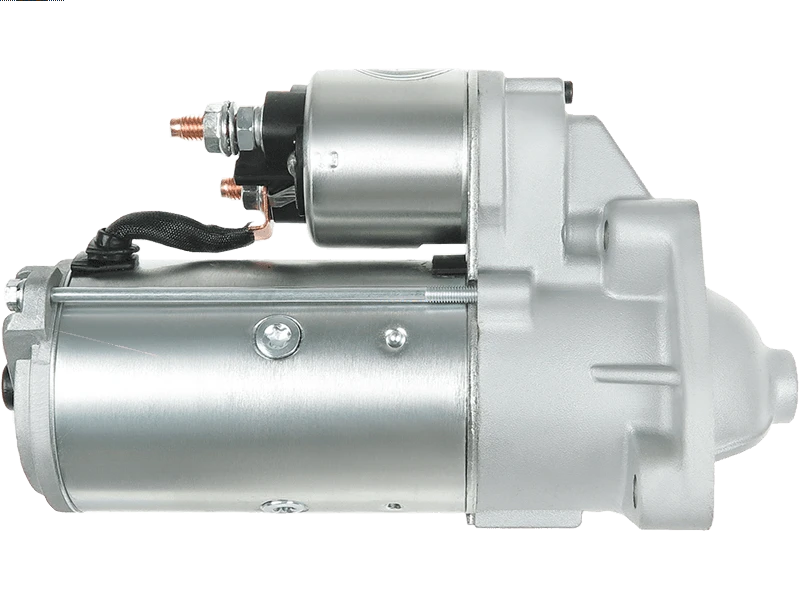

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 283.67 including GST
NZ$ 246.67 excluding GST
or four payments of $70.92
with
Learn More
UOM:
each
Product Code:
S3039
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
D7R40Associated Numbers
0986020121 101263 101263V 113256 12029 188839 20479791OE 20479791RC 22.1263 25-3289 3081 32741N 438088 4402602 4502489 455957 570.521.113 6015197 7000315522 7700315522 7711134603 8020121 8212889 8EA738024-001 9110602 93174341 CS1263 CST15197GS CST15197RS D7R40 DRS0114 EAA-121349 LRS01732 STR54100Specifications
| Kilowatt | 2 kW |
| Length (L.1) | 238 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Center - Center (O.2) | 73 mm |
| Mount Hole Center - Center (O.3) | 65 mm |
| Mount Hole Diameter (C.1) | 12 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | -1 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 71 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Movano 1.9 DTi | [F9Q770] | 09.2000- |
| OPEL | MOVANO A Bus (X70) 1.9 DTI (JD) | F9Q770 | 09.2000-10.2001 |
| OPEL | MOVANO A Bus (X70) 1.9 DTI (JD) | F9Q772 | 10.2001- |
| OPEL | MOVANO A Bus (X70) 1.9 DTI (JD) | F9Q774 | 10.2001- |
| OPEL | MOVANO A Van (X70) 1.9 DTI (FD) | F9Q770 | 09.2000-10.2001 |
| OPEL | MOVANO A Van (X70) 1.9 DTI (FD) | F9Q772 | 10.2001- |
| OPEL | MOVANO A Van (X70) 1.9 DTI (FD) | F9Q774 | 10.2001- |
| RENAULT | CLIO II (BB_, CB_) 1.9 dTi (B/CB0U) | F9Q780 | 12.1999-05.2005 |
| RENAULT | CLIO II (BB_, CB_) 1.9 dTi (B/CB0U) | F9Q782 | 12.1999-05.2005 |
| RENAULT | Master 1.9 dTi | [F9Q770] | 09.2000- |
| RENAULT | MASTER II Bus (JD) 1.9 dTI (JD0L, JD1L) | F9Q770 | 12.1997-03.2002 |
| RENAULT | MASTER II Van (FD) 1.9 dTI (FD0L) | F9Q770 | 12.1997-03.2002 |
| VAUXHALL | Movano 1.9 DTi | [F9Q770] | 09.2000-10.2001 |
| VAUXHALL | MOVANO Mk I (A) Van (X70) 1.9 DTI (FD) | F9Q770 | 09.2000-10.2001 |
Reference Information
| 0986020121 | BOSCH |
| 101263 | KUHNER |
| 101263V | KUHNER |
| 113256 | CARGO |
| 12029 | EAI |
| 188839 | VALEO |
| 20479791OE | REAL |
| 20479791RC | REAL |
| 22.1263 | LAUBER |
| 25-3289 | ELSTOCK |
| 3081 | CEVAM |
| 32741N | WAI |
| 331388 | LOGISTIK |
| 438088 | VALEO |
| 4402602 | OPEL |
| 4502489 | OPEL |
| 455957 | VALEO |
| 570.521.113 | WAI |
| 570.521.113.008 | WAI |
| 570.521.113.608 | WAI |
| 6015197 | SANDO |
| 7000315522 | RENAULT |
| 7700315522 | RENAULT |
| 7711134603 | RENAULT |
| 8020121 | FRIESEN |
| 8212889 | POWERMAX |
| 8EA738024-001 | HELLA |
| 9110602 | OPEL |
| 911602 | OPEL |
| 93174341 | OPEL |
| 93174342 | OPEL |
| 9512675 | OPEL |
| ANM12334X | ANDEL |
| CS1263 | HC PARTS |
| CST15197GS | CASCO |
| CST15197RS | CASCO |
| D7R40 | VALEO |
| DRS0114 | DELCO |
| F032113256 | CARGO |
| LRS01732 | LUCAS |
| LRS1732 | LUCAS |
| MAV171970 | SIOM |
| S133.797 | WAI |
| S3039 | AS-PL |
| STR00017 | ELECTROLOG |
| STR54100 | WOODAUTO |
| STRW413 | 3EFFE |
| STX200325 | STARDAX |
| STX200325R | STARDAX |
Video/Publications
