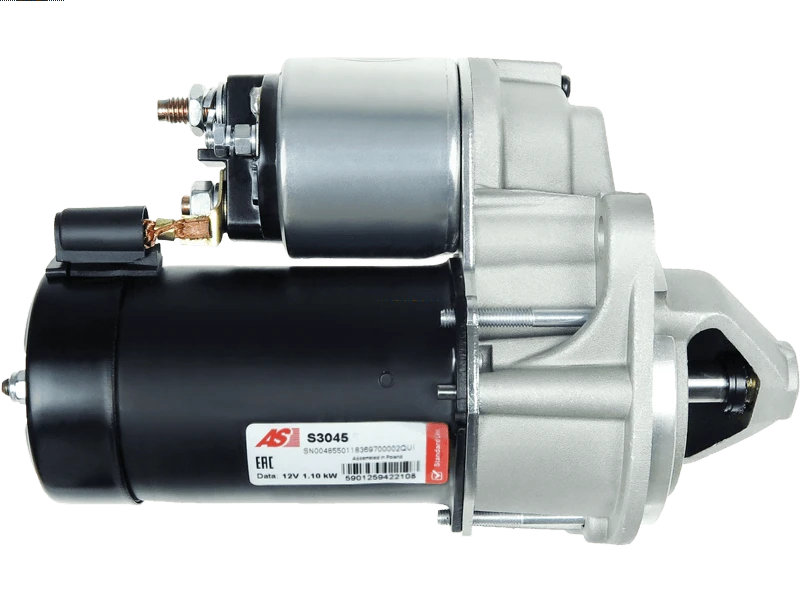

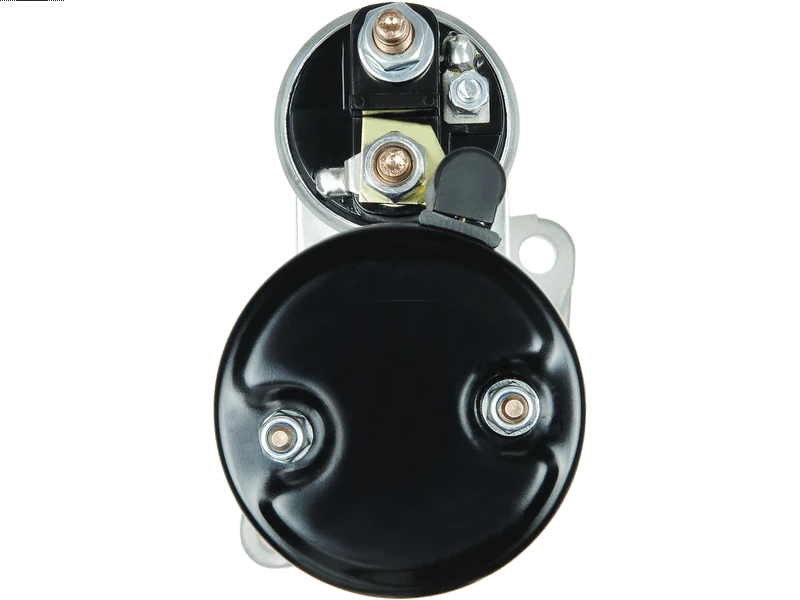

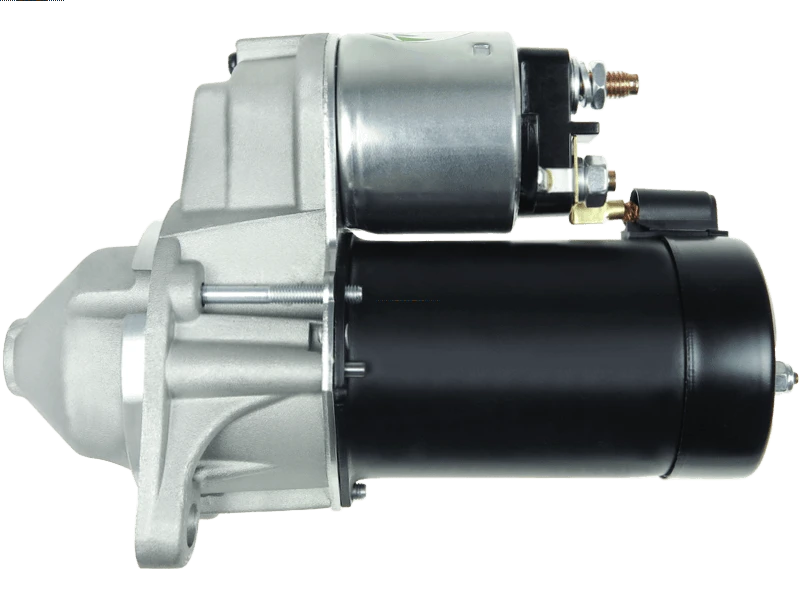

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 160.02 including GST
NZ$ 139.15 excluding GST
or four payments of $40.01
with
Learn More
each
S0312
S3045
3
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
D6RA52Associated Numbers
0001107033 0001107062 0001108129 0986019040 10807 10807B 10807M 111015 22.0807 22.0807M 25-1225 254169 254169B 254169M 254567 254567B 455634 594085 8EA732894-001 AEY1190 CS807 D6RA22 D6RA52 DRS8110 DRS9040 EAA-121048 IS1279 LRS01190 ND140 S3045 STR33001 70-2724 Bosch show 0001107051 0001107085 0001107089 01107062 Andre Niermann 03045738 KHD 063521070620 Magneti Marelli ruil 11019040 EuroTec Cargo 11131928 Mahle 11862 EAI 120331A PIC 12850029 12851306 186215 Valeo 19668 Lester 19669 19670 231117 251225 Elstock 4141SP Spidan 5411656334 58101330 Lombardini 5840133 58401330 5840194 58401940 5999999853 688013092 DRI 690503092 PSH 72736083 8019040F Friesen 8EA732894001 Hella 919040 EDR A19040 ATL AZD2127 BX107062 (USA) HC DEMR214 ADI Remy HCS807 Lucas MS455 SR5034N STR1428sa Electrolog ARROWHEAD 410-24260 SBO0279 BOSCH J&N ELECTRICAL PRODUCTS 410-24156 LESTER MAHLE IMI118-003 BOSCH0001107033 0-001-107-033 0-001-107-062 0-986-019-040 DEUTZ LETRIKA/ISKRA IS 1279 LOMBARDINI LUCAS ELECTRIC SCHAEFF INC 702724 AIM SB-00424R Arrowhead 0-001-107-051 Service Europe Delco Reman Dixie Electric Ltd S-6247 New 243-14109 CARGO IAT S107062 Industry 410-24261 Khd 1285-1306 120-331A (Old) 120-224 Romaine 19669N SEG Automotive 0001.107.051 0001.107.120 Standard Starter Drive 422518 Voltux (OE Unit) V1-19669 Wagner WAI Whatcom 47221 Wilson 91-15-7161 108264A 12130242 AES 1986S00656 48212599 Artec 6010171 Sando 8019040 Auto Electro DEM101279A DEMR214A EVESBE1019 Dapex LETIS1279 Wood LRS1190 MAHMS455 MSN2014 RNL1904 RNL RNLD6RA52 S511885 BTS Turbo SEG0001107051 SG0109 Ghibaudi STR50676 VAL594085 VALD6RA52 WOOSTR33001 WOOSTR50676Specifications
| Kilowatt | 1.10 kW |
| Length (L.1) | 209 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 15 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LOMBARDINI | Various Models 0.5 Diesel | [LDW502] | 06.1989- |
| LOMBARDINI | Various Models 0.6 Diesel | [LDW602] | 06.1989- |
| LOMBARDINI | Various Models 0.9 Diesel | [LDW903] | 06.1989- |
| LOMBARDINI | Various Models 1.2 Diesel | [LDW1204] | 06.1989- |
Reference Information
| 0001107033 | BOSCH |
| 0001107062 | BOSCH |
| 0001108129 | BOSCH |
| 0986019040 | BOSCH |
| 10807 | KUHNER |
| 10807B | KUHNER |
| 10807M | KUHNER |
| 10807S | KUHNER |
| 111015 | CARGO |
| 12851306 | KHD |
| 20479192OE | REAL |
| 220087 | ERA |
| 22.0807 | LAUBER |
| 22.0807M | LAUBER |
| 25-1225 | ELSTOCK |
| 330959 | LOGISTIK |
| 455634 | VALEO |
| 5010364 | MEAT & DORIA |
| 58101330 | LOMBARDINI |
| 5840133 | LOMBARDINI |
| 5840133 | LAMBORGHINI |
| 58401330 | LOMBARDINI |
| 5840194 | LOMBARDINI |
| 58401940 | LOMBARDINI |
| 58402090 | LOMBARDINI |
| 594085 | VALEO |
| 6015291.1 | SANDO |
| 8EA732894-001 | HELLA |
| AEY1190 | AUTOELECTRO |
| CS807 | HC PARTS |
| CST15291GS | CASCO |
| D6RA22 | VALEO |
| D6RA52 | VALEO |
| DRS8110 | DELCO |
| DRS9040 | DELCO |
| F032111015 | CARGO |
| IS1279 | ISKRA / LETRIKA |
| LRS01190 | LUCAS |
| LRS1190 | LUCAS |
| MAV6520 | SIOM |
| MAV6550 | SIOM |
| MS 455 | MAHLE |
| ND140 | VALEO |
| RNLD6RA52 | RNL |
| S12BH0078A2 | SIDAT |
| S12VA0078A2 | SIDAT |
| S3045 | AS-PL |
| STR00001 | ELECTROLOG |
| STR33001 | WOODAUTO |
| STRL139 | 3EFFE |
