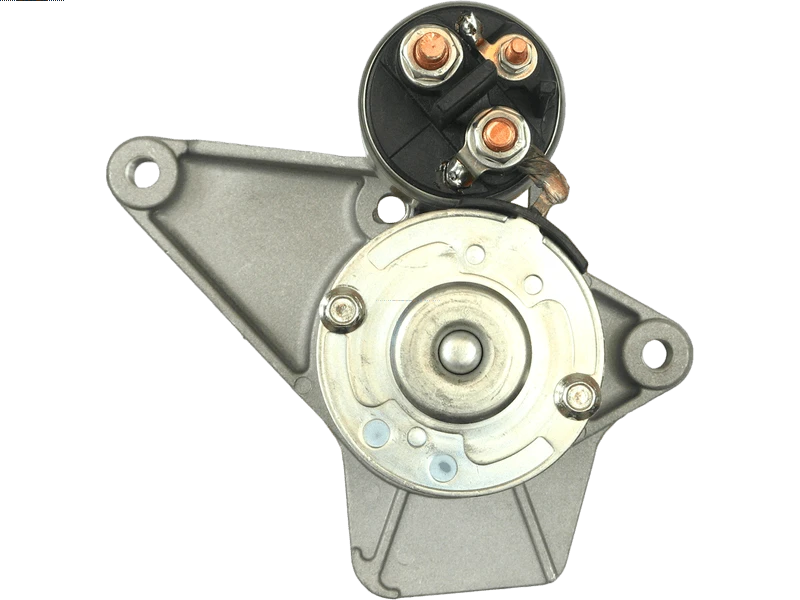

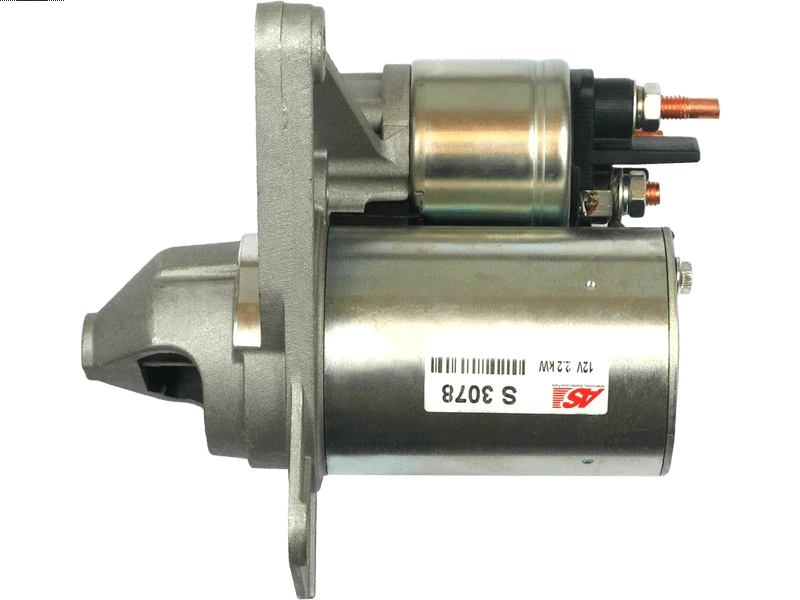

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 242.12 including GST
NZ$ 210.54 excluding GST
or four payments of $60.53
with
Learn More
each
S3078
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
FS10E10Associated Numbers
20479642OE 23300-1007X 254673 254673V 458392 6015246 CST15246GS FS10E10 S3078 STR54158Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 171 mm |
| Mount Hole Center - Center (O.1) | 70 mm |
| Mount Hole Center - Center (O.2) | 154 mm |
| Mount Hole Center - Center (O.3) | 86 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 19.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 70 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| RENAULT | Grand Scenic 1.4 16V | [H4J.7.00] | 04.2009-01.2011 |
| RENAULT | Megane 1.4 TCe | [H4J.7.00] | 04.2009- |
| RENAULT | Megane 1.4 TCe Grandtour | [H4J.7.00] | 06.2009-07.2012 |
| RENAULT | Scenic 1.4 16V | [H4J.7.00] | 02.2009- |
Reference Information
| 115685 | CARGO |
| 12200 | EAI |
| 20479642OE | REAL |
| 220525 | ERA |
| 23300-0950R | NISSAN |
| 23300-1007X | NISSAN |
| 25-4387 | ELSTOCK |
| 254673 | KUHNER |
| 254673V | KUHNER |
| 30200N | WAI / TRANSPO |
| 3084 | CEVAM |
| 42458392 | HERTH+BUSS |
| 438228 | VALEO |
| 458392 | VALEO |
| 570.560.093.000 | PSH |
| 570.560.093.500 | PSH |
| 570.560.093.505 | PSH |
| 6015246.1 | SANDO |
| 88214268 | POWERMAX |
| 8EA012140-101 | HELLA |
| A199177A | VALEO |
| CST15246GS | CASCO |
| DRS0741 | DELCO |
| DS1851 | DELCO |
| F032115685 | CARGO |
| FS10E10 | VALEO |
| FS10E10B | VALEO |
| LRS02714 | LUCAS |
| LRS2714 | LUCAS |
| PRSF226 | 3EFFE |
| RNLFS10E10 | RNL |
| S12VA0477 | SIDAT |
| S12VA0477A2 | SIDAT |
| S3078 | AS-PL |
| SG0526 | GHIBAUDI |
| STR00044 | ELECTROLOG |
| STR54158 | WOODAUTO |
| STRF226 | 3EFFE |
| STV3006 | KRAUF |
| STX201403 | STARDAX |
| VAL438228 | WOODAUTO |
Video/Publications
