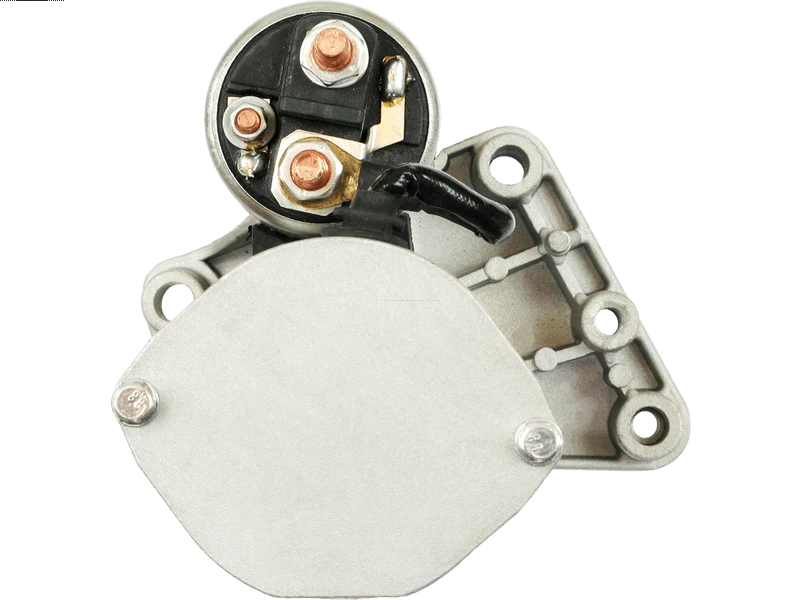

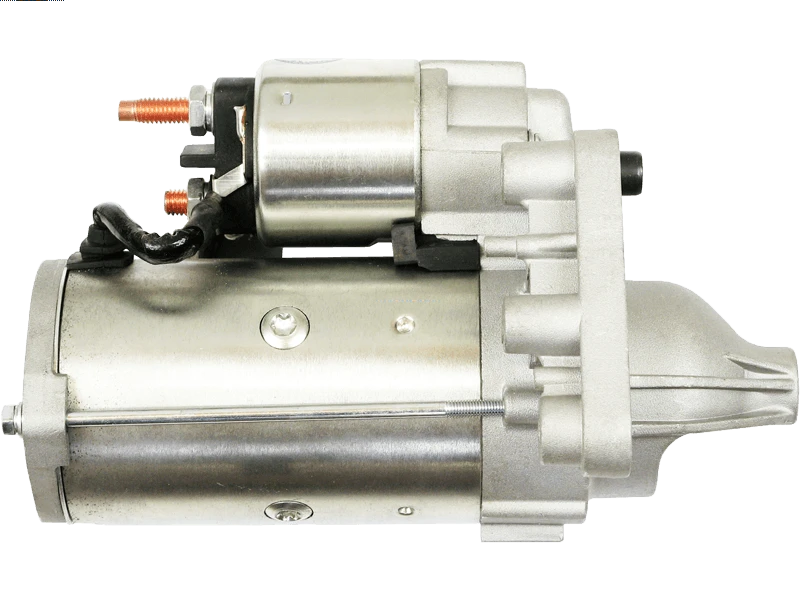

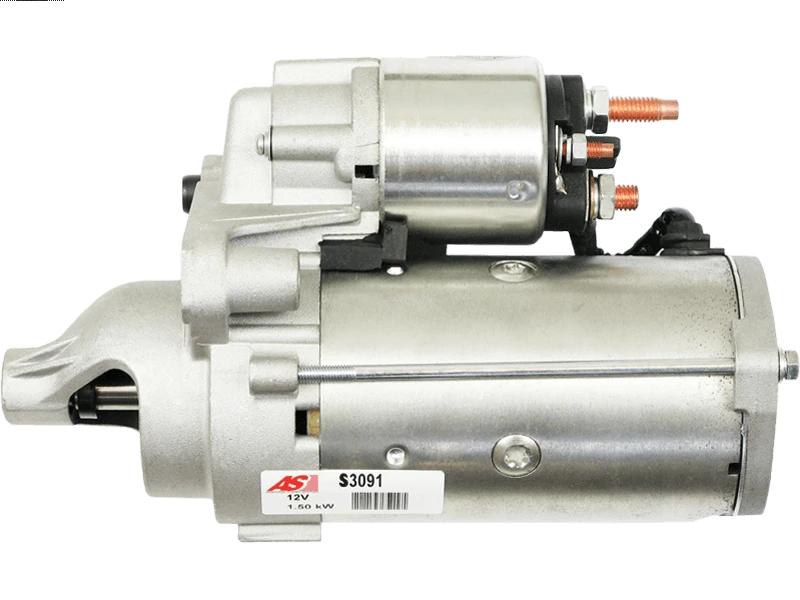

S3091 - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S3091
Price: 318.22 NZD
Availability: BackOrder

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

VALEO

Price:

NZ$ 318.22 including GST

NZ$ 276.71 excluding GST

or four payments of $79.56 with
Learn More

UOM:

each

Product Code:

S3091

Quantity In Stock Nationally:

No stock in NZ - Call us for possible procurement options

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Information
Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications

TS18E13

0986022790 101329M 101329V 113933 11997 12417803514 190895 220.524.113 220429 25-3296 28100-YV020 3105 32737N 438166 458185 495107 5802AA 5802EG 5802Z8 5802Z9 5802ZB 6.0155.9 6015215 6035246 88212646 8EA011610-981 8EA738198-001 943213291010 944280801170 9645100680 9662854080 9663528880 9801667780 AEX1299 CS1329 CST15215 CST15215AS CST15215ES CST15215GS CST15215OS CST15215RS CST35246 CST35246AS CST35246ES CST35246GS CST35246OS CST35246RS D7G3 DRS3976 EAA-121365 G201329MI-R GS438166-A LRS01737 M000T22471 M000T22473 M0T22471 M0T22473 RAS34087 S3091 STM1329 STR54044 STV1329 TS18E13 UD01488S VAL438166

Kilowatt	1.50 kW
Length (L.1)	218 mm
Mount Hole Center - Center (O.1)	123.50 mm
Mount Hole Center - Center (O.2)	29 mm
Mount Hole Center - Center (O.3)	46.50 mm
Mount Hole Center - Center (O.4)	91 mm
Mount Hole Diameter (C.1)	9.50 mm
Mount Hole Diameter (C.2)	M8x1.25 mm
Mount Hole Diameter (C.3)	M8x1.25 mm
Mount Hole Diameter (C.4)	9.50 mm
No./Mount holes	4 qty
No./Mount holes with thread	2 qty
No./Teeth	11 qty
No./Teeth (Replaces)	11.12 qty
OEM Product	No
Pinion at Rest (B)	16.50 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Unit Type	VALEO
Voltage	12 V

Make	Model	Type	Year
CITROEN	Berlingo 1.6 BlueHDi 100	[BHY(DV6FD)]	12.2014-
CITROEN	Berlingo 1.6 BlueHDi 120	[BHZ(DV6FC)]	12.2014-
CITROEN	Berlingo 1.6 HDi	[9HL(DV6C)]	07.2010-
CITROEN	Berlingo 1.6 HDi	[9HR(DV6C)]	07.2010-
CITROEN	Berlingo 1.6 HDi 110	[9HL(DV6C)]	07.2010-
CITROEN	Berlingo 1.6 HDi 110	[9HR(DV6C)]	07.2010-
CITROEN	Berlingo 1.6 HDi 115	[9HL(DV6C)]	07.2010-
CITROEN	Berlingo 1.6 HDi 115	[9HR(DV6C)]	07.2010-
CITROEN	Berlingo 1.6 HDi 90	[9HP(DV6DTED)]	07.2010-
CITROEN	Berlingo 1.6 HDi 90	[9HX(DV6ATED4)]	07.2010-
CITROEN	Berlingo Multispace MPV 1.6 HDi 4x4	[9HF(DV6DTED)]	02.2012-
CITROEN	Berlingo Multispace MPV 1.6 HDi 4x4	[9HR(DV6C)]	02.2012-
CITROEN	Berlingo Van 1.6 HDi 4x4	[9HF(DV6DTED)]	02.2012-
CITROEN	Berlingo Van 1.6 HDi 4x4	[BHY(DV6FD)]	12.2014-
CITROEN	Berlingo Van 1.6 HDi 4x4		02.2012-
CITROEN	C1 1.4 HDi	[DV4D]	06.2005-
CITROEN	C2 1.4 HDi	[8HX(DV4TD)]	09.2003-
CITROEN	C2 1.4 HDi	[8HZ(DV4TD)]	09.2003-
CITROEN	C3 1.4 HDi	[8HR(DV4C)]	11.2009-
CITROEN	C3 1.4 HDi	[8HX(DV4TD)]	02.2002-
CITROEN	C3 1.4 HDi	[8HX(DV4TD)]	04.2004-
CITROEN	C3 1.4 HDi	[8HZ(DV4TD)]	11.2009-
CITROEN	C3 1.4 HDi 16V	[8HY(DV4TED4)]	02.2002-
CITROEN	C3 1.6 HDi	[9HP(DV6DTED)]	11.2009-
CITROEN	C3 1.6 HDi 16V	[9HX(DV6ATED4)]	10.2005-
CITROEN	C3 1.6 HDi 16V	[9HZ(DV6TED4)]	09.2005-
CITROEN	C3 Picasso 1.6 HDi110	[9HR(DV6C)]	05.2010-
CITROEN	C3 Picasso 1.6 HDi110	[9HR(DV6C)]	05.2010-
CITROEN	C3 Picasso 1.6 HDi 115	[9HD(DV6C)]	01.2013-
CITROEN	C4 1.6 BlueHDi 115	[BHX(DV6FC)]	08.2014-
CITROEN	C4 1.6 BlueHDi 120	[BHZ(DV6FC)]	02.2015-
CITROEN	C4 1.6 E-HDi 110	[9HR]	09.2010-
CITROEN	C4 1.6 HDi	[9HR(DV6C)]	11.2009-
CITROEN	C4 1.6 HDi	[9HX(DV6ATED4)]	11.2004-
CITROEN	C4 1.6 HDi	[9HY(DV6ATED4)]	11.2004-
CITROEN	C4 1.6 HDi	[9HY(DV6TED4)]	07.2006-
CITROEN	C4 1.6 HDi	[9HY(DV6TED4)]	11.2004-
CITROEN	C4 1.6 HDi	[9HZ(DV6ATED4)]	11.2004-
CITROEN	C4 1.6 HDi	[9HZ(DV6TED4)]	07.2006-
CITROEN	C4 1.6 HDi	[9HZ(DV6TED4)]	11.2004-
CITROEN	C4 1.6 HDi 110	[9HR]	09.2010-
CITROEN	C4 1.6 HDi 115	[9HC(DV6C)]	09.2013-
CITROEN	C4 1.6 HDi 115	[BHX(DV6FC)]	09.2013-
CITROEN	C4 1.6 HDi 90	[9HP(DV6DTED)]	09.2013-
CITROEN	C4 Grand Picasso 1.6 HDi	[9HY(DV6TED4)]	10.2006-
CITROEN	C4 Grand Picasso 1.6 HDi	[9HZ(DV6TED4)]	10.2006-
CITROEN	C4 Picasso 1.6 HDi	[9HY(DV6TED4)]	02.2007-
CITROEN	C4 Picasso 1.6 HDi	[9HZ(DV6TED4)]	02.2007-
CITROEN	C4 Picasso 1.6 HDi110	[9HR(DV6C)]	09.2010-
CITROEN	C4 Picasso 1.6 HDi110	[9HR(DV6C)]	09.2010-
CITROEN	C4 Picasso 1.6 HDi 110	[9HL(DV6C)]	09.2010-
CITROEN	C4 Picasso 1.6 HDi 110	[9HR(DV6C)]	09.2010-
CITROEN	C4 Picasso 1.6 HDi 115	[9HC(DV6C)]	02.2013-
CITROEN	C4 Picasso 1.6 HDi 115	[BHX(DV6FC)]	02.2013-
CITROEN	C4 Picasso 1.6 HDi 90	[9HP(DV6DTED)]	02.2013-
CITROEN	C5 1.6 HDi	[9HR(DV6C)]	07.2010-
CITROEN	C5 1.6 HDi	[9HY(DV6TED4)]	09.2004-
CITROEN	C5 1.6 HDi	[9HZ(DV6TED4)]	02.2008-
CITROEN	C5 1.6 HDi	[9HZ(DV6TED4)]	09.2004-
CITROEN	C5 1.6 HDi 115	[9HR(DV6C)]	01.2012-
CITROEN	DS3 1.4 HDi 70	[8HR(DV4C)]	04.2010-
CITROEN	DS3 1.6 HDi	[9HP(DV6DTED)]	11.2009-
CITROEN	DS3 1.6 HDi	[9HR(DV6C)]	11.2009-
CITROEN	DS3 1.6 HDi 115	[9HL(DV6C)]	08.2012-
CITROEN	DS3 1.6 HDi 90	[9HP(DV6DTED)]	01.2013-
CITROEN	DS4 1.6 BlueHDi 115	[BHX(DV6FC)]	08.2014-
CITROEN	DS4 1.6 BlueHDi 120	[BHZ(DV6FC)]	07.2014-
CITROEN	DS4 1.6 HDi 110	[9HR]	04.2011-
CITROEN	DS4 1.6 HDi 110	[9HR(DV6C)]	04.2011-
CITROEN	DS4 1.6 HDi 115	[9HL(DV6C)]	08.2012-
CITROEN	DS4 1.6 HDi 90	[9HP(DV6DTED)]	05.2011-
CITROEN	DS4 1.6 THP 200	[5FU(EP6DTX)]	04.2011-
CITROEN	DS5 1.6 BlueHDi 120	[BHZ(DV6FC)]	07.2015-
CITROEN	DS5 1.6 HDi 110	[9HR(DV6C)]	11.2011-
CITROEN	DS5 1.6 HDi 115	[9HD(DV6C)]	06.2012-
CITROEN	Nemo 1.4 HDi	[8HS(DV4TD)]	02.2008-
CITROEN	Nemo 1.4 HDi	[8HS(DV4TED)]	04.2009-
CITROEN	Xsara Picasso 1.6 HDi	[9HY(DV6TED4)]	05.2004-
CITROEN	Xsara Picasso 1.6 HDi	[9HZ(DV6TED4)]	05.2004-
MINI	Cooper 1.6 D	[9HZ(DV6TED4)]	03.2007-
MINI	Cooper 1.6 D	[W16D16]	03.2007-
MINI	Cooper 1.6 D Clubman	[9HZ(DV6ATED4)]	10.2007-
MINI	One 1.6 D	[9HZ(DV6TED4)]	06.2009-
PEUGEOT	1007 1.4 HDi	[8HX(DV4TD)]	04.2005-
PEUGEOT	1007 1.4 HDi	[8HZ(DV4TD)]	04.2005-
PEUGEOT	107 1.4 HDi	[8HT(DV4TD)]	06.2005-
PEUGEOT	2008 1.4 HDi	[8HR(DV4C)]	06.2013-
PEUGEOT	2008 1.6 HDi	[9HD(DV6CTED)]	03.2013-
PEUGEOT	206 1.4 HDi	[8HX(DV4TD)]	09.2001-03.2009
PEUGEOT	206 1.4 HDi	[8HZ(DV4TD)]	09.2001-03.2009
PEUGEOT	206 1.4 HDi eco	[8HX(DV4TD)]	09.2001-
PEUGEOT	206 1.4 HDi eco	[8HZ(DV4TD)]	09.2001-
PEUGEOT	206 1.4 HDi eco 70	[8HZ(DV4TD)]	09.2008-
PEUGEOT	206 1.6 HDi	[9HZ(DV6TED4)]	04.2005-
PEUGEOT	206 1.6 HDi FAP	[9HY(DV6TED4)]	05.2004-
PEUGEOT	206 1.6 HDi FAP	[9HZ(DV6TED4)]	05.2004-
PEUGEOT	207 1.4 HDi	[8HR(DV4C)]	02.2006-
PEUGEOT	207 1.4 HDi	[8HZ(DV4TD)]	02.2006-
PEUGEOT	207 1.4 HDi	[8HZ(DV4TD)]	04.2007-
PEUGEOT	207 1.6 HDi	[9HP(DV6DTED)]	11.2009-
PEUGEOT	207 1.6 HDi	[9HR(DV6C)]	08.2009-
PEUGEOT	207 1.6 HDi	[9HV(DV6ATED4)]	02.2006-
PEUGEOT	207 1.6 HDi	[9HV(DV6TED4)]	02.2006-
PEUGEOT	207 1.6 HDi	[9HX(DV6ATED4)]	02.2006-
PEUGEOT	207 1.6 HDi	[9HY(DV6TED4)]	02.2006-
PEUGEOT	207 1.6 HDi	[9HZ(DV6TED4)]	02.2006-
PEUGEOT	207 1.6 HDi	[9HZ(DV6TED4)]	02.2007-
PEUGEOT	207 1.6 HDi	[9HZ(DV6TED4)]	06.2007-
PEUGEOT	207 SW 1.6 HDi	[9HP(DV6DTED)]	11.2009-
PEUGEOT	207 SW 1.6 HDi	[9HR(DV6C)]	08.2009-
PEUGEOT	208 1.4 HDi	[8HP(DV4C)]	03.2012-
PEUGEOT	208 1.4 HDi	[8HR(DV4C)]	03.2012-
PEUGEOT	208 1.4 HDi	[8HR(DV4C)]	10.2012-
PEUGEOT	208 1.6 HDi	[9HD(DV6CTED)]	03.2012-
PEUGEOT	208 1.6 HDi	[9HP(DV6DTED)]	03.2012-
PEUGEOT	270 CC 1.6 HDi	[9HR(DV6C)]	08.2009-
PEUGEOT	3008 1.6 HDi	[9HD(DV6CTED)]	03.2013-
PEUGEOT	3008 1.6 HDi	[9HR(DV6C)]	08.2010-
PEUGEOT	3008 1.6 HDi	[9HZ(DV6ATED4)]	06.2009-
PEUGEOT	3008 1.6 HDi BlueHDi 115	[BHX(DV6FC)]	02.2013-
PEUGEOT	3008 1.6 HDi BlueHDi 120	[BHZ(DV6FC)]	05.2016-
PEUGEOT	307 1.6 HDi FAP	[9HY(DV6TED4)]	02.2004-
PEUGEOT	307 1.6 HDi FAP	[9HZ(DV6TED4)]	02.2004-
PEUGEOT	308 1.6 HDi	[9HC(DV6C)]	09.2013-
PEUGEOT	308 1.6 HDi	[9HP(DV6DTED)]	11.2009-
PEUGEOT	308 1.6 HDi	[9HR(DV6C)]	12.2009-
PEUGEOT	308 1.6 HDi	[9HV(DV6ATED4)]	09.2007-
PEUGEOT	308 1.6 HDi	[9HX(DV6ATED4)]	09.2007-
PEUGEOT	308 1.6 HDi	[BHZ(DV6FC)]	09.2013-
PEUGEOT	308 1.6 HDi	[DV6TED4]	09.2007-
PEUGEOT	308 1.6 HDi		03.2013-
PEUGEOT	308 2.0 HDi	[RHR(DW10BTED4)]	07.2010-
PEUGEOT	308 CC 1.6 HDi	[9HZ(DV6TED4)]	03.2013-
PEUGEOT	308 SW 1.6 HDi	[9HD(DV6C)]	03.2014-
PEUGEOT	308 SW 1.6 HDi	[9HR(DV6C)]	12.2009-
PEUGEOT	308 SW 1.6 HDi		03.2014-
PEUGEOT	308 SW 1.6 HDi		09.2013-
PEUGEOT	380 SW 1.6 HDi	[9HP(DV6DTED)]	11.2009-
PEUGEOT	407 1.6 HDi FAP	[9HY(DV6TED4)]	05.2004-
PEUGEOT	407 1.6 HDi FAP	[9HZ(DV6TED4)]	05.2004-
PEUGEOT	5008 1.6 HDi	[9HD(DV6CTED)]	03.2013-
PEUGEOT	5008 1.6 HDi	[9HR(DV6C)]	08.2010-
PEUGEOT	5008 1.6 HDi	[9HZ(DV6TED4)]	09.2009-
PEUGEOT	5008 1.6 HDi	[9HZP(DV6TED4)]	09.2009-
PEUGEOT	5008 1.6 HDi BlueHDi 120	[BHZ(DV6FC)]	12.2016-
PEUGEOT	508 1.6 BlueHDi 120	[BHZ(DV6FC)]	03.2014-
PEUGEOT	508 1.6 HDi	[9HD(DV6CTED)]	02.2012-
PEUGEOT	508 1.6 HDi	[9HR(DV6C)]	11.2010-
PEUGEOT	508 1.6 HDi	[BHX(DV6FC)]	09.2014-
PEUGEOT	508 SW 1.6 HDi	[9HD(DV6CTED)]	02.2012-
PEUGEOT	508 SW 1.6 HDi	[9HR(DV6C)]	11.2010-
PEUGEOT	508 SW 1.6 HDi	[BHX(DV6FC)]	09.2014-
PEUGEOT	Bipper 1.4 HDi	[8HS(DV4TD)]	02.2008-
PEUGEOT	Bipper 1.4 HDi	[8HS(DV4TD)]	04.2008-
PEUGEOT	Partner 1.6 BlueHDi 100	[BHY(DV6FD)]	04.2015-
PEUGEOT	Partner 1.6 BlueHDi 120	[BHZ(DV6FC)]	04.2015-
PEUGEOT	Partner 1.6 BlueHDi 75	[BHW(DV6FE)]	01.2015-
PEUGEOT	Partner 1.6 BlueHDi Tepee	[BHW(DV6FE)]	01.2015-
PEUGEOT	Partner 1.6 BlueHDi Tepee	[BHY(DV6FD)]	12.2014-
PEUGEOT	Partner 1.6 BlueHDi Tepee	[BHZ(DV6FC)]	12.2014-
PEUGEOT	Partner 1.6 HDi	[9HF(DV6DTED)]	03.2013-
PEUGEOT	Partner 1.6 HDi	[9HL(DV6C)]	03.2013-
PEUGEOT	Partner 1.6 HDi	[9HP(DV6DTED)]	04.2010-
PEUGEOT	Partner 1.6 HDi		08.2010-
PEUGEOT	Partner 1.6 HDi BlueHDi 110 4x4	[BHY(DV6FD)]	04.2015-
PEUGEOT	Partner 1.6 HDi Tepee	[9HF(DV6DTED)]	03.2013-
PEUGEOT	Partner 1.6 HDi Tepee	[9HL(DV6C)]	03.2013-
PEUGEOT	Partner 1.6 HDi Tepee	[9HL(DV6C)]	08.2010-
PEUGEOT	Partner 1.6 HDi Tepee	[9HP(DV6DTED)]	04.2010-
PEUGEOT	Partner 1.6 HDi Tepee	[9HX(DV6ATED4)]	04.2010-
TOYOTA	Aygo 1.4 HDi	[2WZTV]	07.2005-08.2010

12417803514	MINI
12417803514	BMW
1638116280	PEUGEOT
190895	VALEO
20479512OE	REAL
220429	ERA
25-3296	ELSTOCK
28100YV020	TOYOTA
28100-YV020	TOYOTA
3647959	VAUXHALL
3647959	GM
3647959	OPEL
438166	VALEO
458185	VALEO
495107	VALEO
5035725	MEAT & DORIA
5645100680	PEUGEOT
5802AA	PEUGEOT
5802EG	PEUGEOT
5802Z9	PEUGEOT
5802ZB	PEUGEOT
6015215.0	SANDO
88212646	POWERMAX
943213291010	MAGNETI MARELLI
95526025	GM
95526025	OPEL
95526025	VAUXHALL
9645100680	PEUGEOT
9662854080	PEUGEOT
9663528880	PEUGEOT
966352888001	PEUGEOT
9801667780	PEUGEOT
AEX1299	AUTOELECTRO
ASM1498	APEC
CST15215AS	CASCO
F042200019	BOSCH
LRS01737	LUCAS
LRS1737	LUCAS
M000T22471	MITSUBISHI
M000T22471AM	MITSUBISHI
M000T22472	MITSUBISHI
M000T22472AM	MITSUBISHI
M000T22473	MITSUBISHI
M000T22473AM	MITSUBISHI
M000T22473ZZ9	MITSUBISHI
M0T22471	MITSUBISHI
M0T22471AM	MITSUBISHI
M0T22472	MITSUBISHI
M0T22472AM	MITSUBISHI
M0T22473	MITSUBISHI
M0T22473AM	MITSUBISHI
M0T22473ZZ9	MITSUBISHI
MAV172150	SIOM
NPANSM1498	NAPA
RNLTS18E13	RNL
S3091	AS-PL
STM1329	KRAUF
STR00145	ELECTROLOG
STR00195	ELECTROLOG
STR54044	WOODAUTO
STV1329	KRAUF
STX200013	STARDAX
STX200013R	STARDAX
STX200099	STARDAX
STX200099R	STARDAX
TS18E13	VALEO
UD01488S	AS-PL
VAL438166	WOODAUTO

S3091

View your shopping basket or Browse other items in Starter Motors.

AS GROUP NZ

Note: We have moved to a private property and no longer allow pick ups to non account holders -, Paraparaumu, Wellington

5032, New Zealand

0800 727 000 (Domestic Calls)

Shipping Policy: All paid orders are shipped within 24 hours (Monday - Friday)

Returns: Items returned for refund must be unopen/unused in original packaging and within 30 days of date of sale. All Returns must have a Return Form accompanying the goods.

PLEASE NOTE: PRODUCT BOXES ARE NOT SHIPPING BOXES, ANY PRODUCT RETURNED WITH TAPE/LABELS OVER THE PRODUCT BOX WILL BE CHARGED A RESTOCKING FEE

[Terms and Conditions]

[Warranty procedure]

Warranty Form Parts Return Form

[Privacy Policy] [Disclaimer]
