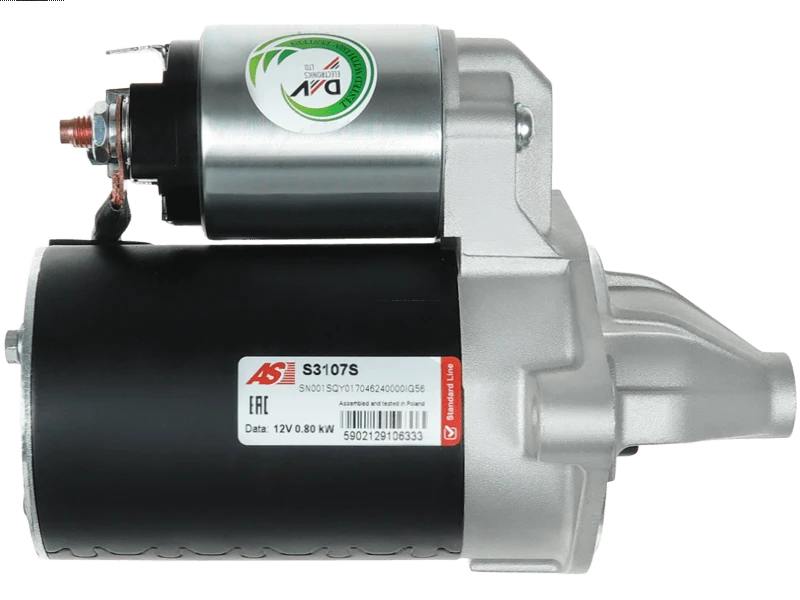

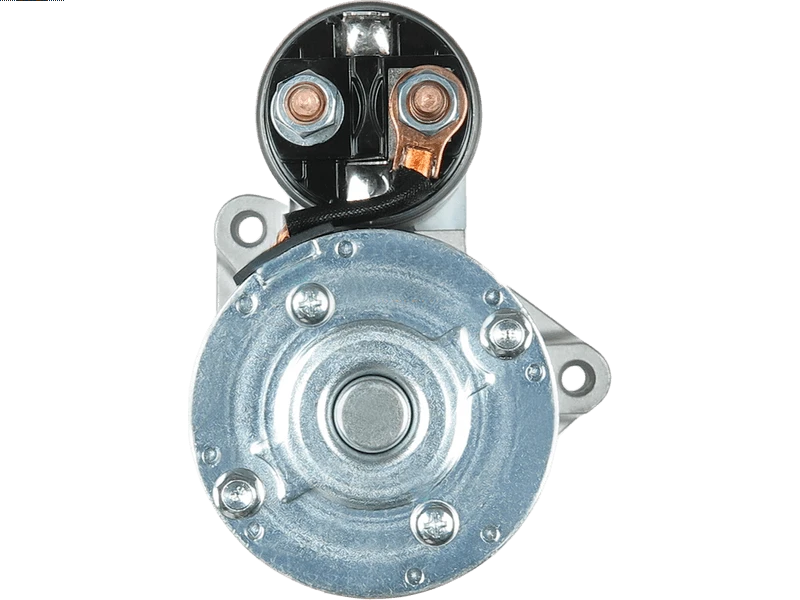

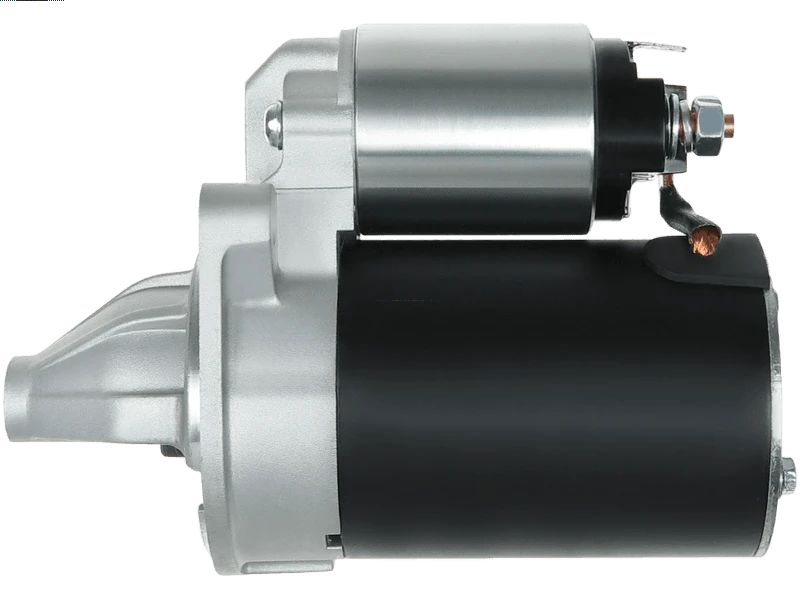

S3107S - Brand new AS-PL Starter motor

Specifications

Kilowatt	0.8 kW
Length (L.1)	185.5 mm
Mount Hole Center - Center (O.1)	93 mm
Mount Hole Diameter (C.1)	M8x1.25 mm
Mount Hole Diameter (C.2)	M8x1.25 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	8 qty
Pinion at Rest (B)	15 mm
Rotation	CW
Spigot Diameter (A)	75 mm
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
HYUNDAI	Atos 1.0 i	[G4HC-E]	03.2001-07.2003
HYUNDAI	Atos 1.1	[G4HG]	08.2003-12.2008
HYUNDAI	Getz 1.1	[G4HD]	09.2002-09.2005
KIA	Picanto 1.1	[G4HG]	04.2004-

Reference Information

JS1303 20493001BN STA1303 ANM15928X S12VA0108 CGB-23021 112322 36100-02800 DS4818 000986022601 150.514.082.360 1195248 DS4818N STR00232 20493001OE SG0434 S3107S 438101 36100-02560 MTC963 88213263 9555 3C963 STR54090 220348 J5210503 TM000A37001 S1121M 986022601 LRS01453 M56290 20493001RE 25-2384 3610002500 726076 8EA011610-761 CST32100AS STM1339 36100-02500 RAS34819 9.44281E+11 8EA738101-001 726876 MRS70503 STR8704 DRS3708 VAL438101 600083 455967 6032100.1 600244 MAV7200 6032100.4 LRS1453 TM000A31001 36100-02511 36100-02555 DRS3708N 150.514.082.138 6032100 S12VA0108A2 003-C963 201303 150.514.082.130 130-20185 3610002800 UD20475S 336087 CST32100OS 201303V 12102 32453N CST32100GS 32453R 36100-02550

Video/Publications

003-C963 0986022601 112322 1195248 12102 130-20185 150.514.082 201303 201303V 20493001OE 20493001RE 220348 25-2384 32453N 32453R 36100-02511 36100-02550 36100-02555 36100-02560 3C963 438101 455967 600083 6032100.1 6032100.4 88213263 8EA011610-761 8EA738101-001 944280705030 9555 CGB-23021 CST32100GS CST32100OS DRS3708 DRS3708N DS4818 DS4818N J5210503 JS1303 LRS01453 LRS1453 M56290 MAV7200 MRS70503 MTC963 RAS34819 S1121M SG0434 STA1303 STM1339 STR54090 STRL284 TM000A31001 TM000A37001 UD20475S VAL438101
