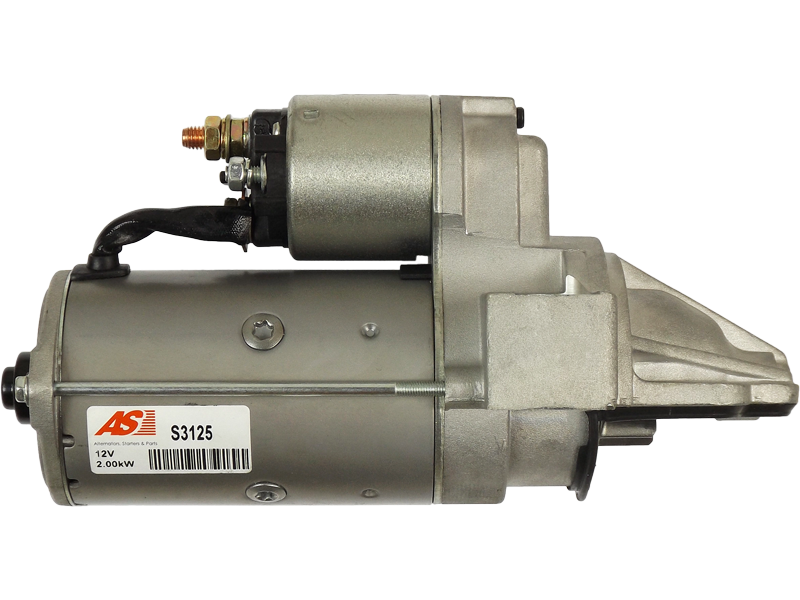

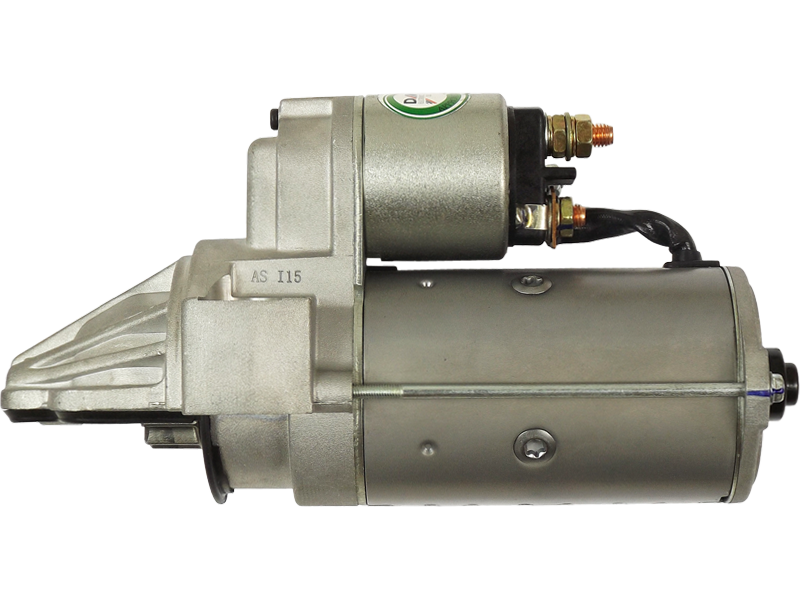

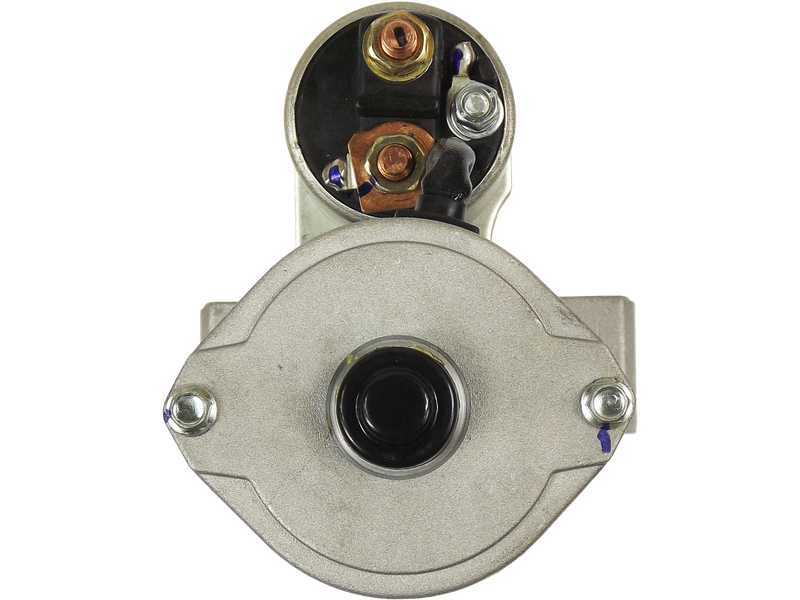

S3125 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2 kW
Length (L.1)	257 mm
Mount Hole Center - Center (O.1)	88 mm
Mount Hole Diameter (C.1)	10.5 mm
Mount Hole Diameter (C.2)	10.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	12 qty
Pinion at Rest (B)	35.5 mm
Rotation	CW
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
CITROEN	Jumper 2.2 HDi 110	[4HG]	01.2011-
CITROEN	Jumper 2.2 HDi 130	[4HH]	01.2011-
CITROEN	Jumper 2.2 HDi 150	[4HJ]	01.2011-
CITROEN	Relay 2.2 HDi 110	[4HG]	01.2011-
CITROEN	Relay 2.2 HDi 130	[4HH]	01.2011-
CITROEN	Relay 2.2 HDi 150	[4HJ]	01.2011-
FIAT	Ducato 15 2.3 JTD	[4HV]	01.2012-
FIAT	Ducato 17 2.2 JTD	[4HV]	01.2006-
FORD	Tourneo 2.2 TDCi	[QVFA]	01.2006-
FORD	Tourneo 2.2 TDCi	[QWF]	01.2006-
FORD	Transit 2.2 TDCi	[DR..]	01.2006-12.2011
FORD	Transit 2.2 TDCi	[P8..]	01.2006-
FORD	Transit 2.2 TDCi	[SR..]	01.2006-
FORD	Transit Euroline 2.2 TDCi	[QVFA]	01.2006-
FORD	Transit Euroline 2.2 TDCi	[QWF]	01.2006-
FORD	Transit Nugget 2.2 TDCi	[QVFA]	01.2006-
FORD	Transit Nugget 2.2 TDCi	[QWFA]	01.2006-
PEUGEOT	Boxer 2.2 HDi 110	[4HG]	01.2011-

Reference Information

6010309.2 6010309.1 AC1T11000AA 1748650 675092580 WOOSTR50262 220353 255341 WOOSTR54186 726899 WOOSTR50380 7C19-11000-AB S12BH0004 1385378 20401903OE MAV123090 101421 BOS0001109328 0001115093 1105205 590.551.122.008 STRL121NE LR040669 63721421010 STRL121B 590.551.122.230 GS109205-A 0001109387 0001109388 LRS2243 LR025840 K9658144780 0001109304 0001109305 7H12-11002-AB UD30029S 88212164 9568144780 1709189 7H12-11002-AC WS42921 5802AS 33243R CGB-53414 1606413580 438360 1986S00744 STR00336 CC1T11000AA STRL121 1912881 RAS42921 1986S00224 CST14128GS 0001986S00744 6.7007.1 72535226 0001986S00224 CST10309GS BK3T-11000-DB 33243N DRT1810N DSN3012 MQS1421 590.551.122.010 25-3414 LRS02243 AZD2142 1372739 590.551.122.018 101421VA 590.551.122.016 0001105205 DRT1810X 1109325 0001109328 1109324 D7R71 63521093240 0001109329 1109205 LR010547 9675092580 9658144780 6C1T-11000-AF 71789751 6C1T-11000-AC 6C1T-11000-AD S12BH0004A2 590.551.122.280 6C1T-11000-AA 6C1T-11000-AB 1574338 STB1421 CC1T-11000-AB UD13936S 1109329 1109328 20401903BN AC1T-11000-AA CST10309AS 5010003 NEY2243 11.139.242 260540-5150 331967 8EA012527-611 201007 22.3003M 2073363 BK3T11000DB 1109392 1109391 9.4428E+11 CST10309RS NAD50027 115510 6C1T11000AE 1669558 20401903RC 12006 458445 6010309 113959 1109305 6014128.1 1109304 1109387 AEY2243 1740947 1109388 DRT1810 000986021810 STM769 SG0092 BK3T11000CC 255341B CGB-21810 0001109391 0001109392 9.43214E+11 G201421B-R 860821 95681447 590.551.122.500 8021810 AMDF5C11000AA PRSL121 RE6C1T11000AE 101421B 00000010DB94E 7H1211002AA 7H1211002AB EAA-121006 1375378 RE6C1T-11000-AE CS1421 986021810 101421V MS1082 K9675092580 42021810 00010DB94E 20450821OE 590.551.122.212 3102 590.551.122.215 STR50262 S1054B AMDF5C-11000-AB 1115093 IS9540 0001109324 0001109325 5802FC NAD500270 0001109205 1115092

Video/Publications

00010DB94E 0001105205 0001109205 0001109304 0001109305 0001109324 0001109325 0001109328 0001109329 0001109387 0001109388 0001109391 0001109392 0001115092 0001115093 0986021810 101421 101421B 101421V 113959 12006 1372739 1385378 1574338 1669558 1709189 20401903BN 20401903OE 20401925OE 20450821OE 22.3003M 25-3414 255341 255341B 3102 33243N 33278N 42021810 5802AS 5802FC 590.551.122 6010309 6010529 6014128 6C1T-11000-AA 6C1T-11000-AB 6C1T-11000-AC 6C1T-11000-AD 6C1T-11000-AF 6C1T11000AB 6C1T11000AC 6C1T11000AD 6C1T11000AE 7C19-11000-AB 7H12-11002-AB 7H12-11002-AC 7H1211002AB 8021810 860821 88212164 8EA012527-611 944280218100 95681447 9658144780 AEY2243 AXS979 CGB-21810 CS1421 CST10309AS CST10309GS CST10529GS CST14128GS D7R71 DRT1810 DRT1810N DRT1810X EAA-121006 G201421B-R GS109205-A LRS02243 LRS2243 MAV123090 NAD500270 RAS42921 RNL2181 S1054B S3125 SS528 STM769 STR50262 STRL121 SX 2175 UD13936S UD30029S WS42921 220353 220867
