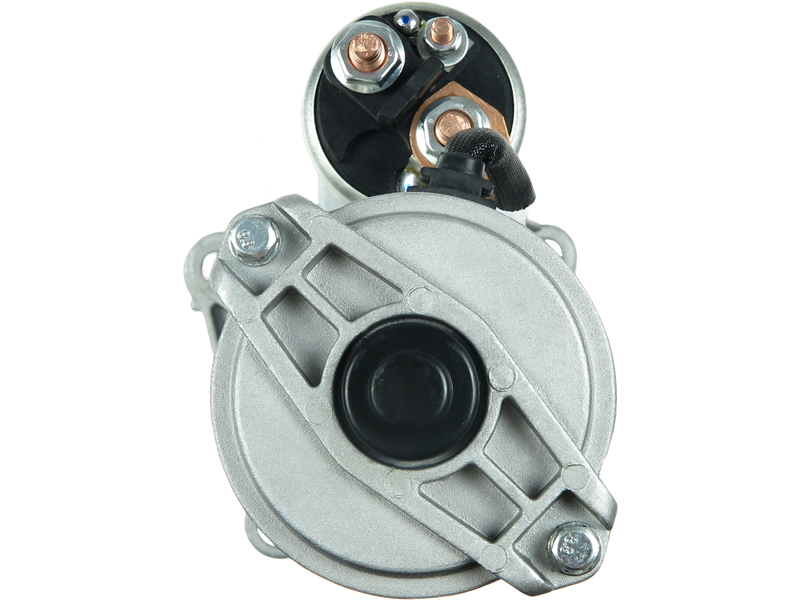

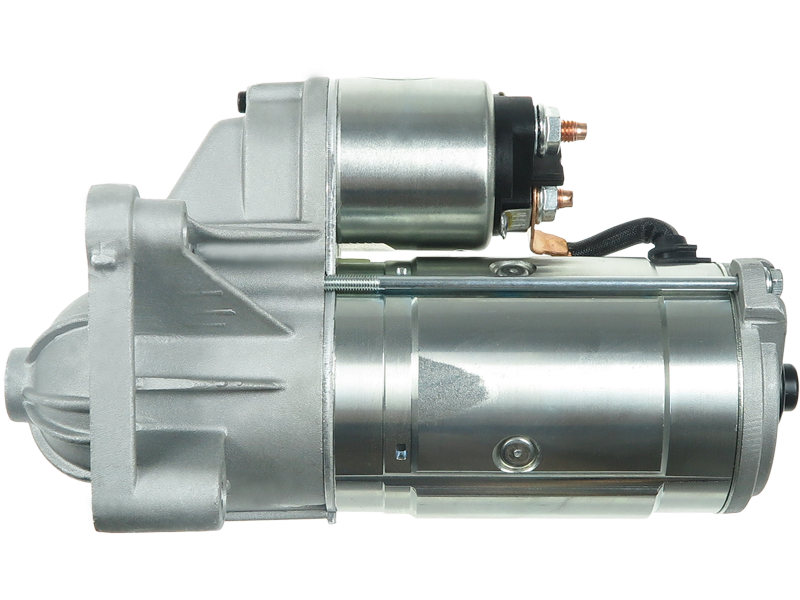

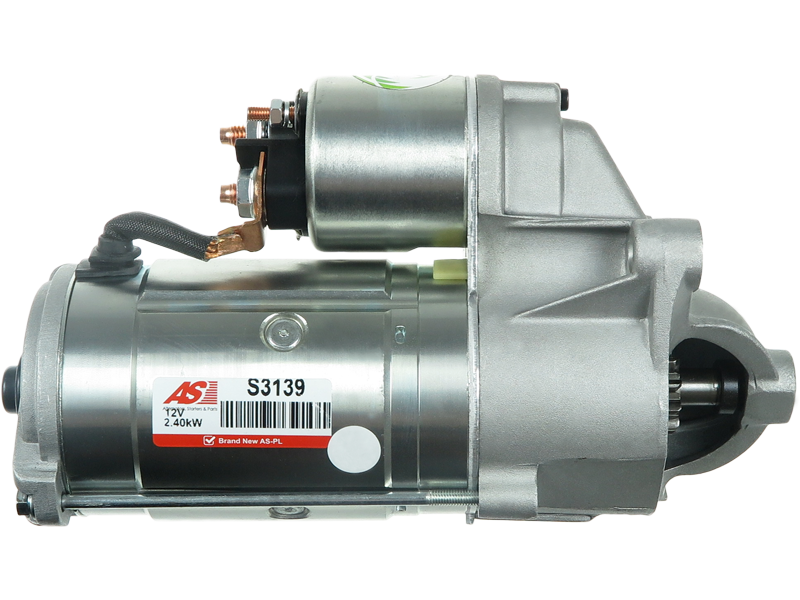

S3139 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.4 kW
Length (L.1)	238 mm
Mount Hole Center - Center (O.1)	22 mm
Mount Hole Center - Center (O.2)	74 mm
Mount Hole Center - Center (O.3)	105 mm
Mount Hole Center - Center (O.4)	73 mm
Mount Hole Diameter (C.1)	M10x1.5 mm
Mount Hole Diameter (C.2)	M10x1.5 mm
Mount Hole Diameter (C.3)	M8x1.25 mm
Mount Hole Diameter (C.4)	12.5 mm
No./Mount holes	4 qty
No./Mount holes with thread	3 qty
No./Teeth	11 qty
Pinion at Rest (B)	0 mm
Rotation	CW
Spigot Diameter (A)	64.5 mm
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
RENAULT	Grand Scenic 1.9 DCi	[F9Q816]	05.2005-
RENAULT	Grand Scenic 1.9 DCi	[F9Q818]	05.2005-
RENAULT	Grand Scenic 1.9 DCi	[F9QE804]	05.2005-
RENAULT	Grand Scenic 1.9 DCi	[F9QEE804]	05.2005-
RENAULT	Grand Scenic 1.9 DCi	[F9QJ803]	05.2005-
RENAULT	Laguna 1.9 DCi	[F9Q752]	06.2001-
RENAULT	Megane 1.9 DCi	[F9Q803]	05.2005-
RENAULT	Megane 1.9 DCi	[F9Q804]	05.2005-
RENAULT	Scenic 1.9 Dci	[F9Q804]	05.2005-

Reference Information

254390V 12051 AEY2440 220452 20479291OE 115974 CS1478 192419 8200860883 254390 332267 EAA-141323 25-4112 458290 570.551.114 CST15192RS 22.1478 DRS0111 MAV171920 194256 438201 EAA-153203 STR54079 SS745 8200460883 88214334 UD11980S 6015192 CST15192ES 8200628429 CST15192AS STR00129 3007 CST15192 CST15192GS LRS02440 32598N ANM12331X D8R49 D8R49B LRS2440 CST15192OS 32598R STRS948

Video/Publications

115974 12051 192419 194256 20479291OE 22.1478 220452 25-4112 254390 254390V 3007 32598N 32598R 438201 458290 570.551.114 6015192 8200460883 8200628429 88214334 AEY2440 CS1478 CST15192 CST15192AS CST15192ES CST15192GS CST15192OS CST15192RS D8R49 D8R49B DRS0111 EAA-141323 EAA-153203 LRS02440 LRS2440 MAV171920 SS745 STR54079 STRS948 UD11980S
