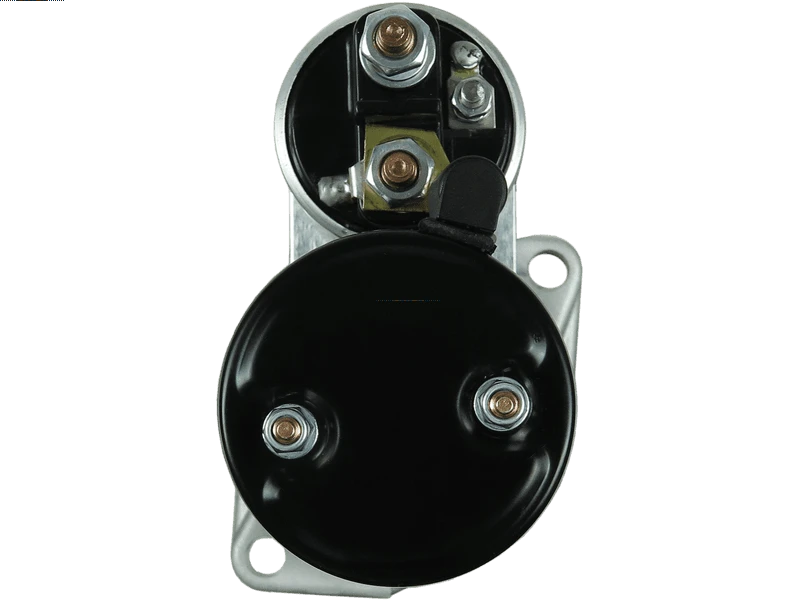

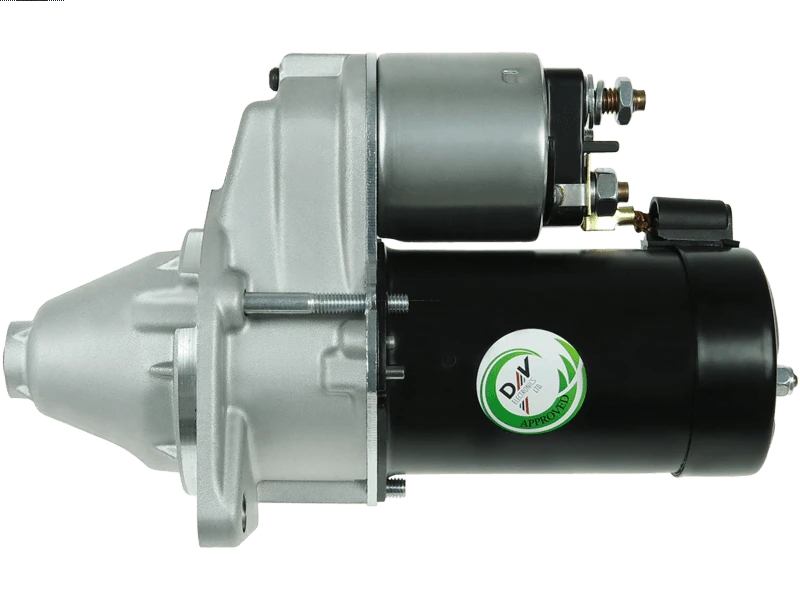

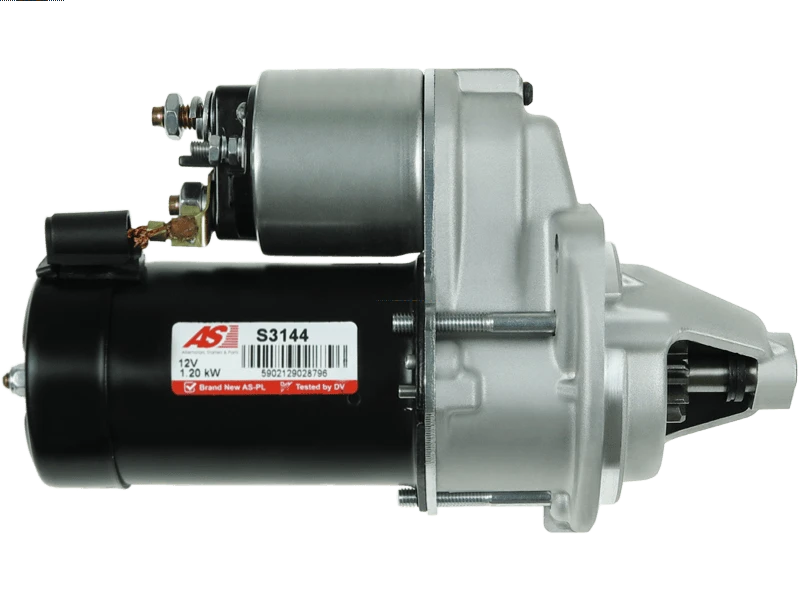

S3144 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.2 kW
Length (L.1)	224 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	10.5 mm
Mount Hole Diameter (C.2)	10.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
Pinion at Rest (B)	27 mm
Rotation	ACW
Spigot Diameter (A)	76 mm
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
RUGGERINI	MD150		01.1987-12.1997
RUGGERINI	MD150		01.1988-12.1998
RUGGERINI	MD151		01.1987-12.1997
RUGGERINI	MD151		01.1988-12.1998
RUGGERINI	MD156		01.1987-12.1997
RUGGERINI	MD156		01.1988-12.1998
RUGGERINI	MD159		01.1987-12.1997
RUGGERINI	MD159		01.1988-12.1998
RUGGERINI	MD170S		01.1991-12.1997
RUGGERINI	MD190		01.1989-12.1997
RUGGERINI	MD191		01.1989-12.1997
RUGGERINI	MD196		01.1989-12.1997
RUGGERINI	MD199		01.1989-12.1997

Reference Information

108-268 25-2437 56330 D6RA27 CST10179ES MAV172130 GS594081-A CST15213OS 6010179 56339 CST15213GS UD11999S CST10179RS BOM UNIT 5010402 CST15213RS 690.510.092 S-6539 D6RA17 CST10179AS D6RA60 594081 33925 EAA-111511 254145B 943221536 EAA-153106 63221536 CST10179 CST10179OS S12VA0720A2 120-10206 EAA-141484 LRS01490 CST10179GS DRS0799 254145 20479312OE CST15213AS CST15213ES 63221506 114719 91-20-3525 LRS1490 220887 VALD6RA60 563R0540 6015213 STR00003 CST15213 MSR256 750.502.092

Video/Publications

114719 120-10206 20479312OE 220887 25-2437 254145 254145B 33925 594081 6010179 6015213 63221506 63221536 690.510.092 750.502.092 91-20-3525 943221536 CST10179 CST10179AS CST10179ES CST10179GS CST10179OS CST10179RS CST15213 CST15213AS CST15213ES CST15213GS CST15213OS CST15213RS D6RA17 D6RA27 D6RA60 DRS0799 EAA-111511 EAA-141484 EAA-153106 GS594081-A LRS01490 LRS1490 MAV172130 MSR256 S-6539 UD11999S UNIT BOM 108-268 VALD6RA60
