Associated Numbers

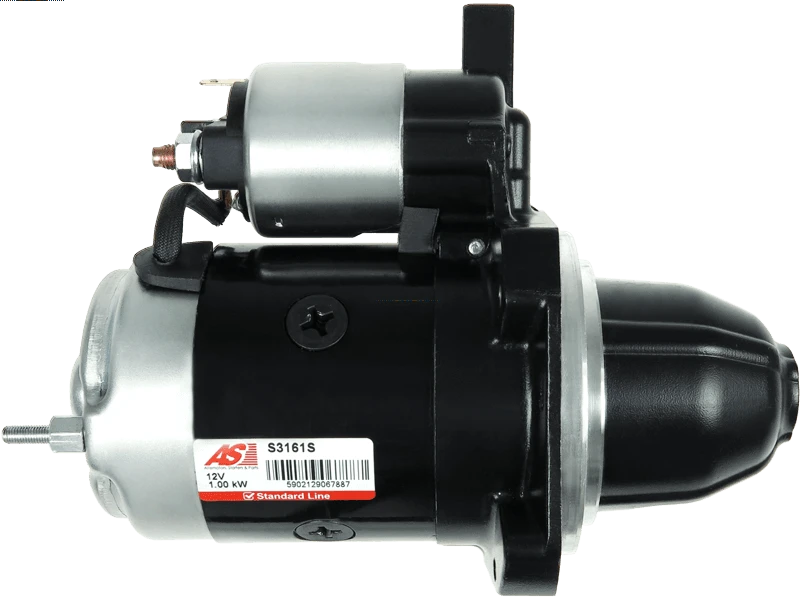

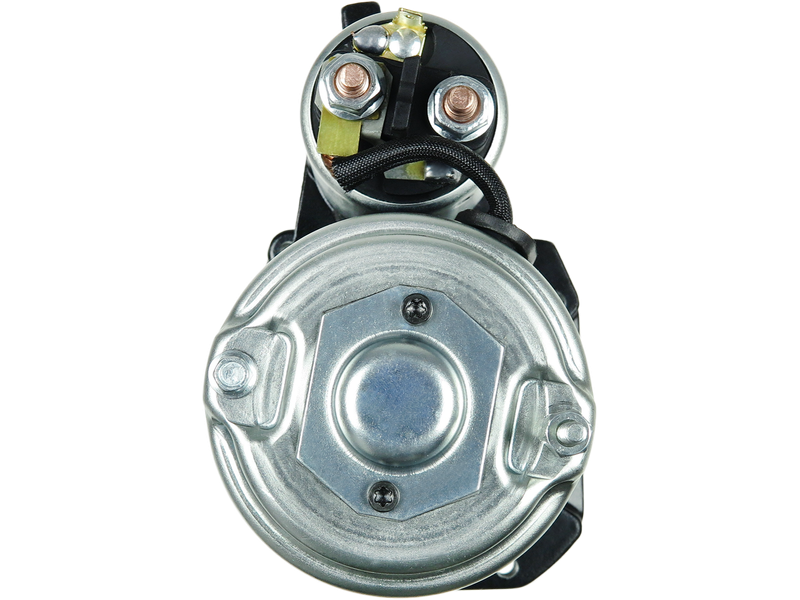

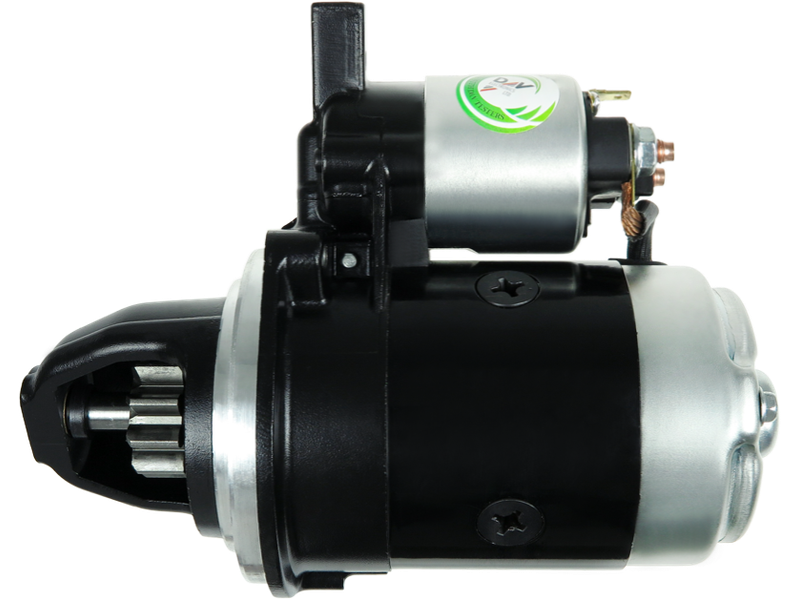

D9E104ASpecifications
Kilowatt | 1 kW |
Length (L.1) | 234 mm |
Mount Hole Center - Center (O.1) | 114 mm |
Mount Hole Center - Center (O.2) | 80 mm |
Mount Hole Center - Center (O.3) | 80 mm |
Mount Hole Diameter (C.1) | M7x1.0 mm |
Mount Hole Diameter (C.2) | M7x1.0 mm |
Mount Hole Diameter (C.3) | M7x1.0 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 3 qty |
No./Teeth | 10 qty |
No./Teeth (Replaces) | 10 qty |
Pinion at Rest (B) | 44 mm |
Rotation | ACW |
Spigot Diameter (A) | 99 mm |
Unit Type | VALEO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
CITROEN | C35 2.0 | 01.1973-12.1994 | |
CITROEN | ID 19 2.0 Super | [B20700] | 01.1970-12.1971 |
HONDA | City 55 1.2 | 01.1984-12.1986 | |
HONDA | Fit 55 1.2 | 01.1984-12.1986 | |
HONDA | Jazz 55 1.2 | 01.1984-12.1986 |
Reference Information
6201 95493002 5455471 CST15259AS 96036658 S3161S 6215A 95653969 5455469 6215B D9E104A 5402233 6215C 6201A 6215D 20479952OE 6215F 6215 95591700R 5802P2 6015259 95591700Video/Publications
D9E104AAdd Your Number
