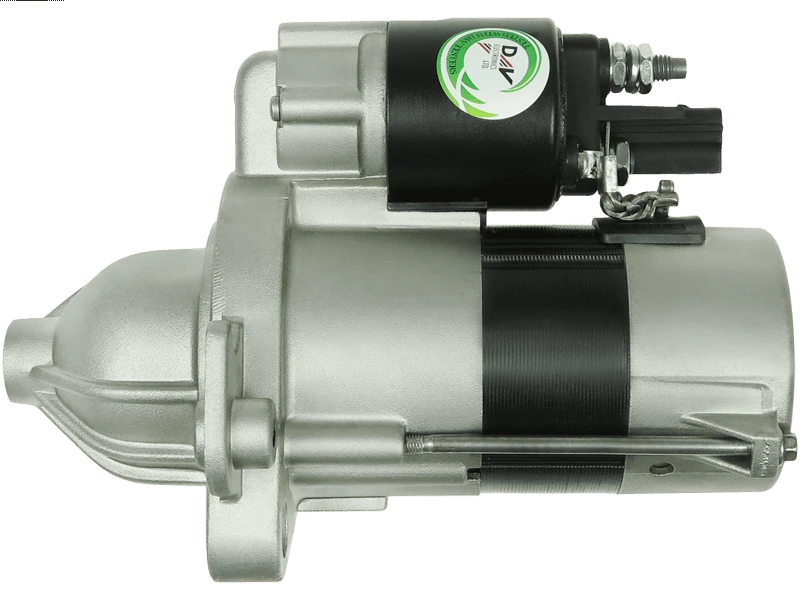

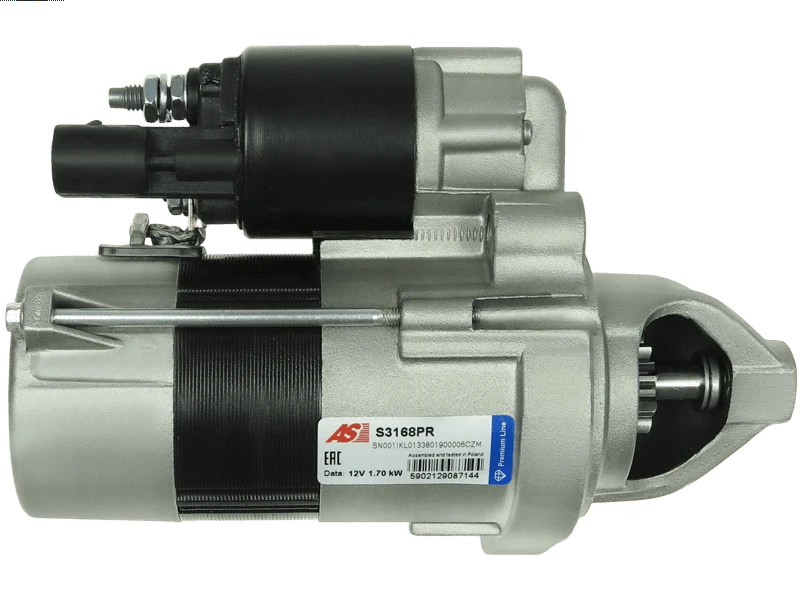

Remanufactured AS-PL Starter motor
PREMIUM LINE
AS-PL
VALEO
Price:
NZ$ 268.44 including GST
NZ$ 233.43 excluding GST
or four payments of $67.11
with
Learn More
each
S3168PR
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
079911023C 079911023D 079911023DX 0986019200 12154 220428 25-3285 254890V 300.579.093 3113 438161 458181 6015118 88214164 91-20-3543 AEY1728 CST15118 CST15118AS CST15118ES CST15118GS CST15118OS CST15118RS D7G6 DRS0398 DS1508 LRS1728 S-6558 STV4760 UNIT BOM 108-478 VAL438161Specifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 217 mm |
| Mount Hole Center - Center (O.1) | 36 mm |
| Mount Hole Center - Center (O.2) | 101 mm |
| Mount Hole Center - Center (O.3) | 100 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | 13 mm |
| Mount Hole Diameter (C.3) | M12x1.75 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 23 mm |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A6 4.2 FSi Quattro | [BVJ] | 06.2006-03.2011 |
| AUDI | A6 4.2 FSi Quattro | [BVJ] | 06.2006-08.2011 |
| AUDI | A6 4.2 Quattro | [BAT] | 03.2005-05.2006 |
| AUDI | A6 4.2 Quattro | [BAT] | 05.2004-05.2006 |
| AUDI | A6 Allroad 4.2 FSi Quattro | [BVJ] | 05.2006-12.2010 |
| AUDI | A8 4.2 FSi Quattro | [BVJ] | 06.2006-07.2010 |
| AUDI | RS4 4.2 Quattro | [BNS] | 06.2006-03.2009 |
| AUDI | RS4 4.2 Quattro | [BNS] | 09.2005-06.2008 |
| AUDI | S4 4.2 Quattro | [BBK] | 03.2003-12.2004 |
| AUDI | S4 4.2 Quattro | [BBK] | 03.2004-03.2009 |
| AUDI | S4 4.2 Quattro | [BBK] | 11.2004-06.2008 |
| AUDI | S4 4.2 V8 Quattro | [ABH] | 10.1992-07.1994 |
| AUDI | S6 4.2 Plus Quattro | [AHK] | 04.1996-10.1997 |
| AUDI | S6 4.2 Plus Quattro | [AHK] | 04.1996-12.1997 |
| AUDI | S6 4.2 Quattro | [AEC] | 06.1994-10.1997 |
| AUDI | S6 4.2 Quattro | [AEC] | 06.1994-12.1997 |
| AUDI | V8 3.6 Quattro | [PT] | 04.1993-02.1994 |
| AUDI | V8 3.6 Quattro | [PT] | 10.1988-02.1994 |
| AUDI | V8 4.2 Quattro | [ABH] | 10.1991-02.1994 |
Reference Information
| 077911023C | VW |
| 077911023CX | VW |
| 077911023D | VW |
| 079911023C | VW |
| 079911023D | VW |
| 079911023DX | VW |
| 12154 | EAI |
| 17887N | WAI / TRANSPO |
| 17887R | WAI / TRANSPO |
| 20479811OE | REAL |
| 220428 | ERA |
| 25-3285 | ELSTOCK |
| 254890V | KUHNER |
| 300.579.093 | PSH |
| 300.579.093.000 | PSH |
| 300.579.093.461 | PSH |
| 300.579.093.500 | PSH |
| 3113 | CEVAM |
| 438161 | VALEO |
| 458181 | VALEO |
| 5015852 | MEAT & DORIA |
| 6015118.1 | SANDO |
| 79911023D | VW |
| 91-20-3543 | WILSON |
| AEY1728 | AUTOELECTRO |
| CST15118GS | CASCO |
| D7G6 | VALEO |
| D7GP21 | VALEO |
| DRS0398 | DELCO |
| G7GP21 | VALEO |
| LRS01728 | LUCAS |
| LRS1728 | LUCAS |
| S12VA0253 | SIDAT |
| S12VA0253A2 | SIDAT |
| S-6558 | DIXIE |
| STR00108 | ELECTROLOG |
| STV4760 | KRAUF |
| STX210282 | STARDAX |
| STX210282R | STARDAX |
