S3174S - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S3174S
Price: 190.24 NZD
Availability: BackOrder

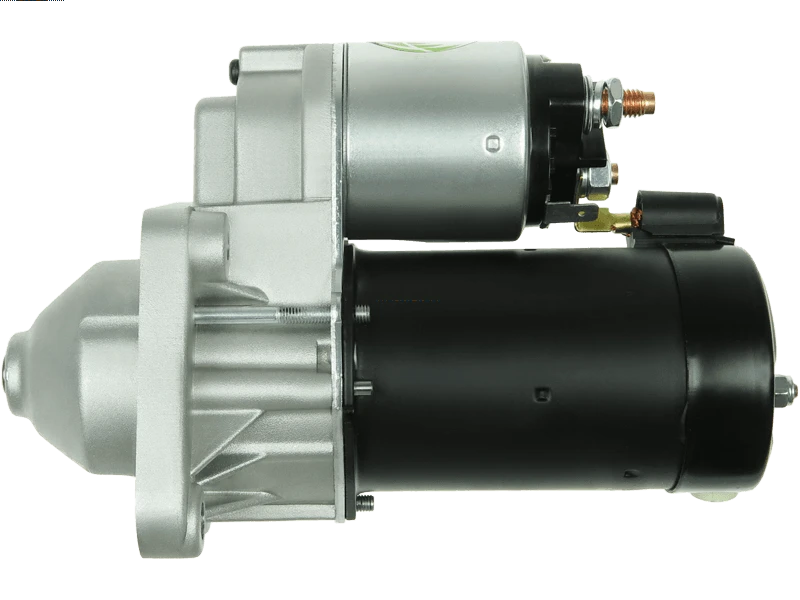

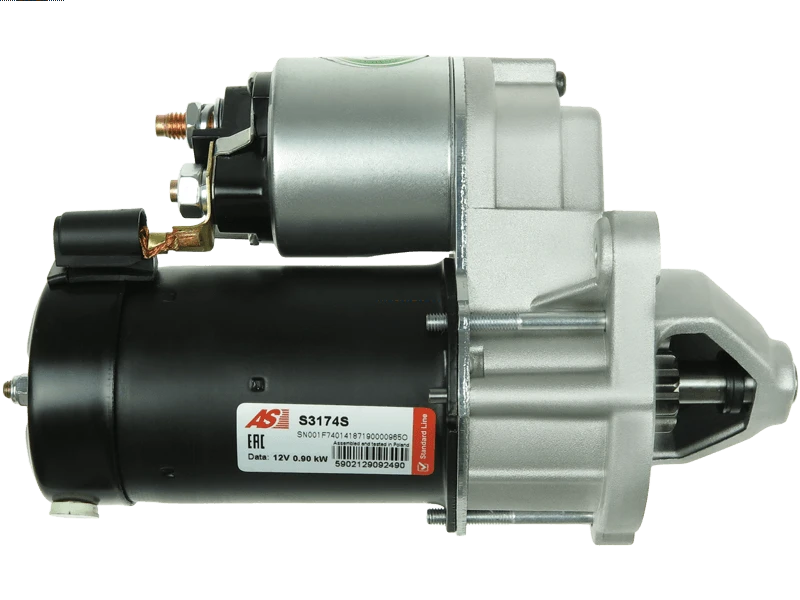

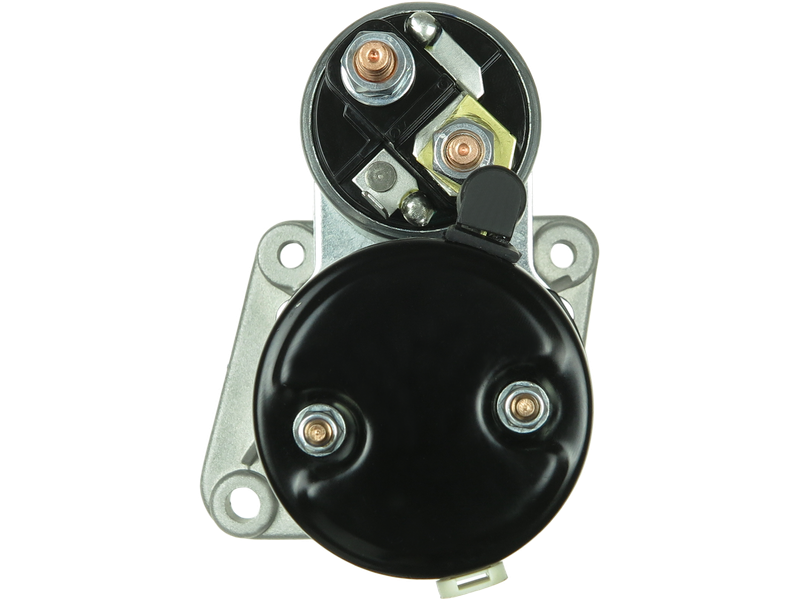

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

VALEO

Price:

NZ$ 190.24 including GST

NZ$ 165.43 excluding GST

or four payments of $47.56 with
Learn More

UOM:

each

Product Code:

S3174S

Quantity In Stock Nationally:

No stock in NZ - Call us for possible procurement options

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Information
Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications

D6RA39

063101023010 063720371010 10371 10371V 111025 220360 3541 432650 433325 455511 46231510 500.015.093 5999906 66925111 7539303 7612952 7621040 7622104 7667227 77305430 7749142 88212523 8EA012526-891 8EA726119-001 944280139400 CS371 D6RA39 DRS3940 DS5050 GS432650-A MQS371 RAS34051 S3174S SG0111 STV0371 UD21185S VAL432650

Kilowatt	0.90 kW
Length (L.1)	209 mm
Mount Hole Center - Center (O.1)	67 mm
Mount Hole Center - Center (O.2)	107.50 mm
Mount Hole Center - Center (O.3)	72 mm
Mount Hole Diameter (C.1)	M8x1.25 mm
Mount Hole Diameter (C.2)	9.50 mm
Mount Hole Diameter (C.3)	M8x1.25 mm
No./Mount holes	3 qty
No./Mount holes with thread	2 qty
No./Teeth	10 qty
OEM Product	No
Pinion at Rest (B)	11 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	62 mm
Unit Type	VALEO
Voltage	12 V

Make	Model	Type	Year
AUTOBIANCHI	Y10 1.0	[156A.000]	03.1985-10.1995
AUTOBIANCHI	Y10 1.0	[156A2.000]	03.1985-10.1995
AUTOBIANCHI	Y10 1.0	[156A2.246]	10.1987-10.1995
AUTOBIANCHI	Y10 1.0 4WD	[156A3.000]	12.1986-10.1995
AUTOBIANCHI	Y10 1.0 Turbo	[156A1.000]	03.1985-10.1995
AUTOBIANCHI	Y10 1.1	[156C.000]	06.1989-10.1995
AUTOBIANCHI	Y10 1.1 4WD	[156C.000]	06.1989-10.1995
AUTOBIANCHI	Y10 1.1 i.e.	[156C.046]	09.1990-10.1995
AUTOBIANCHI	Y10 1.3 i.e. GT	[146A5.046]	06.1989-10.1995
FIAT	Palio 1.0	[178A1.000]	04.1996-
FIAT	Panda 0.8	[141B.000]	01.1986-01.1995
FIAT	Panda 0.8	[156A4.000]	01.1986-01.1995
FIAT	Panda 0.8	[156A4.000]	01.1995-12.1997
FIAT	Panda 0.8	[156A4.048]	01.1995-12.1997
FIAT	Panda 1.0	[156A2.100]	01.1986-02.1992
FIAT	Panda 1.0	[156A2.100]	01.1986-04.1992
FIAT	Panda 1.0	[156A.3000]	01.1985-12.1992
FIAT	Panda 1.0	[156A3.100]	01.1986-02.1992
FIAT	Panda 1.0 4x4	[156A2.100]	01.1986-07.1989
FIAT	Panda 1.0 4x4	[156A3.000]	01.1986-12.1992
FIAT	Panda 1.0 4x4	[156A3.100]	01.1986-07.1989
FIAT	Panda 1.0 i.e.	[141C2.000]	10.1987-08.1998
FIAT	Panda 1.0 i.e.	[156A2.246]	08.1992-02.2004
FIAT	Panda 1.0 i.e.	[156A2.246]	10.1987-08.1998
FIAT	Panda 1.0 i.e. 4x4	[141C2.000]	05.1986-12.1994
FIAT	Panda 1.0 i.e. 4x4	[156A2.246]	05.1986-12.1994
FIAT	Panda 1.0 i.e. 4x4	[176B2.000]	02.1995-07.2004
FIAT	Panda 1.1 4x4	[187A1.000]	09.2000-02.2004
FIAT	Panda 1.1 4x4 Trekking	[156C.046]	10.1991-07.2004
FIAT	Panda 1.1 Selecta	[156C.046]	05.1991-12.1999
FIAT	Panda 1.1 Selecta	[176B2.000]	02.1995-09.2003
FIAT	Tipo 1.1 Digit	[160A3.000]	01.1988-10.1991
FIAT	Uno 1.0	[156A2.048]	06.1986-12.1993
FIAT	Uno 1.0	[156A2.100]	06.1986-12.1993
FIAT	Uno 1.0 i.e.	[156A2.246]	04.1984-10.1995
FIAT	Uno 1.1	[146A4.044]	01.1986-12.1989
FIAT	Uno 1.1	[156C.046]	01.1990-12.1993
FIAT	Uno 1.1	[160A3.000]	04.1989-12.1992
FIAT	Uno 1.1 i.e.	[146C3.000]	06.1992-12.1993
LANCIA	Y10 1.0 Fire	[156A2.000]	03.1985-06.1989
LANCIA	Y10 1.0 Fire	[156A2.100]	06.1985-06.1991
LANCIA	Y10 1.0 Fire	[156A2.246]	10.1987-02.1992
LANCIA	Y10 1.0 Fire 4WD	[156A2.000]	12.1987-02.1990
LANCIA	Y10 1.0 Fire 4WD	[156A2.000]	12.1987-02.1992
LANCIA	Y10 1.0 Fire 4WD	[156A2.100]	12.1986-02.1989
LANCIA	Y10 1.0 Fire 4WD	[156A2.246]	12.1987-02.1992
LANCIA	Y10 1.1 Avenue	[176B2.000]	01.1995-12.1995
LANCIA	Y10 1.1 Avenue 4WD	[176B2.000]	01.1995-12.1995
LANCIA	Y10 1.1 i.e.	[156C.000]	08.1989-06.1992
LANCIA	Y10 1.1 i.e. 4WD	[156C.000]	08.1989-06.1992
LANCIA	Y10 1.1 i.e. Fire	[156C.046]	07.1989-09.1995
LANCIA	Y10 1.1 i.e. Fire 4WD	[156C.046]	09.1992-12.1995

063101023010	MAGNETI MARELLI
063720371010	MAGNETI MARELLI
10371	KUHNER
10371V	KUHNER
111025	CARGO
220360	ERA
3541	CEVAM
432650	VALEO
433325	VALEO
455511	VALEO
46231510	FIAT
46402984	FIAT
500.015.093	PSH
500.015.093.312	PSH
5999906	FIAT
66925111	PRESTOLITE
7539303	FIAT
7612952	FIAT
7621040	FIAT
76210400	FIAT
7622104	FIAT
76221040	FIAT
7667227	FIAT
77305430	FIAT
7749142	FIAT
88212523	POWERMAX
8EA012526-891	HELLA
8EA726119-001	HELLA
944280139400	MAGNETI MARELLI
ANM16160X	ANDEL
CS371	HC PARTS
D6RA39	VALEO
DRS3940	DELCO
DS5050	DELCO
F032111025	CARGO
GNU4535	ROVER
GS432650-A	GPARTS
GXE4535	ROVER
MQS371	MAGNETI MARELLI
RAS34051	DELCO
RNLD6RA39	RNL
S12VA0006A2	SIDAT
S3174S	AS-PL
SG0111	GHIBAUDI
STR00198	ELECTROLOG
STRL057	3EFFE
STV0371	KRAUF
STX200156	STARDAX
STX200156R	STARDAX
UD21185S	AS-PL
VAL432650	WOODAUTO

S3174S
