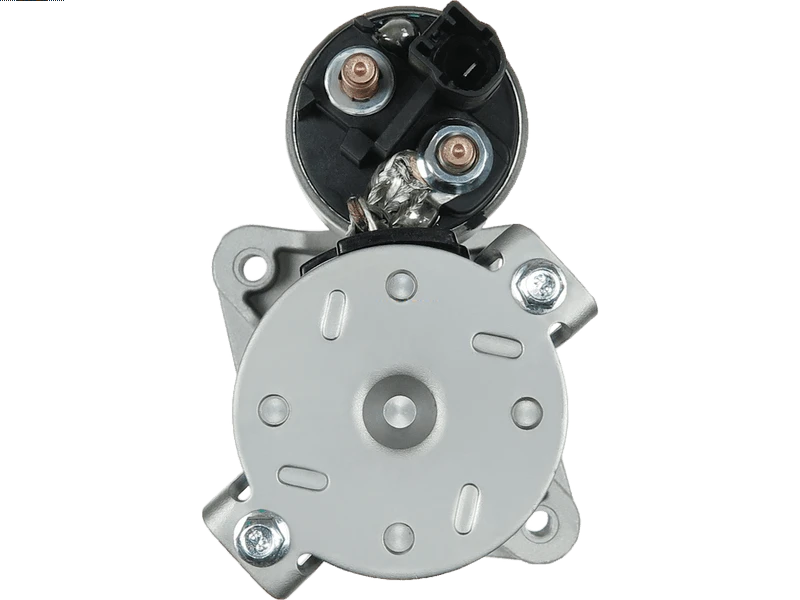

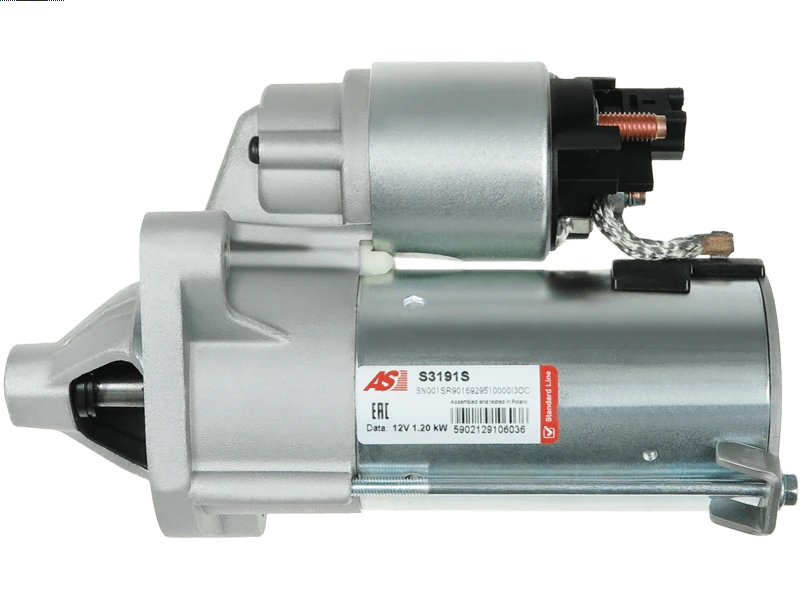

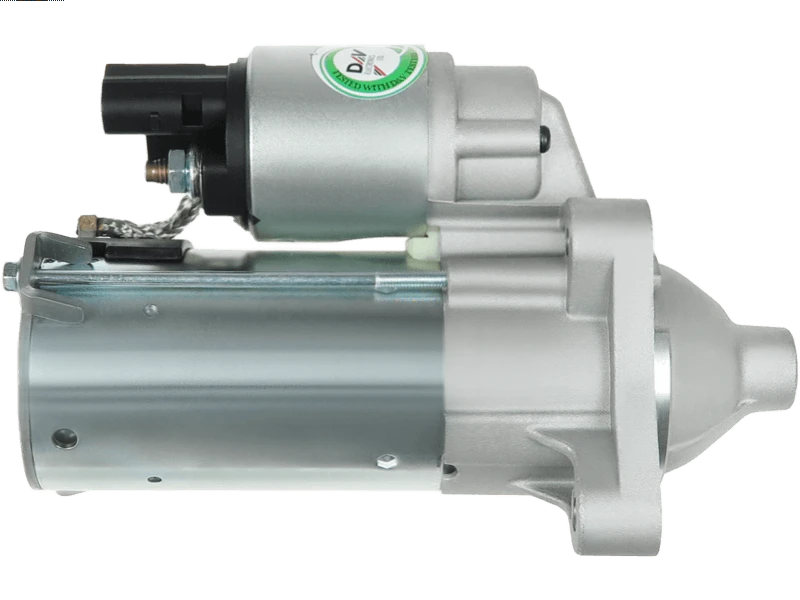

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 241.40 including GST
NZ$ 209.91 excluding GST
or four payments of $60.35
with
Learn More
each
S3191S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
TS12E901Associated Numbers
203995 20479403 219013708010 255181V 438285 458703 5702370807 6015304 850.502.113 88214910 CST15304 CST15304AS CST15304ES CST15304GS CST15304OS CST15304RS STR0178 STV0178 TS12E901 UD20486SSpecifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 204 mm |
| Mount Hole Center - Center (O.1) | 100 mm |
| Mount Hole Center - Center (O.2) | 67 mm |
| Mount Hole Center - Center (O.3) | 67 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 7 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 66 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LADA | 110 1.6 | [VAZ-21114] | 01.2000-12.2012 |
| LADA | 110 1.6 | [VAZ-21124] | 01.2000-04.2007 |
| LADA | 111 1.6 | [VAZ-21114] | 09.2004-02.2009 |
| LADA | 111 1.6 | [VAZ-21124] | 09.2004-12.2007 |
| LADA | 112 1.6 | [VAZ-21114] | 01.2005-12.2011 |
| LADA | 112 1.6 | [VAZ-21124] | 03.2006-12.2008 |
| LADA | 2110 1.6 | [VAZ-21114] | 01.2000-12.2012 |
| LADA | 2110 1.6 | [VAZ-21124] | 01.2000-04.2007 |
| LADA | 2111 1.6 | [VAZ-21114] | 09.2004-02.2009 |
| LADA | 2111 1.6 | [VAZ-21124] | 09.2004-12.2007 |
| LADA | 2112 1.6 | [VAZ-21114] | 01.2005-12.2011 |
| LADA | 2112 1.6 | [VAZ-21124] | 03.2006-12.2008 |
Reference Information
| 203995 | VALEO |
| 20479403 | REAL |
| 219013708010 | LADA |
| 255181V | KUHNER |
| 438285 | VALEO |
| 458703 | VALEO |
| 5702370807 | KATEK |
| 6015304 | SANDO |
| 850.502.113 | PSH |
| 88214910 | POWERMAX |
| CST15304 | CASCO |
| CST15304AS | CASCO |
| CST15304ES | CASCO |
| CST15304GS | CASCO |
| CST15304OS | CASCO |
| CST15304RS | CASCO |
| S135.954 | PSH |
| STR00051 | ELECTROLOG |
| STR0178 | KRAUF |
| STV0178 | KRAUF |
| TS12E901 | VALEO |
| UD20486S | AS-PL |
Video/Publications
