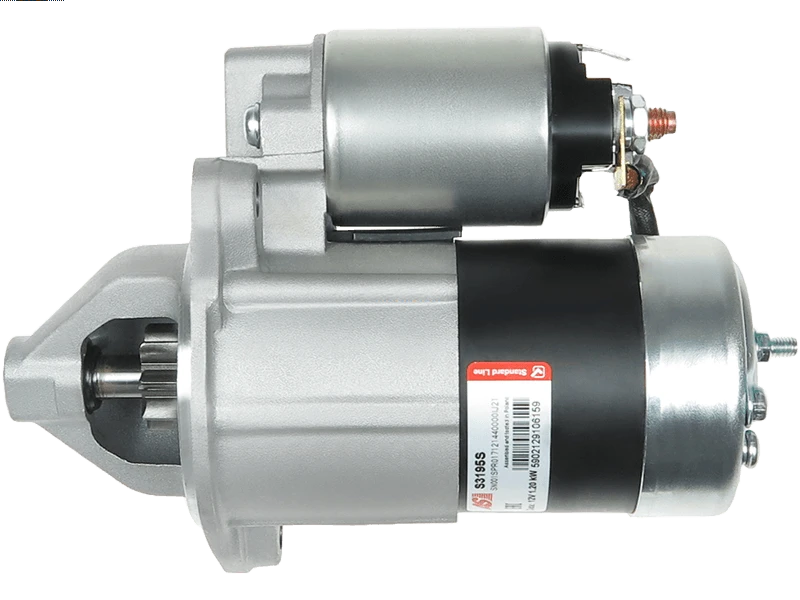

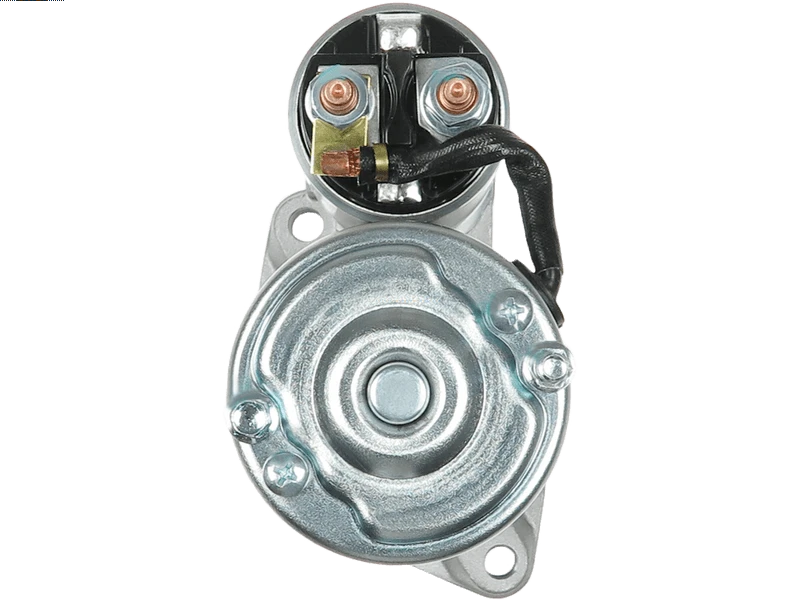

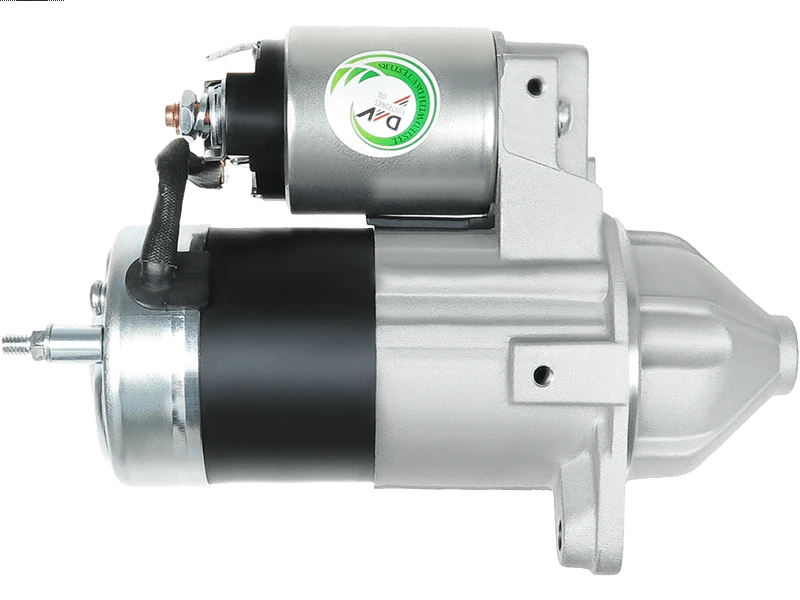

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 248.62 including GST
NZ$ 216.19 excluding GST
or four payments of $62.16
with
Learn More
each
S3195S
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M60082Associated Numbers
0986023980 113521 12022 150.522.082 17762N 17762R 201304 201304V 20493401 20513046 220381 25-3200 36100-38090 438099 455965 6032104 88212877 8EA011611-281 8EA738105-001 91-31-9003 944280705040 9770 AET1304 CST32104 CST32104AS CST32104ES CST32104GS CST32104OS CST32104RS DRS3888 DS4998 EAA-121597 J5210504 JS1304 LRS01655 M60082 MRS70504 RAS34999 S-8774 SG0438 STA1304 STA9304 STR75004 TM000A13901 UD20432S VALTM000A13901Specifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 213 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | 17 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 77 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | Highway 2.0 16V | [4G63] | 01.2000- |
| HYUNDAI | Highway 2.0 CVVT | [G4GC] | 01.2003-12.2004 |
| HYUNDAI | Santa Fe 2.4 | [G4JS-G] | 01.1999-12.2006 |
| HYUNDAI | Sonata 2.0i 16V | [G4JP-EG] | 01.2001-12.2004 |
| HYUNDAI | Sonata 2.0i 16V | [G4JP-G] | 01.1998-12.2001 |
| HYUNDAI | Sonata 2.4i 16V | [G4BS] | 01.1998-12.2001 |
| HYUNDAI | Trajet 2.0 16V | [G4JP-G] | 01.2000-12.2004 |
| KIA | Magentis 2.0 | [G4JP] | 01.2000- |
| KIA | Sorento 2.4 | [G4JS] | 01.2003-12.2009 |
Reference Information
| 003-C141 | ASHIKA |
| 0986023980 | BOSCH |
| 113521 | CARGO |
| 12022 | EAI |
| 150.522.082 | PSH |
| 17762N | WAI / TRANSPO |
| 17762R | WAI / TRANSPO |
| 201304 | KUHNER |
| 201304V | KUHNER |
| 20493401 | REAL |
| 20513046 | PRESTOLITE |
| 220381 | ERA |
| 25-3200 | ELSTOCK |
| 36100-38090 | HYUNDAI / KIA |
| 3C141 | JAPKO |
| 438099 | VALEO |
| 455965 | VALEO |
| 6032104 | SANDO |
| 88212877 | POWERMAX |
| 8EA011611-281 | HELLA |
| 8EA738105-001 | HELLA |
| 91-31-9003 | WILSON |
| 944280705040 | MAGNETI MARELLI |
| 9770 | CEVAM |
| AET1304 | AUTOELECTRO |
| ANM16108X | ANDEL |
| CGB-28090 | AINDE |
| CST32104 | CASCO |
| CST32104AS | CASCO |
| CST32104ES | CASCO |
| CST32104GS | CASCO |
| CST32104OS | CASCO |
| CST32104RS | CASCO |
| DRS3888 | DELCO |
| DS4998 | DELCO |
| F032113521 | CARGO |
| J5210504 | HERTH+BUSS |
| JS1304 | HC PARTS |
| LRS01655 | LUCAS |
| LRS1655 | LUCAS |
| M60082 | VALEO |
| MAV7240 | SIOM |
| MRS70504 | MAGNETI MARELLI |
| MTC141 | JAPANPARTS |
| RAS34999 | DELCO |
| S12VA0409 | SIDAT |
| S12VA0409A2 | SIDAT |
| S3195S | AS-PL |
| S-8774 | DIXIE |
| SG0438 | GHIBAUDI |
| STA1304 | KRAUF |
| STA9304 | KRAUF |
| STR5258 | ELECTROLOG |
| STR75004 | WOODAUTO |
| STRW330 | 3EFFE |
| STX200243 | STARDAX |
| STX200243R | STARDAX |
| TM000A13901 | VALEO |
| UD20432S | AS-PL |
| VALTM000A13901 | WOODAUTO |
