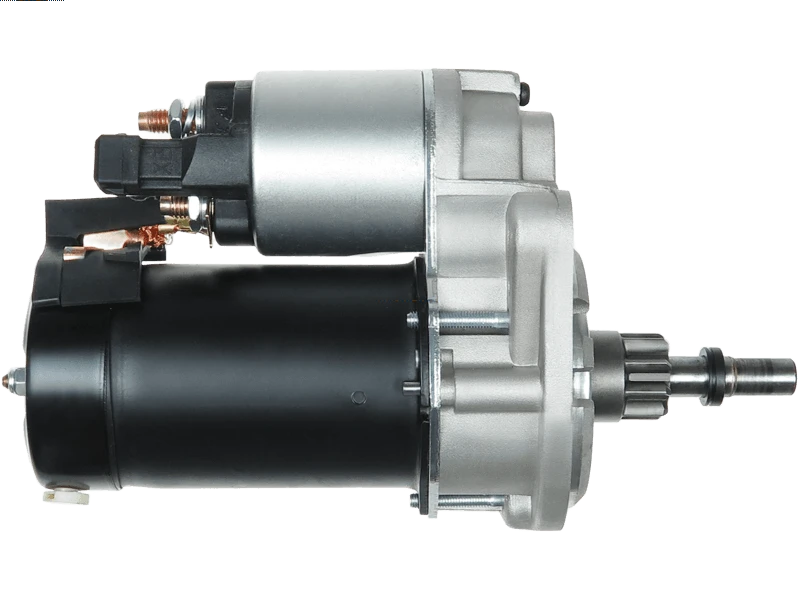

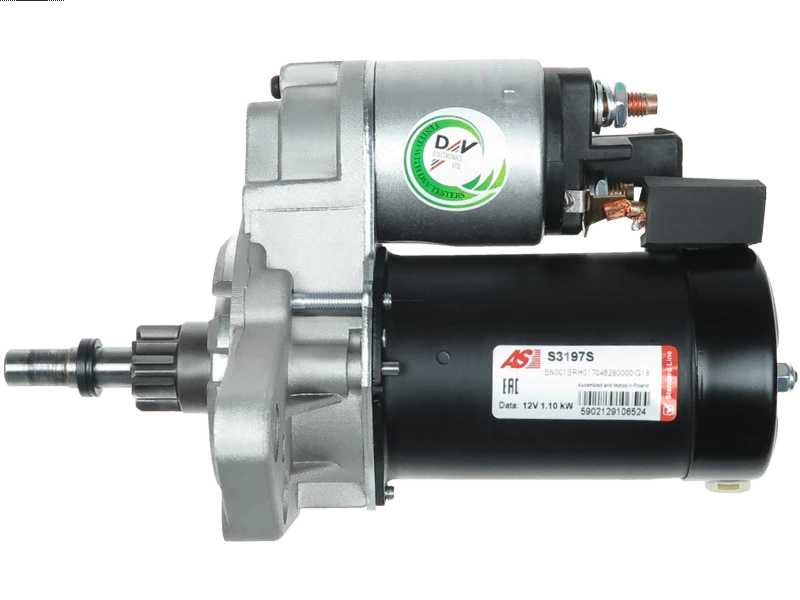

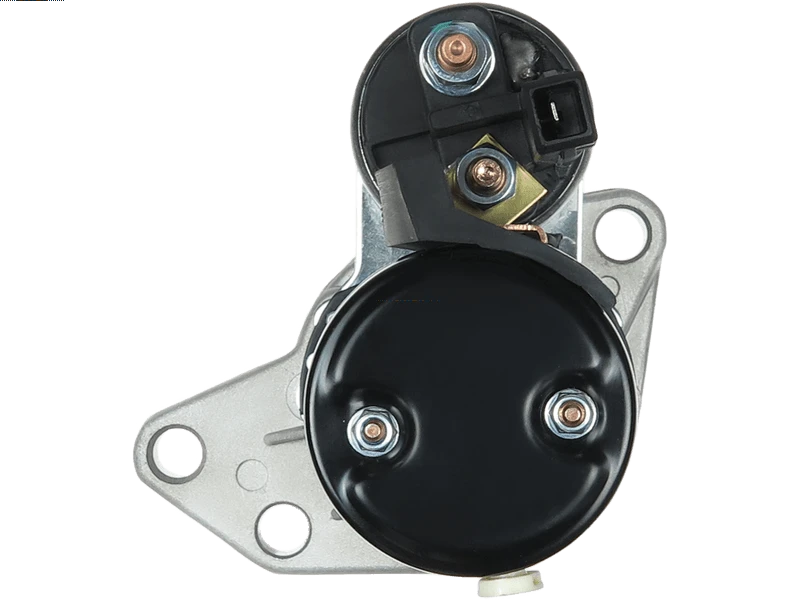

S3197S - Brand new AS-PL Starter motor

Associated Numbers

0001107020 0001107021 0001107052 0001107053 0001112038 0001112039 0001113011 020911023A 020911023J 020911023L 020911023M 020911023MX 020911023N 055911023L 063521120380 063720618010 063720796010 0986016290 10116 10294 10618 111748 11260 17415N 20401701 20500785 220190 25-1355 260-11103 300.513.093 3340 35259250 42016290 432605 433266 436019 438205 455548 6.0012.9 6010107 66925182 66925266 66925343 726026 726030 88213273 8EA011350-421 8EA011610-481 8EA012526-761 8EA012526-762 8EA726054-001 8EA730188-001 943251326010 943251671010 944280126000 944280126050 944280162900 AES7185 CS618 CST10107 CST10107AS CST10107ES CST10107GS CST10107OS CST10107RS D7RS291 DRS6290 DS7400 LRS00785 M1209A M1209H MQS618 MRS16290 MSN2089 MSR905 S-6156 S1022B S1043B S1212V SD6RA79 SG0074 SG0660 STB0618 STM584 UD20494S

Specifications

Kilowatt	1.10 kW
Length (L.1)	225 mm
Mount Hole Center - Center (O.1)	123 mm
Mount Hole Center - Center (O.2)	32.50 mm
Mount Hole Center - Center (O.3)	111.50 mm
Mount Hole Diameter (C.1)	12.50 mm
Mount Hole Diameter (C.2)	12 mm
Mount Hole Diameter (C.3)	12.50 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
OEM Product	No
Pinion at Rest (B)	33 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	ACW
Spigot Diameter (A)	76 mm
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AUDI	A3 1.6	[AEH]	09.1996-05.2003
AUDI	A3 1.6	[AKL]	09.1996-05.2003
AUDI	A3 1.8	[AGN]	09.1996-05.2003
AUDI	A3 1.8 Turbo 20V	[AGU]	12.1996-05.2003
AUDI	A3 1.8 Turbo Quattro	[AGU]	08.1997-08.2000
FORD	Galaxy 2.0 i	[NSE]	11.1995-
SEAT	Alhambra 1.8 Turbo 20V	[AJH]	10.1997-
SEAT	Alhambra 2.0 i	[ADY]	04.1996-
SEAT	Cordoba 1.6 i	[1F]	05.1994-06.1999
SEAT	Cordoba 1.6 i	[1F]	05.1997-06.1999
SEAT	Cordoba 1.6 i	[ABU]	02.1993-06.1999
SEAT	Cordoba 1.6 i	[AFT]	07.1996-06.1999
SEAT	Cordoba 1.6 i	[AFT]	09.1996-06.1999
SEAT	Cordoba 1.8 i	[ABS]	02.1993-06.1999
SEAT	Cordoba 1.8 i	[ACC]	02.1993-06.1999
SEAT	Cordoba 1.8 i	[ADZ]	02.1993-06.1999
SEAT	Cordoba 1.8 i 16V	[ADL]	10.1993-08.1996
SEAT	Cordoba 2.0 i	[2E]	02.1993-06.1999
SEAT	Cordoba 2.0 i	[AGG]	02.1993-06.1999
SEAT	Ibiza 1.6 i	[1F]	03.1993-08.1999
SEAT	Ibiza 1.6 i	[1F]	09.1994-06.1999
SEAT	Ibiza 1.6 i	[AFT]	04.1996-08.1999
SEAT	Ibiza 1.8 i	[ABS]	03.1993-08.1999
SEAT	Ibiza 1.8 i	[ADZ]	03.1993-08.1999
SEAT	Ibiza 1.8 i 16V	[ADL]	11.1993-08.1996
SEAT	Ibiza 2.0 i	[2E]	03.1993-08.1999
SEAT	Inca 1.6 i	[1F]	11.1995-05.1998
SEAT	Toledo 1.6 i	[1F]	05.1991-03.1999
SEAT	Toledo 1.6 i	[ABN]	05.1991-03.1999
SEAT	Toledo 1.6 i	[AFT]	11.1996-03.1999
SEAT	Toledo 1.8 16V	[KR]	05.1991-03.1999
SEAT	Toledo 1.8 16V	[PL]	05.1991-03.1999
SEAT	Toledo 1.8 i	[ABS]	11.1993-12.1996
SEAT	Toledo 1.8 i	[ADZ]	11.1993-12.1996
SEAT	Toledo 1.8 i	[RP]	05.1991-12.1996
SEAT	Toledo 2.0 i	[2E]	05.1991-03.1999
SEAT	Toledo 2.0 i	[AGG]	05.1991-03.1996
SKODA	Octavia 1.6	[AEE]	07.1998-
SKODA	Octavia 1.6	[AEE]	09.1996-09.2000
SKODA	Octavia 1.6	[AEH]	02.1997-
SKODA	Octavia 1.6	[AEH]	07.1998-
SKODA	Octavia 1.6	[AKL]	02.1997-
SKODA	Octavia 1.8	[AGN]	09.1996-
SKODA	Octavia 1.8 Turbo	[AGU]	07.1998-
SKODA	Octavia 1.9 SDi	[AQM]	06.1997-
SKODA	Octavia 1.9 SDi	[AQM]	07.1998-12.2003
SKODA	Octavia 1.9 TDi	[AGR]	07.1998-
SKODA	Octavia 1.9 TDi	[AGR]	09.1996-
SKODA	Octavia 1.9 TDi	[AHF]	07.1998-
SKODA	Octavia 1.9 TDi	[AHF]	08.1997-09.2004
SKODA	Octavia 1.9 TDi	[ALH]	07.1998-
SKODA	Octavia 1.9 TDi	[ALH]	09.1996-
SKODA	Octavia 1.9 TDi	[ASV]	07.1998-
SKODA	Octavia 1.9 TDi 4x4	[AGR]	11.1999-09.2000
VW	Cabrio 2.0	[ABA]	01.1995-01.1995
VW	Cabrio 2.0	[ABA]	01.1995-01.1996
VW	Cabrio 2.0	[ABA]	01.1996-01.1997
VW	Cabrio 2.0	[ABA]	01.1998-01.1998
VW	Cabrio 2.0	[ABA]	01.1999-01.2000
VW	Cabrio 2.0	[ABA]	01.2001-01.2001
VW	Cabrio 2.0 Highline	[ABA]	01.1997-01.1997
VW	Caddy 1.6	[1F]	11.1995-05.1997
VW	Caddy 1.6	[1F]	11.1995-09.2000
VW	Corrado 1.8 16V	[KR]	04.1989-07.1992
VW	Corrado 1.8 G60	[PG]	09.1988-09.1993
VW	Corrado 2.0 i	[ADY]	10.1994-07.1995
VW	Corrado 2.0 i 16V	[9A]	08.1991-12.1995
VW	Golf I 1.8 GTi	[JJ]	08.1982-12.1983
VW	Golf II 1.6	[ABN]	08.1983-08.1991
VW	Golf II 1.8	[RP]	08.1987-10.1991
VW	Golf III 1.4	[ABD]	07.1993-04.1999
VW	Golf III 1.4	[AEX]	07.1993-04.1999
VW	Golf III 1.4	[AEX]	10.1991-08.1997
VW	Golf III 1.4	[AEX]	11.1991-08.1997
VW	Golf III 1.4	[APQ]	07.1993-04.1999
VW	Golf III 1.6	[AEA]	07.1993-12.1997
VW	Golf III 1.6	[AEA]	09.1992-08.1997
VW	Golf III 1.6	[AEE]	07.1993-12.1997
VW	Golf III 1.6	[AEE]	09.1992-08.1997
VW	Golf III 1.6	[AEK]	07.1994-04.1999
VW	Golf III 1.6	[AEK]	07.1995-08.1997
VW	Golf III 1.6	[AEK]	10.1994-05.1998
VW	Golf III 1.6	[AFT]	07.1994-04.1999
VW	Golf III 1.6	[AFT]	07.1995-08.1997
VW	Golf III 1.6	[AFT]	10.1994-05.1998
VW	Golf III 1.6	[AKS]	07.1994-04.1999
VW	Golf III 1.6	[AKS]	07.1995-08.1997
VW	Golf III 1.8	[AAM]	07.1993-04.1999
VW	Golf III 1.8	[AAM]	07.1993-05.1998
VW	Golf III 1.8	[AAM]	11.1991-08.1997
VW	Golf III 1.8	[ABS]	07.1993-04.1999
VW	Golf III 1.8	[ABS]	11.1991-08.1997
VW	Golf III 1.8	[ACC]	11.1991-08.1997
VW	Golf III 1.8	[ADZ]	07.1993-04.1999
VW	Golf III 1.8	[ADZ]	07.1993-05.1998
VW	Golf III 1.8	[ADZ]	11.1991-08.1997
VW	Golf III 2.0	[2E]	07.1993-04.1999
VW	Golf III 2.0	[2E]	07.1993-05.1998
VW	Golf III 2.0	[ABA]	01.1998-01.1998
VW	Golf III 2.0	[ADY]	07.1993-04.1999
VW	Golf III 2.0	[ADY]	07.1993-05.1998
VW	Golf III 2.0	[AGG]	07.1993-04.1999
VW	Golf III 2.0	[AGG]	07.1993-05.1998
VW	Golf III 2.0	[AKR]	07.1993-04.1999
VW	Golf III 2.0	[AKR]	07.1993-05.1998
VW	Golf III 2.0 Celebration Edit	[ABA]	01.1995-01.1995
VW	Golf III 2.0 City	[ABA]	01.1995-01.1995
VW	Golf III 2.0 GL	[ABA]	01.1993-01.1993
VW	Golf III 2.0 GL	[ABA]	01.1994-01.1995
VW	Golf III 2.0 GL	[ABA]	01.1995-01.1995
VW	Golf III 2.0 GL	[ABA]	01.1995-01.1997
VW	Golf III 2.0 GL	[ABA]	01.1999-01.1999
VW	Golf III 2.0 GL	[AEG]	01.1999-01.1999
VW	Golf III 2.0 GLS	[AEG]	01.1999-01.1999
VW	Golf III 2.0 GTi	[2E]	11.1991-08.1997
VW	Golf III 2.0 GTi	[ABA]	01.1993-01.1993
VW	Golf III 2.0 GTi	[ABA]	01.1994-01.1994
VW	Golf III 2.0 GTi	[ABA]	01.1995-01.1995
VW	Golf III 2.0 GTi	[ABA]	01.1996-01.1997
VW	Golf III 2.0 GTi	[ABA]	01.1998-01.1998
VW	Golf III 2.0 GTi	[ABA]	01.1999-01.1999
VW	Golf III 2.0 GTi	[ABA]	11.1991-08.1997
VW	Golf III 2.0 GTi	[ADY]	11.1991-08.1997
VW	Golf III 2.0 GTi	[AGG]	11.1991-08.1997
VW	Golf III 2.0 GTi	[AKR]	11.1991-08.1997
VW	Golf III 2.0 GTi 16V	[ABF]	08.1992-08.1997
VW	Golf III 2.0 JAZZ	[ABA]	01.1997-01.1997
VW	Golf III 2.0 K2	[ABA]	01.1997-01.1997
VW	Golf III 2.0 K2		01.1998-01.1998
VW	Golf III 2.0 Sport	[ABA]	01.1995-01.1995
VW	Golf III 2.0 Trek	[ABA]	01.1997-01.1997
VW	Golf IV 1.8	[AGN]	08.1997-06.2005
VW	Jetta 2.0 Celebration Edit	[ABA]	01.1995-01.1995
VW	Jetta 2.0 City	[ABA]	01.1995-01.1995
VW	Jetta 2.0 GL	[ABA]	01.1994-01.1994
VW	Jetta 2.0 GL	[ABA]	01.1994-01.1995
VW	Jetta 2.0 GL	[ABA]	01.1996-
VW	Jetta 2.0 GL	[ABA]	01.1996-01.1996
VW	Jetta 2.0 GL	[ABA]	01.1997-
VW	Jetta 2.0 GL	[ABA]	01.1998-01.1998
VW	Jetta 2.0 GL	[ABA]	01.1999-01.1999
VW	Jetta 2.0 GLS	[ABA]	01.1994-01.1994
VW	Jetta 2.0 GLS	[ABA]	01.1994-01.1995
VW	Jetta 2.0 GLS	[ABA]	01.1996-01.1997
VW	Jetta 2.0 GLS	[ABA]	01.1998-01.1998
VW	Jetta 2.0 GLS	[ABA]	01.1999-01.1999
VW	Jetta 2.0 GT	[ABA]	01.1997-01.1997
VW	Jetta 2.0 GT	[ABA]	01.1998-01.1998
VW	Jetta 2.0 JAZZ	[ABA]	01.1997-01.1997
VW	Jetta 2.0 K2	[ABA]	01.1998-01.1998
VW	Jetta 2.0 Trek	[ABA]	01.1996-01.1996
VW	Jetta 2.0 Trek II	[ABA]	01.1997-01.1997
VW	Jetta 2.0 Wolfsburg Edition	[ABA]	01.1996-01.1996
VW	Passat 1.6	[AEK]	07.1994-12.1995
VW	Passat 1.6	[AEK]	10.1994-08.1996
VW	Passat 1.6	[AFT]	07.1994-12.1995
VW	Passat 1.6	[AFT]	10.1994-08.1996
VW	Passat 1.8	[AAM]	08.1990-05.1997
VW	Passat 1.8	[AAM]	08.1990-08.1996
VW	Passat 1.8	[ABS]	02.1988-05.1997
VW	Passat 1.8	[ABS]	02.1988-08.1996
VW	Passat 1.8	[ADZ]	02.1988-05.1997
VW	Passat 1.8	[ADZ]	02.1988-08.1996
VW	Passat 1.8 16V	[KR]	04.1988-12.1989
VW	Passat 2.0	[2E]	02.1990-05.1997
VW	Passat 2.0	[2E]	02.1990-08.1996
VW	Passat 2.0	[ADY]	02.1990-05.1997
VW	Passat 2.0	[ADY]	02.1990-08.1996
VW	Passat 2.0	[AGG]	02.1990-05.1997
VW	Passat 2.0	[AGG]	02.1990-08.1996
VW	Passat 2.0 16V	[9A]	08.1988-09.1993
VW	Passat 2.0 16V	[ABF]	01.1994-05.1997
VW	Passat 2.0 16V	[ABF]	01.1994-08.1996
VW	Passat 2.0 16V GT	[9A]	08.1988-09.1993
VW	Passat 2.0 CL	[9A]	01.1992-01.1992
VW	Passat 2.0 GLS	[ABA]	01.1996-01.1996
VW	Polo 1.6	[1F]	11.1995-09.1997
VW	Polo 1.6	[AEH]	05.1997-09.2001
VW	Polo 1.6	[AFT]	05.1997-09.2001
VW	Polo 1.6	[AFT]	12.1995-08.1999
VW	Polo 1.6	[AKL]	05.1997-09.2001
VW	Polo 1.6	[APF]	05.1997-09.2001
VW	Polo 1.6	[AUR]	05.1997-09.2001
VW	Polo 2.0	[ADC]	08.1999-09.2001
VW	Sharan 1.8 Turbo 20V	[AJH]	09.1997-
VW	Sharan 2.0	[ADY]	09.1995-
VW	Vento 1.4	[AEX]	11.1991-09.1998
VW	Vento 1.6	[ABU]	09.1992-09.1998
VW	Vento 1.6	[AEA]	09.1992-09.1998
VW	Vento 1.6	[AEE]	09.1992-09.1998
VW	Vento 1.6	[AEK]	10.1994-09.1998
VW	Vento 1.6	[AFT]	10.1994-09.1998
VW	Vento 1.8	[AAM]	11.1991-09.1998
VW	Vento 1.8	[ABS]	11.1991-09.1998
VW	Vento 1.8	[ADZ]	11.1991-09.1998
VW	Vento 2.0	[2E]	11.1991-09.1998
VW	Vento 2.0	[ADY]	11.1991-09.1998
VW	Vento 2.0	[AGG]	11.1991-09.1998
VW	Vento 2.0	[AKR]	11.1991-09.1998

Reference Information

0001107020	BOSCH
0001107021	BOSCH
0001107052	BOSCH
0001107053	BOSCH
0001112038	BOSCH
0001112039	BOSCH
0001113011	BOSCH
0175911023B	VW
020911023	VW
020911023A	VW
020911023AX	VW
020911023J	VW
020911023L	VW
020911023LX	VW
020911023M	VW
020911023MX	VW
020911023N	VW
020911023NX	VW
055911023	VW
055911023F	VW
055911023H	VW
055911023HX	VW
055911023J	VW
055911023JX	VW
055911023K	VW
055911023KX	VW
055911023L	VW
055911023M	VW
055911023MX	VW
055911023X	VW
063521120380	MAGNETI MARELLI
063720618010	MAGNETI MARELLI
063720796010	MAGNETI MARELLI
068911023AX	VW
0986016290	BOSCH
10116	KUHNER
10294	KUHNER
1029411	FORD
10618	KUHNER
111748	CARGO
11260	EAI
17415N	WAI / TRANSPO
175911023B	VW
1HS911023A	VW
1HS911023B	VW
20401701	REAL
20500785	PRESTOLITE
20911023	VW
20911023L	VW
20911023LX	VW
20911023M	VW
20911023MX	VW
220097	ERA
220190	ERA
25-1355	ELSTOCK
260-11103	DIXIE
300.513.093	PSH
300.513.093.000	PSH
300.513.093.010	PSH
300.513.093.019	PSH
300.513.093.215	PSH
300.513.093.460	PSH
300.513.093.461	PSH
330767	LOGISTIK
3340	CEVAM
35259250	PRESTOLITE
390874	VW
42016290	HERTH+BUSS
432605	VALEO
433266	VALEO
436019	VALEO
438205	VALEO
455548	VALEO
55911023	VW
55911023F	VW
55911023H	VW
55911023HX	VW
55911023J	VW
55911023JX	VW
55911023K	VW
55911023KX	VW
55911023L	VW
55911023M	VW
55911023MX	VW
55911023X	VW
5840203	LOMBARDINI
6.0012.9	IKA
6010107	SANDO
66925182	PRESTOLITE
66925266	PRESTOLITE
66925343	PRESTOLITE
68911023AX	VW
726026	VALEO
726030	VALEO
88213273	POWERMAX
8EA011350-421	HELLA
8EA011610-481	HELLA
8EA012526-761	HELLA
8EA012526-762	HELLA
8EA726054-001	HELLA
8EA730188-001	HELLA
943251326010	MAGNETI MARELLI
943251671010	MAGNETI MARELLI
944280126000	MAGNETI MARELLI
944280126050	MAGNETI MARELLI
944280162900	MAGNETI MARELLI
ADU9356	ROVER
ADU9357	ROVER
AES7185	AUTOELECTRO
ASM1311	APEC
AUU1233	ROVER
AUU1237	ROVER
CS618	HC PARTS
CST10107	CASCO
CST10107AS	CASCO
CST10107ES	CASCO
CST10107GS	CASCO
CST10107OS	CASCO
CST10107RS	CASCO
D6RA	VALEO
D7RS291	VALEO
DRS6290	DELCO
DS7400	DELCO
F032111748	CARGO
GEU4491	ROVER
GEU4492	ROVER
GEU4539	ROVER
GNU4491	ROVER
GNU4492	ROVER
GNU4538	ROVER
GNU4539	ROVER
GXE4538	ROVER
GXE4539	ROVER
LRS00785	LUCAS
LRS785	LUCAS
M1209A	PRESTOLITE
M1209H	PRESTOLITE
MAV121210	SIOM
MAV121330	SIOM
MAV3020	SIOM
MQS618	MAGNETI MARELLI
MRS16290	MAGNETI MARELLI
MSN2089	MAGNETI MARELLI
MSR905	MAGNETI MARELLI
NPANSM1311	NAPA
RNL1629V	RNL
RNL1820V	RNL
S1022B	PRESTOLITE
S1043B	PRESTOLITE
S12BH0244A2	SIDAT
S3197S	AS-PL
S-6156	DIXIE
SD6RA79	VALEO
SG0074	GHIBAUDI
SG0660	GHIBAUDI
STB0618	KRAUF
STM584	ROLLCO
STR00212	ELECTROLOG
STR00364	ELECTROLOG
STR0061	ELECTROLOG
STRS019	3EFFE
STRS116	3EFFE
STX200038	STARDAX
STX200070	STARDAX
STX200070R	STARDAX
STX200078	STARDAX
STX200078R	STARDAX
STX200245	STARDAX
STX200245R	STARDAX
STX200404	STARDAX
STX200656	STARDAX
UD20494S	AS-PL

Video/Publications

S3197S
