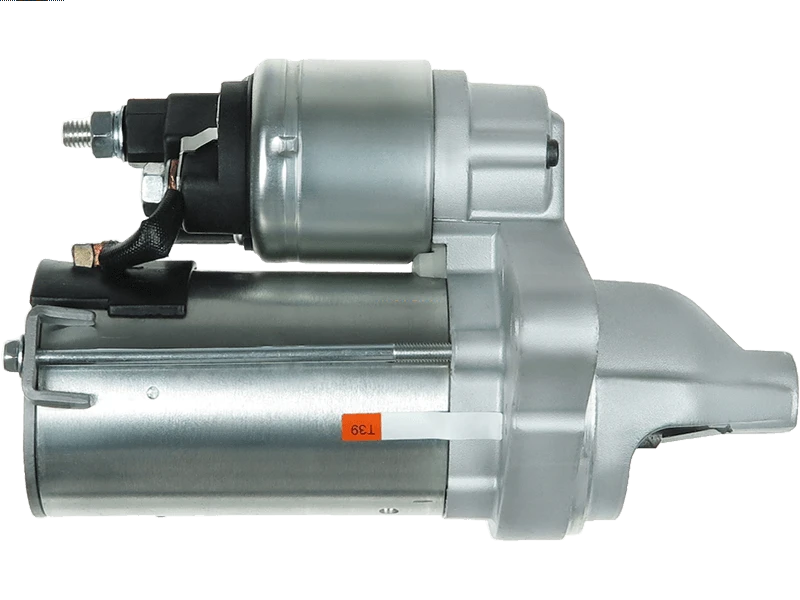

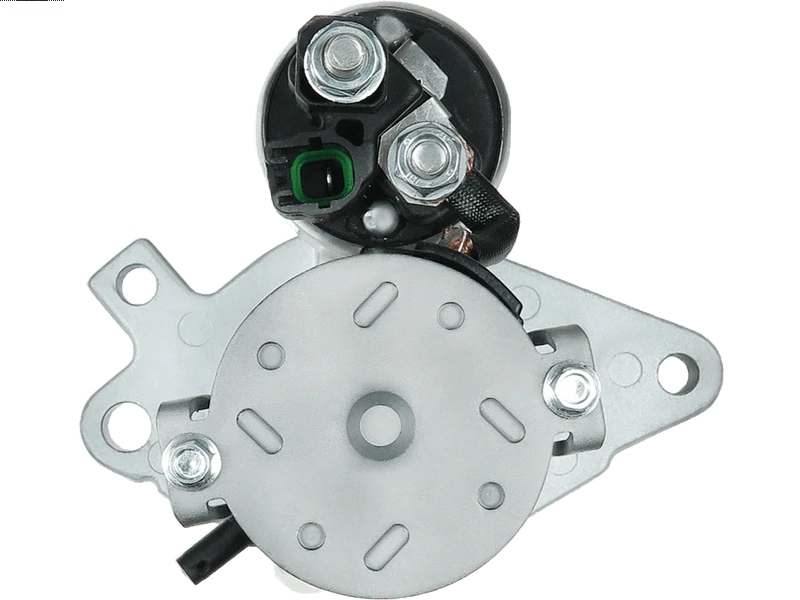

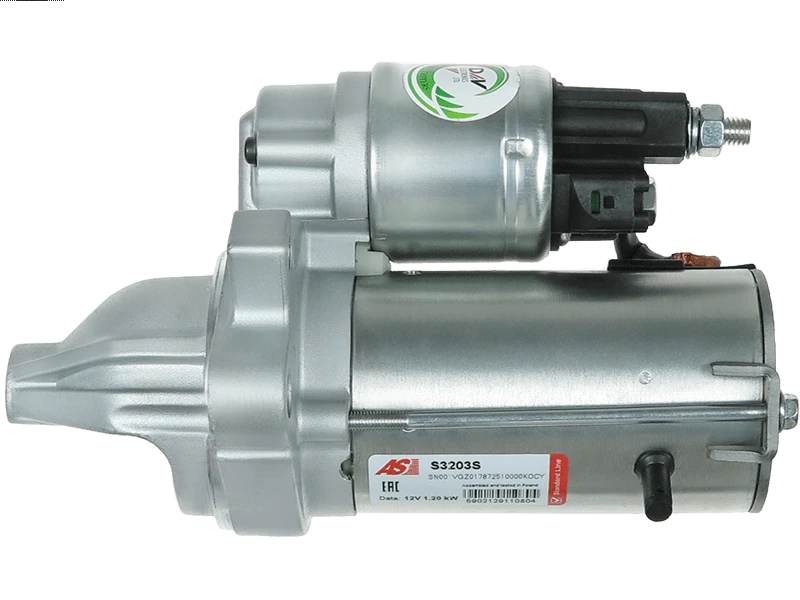

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 274.90 including GST
NZ$ 239.04 excluding GST
or four payments of $68.73
with
Learn More
each
S3203S
No stock in NZ currently
No stock in NZ currently
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
TS12E200Associated Numbers
28100-0Q110 TS12E200 UD17049S 116279 CST15299GS 3277 DRS1025 25-5071 8EA011612-171 255625V LRS03908 1612093080 1612350480 88214911 220.540.092 20479992OE 6015299.1Specifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 202 mm |
| Mount Hole Center - Center (O.1) | 129 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 27 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | C1 1.0 Vti | [CFB(1KR)] | 04.2014- |
| PEUGEOT | 108 1.0 VTi | [CFB(1KR)] | 05.2014- |
| TOYOTA | Aygo 1.0 | [1KR-FE] | 05.2014- |
Reference Information
| 116279 | CARGO |
| 1612093080 | PEUGEOT |
| 1612350480 | PEUGEOT |
| 20479992OE | REAL |
| 220.540.092 | PSH |
| 25-5071 | ELSTOCK |
| 255625V | KUHNER |
| 28100-0Q110 | TOYOTA |
| 281000Q11084 | TOYOTA |
| 30582-OS | WAI / TRANSPO |
| 3277 | CEVAM |
| 6015299.1 | SANDO |
| 88214911 | POWERMAX |
| 8EA011612-171 | HELLA |
| CST15299GS | CASCO |
| DRS1025 | DELCO |
| F032116279 | CARGO |
| LRS03908 | LUCAS |
| LRS3908 | LUCAS |
| RNLTS12E200 | RNL |
| S131.593 | PSH |
| S144.915 | PSH |
| S3203S | AS-PL |
| STR00187 | ELECTROLOG |
| TS12E200 | VALEO |
| UD17049S | AS-PL |
Video/Publications
