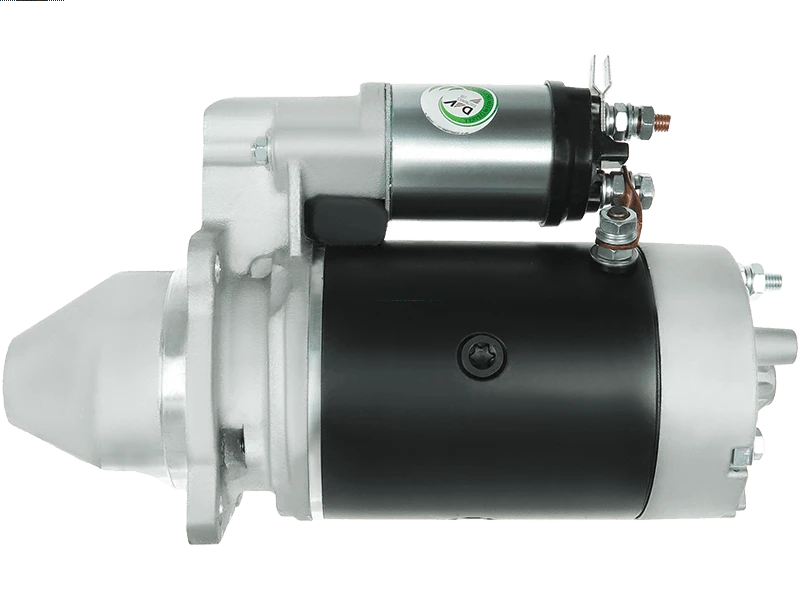

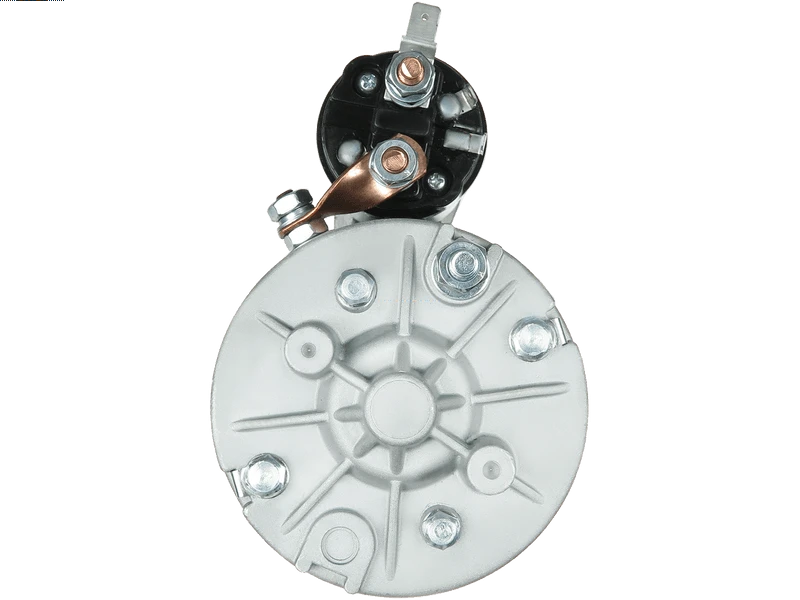

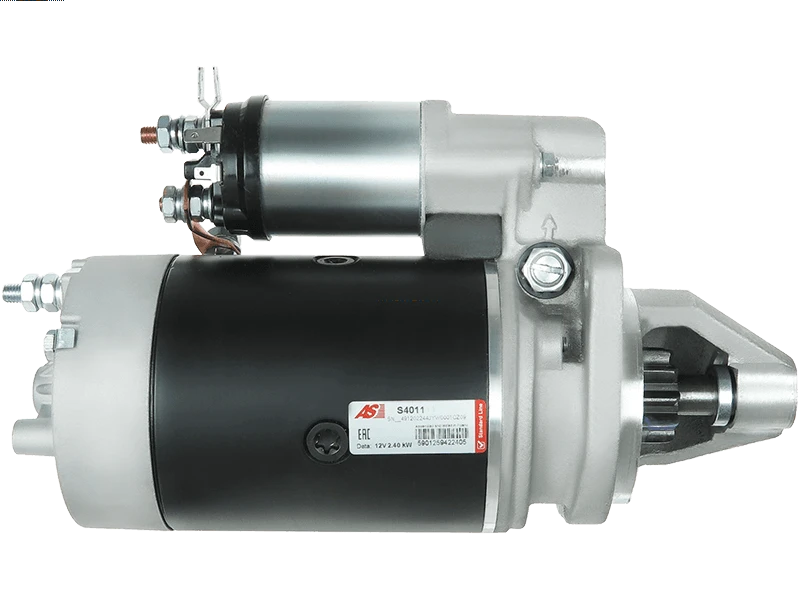

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
LUCAS
Price:
NZ$ 491.68 including GST
NZ$ 427.55 excluding GST
or four payments of $122.92
with
Learn More
each
S4011
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
LRS124Associated Numbers
10693L 10693P 110443 17644N 20405501BN 20405501OE 20500124 22.0693 22.0693M 25-0334 25-1400 254460R 26148 26196 26283 26375 26383 26383A 26383H 26383J 26422 27417 27478 27486 2873A102 33834 6025105 700.004.103 700.518.103 8212536 8735 8735R 8EA730209-001 9000143413 AES1124 CS693 CST25105AS CST25105GS DRS3336 EAA-121270 LRS00124 S12-84 STR25023Specifications
| Kilowatt | 2.40 kW |
| Length (L.1) | 318 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| Mount Hole Diameter (C.3) | 10.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 30 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | LUCAS |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MASSEY FERGUSON | MF 3085 | 01.1988- | |
| MASSEY FERGUSON | MF 3635 | 01.1992-12.1995 |
Reference Information
| 0001362019 | BOSCH |
| 0001362048 | BOSCH |
| 0986023510 | BOSCH |
| 10693L | KUHNER |
| 10693P | KUHNER |
| 110443 | CARGO |
| 1447586M91 | MASSEY FERGUSON |
| 17644N | WAI / TRANSPO |
| 1873A010 | PERKINS |
| 20405501BN | REAL |
| 20405501OE | REAL |
| 20500124 | PRESTOLITE |
| 22.0693 | LAUBER |
| 22.0693M | LAUBER |
| 220741 | ERA |
| 25-1400 | ELSTOCK |
| 254460R | KUHNER |
| 26148 | LUCAS |
| 26196 | LUCAS |
| 26283 | LUCAS |
| 26283R | PERKINS |
| 26375 | LUCAS |
| 26383 | LUCAS |
| 26383A | LUCAS |
| 26383H | LUCAS |
| 26383J | LUCAS |
| 26422 | LUCAS |
| 27417 | LUCAS |
| 27478 | LUCAS |
| 27486 | LUCAS |
| 2873121 | PERKINS |
| 2873141 | PERKINS |
| 2873A010 | MASSEY FERGUSON |
| 2873A010 | PERKINS |
| 2873A10 | PERKINS |
| 2873A102 | PERKINS |
| 2873D003 | PERKINS |
| 31179 | PERKINS |
| 33834 | EAI |
| 6025105 | SANDO |
| 700.004.103 | PSH |
| 700.004.103.380 | PSH |
| 700.004.103.460 | PSH |
| 700.518.103 | PSH |
| 8212536 | POWERMAX |
| 8735 | CEVAM |
| 8735R | CEVAM |
| 8EA730209-001 | HELLA |
| 92029 | VALEO |
| 997267 | NISSAN |
| ADU1239 | ROVER |
| AES1124 | AUTOELECTRO |
| CGB-23285 | AINDE |
| CGB-23336 | AINDE |
| CS693 | HC PARTS |
| CST25105AS | CASCO |
| CST25105GS | CASCO |
| D11E74 | VALEO |
| DRS3336 | DELCO |
| F032110443 | CARGO |
| GXE4596 | ROVER |
| MAV3610 | SIOM |
| S12-84 | HITACHI |
| S12BH0684A2 | SIDAT |
| S4011 | AS-PL |
| STR10038 | ELECTROLOG |
| STR25023 | WOODAUTO |
| STR4105 | ELECTROLOG |
| STX200542 | STARDAX |
| STX210086 | STARDAX |
Video/Publications
