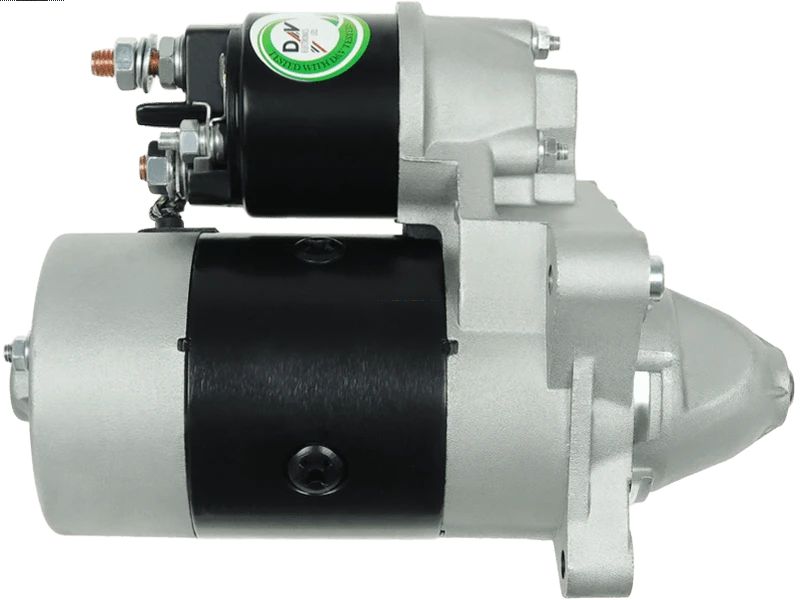

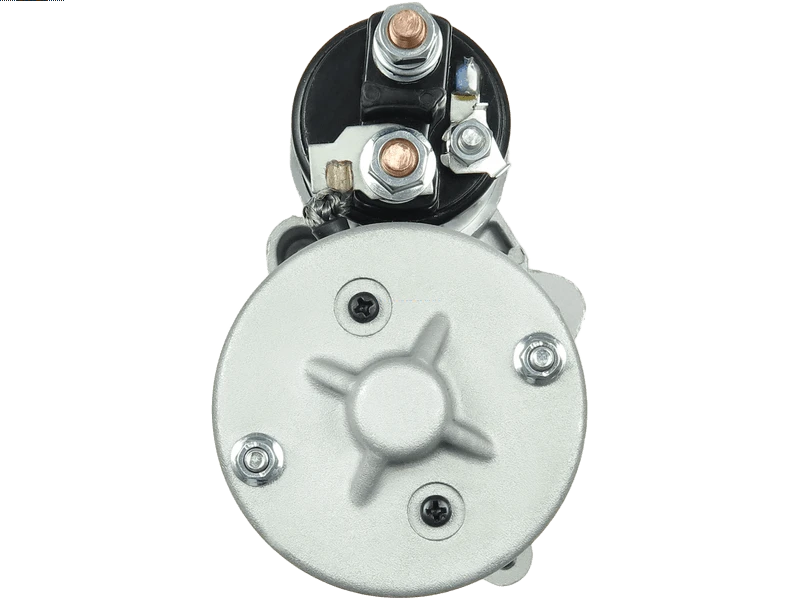

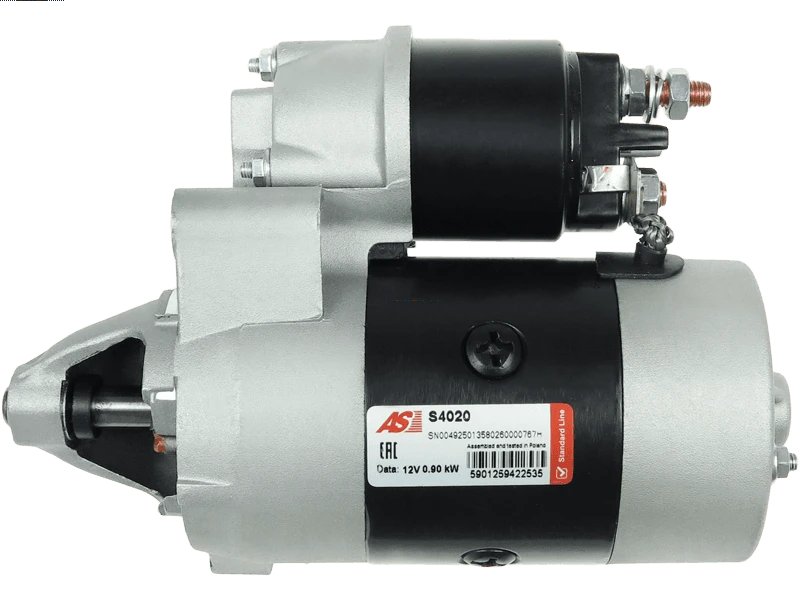

S4020 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 238.63 including GST

NZ$ 207.50 excluding GST



or four payments of $59.66 with
Afterpay Payment Offer Learn More

each
S4020
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

63103002
0986010450 10285 10536 10975 112124 11680 11895 20404121OE 20404121RC 20404611BN 22.0975 22.0975M 25-2051 31146N 35258510 35258890 3826 42001234 455872 46417006 46475793 46774415 50246648 6030116 6030121 63103002 63103007 63103022 63223031 63223101 7773812 8080043 8EA737148-001 AES1247 CS975 CST30116AS CST30116GS CST30116OS CST30121GS CST30121RS DRS3104 DRS3697 DSN577 EAA-121179 EAA-121529 LRT00147 RNL975CS S4020 SS437 SS512 STR52003
Kilowatt0.90 kW
Length (L.1)208 mm
Mount Hole Center - Center (O.1)105 mm
Mount Hole Center - Center (O.2)72 mm
Mount Hole Center - Center (O.3)72 mm
Mount Hole Diameter (C.1)M8x1.25 mm
Mount Hole Diameter (C.2)M8x1.25 mm
Mount Hole Diameter (C.3)M8x1.25 mm
No./Mount holes3 qty
No./Mount holes with thread3 qty
No./Teeth9 qty
No./Teeth (Replaces)8. 9 qty
OEM ProductNo
Pinion at Rest (B)11 mm
Product LineStandard Line
Product TypeBrand new
RotationCW
Spigot Diameter (A)64 mm
Unit TypeMAGNETI MARELLI
Voltage12 V
Make Model Type Year
CITROEN Jumpy 1.6 [1580SPI] 10.1995-
CITROEN Jumpy 1.6 [220A2.000] 10.1995-
CITROEN Jumpy 1.6 i [1580SPI] 10.1995-
CITROEN Jumpy 1.6 i [220A2.000] 10.1995-
FIAT Brava 1.6 16V EL [182A6.000] 10.1995-10.2001
FIAT Brava 1.6 16V SX [182A4.000] 02.1996-10.1998
FIAT Bravo 1.6 [182A6.000] 10.1995-10.2001
FIAT Bravo 1.6 SX [182A4.000] 03.1996-11.1998
FIAT Fiorino 1.6 [146C6.000] 12.1996-05.2001
FIAT Fiorino 1.6 [146D6.000] 12.1996-12.2001
FIAT Marea 1.6 16 V Bipower [185A3.000] 03.1999-10.1999
FIAT Marea 1.6 16 V Bipower [186A4.000] 04.1999-03.2002
FIAT Marea 1.6 i 16V [182A4.000] 09.1996-
FIAT Palio 1.4 [178B2.000] 04.1996-05.1999
FIAT Palio 1.4 [178B2.016] 04.1996-05.1999
FIAT Palio 1.6 16V [178B3.000] 04.1996-09.2001
FIAT Punto 1.4 Turbo GT [176A4.000] 03.1995-
FIAT Punto 1.4 Turbo GT [176B6.000] 09.1996-
FIAT Scudo 1.6 [220A2.000] 02.1996-
FIAT Siena 1.4 [178B2.000] 04.1996-
FIAT Siena 1.4 [178B2.016] 04.1996-
FIAT Siena 1.6 16V [178B3.000] 09.1998-
FIAT Tempra 1.6 i.e. [159B9.000] 05.1994-12.1996
FIAT Tipo 1.6 i.e. [149C2.046] 02.1988-06.1990
LANCIA Dedra 1.6 [159B9.000] 10.1994-07.1999
LANCIA Dedra 1.6 i.e. [835C1.000] 04.1995-07.1999
LANCIA Dedra 1.6 LE [159B9.000] 07.1994-04.1998
LANCIA Delta 1.4 i.e. [836A4.000] 04.1995-12.1999
LANCIA Delta 1.6 i.e. [835C1.000] 04.1995-12.1999
LANCIA Delta 1.6 i.e. LE [182A6.000] 03.1996-08.1999
LANCIA Y10 1.0 Turbo [156A1.000] 03.1985-02.1989
0986010450BOSCH
10285KUHNER
10536KUHNER
10975KUHNER
112124CARGO
11680EAI
11895EAI
20404611BNREAL
20404611OEREAL
20404611RCREAL
20404611REREAL
220051ERA
220166ERA
22.0975LAUBER
22.0975MLAUBER
25-2051ELSTOCK
31146NWAI / TRANSPO
331127LOGISTIK
35258510PRESTOLITE
35258890PRESTOLITE
3826CEVAM
42001234HERTH+BUSS
4470377FIAT
4470378FIAT
455872VALEO
46231535FIAT
46231540FIAT
46416879FIAT
46417006FIAT
46431502FIAT
46475793FIAT
46475794FIAT
46774415FIAT
500.008.093.050PSH
500.008.093.058PSH
500.008.093.265PSH
50246648MAGNETI MARELLI
5030159MEAT & DORIA
5802M1PEUGEOT
5802-M1PEUGEOT
5968605FIAT
6030116.0SANDO
6030116.1SANDO
6030116.2SANDO
6030116.4SANDO
63103002MAGNETI MARELLI
63103007MAGNETI MARELLI
63103022MAGNETI MARELLI
63223031MAGNETI MARELLI
63223085MAGNETI MARELLI
63223101MAGNETI MARELLI
63223303MAGNETI MARELLI
66925112PRESTOLITE
71721304FIAT
71721304INNOCENTI
71721310FIAT
7566528FIAT
7589547FIAT
7589655FIAT
7642573FIAT
7666528FIAT
7680615FIAT
7733966IVECO
7733966FIAT
77398430FIAT
7772462FIAT
7773812FIAT
8080043FRIESEN
88213154POWERMAX
8EA737148-001HELLA
AES1247AUTOELECTRO
ALT136240SIOM
ANM15324XANDEL
C132DENSO
CS883HC PARTS
CS975HC PARTS
CST30116ASCASCO
CST30116GSCASCO
CST30116OSCASCO
CST30116RSCASCO
DRS3104DELCO
DRS3697DELCO
DSN577DENSO
E80E1012MAGNETI MARELLI
E80E-1.0/12MAGNETI MARELLI
EL25112PRESTOLITE
F032112124CARGO
LRT00147LUCAS
LRT147LUCAS
MAV2200SIOM
MAV2200ASIOM
MAV2410SIOM
MAV321210SIOM
PRSF3273EFFE
PRSL0773EFFE
RNL975CSRNL
S12MA0659A2SIDAT
S132.720PSH
S148.771PSH
S4020AS-PL
SS437SOVEREIGN
SS512SOVEREIGN
STA0050RBOVEZ
STA0120RBOVEZ
STR52003WOODAUTO
STR9085ELECTROLOG
STRF3273EFFE
STRL0773EFFE
STRL7073EFFE
STX200162STARDAX
STX200162RSTARDAX
STX200343STARDAX
STX200343RSTARDAX
STX200689STARDAX
STX200887STARDAX
STX200887RSTARDAX
S4020
